Abstract
本实用新型公开一种医院用档案管理柜，包括柜体和铰接在柜体侧壁上的柜门，柜体内固接有若干隔板，隔板上开设有若干通风孔，隔板平行于柜体的底壁，位于顶部的隔板将柜体内分隔为上柜体和下柜体；下柜体的底部端面上开设有若干通风孔；上柜体的顶部固定安装有风机，上柜体的侧壁底部设有步进电机，并且步进电机的输出轴与上柜体的侧壁固接，上柜体内设有两个连接杆和收纳柜组件，连接杆的一端固接在步进电机的输出轴上，连接杆的另一端与收纳柜组件铰接；上柜体上固接有固定组件，收纳柜组件上固接有与固定组件可拆卸连接的卡接件。本实用新型可实现保持档案表面干燥洁净，同时提高管理柜高处的利用率和拿取便捷性。
The utility model discloses a file management cabinet for a hospital, comprising a cabinet body and a cabinet door hinged on the side wall of the cabinet body. The bottom wall of the cabinet, the partition at the top divides the cabinet into the upper cabinet and the lower cabinet; the bottom end face of the lower cabinet is provided with a number of ventilation holes; the top of the upper cabinet is fixedly installed with a fan, and the upper cabinet is There is a stepping motor at the bottom of the side wall, and the output shaft of the stepping motor is fixedly connected with the side wall of the upper cabinet. There are two connecting rods and a storage cabinet assembly in the upper cabinet, and one end of the connecting rod is fixed on the stepping motor. On the output shaft of the connecting rod, the other end of the connecting rod is hinged with the storage cabinet assembly; the upper cabinet body is fixed with a fixed assembly, and the storage cabinet assembly is fixed with a clamping piece that is detachably connected with the fixed assembly. The utility model can keep the surface of the file dry and clean, and at the same time improve the utilization rate of the high place of the management cabinet and the convenience of taking it.
Description
Technical Field
The utility model relates to the field of medical instruments, in particular to a hospital file management cabinet.
Background
The file cabinets used in hospitals are mostly used for storing cases, case files are files formed by medical staff in medical activities such as inquiry, examination, diagnosis, treatment and nursing of patients, the case files are not only summaries of clinical practice works, but also are legal bases for exploring disease laws and handling medical disputes, and have important functions on medical treatment, prevention, teaching, scientific research, hospital management and the like.
The current case archives are paper archives, and the paper archives are easy to be affected with damp and mildewed due to poor ventilation condition when being actually stored, so that the case archives are damaged. Most of the existing file management cabinets for hospitals do not have good moisture-proof and mildew-proof functions. In addition, when medical staff used the present file management cabinet for hospital to look up and deposit archives, there was the inconvenient problem of taking when the archives to higher department, lead to the utilization ratio of higher department in the cabinet and the convenience of taking lower.
Therefore, a new file management cabinet is needed to solve the above problems, so as to keep the surface of the file dry and clean, and improve the utilization rate of the high place of the file management cabinet and the taking convenience.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a hospital file management cabinet, which solves the problems in the prior art, can keep the surface of a file dry and clean, and simultaneously improves the utilization rate and the taking convenience of the management cabinet at high positions.
In order to achieve the purpose, the utility model provides the following scheme: the utility model provides a file management cabinet for hospitals, which comprises a cabinet body and a cabinet door hinged on the side wall of the cabinet body, wherein a plurality of partition plates are fixedly connected in the cabinet body, a plurality of vent holes are formed in the partition plates, the partition plates are parallel to the bottom wall of the cabinet body, and the partition plates positioned at the top part divide the interior of the cabinet body into an upper cabinet body and a lower cabinet body; the bottom end face of the lower cabinet body is provided with a plurality of ventilation holes; one side of the clapboard positioned at the top, which is close to the cabinet door, is provided with a movable opening;
a fan is fixedly installed at the top of the upper cabinet body and is communicated with the inner cavity of the upper cabinet body, a stepping motor is arranged at the bottom of the side wall of the upper cabinet body, an output shaft of the stepping motor penetrates through the upper cabinet body, the output shaft of the stepping motor is fixedly connected with the side wall of the upper cabinet body through a sealing bearing, two connecting rods and a containing cabinet assembly arranged between the two connecting rods are arranged in the upper cabinet body, one end of each connecting rod is fixedly connected to the output shaft of the stepping motor, and the other end of each connecting rod is hinged to the tops of two outer side walls opposite to the containing cabinet assembly; go up keeping away from of the cabinet body the rigid coupling has fixed subassembly on the inside wall of cabinet door, it is close to accomodate cabinet subassembly the rigid coupling has with fixed subassembly can dismantle the joint spare of connection on the lateral wall of fixed subassembly.
Preferably, the containing cabinet assembly comprises a first cabinet body, the side wall of the first cabinet body, which is close to the cabinet door, is provided with an opening, a transverse plate is fixedly connected in the first cabinet body, and the transverse plate divides the first cabinet body into an upper layer area and a lower layer area which are the same in height;
the tip of connecting rod with the top of two lateral walls that upper strata region is relative is articulated, lower floor's region is close to on the lateral wall of fixed subassembly the rigid coupling have joint spare, joint spare with fixed subassembly can dismantle the connection.
Preferably, two oppositely arranged clamping assemblies are fixedly connected to two side walls of the upper layer area adjacent to the opening, and two oppositely arranged clamping assemblies are fixedly connected to two side walls of the lower layer area adjacent to the opening;
the clamping assembly comprises a plurality of springs and a clamping plate fixedly connected to one ends of the springs; the springs are arranged at intervals in sequence, and the other ends of the springs are fixedly connected to the side walls of the upper layer area and the lower layer area.
Preferably, the fixing assembly comprises a clamping seat fixedly connected to the inner side wall of the upper cabinet body, a clamping groove is formed in the end face, close to the clamping piece, of the clamping seat, and the clamping piece is detachably connected with the clamping groove;
the bottom rigid coupling in joint groove has the arc lug, set up on the joint spare with the arc recess that the connection can be dismantled to the arc lug.
Preferably, a plurality of first grooves which are arranged at intervals in sequence are formed in the inner side wall, far away from the cabinet door, of the lower cabinet body, and vertical plates are detachably connected in the first grooves.
Preferably, the four corners of the bottom of the lower cabinet body are fixedly provided with a support, the support is rotatably connected with pulleys, the support is provided with a brake buckle, the bottom of the lower cabinet body is detachably connected with a dust collection box, and the bottom of the lower cabinet body is provided with a dust inlet communicated with the dust collection box.
Preferably, the inner wall of the upper cabinet body is fixedly provided with an ultraviolet disinfection lamp, and the ultraviolet disinfection lamp, the fan and the stepping motor are electrically connected with a controller.
Preferably, can dismantle in the air outlet of fan and be connected with double-deck filter screen, be equipped with the dry layer in the double-deck filter screen.
The utility model discloses the following technical effects:
the top of the upper cabinet body is fixedly provided with a fan, a plurality of partition plates are fixedly connected in the cabinet body, a plurality of vent holes are formed in the partition plates, a plurality of vent holes are formed in the bottom end face of the lower cabinet body, the fan enters the cabinet body for ventilation in a blowing mode, wind circulates in the cabinet body through the vent holes, and scraps in the cabinet body are blown out while moisture in the cabinet body is taken away, so that the surface of a file is kept dry and clean; the bottom of the side wall of the upper cabinet body is provided with a stepping motor, an output shaft of the stepping motor is fixedly connected with the side wall of the upper cabinet body, two connecting rods and a containing cabinet assembly are arranged in the upper cabinet body, one end of each connecting rod is fixedly connected onto the output shaft of the stepping motor, and the other end of each connecting rod is hinged with the containing cabinet assembly; the step motor is controlled to rotate to drive the connecting rod to rotate, the containing cabinet assembly is moved from a higher position to a horizontal lower position in the cabinet body, and therefore files at the higher position in the management cabinet can be conveniently taken, and the utilization rate of the high position of the management cabinet and the taking convenience are greatly improved; after taking and finishing, the reverse rotation of the stepping motor is controlled to move the storage cabinet assembly to a higher position, the clamping piece and the fixing assembly are detachably connected, the storage cabinet assembly is fixed, and the stability of the management cabinet is improved.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.

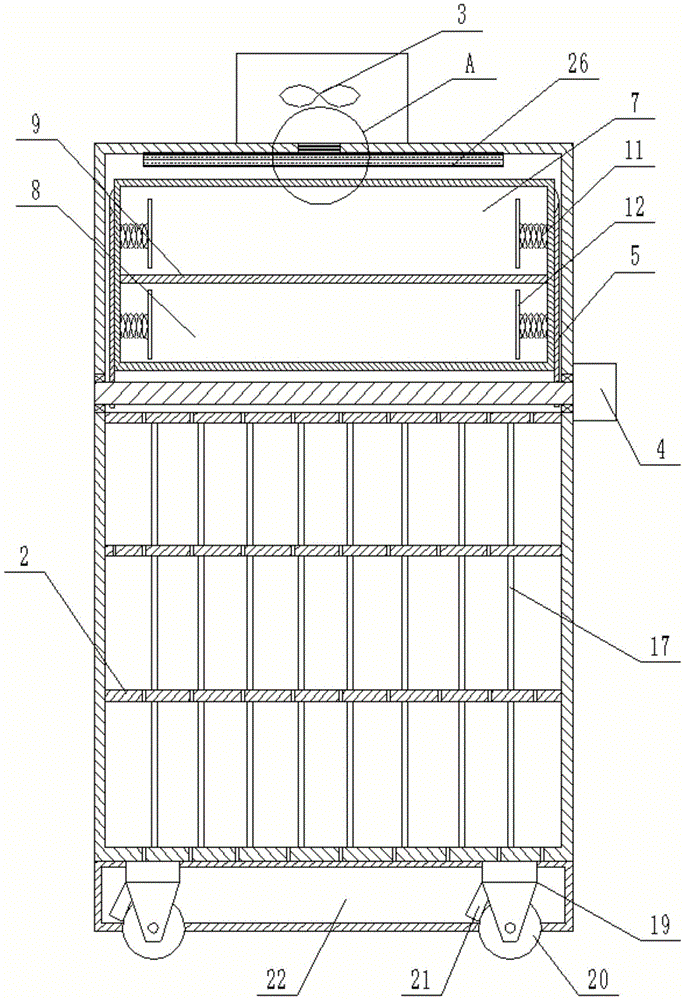

FIG. 1 is a schematic structural view of a file management cabinet for hospitals according to the present invention;
FIG. 2 is an enlarged view of a portion of FIG. 1;
FIG. 3 is a left side sectional view of the file management cabinet for hospitals according to the present invention;
FIG. 4 is a partial enlarged view of B in FIG. 3;
wherein, 1, a cabinet door; 2. a partition plate; 3. a fan; 4. a stepping motor; 5. a connecting rod; 6. a clamping piece; 7. A first cabinet; 9. a transverse plate; 11. a spring; 12. a splint; 13. a clamping seat; 14. a clamping groove; 15. an arc-shaped bump; 16. an arc-shaped groove; 17. a first groove; 18. a vertical plate; 19. a support; 20. a pulley; 21. a brake buckle; 22. a dust collection box; 23. a dust inlet; 24. double-layer filter screens; 25. drying the layer; 26. an ultraviolet disinfection lamp.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In order to make the aforementioned objects, features and advantages of the present invention comprehensible, embodiments accompanied with figures are described in further detail below.
Referring to fig. 1-4, the utility model provides a file management cabinet for hospitals, which comprises a cabinet body and a cabinet door 1 hinged on the side wall of the cabinet body, wherein a plurality of partition plates 2 are fixedly connected in the cabinet body, a plurality of vent holes are formed in the partition plates 2, the partition plates 2 are parallel to the bottom wall of the cabinet body, and the partition plates 2 positioned at the top part divide the interior of the cabinet body into an upper cabinet body and a lower cabinet body; a plurality of vent holes are formed in the end surface of the bottom of the lower cabinet body; a movable opening is formed in one side, close to the cabinet door 1, of the partition plate 2 positioned at the top; with the arrangement, the movable opening can avoid interference with the partition plate 2 positioned at the top when the containing cabinet assembly moves;
the top of the upper cabinet body is fixedly provided with a fan 3, the fan 3 is communicated with the inner cavity of the upper cabinet body, the bottom of the side wall of the upper cabinet body is provided with a stepping motor 4, an output shaft of the stepping motor 4 penetrates through the upper cabinet body, the output shaft of the stepping motor 4 is fixedly connected with the side wall of the upper cabinet body through a sealing bearing, two connecting rods 5 and a containing cabinet assembly arranged between the two connecting rods 5 are arranged in the upper cabinet body, one end of each connecting rod 5 is fixedly connected onto the output shaft of the stepping motor 4, and the other end of each connecting rod 5 is hinged with the tops of two outer side walls opposite to the containing cabinet assembly; a fixing component is fixedly connected to the inner side wall, far away from the cabinet door 1, of the upper cabinet body, and a clamping component 6 detachably connected with the fixing component is fixedly connected to the outer side wall, close to the fixing component, of the containing cabinet component; with the arrangement, the fan 3 blows air into the cabinet body for ventilation, and the air circulates in the cabinet body through the ventilation holes to take away water in the cabinet body and blow out scraps in the cabinet body, so that the surface of a file is kept dry and clean; the step motor 4 is controlled to rotate to drive the connecting rod 5 to rotate, the storage cabinet assembly is moved from a higher position to a horizontal lower position in the cabinet body, and the storage cabinet assembly is hinged with the connecting rod 5 through the hinge seat, so that the storage cabinet assembly can move in a vertical state in the rotating process of the connecting rod 5 by means of the storage cabinet assembly and the gravity of a file placed in the storage cabinet assembly, and the storage cabinet assembly is prevented from rotating to cause the file to tip over; therefore, files at higher positions in the management cabinet can be conveniently taken, and the utilization rate and the taking convenience of the management cabinet at high positions are greatly improved; after the taking is finished, the stepping motor 4 is controlled to rotate reversely to move the containing cabinet assembly to a higher position, so that the containing cabinet assembly is automatically lifted; can dismantle with fixed subassembly through joint spare 6 and be connected, realize accomodating the fixed of cabinet subassembly, increase the stability of management cabinet.
According to a further optimized scheme, the containing cabinet assembly comprises a first cabinet body 7, the side wall, close to the cabinet door 1, of the first cabinet body 7 is provided with an opening, a transverse plate 9 is fixedly connected into the first cabinet body 7, the transverse plate 9 divides the first cabinet body 7 into an upper layer area and a lower layer area which are the same in height, and a stop lever (not shown in the figure) is fixedly connected to the bottom wall of the first cabinet body 7 and the top wall of the transverse plate 9, close to the opening;
the end parts of the connecting rods 5 are hinged with the tops of the two outer side walls opposite to the upper layer area, the outer side wall of the lower layer area close to the fixing component is fixedly connected with a clamping piece 6, and the clamping piece 6 is detachably connected with the fixing component; so set up, archives can all be deposited in upper strata region and lower floor region, and the archives of putting into block through shelves pole in uncovered department, further avoid first cabinet body 7 to drop at lift removal in-process shelves.
According to the further optimized scheme, two oppositely arranged clamping components are fixedly connected to two side walls of the upper layer area adjacent to the opening, and two oppositely arranged clamping components are fixedly connected to two side walls of the lower layer area adjacent to the opening;
the clamping assembly comprises a plurality of springs 11 and a clamping plate 12 fixedly connected to one end of each spring 11; a plurality of springs 11 are arranged at intervals in sequence, and the other ends of the springs 11 are fixedly connected to the side walls of the upper layer area and the lower layer area; so set up, the archives are put into upper strata region and lower floor region back, and the extrusion through spring 11 drives splint 12 and presss from both sides the archives both sides tightly for archives are placed more regularly and firmly, and the personnel of being convenient for carry out the archives and seek, increase the stability that archives were placed, further avoid first cabinet body 7 to drop at lift removal in-process archives simultaneously.
According to a further optimized scheme, the fixing assembly comprises a clamping seat 13 fixedly connected to the inner side wall of the upper cabinet body, a clamping groove 14 is formed in the end face, close to the clamping piece 6, of the clamping seat 13, and the clamping piece 6 is detachably connected with the clamping groove 14;
the bottom of the clamping groove 14 is fixedly connected with an arc-shaped convex block 15, and the clamping piece 6 is provided with an arc-shaped groove 16 which is detachably connected with the arc-shaped convex block 15; so set up, when the first cabinet body 7 resumes to higher position from the lower position of level, 6 cards of joint spare on the lateral wall of the first cabinet body 7 go into the joint inslot 14, the arc lug 15 and the 16 joint of arc recess of the arc lug of joint groove 14 bottom for joint spare 6 is firm with 14 joints in joint groove, and then make the partial weight bearing of the first cabinet body 7 on the inside wall of the last cabinet body, reduce the bearing power of step motor 4 output shaft to the first cabinet body 7, prolong step motor 4's life.
According to a further optimized scheme, a plurality of first grooves 17 which are arranged at intervals in sequence are formed in the inner side wall, far away from the cabinet door 1, of the lower cabinet body, and vertical plates 18 are detachably connected in the first grooves 17; the quantity of riser 18 and the volume of placing of archives according to specific service environment in with the joint position of first recess set for, and riser 18 is internal with the vertical fixed cabinet down of archives, separates according to the categorised requirement of archives and places, is convenient for seek and take archives.
According to a further optimized scheme, supports 19 are fixedly mounted at four corners of the bottom of the lower cabinet body, pulleys 20 are rotatably connected to the supports 19, brake buckles 21 are arranged on the supports 19, a dust collection box 22 is detachably connected to the bottom of the lower cabinet body, and a dust inlet 23 communicated with the dust collection box 22 is formed in the bottom of the lower cabinet body; by the arrangement, the management cabinet can be freely moved through the pulley 20, the convenience of the management cabinet is improved, the management cabinet is fixed through the brake buckle 21 when the management cabinet is moved to a required position, and the specific models and the connection structures of the pulley 20 and the brake buckle 21 are the prior art and are not described again; under the effect of the circulating air blown from the top of the upper cabinet body by the fan 3, the circulating air enters the lower cabinet body through the vent hole, the dust in the lower cabinet body is blown out to the dust collection box 22 through the dust inlet 23, and after more dust is accumulated in the dust collection box 22, the dust collection box 22 is detached from the bottom of the lower cabinet body for cleaning.
According to a further optimized scheme, an ultraviolet disinfection lamp 26 is fixedly mounted on the inner wall of the upper cabinet body, and the ultraviolet disinfection lamp 26, the fan 3 and the stepping motor 4 are all electrically connected with a controller; the ultraviolet disinfection lamp 26 can sterilize the cabinet body, so that cross contamination caused by germs on the files is avoided; the controller is preferably a single chip microcomputer, and the controller controls the opening and closing of the ultraviolet disinfection lamp 26 and the fan 3 and the rotation angle of the stepping motor 4, so that automatic control is realized, and the operation cost of personnel is reduced.
Further optimize the scheme, can dismantle in fan 3's the air outlet and be connected with double-deck filter screen 24, be equipped with dry layer 25 in the double-deck filter screen 24, through the dust in the double-deck filter screen 24 interception outside air, through the moisture in the dry layer 25 absorption outside air for fan 3 drum keeps dry clean to circulate the wind in the internal chamber of cabinet.
Instructions for use:
the ultraviolet disinfection lamp 26 and the fan 3 are started, the cabinet door is opened, the files to be stored are sequentially placed in the lower cabinet body, the vertical plates 18 are inserted into the first grooves 17, and the files are separately placed according to the classification requirements of the files;
when the files in the upper cabinet body need to be taken and searched, the stepping motor 4 is controlled to rotate, so that the connecting rod 5 is driven to rotate, the first cabinet body 7 is moved from a higher position to a horizontal lower position in the cabinet body, and the files in the higher position in the management cabinet can be conveniently taken; after the files are placed in the upper layer area and the lower layer area of the first cabinet body 7, the clamping plates 12 are driven to clamp the two sides of the files through the extrusion of the springs 11, so that the files are placed more regularly and firmly, and the files can be conveniently searched by personnel;
after the taking is finished, the stepping motor 4 is controlled to rotate reversely to move the first cabinet body 7 to a higher position, so that the automatic lifting of the containing cabinet assembly is realized; can dismantle with fixed subassembly through joint spare 6 and be connected, realize accomodating the fixed of cabinet subassembly.
In the description of the present invention, it is to be understood that the terms "longitudinal", "lateral", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on those shown in the drawings, are merely for convenience of description of the present invention, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention.
The above-described embodiments are merely illustrative of the preferred embodiments of the present invention, and do not limit the scope of the present invention, and various modifications and improvements of the technical solutions of the present invention can be made by those skilled in the art without departing from the spirit of the present invention, and the technical solutions of the present invention are within the scope of the present invention defined by the claims.
