CN215899170U - A filing cabinet for multi-functional and high-capacity human resource management

Info

Publication number: CN215899170U
Application number: CN202121703827.0U
Authority: CN
Inventors: 杨新生
Original assignee: Individual
Current assignee: Shanghai Xinhui Labor Dispatch Co ltd
Priority date: 2021-07-26
Filing date: 2021-07-26
Publication date: 2022-02-25
Anticipated expiration: 2031-07-26

Abstract

The utility model discloses a multifunctional and high-capacity human resource management filing cabinet, which comprises a cabinet body, two sets of cabinet doors are installed on the left and right sides of the front surface of the cabinet body, and vertical plates are installed inside the cabinet body, so that the Both the inner wall of the cabinet and the surface of the vertical plate are provided with a chute, a first partition and a second partition are slidably connected in the chute, and balls are embedded on the upper surfaces of the first partition and the second partition. The first partition plate and the second partition plate are both hollow, and the inside of the first partition plate and the second partition plate are both slidably connected with sliders, and the opposite faces of the two sets of sliders are movably connected through pin shaft seats. There are connecting plates, the extension plates are fixedly connected between the two groups of connecting plates, and the inner walls of the first partition plate and the second partition plate are fixedly connected with the corresponding sliders through tension springs. The two partitions are double-adjusted, which can store different files, make full use of the space of the cabinet, effectively increase the storage capacity, and have high flexibility in use.

Description

Filing cabinet that multi-functional high capacity manpower resources management used

Technical Field

The utility model relates to the technical field of file cabinets, in particular to a multifunctional high-capacity file cabinet for human resource management.

Background

In the manpower resource management work, the file cabinet for storing the file data is often needed, the file cabinet not only enables the data to be stored neatly and normatively and is convenient to look up, but also plays a role in protecting the data, and is a more traditional file storage harness. The existing file cabinet is usually separated into a small storage room by a partition plate, and because the paper size and the thickness of files are different, the storage capacity of the file data is smaller, the storage requirement of the file data cannot be met, and the waste of the storage space is caused. Therefore, a multifunctional file cabinet for high-capacity human resource management is provided.

SUMMERY OF THE UTILITY MODEL

The present invention is directed to a file cabinet for multi-functional high-capacity human resource management, so as to solve the problems mentioned in the background art.

In order to achieve the purpose, the utility model provides the following technical scheme: a multifunctional high-capacity file cabinet for human resource management comprises a cabinet body, wherein four corners of the lower surface of the cabinet body are respectively provided with a supporting pad, two groups of cabinet doors are arranged on the left side and the right side of the front surface of the cabinet body, the cabinet doors are movably connected with the cabinet body through two groups of hinges, the two groups of hinges are positioned on the upper side and the lower side of the cabinet doors, the surfaces of the cabinet doors are provided with an observation window and a note box, and the middle parts of the surfaces of the cabinet doors are provided with handles;

a vertical plate is arranged inside the cabinet body, sliding grooves are formed in the inner wall of the cabinet body and the surfaces of the vertical plate, a first partition plate and a second partition plate are connected in the sliding grooves in a sliding mode, balls are embedded in the upper surfaces of the first partition plate and the second partition plate, and the balls abut against the inner wall of the sliding grooves;

the first partition plate and the second partition plate are both hollow, slide blocks are slidably connected inside the first partition plate and the second partition plate, the opposite surfaces of the two groups of slide blocks are movably connected with connecting plates through pin shaft seats, an extension plate is fixedly connected between the two groups of connecting plates, and the inner walls of the first partition plate and the second partition plate are fixedly connected with the corresponding slide blocks through tension springs;

the improved cabinet is characterized in that an air ventilating fan is mounted on the upper surface of the cabinet body, an air outlet end of the air ventilating fan is communicated with a pipeline, the pipeline is mounted inside the vertical plate, the pipeline is communicated with the interior of the cabinet body, an activated carbon box is arranged at an air inlet end of the air ventilating fan, and a ventilating cover is arranged at the upper end of the activated carbon box.

Compared with the prior art, the utility model has the beneficial effects that: the size of the storage lattice in the cabinet body can be changed by adjusting the positions of the first partition plate and the second partition plate, the storage lattice can be flexibly stored according to different files, the extension plate can be drawn out by pulling the first partition plate and the second partition plate, the first partition plate and the second partition plate can be arranged in the sliding chutes with different heights, the internal space of the cabinet body can be fully utilized, space waste is avoided, the ventilation fan can keep the air circulation in the cabinet body, the mildew is prevented, the activated carbon box is used for filtering the air, and the cleanliness in the cabinet body is improved;

the utility model can carry out double adjustment on the first partition board and the second partition board, can store different files, fully utilizes the space of the cabinet body, effectively improves the storage capacity, and has higher use flexibility, thereby effectively solving the problems and the defects provided by the utility model.

Drawings

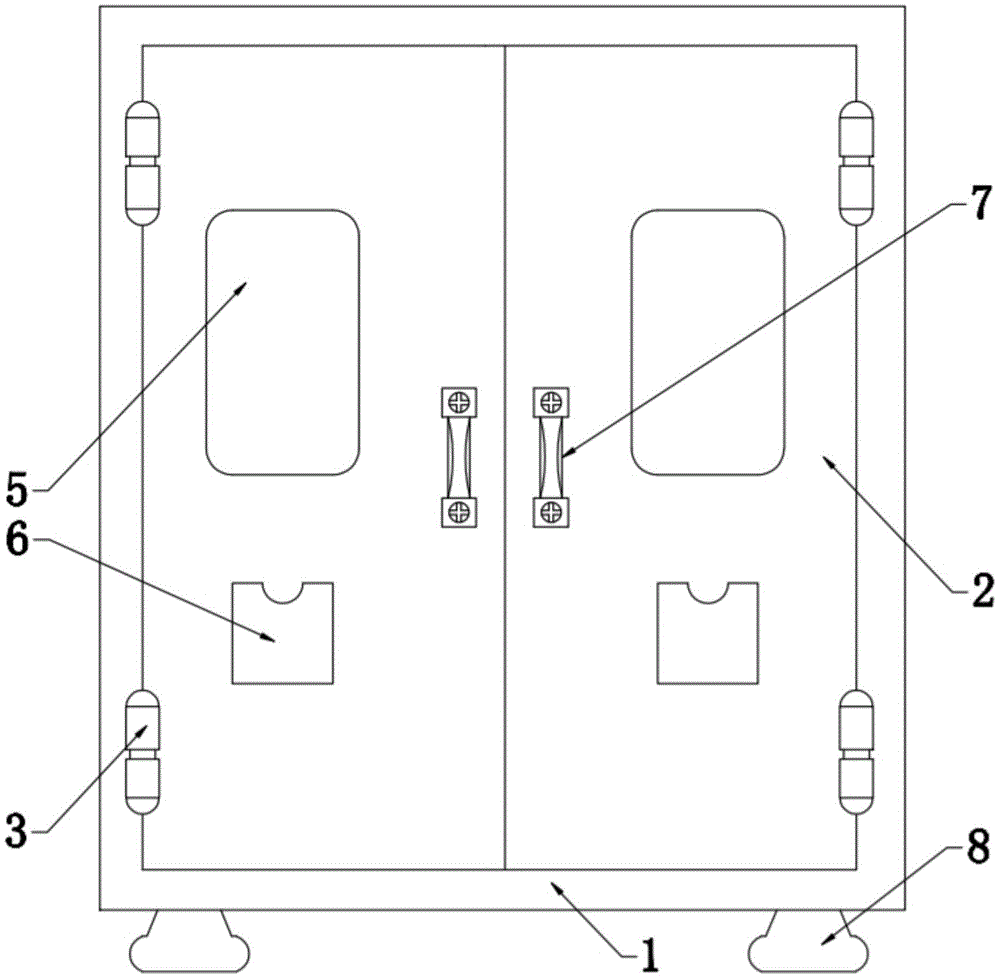

FIG. 1 is a schematic cross-sectional view of the present invention;

FIG. 2 is a schematic structural view of the connection between the cabinet body and the vertical plate;

fig. 3 is a schematic structural view of the connection of the first separator and the second separator according to the present invention.

In the figure: 1. a cabinet body; 2. a cabinet door; 3. a hinge; 5. an observation window; 6. a note box; 7. a handle; 8. a support pad; 9. a chute; 10. a first separator; 11. a second separator; 12. a ball bearing; 13. a tension spring; 14. a slider; 15. a pin shaft seat; 16. a connecting plate; 17. an extension plate; 18. ventilating fans; 19. a pipeline; 20. a vertical plate; 21. an activated carbon cartridge; 22. and (7) a ventilation cover.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a multifunctional high-capacity file cabinet for human resource management comprises a cabinet body 1, wherein two groups of cabinet doors 2 are mounted on the left side and the right side of the front surface of the cabinet body 1, and the cabinet doors 2 are used for blocking the cabinet body 1, so that a sealed space is formed inside the cabinet body 1;

a vertical plate 20 is arranged inside the cabinet body 1, sliding grooves 9 are formed in the inner wall of the cabinet body 1 and the surfaces of the vertical plate 20, a first partition plate 10 and a second partition plate 11 are connected in the sliding grooves 9 in a sliding mode, balls 12 are embedded in the upper surfaces of the first partition plate 10 and the second partition plate 11, the balls 12 are connected with the sliding grooves 9 in a rolling mode, and labor is saved when the first partition plate 10 and the second partition plate 11 are pushed and pulled;

first baffle 10 and second baffle 11 all are hollow setting, and

first baffle

10 and 11 inside equal sliding joint of second baffle have slider 14, and are two sets of 14 relative faces of slider all have connecting plate 16 through 15 swing joint of round pin axle bed, fixed connection extension plate 17 between two sets of connecting plates 16,

first baffle

10 and 11 inner walls of second baffle all through extension spring 13 and the 14 fixed connection of slider that correspond, under extension spring 13's effect,

first baffle

10 and 11 covers on extension plate 17 surface of second baffle 11, guarantee that

first baffle

10 and 11 butt joints of second baffle are in the same place.

Specifically, cabinet door 2 is through two sets of

hinges

3 and 1 swing joint of the cabinet body, and hinge 3 makes things convenient for cubical switchboard door 2.

Specifically, 2 surfaces of cabinet door are equipped with observation window 5 and

memo box

6, 2 surfaces of cabinet door middle parts are equipped with handle 7, and observation window 5 is used for looking over the archives in the cabinet body 1 fast, and classification memo can be deposited to memo box 6, is favorable to the archives to be categorized, and handle 7 conveniently opens cabinet door 2.

Specifically, 1 surface mounting of the cabinet body has ventilation fan 18, ventilation fan 18's the end of giving vent to anger communicates with pipeline 19, pipeline 19 is installed inside riser 20, and pipeline 19 and the internal portion of cabinet intercommunication, ventilation fan 18 inlet end is equipped with activated carbon box 21, and activated carbon box 21 is used for the splendid attire active carbon, activated carbon box 21 upper end is equipped with ventilative lid 22, and ventilation fan 18 lets in the internal portion of cabinet with the air after activated carbon box 21 filters, keeps the internal portion dry ventilation of cabinet.

Specifically, four corners of the lower surface of the cabinet body 1 are all provided with supporting pads 8, and the supporting pads 8 not only support the cabinet body 1, but also prevent the lower surface of the cabinet body 1 from being corroded.

Specifically, when in use, the corresponding cabinet door 2 is pulled open by the handle 7, then the first partition board 10 and the second partition board 11 are adjusted to be inserted into the chutes 9 with different heights according to the size of a file, under the action of the balls 12, the friction force between the first partition board 10 and the inner wall of the chute 9 and the friction force between the second partition board 11 and the inner wall of the chute 9 can be reduced, the first partition board 10 and the second partition board 11 are convenient to install, if the first partition board 10 and the second partition board 11 need to be adjusted for the second time, the first partition board 10 and the second partition board 11 are completely pulled out from the chute 9, the first partition board 10 and the second partition board 11 are pulled in opposite directions at the same time until the extension board 17 is completely leaked out, under the action of the pin shaft seat 1, the extension board 17 is rotated to enable the first partition board 10, the extension board 17 and the second partition board 11 to be perpendicular to each other, and then the first partition board 10 and the second partition board 11 are inserted into the chutes 9 with different heights to complete the second adjustment, the fan 18 of ventilating is started, and the fan 18 of ventilating absorbs the inside air of active carbon box 21, and active carbon box 21 purifies the air, and the air lets in the cabinet body 1 inside through pipeline 19 after that, keeps the inside dry ventilation of the cabinet body 1, is favorable to protecting archives.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a filing cabinet that multi-functional high capacity manpower resources management used, includes the cabinet body (1), its characterized in that: two groups of cabinet doors (2) are arranged on the left side and the right side of the front surface of the cabinet body (1), a vertical plate (20) is arranged in the cabinet body (1), the inner wall of the cabinet body (1) and the surface of the vertical plate (20) are both provided with a sliding chute (9), a first clapboard (10) and a second clapboard (11) are connected in the sliding chute (9) in a sliding way, balls (12) are embedded in the upper surfaces of the first partition plate (10) and the second partition plate (11), the first clapboard (10) and the second clapboard (11) are both arranged in a hollow way, sliding blocks (14) are respectively connected in the first partition plate (10) and the second partition plate (11) in a sliding way, the opposite surfaces of the two groups of sliding blocks (14) are respectively movably connected with connecting plates (16) through pin shaft seats (15), extension plates (17) are fixedly connected between the two groups of connecting plates (16), the inner walls of the first partition board (10) and the second partition board (11) are fixedly connected with the corresponding sliding blocks (14) through tension springs (13).

2. The filing cabinet of claim 1, wherein: the cabinet door (2) is movably connected with the cabinet body (1) through two groups of hinges (3).

3. The filing cabinet of claim 1, wherein: the surface of the cabinet door (2) is provided with an observation window (5) and a note box (6), and the middle part of the surface of the cabinet door (2) is provided with a handle (7).

4. The filing cabinet of claim 1, wherein: the improved ventilating cabinet is characterized in that an ventilating fan (18) is installed on the upper surface of the cabinet body (1), the air outlet end of the ventilating fan (18) is communicated with a pipeline (19), the pipeline (19) is installed inside a vertical plate (20), the pipeline (19) is communicated with the inside of the cabinet body (1), an activated carbon box (21) is arranged at the air inlet end of the ventilating fan (18), and a ventilating cover (22) is arranged at the upper end of the activated carbon box (21).

5. The filing cabinet of claim 1, wherein: four corners of the lower surface of the cabinet body (1) are provided with supporting pads (8).
