Abstract

A special patient clothing for a wound repair ward effectively solves the problems that the existing patient clothing is not beneficial to wearing by patients with large-area skin wounds, and the private parts of the patients are not conveniently shielded during medicine application; the split coat comprises a split coat and split pants, wherein the left side and the right side of the split coat are respectively provided with a coat body slit which is internally and externally communicated, the track of the coat body slit penetrates from the upper sleeve opening of the split coat to the lower hem of the split coat along the side seam position of the split coat, the front side and the rear side of the two coat body slits are respectively provided with a rope sleeve, the inside of each rope sleeve is connected with a pull rope which penetrates through the inside of the rope sleeve and has elasticity, the front side and the rear side of the inside of the split coat are respectively provided with a multi-polymer film auxiliary material which is contacted with the rope sleeves, the two multi-polymer film auxiliary materials have self-adhesiveness and can be mutually adhered at the slit positions of the coat bodies, the side seams of the split pants legs are provided with trouser slits which are internally and externally communicated, and the rear side of the split crotch part is provided with a lower body shielding device; the structure is simple, the operation is convenient, the conception is novel, and the practicability is strong.

Description

Special patient clothing of ward is restoreed to surface of a wound

Technical Field

The utility model relates to the technical field of medical nursing, in particular to a patient clothing special for a wound repair ward.

Background

The wound surface is damage of normal skin (tissue) caused by external injury factors such as surgical operation, external force, heat, current, chemical substances, low temperature and internal factors of an organism such as local blood supply obstacle, and the like, the damage is accompanied by the damage of the integrity of the skin and the loss of a certain amount of normal tissue, meanwhile, the normal function of the skin is damaged, the wound is called as wound or trauma, and the wound surface repair is wound repair; aiming at the problem that patient clothes are impossible or scarce in the wound repair and nursing process, the patient clothes mainly have the functions of shielding privacy parts of patients and preventing the wound from directly contacting a bed sheet; the utility model discloses a be disclosed in CN210054714U in the utility model patent publication number in china a patient clothing for burn surgery, it makes different positions can dismantle through installing the zip fastener in a plurality of different positions of patient clothing department, and then realize the effect that the patient of being convenient for dressed, this kind of mode seems reasonable, but when in actual use, detachable sleeve and trouser legs lose easily and inconvenient assembly, the zip fastener slides and can scratch the bandage on the surface of a wound or the surface of a wound when touching exposure treatment in addition, especially to because of electrocuteeing, the patient that burn and scald lead to large tracts of land skin wound, arouse the wound liquid because of abrupt decorations such as zip fastener, the condition frequent emergence that is unfavorable for the surface of a wound recovery such as infection, be unfavorable for the healing and the restoration of patient's surface of a wound.

SUMMERY OF THE UTILITY MODEL

In view of the above situation, the present invention aims to provide a patient garment for wound repair in a ward, which effectively solves the problems that the existing patient garment is not suitable for patients with large-area skin trauma to wear and is inconvenient to shield private parts of patients when applying medicine.

The technical scheme includes that the split jacket comprises a split jacket and split pants, wherein the left side and the right side of the split jacket are respectively provided with a jacket body slit which is communicated from inside to outside, the path of the jacket body slit penetrates from the upper jacket sleeve opening of the split to the lower hem of the split jacket along the side seam position of the jacket body, the front side and the rear side of the two jacket body slits are respectively provided with a rope sleeve, the inside of each rope sleeve is connected with a pull rope which penetrates through the jacket body and has elasticity, the front side and the rear side of the inside of the split jacket are respectively provided with poly film auxiliary materials which are in contact with the rope sleeves, the two poly film auxiliary materials have self-adhesion and can be mutually adhered at the jacket body slits, the side seams of the legs of the split pants are provided with inner and outer communicated legs, and the rear side of the crotch of the split crotch is provided with a lower body shielding device.

Compared with the prior art, the utility model has the beneficial effects that: the operation that the arm penetrates through the sleeve is cancelled, the arm of a patient is effectively prevented from being scratched by clothes when the patient is exposed for treatment, the patient can wear the clothes conveniently, the limiting adhesive tapes are arranged on the left side and the right side of the clothes body, the chest of the patient is prevented from being exposed, the poly-film auxiliary materials which can be mutually bonded are arranged on the two sides of the clothes body slit, so that the clothes body slit can be conveniently closed after the patient wears the clothes, the two poly-film auxiliary materials can be prevented from being accidentally separated when the corresponding ends of the two pull ropes are tied together, and therefore, the contact between particle foreign matters in the environment and the wound surface of the patient is effectively prevented, and the cross infection of the patient is avoided; the openable cloth bag is arranged at the crotch part of the open crotch trousers, and the shielding cloth is additionally arranged at the two sides of the cloth bag, so that the private parts of the patient can be comprehensively protected, and the patient can conveniently go to the toilet; the structure is simple, the operation is convenient, the conception is novel, and the practicability is strong.

Drawings

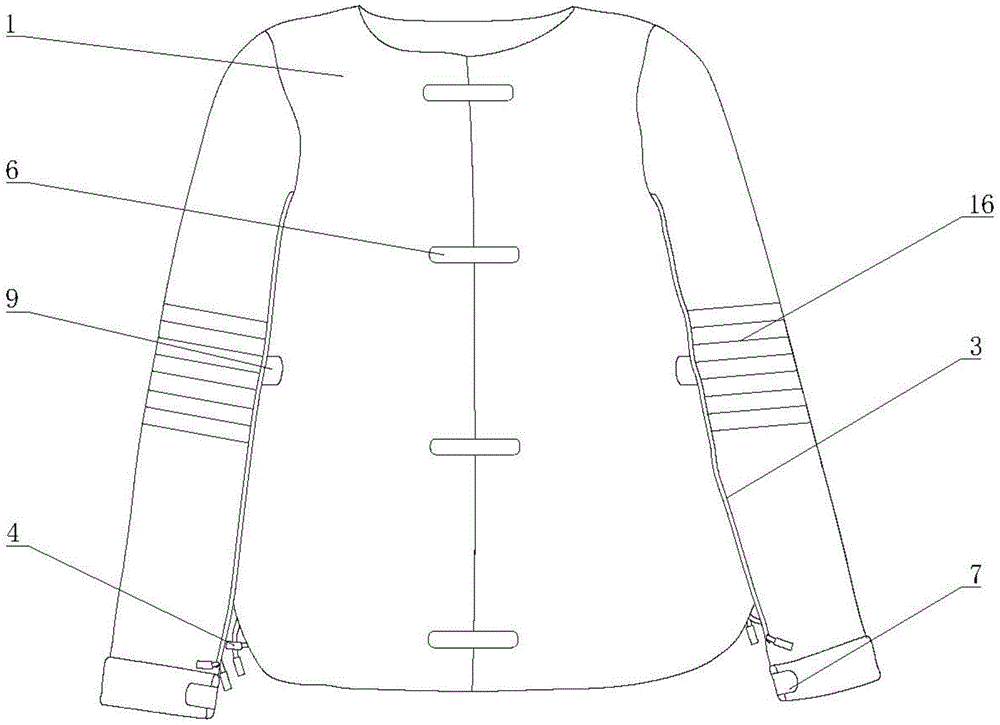

Fig. 1 is a front view of the placket upper garment of the utility model.

Fig. 2 is a structural schematic view of the opened upper garment body after the seam is opened.

FIG. 3 is a schematic view showing the structure of the jacket with the front of the placket lifted upwards.

Figure 4 is a schematic view in partial cutaway of an open crotch pant of the present invention.

FIG. 5 is a schematic view of the structure of the cloth pouch of the present invention.

Detailed Description

The following describes embodiments of the present invention in further detail with reference to the accompanying drawings.

The garment comprises a lappet upper garment 1 and open-seat pants 2, wherein inner and outer through garment body slits are formed in the left side and the right side of the lappet upper garment 1 respectively, the path of the garment body slits runs through the lower hem of the lappet upper garment 1 from the sleeve openings of the lappet upper garment 1 along the side seam position of the lappet upper garment 1, two front and rear sides of the garment body slits are respectively provided with a rope sleeve 3, the inside of the rope sleeve 3 is slidably connected with a pull rope 4 which runs through the inside of the rope sleeve and has elasticity, the front and rear sides of the lappet upper garment 1 are respectively provided with poly-film auxiliary materials 5 which are in contact with the rope sleeves 3, the two poly-film auxiliary materials 5 have self-adhesion and can be mutually adhered at the garment body slits, the inner and outer through trouser leg slits are formed in the side seams of the crotch of the open-seat pants 2, and a lower body shielding device is arranged on the rear side of the crotch of the open-seat pants 2.

In order to facilitate the patient to wear the lappet jacket 1, the front part of the lappet jacket 1 is provided with a plurality of first magic tapes 6 which are arranged up and down, the cuffs of the lappet jacket 1 are provided with second magic tapes 7 which are positioned on the outer side of the seam of the jacket body, and the trouser legs of the open-crotch trousers 2 are provided with a plurality of third magic tapes 8 which are positioned on the seams of the trouser legs and are arranged up and down.

In order to conveniently shield the chest of a patient when the abdomen is filled with medicine, the seam opening position of the coat body is provided with a limiting adhesive tape 9 which can be bonded with the outer side of the lappet jacket 1, and the limiting adhesive tape 9 is positioned below the chest part of the lappet jacket 1.

In order to shelter from the patient's private parts, the private parts of patient are protected, the private parts shelter from device including being located the cloth pocket 10 that 2 crotch portions of crotch trousers are the U-shaped, cloth pocket 10 rear end and 2 rear side waist of restrainting department fixed connection of crotch trousers, the cloth pocket 10 left and right sides is equipped with respectively hides cloth 11.

In order to facilitate the fixed lower part of the body shelter from device and adjust 2 elasticity of open-seat trousers, 2 crotch portion front sides of open-seat trousers restraint the waist disconnection, 2 both ends are equipped with a plurality of buttons 12 of arranging about respectively about the open-seat trousers restraint the waist outside, cloth pocket 10 front end is equipped with connecting band 13, both ends are equipped with respectively about connecting band 13 and hang hanging hole 14 on button 12, both ends are equipped with respectively around the cloth 11 and can bond the fourth magic subsides 15 in the trouser legs outside.

In order to facilitate the movement of the joint of a patient, corrugated folds 16 are respectively arranged at the armpit and elbow positions of the open-front jacket 1 and the knee positions of the open-front trousers 2, a plurality of elastic belts 17 in the vertical direction are arranged inside the folds 16, and the upper end and the lower end of each elastic belt 17 are respectively fixedly connected to the inner sides of the corresponding open-front jacket 1 or the corresponding open-front trousers 2.

When the utility model is used, the open-front jacket 1 is worn firstly, a plurality of first magic tapes 6 at the front part of the open-front jacket 1 are firstly uncovered, the limiting adhesive tapes 9 at the left side and the right side of the open-front jacket 1 and the second magic tapes 7 at the two sleeve openings are uncovered, the pull ropes 4 at the sleeve openings and the left side and the right side of the lower hem of the open-front jacket 1 are unfastened, the jacket body is opened from the sleeve openings and the lower hem of the open-front jacket 1, so that two pieces of polymer film auxiliary materials 5 which are mutually bonded are separated, then the open-front jacket 1 is covered on the back of a patient, the arm of the patient enters the sleeve of the open-front jacket 1 from the seam opening of the jacket body, the arm penetrating action is cancelled, the wound surface of the arm is prevented from being scratched by clothes, then the two pieces of polymer film auxiliary materials 5 are inwards extruded from the outer side of the seam of the jacket body and are smoothed along the seam track of the jacket body, the two pieces of polymer film auxiliary materials 5 have self-adhesion, so that the two pieces of polymer film auxiliary materials 5 at the seam opening position of the jacket body are mutually bonded, thereby closing the jacket body, two poly film auxiliary materials 5 that bond each other can hinder granule foreign matter and can pass through oxygen and steam simultaneously, prevent patient cross infection, later bond a plurality of first magic subsides 6 that are located the front part of a garment 1 front of a garment department of opening a garment, bond spacing sticky tape 9 of the left and right sides of the upper garment 1 front of a garment again in the corresponding side, two poly film auxiliary materials 5 of homonymy paste each other the back, the fag end 3 that is located both sides around the body cracks is laminated each other, the both ends of every stay cord 4 are located the cuff department and the hem department of the corresponding side of the upper garment 1 front of a garment respectively, tie in proper order and be located the cuff department stay cord 4 of the upper garment 1 front of a garment, tie the stay cord 4 that is located the hem department of the upper garment 1 front of a garment again, prevent the unexpected separation of the poly film auxiliary materials 5 that the body cracks inboard and paste each other, and back second magic subsides 7 of the cuff department of the front of the opening a garment 1 cuff bonds, guarantee the comfort level of the cuff.

Then wear the open crotch trousers 2, firstly take down the button 12 buckled in the hanging hole 14, then sequentially uncover the fourth magic tapes 15 adhered on the shielding cloth 11 outside the trouser legs, thereby opening the cloth pocket 10 positioned on the crotch of the open crotch trousers 2, and sequentially uncover a plurality of third magic tapes 8 positioned on the slit of the trouser legs, at this time, the open crotch trousers 2 can be opened along the waist-binding break at the front side of the crotch of the open crotch trousers 2, both hands hold the two ends of the corset to encircle the abdomen from the back of the patient, at this time, one hand is fixed at the two ends of the abdomen-binding of the patient, the other hand is pulled to the front side of the crotch from the back side of the crotch, and according to the condition of the waist of the patient, the hanging holes 14 at the left side and the right side of the connecting belt 13 are respectively hung on the button 12 at the corresponding positions, at this time, the trousers can not fall off, then sequentially adhere the fourth magic tapes 15 at the two sides of the shielding cloth 11 to the corresponding positions of the trouser legs of the open crotch 2, thereby protecting the private parts of the patient, then, a plurality of third magic tapes 8 positioned at the seams of the trouser legs are sequentially bonded to finish the simple sewing of the seams of the trouser legs;

after the elastic force type limb movement training device is worn, the corrugated folds 16 facilitate free movement of joints of four limbs and armpits, the elastic bands 17 inside the folds 16 are matched with the folds 16, so that the extended folds 16 can be timely retracted after being unfolded, and the self deformation of the rope sling 3 and the elastic pull rope 4 can not block the expansion of the corresponding side folds 16, so that the elastic force type limb movement training device is convenient for a patient to use; when the four limbs or the abdomen of a patient need to expose the wound surface, the sleeve openings of the lappet jacket 1 are sequentially opened by only opening the second magic tapes 7 bonded with the sleeve openings, unfastening the pull ropes 4 at the sleeve openings and the lap of the lappet jacket 1 and opening the plurality of bonded third magic tapes 8 at the slit positions of the trouser legs of the crotch trousers 2, so that the sleeve barrel and the front part of the lappet jacket 1 can be opened along the slit positions of the jacket, the trouser legs of the crotch trousers 2 are opened along the slit positions of the trouser legs, and when the front part of the lappet jacket 1 is opened upwards, the front part of the lappet jacket 1 can only be opened to the lower part of the chest of the patient due to the blocking of the limiting adhesive tape 9, so that the chest of the patient is prevented from being exposed; when a patient needs to go to the toilet, the buttons 12 buckled with the hanging holes 14 at the left end and the right end of the connecting belt 13 are taken down, so that the perineum of the patient can be exposed, and then the fourth magic tapes 15 adhered to the outer sides of the trouser legs of the open-crotch trousers 2 on the shielding cloth 11 are sequentially uncovered, so that the whole crotch of the patient can be completely exposed, and the patient can conveniently go to the toilet;

when the patient needs to take off the open-front jacket 1 and the open-crotch trousers 2, the devices at the corresponding positions can be sequentially uncovered according to the steps, so that the open-front jacket 1 and the open-crotch trousers 2 are taken off.

In the utility model, the strip-shaped polymeric film auxiliary material 5 avoids the folds 16 on the coat, so as to avoid obstructing the stretch of the elastic band 17.

Compared with the prior art, the utility model has the beneficial effects that: the clothes body slit extending to the sleeve openings is formed in the left side seam and the right side seam of the lappet jacket, so that the lappet jacket is convenient for a patient to wear, the arms of the patient are effectively prevented from being scratched by clothes during exposure treatment, the left side and the right side of the clothes body are provided with limiting adhesive tapes, the chest of the patient is prevented from being exposed, the two sides of the clothes body slit are provided with the poly-film auxiliary materials which can be bonded with each other, so that the clothes body slit can be conveniently closed after the patient wears the clothes body, the corresponding ends of the two pull ropes are tied together, the two poly-film auxiliary materials can be prevented from being accidentally separated, particle foreign matters in the environment can be effectively prevented from contacting with the wound surface of the patient, and the cross infection of the patient is avoided; the openable cloth bag is arranged at the crotch part of the open crotch trousers, and the shielding cloth is additionally arranged at the two sides of the cloth bag, so that the private parts of the patient can be comprehensively protected, and the patient can conveniently go to the toilet; the structure is simple, the operation is convenient, the conception is novel, and the practicability is strong.

Claims (6)

1. A special hospital gown for wound repair in a ward, which comprises an open-front jacket (1) and open-crotch trousers (2), the split coat is characterized in that the left side and the right side of the split coat (1) are respectively provided with a coat body split seam which is communicated with the inside and the outside, the track of the coat body split seam penetrates from the sleeve opening of the split coat (1) to the lower hem of the split coat (1) along the side seam position, the front side and the rear side of the two coat body split seams are respectively provided with a rope sleeve (3), the inside of the rope sleeve (3) is connected with a pull rope (4) which penetrates through the inside of the rope sleeve and has elasticity in a sliding manner, the front side and the rear side of the inside of the split coat (1) are respectively provided with a poly-film auxiliary material (5) which is in contact with the rope sleeve (3), the two poly-film auxiliary materials (5) have self-adhesion and can be mutually adhered at the split seam of the coat body, the split seams of the split trousers (2) are provided with trouser legs which are communicated with the inside and the outside, and the rear side of the crotch of the split trousers (2) is provided with a lower body shielding device.

2. The special patient clothing for the wound repair ward according to claim 1, wherein a plurality of first magic tapes (6) arranged up and down are arranged at the front part of the open front jacket (1), a plurality of second magic tapes (7) positioned at the outer side of the seam of the coat body are arranged at the cuffs of the open front jacket (1), and a plurality of third magic tapes (8) arranged up and down at the seam of the trouser legs are arranged at the trouser legs of the open crotch jacket (2).

3. The special patient clothing for the wound repair ward according to claim 1, wherein a limiting adhesive tape (9) capable of being bonded with the outer side of the placket upper garment (1) is arranged at the slit of the clothing body, and the limiting adhesive tape (9) is positioned below the chest part of the placket upper garment (1).

4. The patient clothing special for wound repair ward according to claim 1, wherein the lower body shielding device comprises a U-shaped cloth pocket (10) located under the crotch of the open crotch pants (2), the rear end of the cloth pocket (10) is fixedly connected with the waist portion of the open crotch pants (2), and the left and right sides of the cloth pocket (10) are respectively provided with a shielding cloth (11).

5. The special hospital gown for a wound repair ward according to claim 4, wherein a waist is bound at the front side of the crotch part of the open-seat pants (2) and is disconnected, a plurality of buttons (12) which are arranged left and right are respectively arranged at the left and right ends of the outer side of the waist of the open-seat pants (2), a connecting belt (13) is arranged at the front end of the cloth bag (10), hanging holes (14) which can be hung on the buttons (12) are respectively arranged at the left and right ends of the connecting belt (13), and fourth magic tapes (15) which can be adhered to the outer sides of the pants legs are respectively arranged at the front and rear ends of the shielding cloth (11).

6. The special patient clothing for the wound repair ward according to claim 1, wherein corrugated wrinkles (16) are respectively arranged at the armpit and elbow positions of the open-front jacket (1) and the knee positions of the open-front trousers (2), a plurality of elastic bands (17) in the vertical direction are arranged inside the wrinkles (16), and the upper end and the lower end of each elastic band (17) are respectively and fixedly connected to the inner side of the corresponding open-front jacket (1) or the inner side of the corresponding open-front jacket (2).
