CN215868511U - Liquid crystal display screen with heat dissipation performance - Google Patents
Liquid crystal display screen with heat dissipation performance Download PDFInfo
- Publication number
- CN215868511U CN215868511U CN202122190010.4U CN202122190010U CN215868511U CN 215868511 U CN215868511 U CN 215868511U CN 202122190010 U CN202122190010 U CN 202122190010U CN 215868511 U CN215868511 U CN 215868511U
- Authority
- CN
- China
- Prior art keywords
- heat dissipation
- liquid crystal
- crystal display
- heat
- fixedly connected
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 230000017525 heat dissipation Effects 0.000 title claims abstract description 97
- 239000004973 liquid crystal related substance Substances 0.000 title claims abstract description 69
- 238000009434 installation Methods 0.000 claims abstract description 11
- 238000001816 cooling Methods 0.000 claims 1
- 230000000694 effects Effects 0.000 description 3
- 230000009286 beneficial effect Effects 0.000 description 1
- 238000010030 laminating Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000002035 prolonged effect Effects 0.000 description 1
- 238000006467 substitution reaction Methods 0.000 description 1
Images
Landscapes
- Devices For Indicating Variable Information By Combining Individual Elements (AREA)
Abstract
本实用新型公开了一种具有散热性的液晶显示屏，包括安装外壳，所述安装外壳的中部位置固定连接有散热机构，且散热机构包括安装环，所述安装外壳的中部位置固定连接有安装环，且安装环的顶部固定连接有散热套，所述安装环的内部底端螺纹连接有散热网盘，所述散热套的内部顶端固定连接有驱动电机，且驱动电机的下方设置有风扇叶片，所述安装外壳的内壁底端固定连接有第一导热板和第二导热板，且第一导热板与散热套固定连接，所述安装外壳的内壁中固定连接有第一散热网环，便于更好的对液晶显示屏进行散热，使得液晶显示屏不易因温度过高而受到损坏，增加液晶显示屏的使用寿命。
The utility model discloses a liquid crystal display screen with heat dissipation, comprising a mounting shell, a heat dissipation mechanism is fixedly connected to the middle position of the mounting shell, and the heat dissipation mechanism comprises a mounting ring, and a mounting shell is fixedly connected to the middle position of the mounting shell A heat dissipation sleeve is fixedly connected to the top of the installation ring, a heat dissipation mesh disk is threadedly connected to the inner bottom end of the installation ring, a drive motor is fixedly connected to the inner top of the heat dissipation sleeve, and a fan blade is arranged below the drive motor The bottom end of the inner wall of the installation shell is fixedly connected with a first heat conduction plate and a second heat conduction plate, and the first heat conduction plate is fixedly connected with the heat dissipation sleeve, and the inner wall of the installation shell is fixedly connected with a first heat dissipation net ring, which is convenient for Better heat dissipation for the LCD screen, so that the LCD screen is not easily damaged due to excessive temperature, and the service life of the LCD screen is increased.
Description
Technical Field
The utility model belongs to the technical field of liquid crystal display screen heat dissipation, and particularly relates to a liquid crystal display screen with heat dissipation performance.
Background
Liquid Crystal Displays (LCDs), one type of display used in digital watches and many portable computers, are flat, ultra-thin display devices. The liquid crystal display consists of a certain number of color or black and white pixels, is placed in front of a light source or a reflecting surface, has low power consumption, is favored by engineers and is suitable for electronic equipment using a battery. The liquid crystal display screen can display figures, characters and graphic images, not only can be used in indoor environment, but also can be widely used in outdoor environment, and the liquid crystal display screen has high cost performance and can be applied to various different occasions.
The liquid crystal display on the market has basic functions, but has certain disadvantages and shortcomings. For example, when the temperature inside the display screen is too high, the internal electronic components of the display screen are easily damaged, the display effect of the display screen is affected, the service life of the liquid crystal display screen is shortened, and the conventional liquid crystal display screen does not have a good heat dissipation structure, so that the heat dissipation effect of the liquid crystal display screen is not ideal, and the service life of the liquid crystal display screen is affected, so that the structure of the liquid crystal display screen needs to be improved.
SUMMERY OF THE UTILITY MODEL
The utility model aims to: in order to solve the above-mentioned problems: the existing liquid crystal display does not have a good heat dissipation structure, so that the heat dissipation effect of the liquid crystal display is not ideal, the service life of the liquid crystal display is influenced, the structure of the liquid crystal display needs to be improved, and the liquid crystal display with the heat dissipation performance is provided.
The technical scheme adopted by the utility model is as follows: the utility model provides a liquid crystal display with thermal diffusivity, includes the installation shell, the middle part fixedly connected with heat dissipation mechanism of installation shell, and heat dissipation mechanism includes the collar, the middle part fixedly connected with collar of installation shell, and the top fixedly connected with heat dissipation cover of collar, the inside bottom threaded connection of collar has the heat dissipation net dish, the inside top fixedly connected with driving motor of heat dissipation cover, and driving motor's below is provided with the fan blade, the inner wall bottom fixedly connected with first heat-conducting plate and the second heat-conducting plate of installation shell, and first heat-conducting plate and heat dissipation cover fixed connection, fixedly connected with first heat dissipation net ring in the inner wall of installation shell, the inside fixedly connected with liquid crystal display shell of installation shell, the inside of liquid crystal display shell is provided with liquid crystal display, and the laminating of liquid crystal display is at first heat-conducting plate, The top of second heat-conducting plate and heat dissipation cover, fixedly connected with second heat dissipation net ring in the inner wall of liquid crystal display shell.
In a preferred embodiment, the connection between the mounting ring and the heat dissipation mesh disc is a threaded structure, and the fan blades are located above the heat dissipation mesh disc.
In a preferred embodiment, the first heat-conducting plate and the second heat-conducting plate are arranged in a staggered manner and fixedly connected, and the tops of the first heat-conducting plate, the second heat-conducting plate and the heat dissipation sleeve are located on the same horizontal plane.
In a preferred embodiment, the liquid crystal display housing is fitted inside the mounting housing, and the first heat dissipation mesh ring and the second heat dissipation mesh ring are arranged oppositely.
In a preferred embodiment, the heat dissipation sleeve is a mesh structure, and the driving motor is electrically connected to an external power source.
In summary, due to the adoption of the technical scheme, the utility model has the beneficial effects that: be convenient for better dispel the heat to liquid crystal display for liquid crystal display is difficult for receiving the damage because of the high temperature, increases liquid crystal display's life.
1. According to the liquid crystal display, the heat dissipation sleeve is fixedly connected to the top of the mounting ring, the liquid crystal display can be conveniently supported through the heat dissipation sleeve, the heat dissipation sleeve is of a net structure and can dissipate heat of the liquid crystal display, the driving motor is fixedly connected to the top end of the inside of the heat dissipation sleeve, the fan blades can be conveniently driven to rotate through the driving motor, the fan blades can efficiently dissipate heat of the liquid crystal display, the heat dissipation net disc is connected to the inner portion of the mounting ring through threads, heat can be conveniently discharged through the heat dissipation net disc, meanwhile, the heat dissipation net disc is convenient to disassemble, and the driving motor and the fan blades can be replaced and maintained.
2. According to the utility model, the bottom end of the inner wall of the mounting shell is fixedly connected with the first heat-conducting plate and the second heat-conducting plate, so that heat dissipated by the liquid crystal display screen can be conveniently introduced to the position of the heat dissipation sleeve through the first heat-conducting plate and the second heat-conducting plate, the inner wall of the liquid crystal display screen shell is fixedly connected with the second heat dissipation mesh ring, so that the liquid crystal display screen can be conveniently dissipated through the second heat dissipation mesh ring, and meanwhile, the heat can be discharged through the first heat dissipation mesh ring.
Drawings

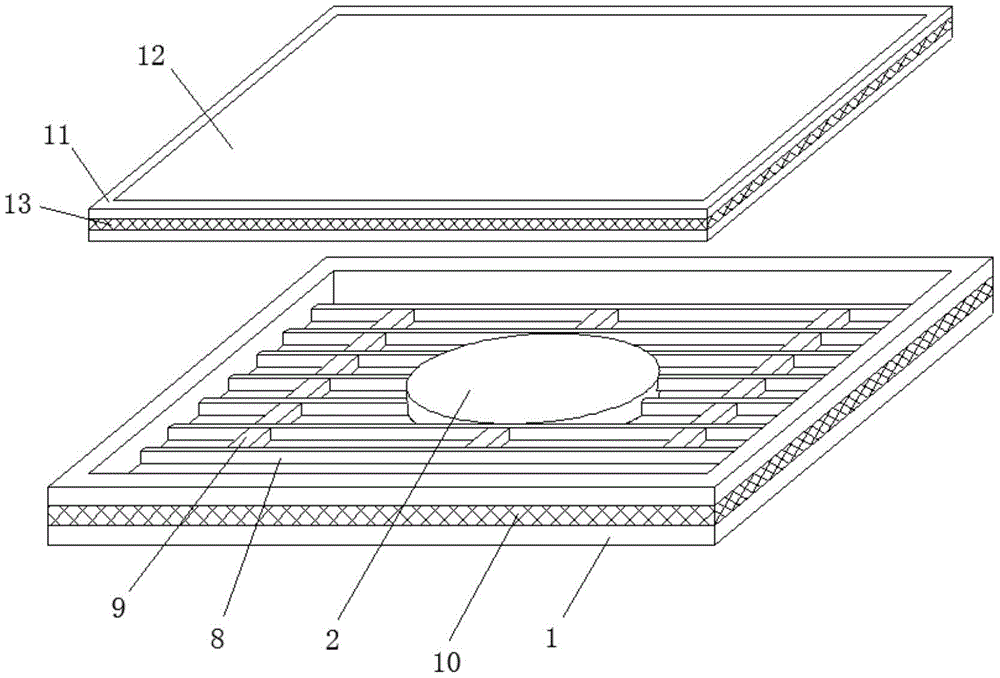

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a front view of the heat dissipation mechanism of FIG. 1 according to the present invention;
fig. 3 is a cross-sectional view of the heat dissipation mechanism of fig. 2 according to the present invention.
The labels in the figure are: 1-mounting a shell, 2-radiating mechanism, 3-mounting ring, 4-radiating sleeve, 5-radiating mesh disc, 6-driving motor, 7-fan blade, 8-first heat conducting plate, 9-second heat conducting plate, 10-first radiating mesh ring, 11-liquid crystal display outer frame, 12-liquid crystal display and 13-second radiating mesh ring.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are some embodiments of the present invention, but not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
A liquid crystal display panel having heat dissipation according to an embodiment of the present invention will be described in detail with reference to fig. 1 to 3.
Referring to fig. 1 to 3, a liquid crystal display panel having heat dissipation properties includes a mounting case 1, a heat dissipation mechanism 2 fixedly connected to a middle portion of the mounting case 1, the heat dissipation mechanism 2 comprises a mounting ring 3, the middle part of the mounting shell 1 is fixedly connected with the mounting ring 3, the top of the mounting ring 3 is fixedly connected with a heat dissipation sleeve 4, the heat dissipation sleeve 4 is of a net structure, the bottom end inside the mounting ring 3 is in threaded connection with a heat dissipation net disc 5, the joint of the mounting ring 3 and the heat dissipation net disc 5 is of a threaded structure, the top end inside the heat dissipation sleeve 4 is fixedly connected with a driving motor 6, the driving motor 6 is electrically connected with an external power supply, fan blades 7 are arranged below the driving motor 6, the fan blades 7 are positioned above the heat dissipation net disc 5, so that heat can be conveniently discharged through the heat dissipation net disc 5, meanwhile, the heat dissipation net disc 5 is convenient to disassemble, and the driving motor 6 and the fan blades 7 can be replaced and maintained.
Referring to fig. 1, a first heat conducting plate 8 and a second heat conducting plate 9 are fixedly connected to the bottom end of the inner wall of a mounting case 1, the first heat conducting plate 8 is fixedly connected with a heat dissipation sleeve 4, the first heat conducting plate 8 and the second heat conducting plate 9 are arranged in a staggered manner, the first heat conducting plate 8 is fixedly connected with the second heat conducting plate 9, the top portions of the first heat conducting plate 8, the second heat conducting plate 9 and the heat dissipation sleeve 4 are positioned on the same horizontal plane, a first heat dissipation mesh ring 10 is fixedly connected to the inner wall of the mounting case 1, a liquid crystal display housing 11 is fixedly connected to the inside of the mounting case 1, the liquid crystal display housing 11 is adapted to the inside of the mounting case 1, a liquid crystal display 12 is arranged inside the liquid crystal display housing 11, and the liquid crystal display 12 is attached to the top portions of the first heat conducting plate 8, the second heat conducting plate 9 and the heat dissipation sleeve 4, so as to be convenient for supporting the liquid crystal display 12 through the heat dissipation sleeve 4, because the heat dissipation cover 4 is network structure, the heat dissipation cover 4 can dispel the heat to liquid crystal display 12 this moment, it is rotatory to drive fan blade 7 through driving motor 6 simultaneously, fan blade 7 can carry out high-efficient heat dissipation to liquid crystal display 12 this moment, and introduce the position of heat dissipation cover 4 through the heat that first heat-conducting plate 8 and second heat-conducting plate 9 gived off liquid crystal display 12, fixedly connected with second heat dissipation net ring 13 in the inner wall of liquid crystal display shell 11, first heat dissipation net ring 10 and second heat dissipation net ring 13 set up relatively, be convenient for dispel the heat to liquid crystal display 12 through second heat dissipation net ring 13, the first heat dissipation net ring 10 of heat accessible is discharged simultaneously.
This application advantage: the liquid crystal display screen 12 is convenient to better radiate, so that the liquid crystal display screen 12 is not easy to be damaged due to overhigh temperature, and the service life of the liquid crystal display screen 12 is prolonged.
The working principle is as follows: when liquid crystal display 12 gived off the heat, the position of heat dissipation cover 4 was carried through first heat-conducting plate 8 and second heat-conducting plate 9 to the heat dissipation cover 4 this moment, and heat dissipation cover 4 gived off the heat to liquid crystal display 12 simultaneously, and under driving motor 6 and fan blade 7's cooperation this moment, discharged the heat through heat dissipation net dish 5 to can dispel the heat to liquid crystal display 12 through the cooperation of second heat dissipation net ring 13 and first heat dissipation net ring 10.
The above examples are only intended to illustrate the technical solution of the present invention, but not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it will be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; and such modifications or substitutions do not depart from the spirit and scope of the corresponding technical solutions of the embodiments of the present invention.
Claims (5)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202122190010.4U CN215868511U (en) | 2021-09-10 | 2021-09-10 | Liquid crystal display screen with heat dissipation performance |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202122190010.4U CN215868511U (en) | 2021-09-10 | 2021-09-10 | Liquid crystal display screen with heat dissipation performance |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN215868511U true CN215868511U (en) | 2022-02-18 |
Family
ID=80256674
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202122190010.4U Active CN215868511U (en) | 2021-09-10 | 2021-09-10 | Liquid crystal display screen with heat dissipation performance |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN215868511U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN115151100A (en) * | 2022-06-18 | 2022-10-04 | 深圳市超越显示科技有限公司 | A liquid crystal display with heat dissipation function |
-
