CN215852968U

CN215852968U - Novel ice bag

Info

Publication number: CN215852968U
Application number: CN202122413950.5U
Authority: CN
Inventors: 童浪兴
Original assignee: Dongguan Miren Outdoor Products Co ltd
Current assignee: Dongguan Miren Outdoor Products Co ltd
Priority date: 2021-10-08
Filing date: 2021-10-08
Publication date: 2022-02-18
Anticipated expiration: 2031-10-08

Abstract

The utility model discloses a novel ice pack, which comprises a temperature insulation box cover and a temperature insulation box body. The side edges of the lower end surface of the temperature insulation box cover are provided with box cover square bumps, and the upper end surface of the insulation box body is provided with a box cover. A box cover positioning groove is provided, the box cover square bump fits with the box cover positioning groove, and the inner wall of the temperature insulation box body is seamlessly welded with a first temperature insulation waterproof cushion through high frequency waves. The thermal insulation and waterproof cushion layer and the box body protective cloth layer are seamlessly welded by high frequency waves. The upper end of the box body protective cloth layer is provided with a box cover protective cloth layer. The cover is sealed and closed by a waterproof zipper between the protective cloth layers of the box cover. The utility model can effectively improve the contact tightness of the structure by positioning the connection between the box body and the box cover of the ice pack and fitting the contact surface, and further seals the contact surface to ensure the stability of heat preservation, and at the same time, it can facilitate the maintenance of the items. storage placement.

Description

Novel ice bag

Technical Field

The utility model relates to the technical field of heat preservation devices, in particular to a novel ice bag.

Background

With the rapid development of social economy, some products and the like need to be refrigerated and preserved in work and life in driving and traveling, holiday outing, fishing, family picnic and clinical application in hospitals, so that ice bags and ice bags appearing in the market are favored by more and more people in summer, and the market demand field is further expanded in recent years.

However, the existing ice bag is inconvenient to ensure the sealing performance of the structure and influence the heat preservation performance in the process of preserving heat of the articles, and is inconvenient to store and place the articles which do not need heat preservation; therefore, the existing requirements are not met, and a novel ice bag is provided for the ice bag.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a novel ice bag, and aims to solve the problems that the existing ice bag proposed in the background art is inconvenient to ensure the sealing performance of the structure, influence the heat preservation performance, store and place the objects which do not need heat preservation in the heat preservation process of the objects, and the like.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a novel ice bag, includes and separates the temperature case lid and separates the temperature box body, the side of terminal surface is provided with case lid square convex block under separating the temperature case lid, the up end that separates the temperature box body is provided with case lid positioning groove, case lid square convex block agrees with case lid positioning groove mutually, the inner wall that separates the temperature box body has first waterproof bed course that separates the temperature through the seamless butt fusion of high frequency, first waterproof bed course that separates the temperature passes through the seamless butt fusion of high frequency with the box protection cloth layer, the upper end on box protection cloth layer is equipped with case lid protection cloth layer, it is sealed closed through waterproof zip fastener between the box protection cloth layer that separates the temperature box body and the case lid protection cloth layer that separates the temperature box body, through the seamless butt fusion of high frequency between waterproof zip fastener and box protection cloth layer, the case lid protection cloth layer.

Preferably, box protection cloth layer sets up in the outside at a distance from the temperature box, the elasticity string bag is installed to the preceding terminal surface on box protection cloth layer, the last side symmetry of elasticity string bag runs through there is the bungee, two bungee outside end parcel has a compression sleeve, and two the top of bungee runs through the compression sleeve and ties, the lock sleeve is installed in the outside that compresses tightly the cover, case lid protection cloth layer parcel is at the surface at a distance from the temperature case lid, box protection cloth layer, case lid protection cloth layer and first waterproof bed course at a distance from the temperature are the TPU layer.

Preferably, the upper end face of the heat insulation box body is provided with a sealing arc-shaped groove, the lower end face of the heat insulation box cover is provided with a convex ring, the convex ring is made of rubber, and the thickness of the convex ring is larger than the depth of the sealing arc-shaped groove.

Preferably, braces connectors are installed on two sides of the outer surface of the box body protective cloth layer, one of the braces connectors located on the right side is fixedly provided with woven braces, one end of each woven brace is fixedly provided with a metal buckle ring, the other end of each woven brace is fixedly provided with a semicircular buckle ring, and the other brace connector located on the left side is also fixedly provided with a semicircular buckle ring on the surface of the other brace connector located on the left side.

Preferably, a second heat-insulating waterproof cushion layer is installed on the outer side of the convex ring and is fixedly connected with the box cover protective cloth layer through weaving.

Preferably, the upper end face of the box cover protective cloth layer is provided with a hidden storage bag, the middle of the upper end face of the hidden storage bag is provided with a zipper groove, and the inner side of the zipper groove is provided with a zipper strip and a zipper puller.

Preferably, both ends of the elastic net bag are fixedly connected with the box body protective cloth layer in a weaving mode, one end of the pressing sleeve is connected with the locking sleeve in a threaded mode, the other end of the pressing sleeve is provided with the elastic conical sleeve, the heat insulation box cover and the heat insulation box body are of three-layer heat insulation structures, and the TPU inner container, the heat insulation cotton and the PVC shell are arranged from inside to outside.

Compared with the prior art, the utility model has the beneficial effects that:

1. according to the utility model, the positioning accuracy and the contact tightness of the heat-insulating box cover and the heat-insulating box body can be effectively improved through the contact between the box cover square bump and the box cover positioning groove, the sealing degree of a contact surface can be further ensured through the convex ring and the sealing groove, the integral heat-insulating effect is effectively ensured, and the leakage is avoided;

2. according to the utility model, the hidden storage bag is arranged on the upper end surface of the box cover protection cloth layer, and the elastic net bag is arranged on the front end surface of the box body protection cloth layer, so that articles which do not need to be insulated can be stored and placed through the elastic net bag and the hidden storage bag, and the use is more convenient.

Drawings

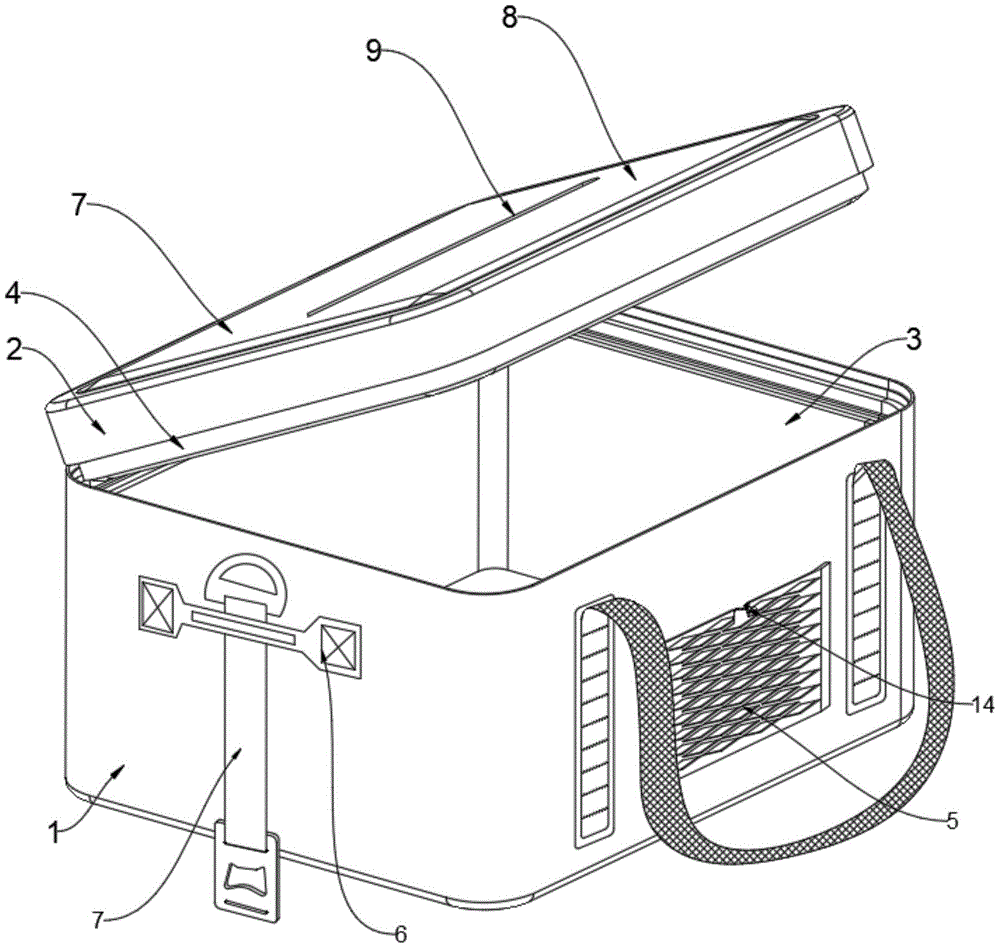

FIG. 1 is a schematic structural view of the present invention as a whole;

FIG. 2 is a schematic cross-sectional view of the present invention;

FIG. 3 is a schematic view of a partial cross-sectional structure of the thermal insulation case cover according to the present invention;

FIG. 4 is a schematic view of a partial cross-sectional structure of the bungee cord of the present invention;

FIG. 5 is a schematic view of the overall rear surface structure of the present invention;

fig. 6 is a left side view schematically illustrating the overall structure of the present invention.

In the figure: 1. a box body protective cloth layer; 2. a box cover protective cloth layer; 3. a first temperature-insulating waterproof cushion layer; 4. a second heat-insulating waterproof cushion layer; 5. an elastic string bag; 6. a strap connector; 7. weaving the braces; 8. hiding the storage bag; 9. a zipper groove; 10. a thermal insulation box cover; 11. a heat insulation box body; 12. a convex ring; 13. sealing the arc-shaped groove; 14. a bungee cord; 15. a compression sleeve; 16. a locking sleeve; 17. a box cover square bump; 18. case lid positioning groove.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

Referring to fig. 1 to 6, an embodiment of the present invention includes: a novel ice bag comprises a heat insulation box cover 10 and a heat insulation box body 11, wherein a box cover square bump 17 is arranged on the side edge of the lower end face of the heat insulation box cover 10, a box cover positioning groove 18 is arranged on the upper end face of the heat insulation box body 11, the box cover square bump 17 is matched with the box cover positioning groove 18, the positioning accuracy and the contact tightness of the heat insulation box cover 10 and the heat insulation box body 11 can be effectively ensured through the contact of the box cover square bump 17 and the box cover positioning groove 18, a first heat insulation waterproof cushion layer 3 is seamlessly welded on the inner wall of the heat insulation box body 11 through high frequency, the first heat insulation waterproof cushion layer 3 and a box body protective cloth layer 1 are seamlessly welded through high frequency, a box cover protective cloth layer 2 is arranged on the upper end of the box body protective cloth layer 1, a waterproof zipper is used for sealing and closing between the box body protective cloth layer 1 of the heat insulation box body 11 and the box cover protective cloth layer 2 of the heat insulation box cover 10, and the sealing effect of the structure can be conveniently kept when the structure is closed, through the seamless butt fusion of high frequency between waterproof zip fastener and box protection cloth layer 1, the case lid protection cloth layer 2, wholly through the box and the case lid junction to the ice bag fix a position and agree with of contact surface, effectively improve the contact compactness of structure, and further seal the contact surface, guarantee heat retaining stability, can be convenient for simultaneously store article and place.

Further, box protection cloth layer 1 sets up in the outside that separates temperature box 11, elastic string bag 5 is installed to the preceding terminal surface on box protection cloth layer 1, elastic string bag 5's last side symmetry runs through elastic rope 14, two 14 outside end parcels of elastic rope have one to compress tightly cover 15, and the top of two elastic rope 14 runs through compressing tightly cover 15 and ties one's knot, compressing tightly the outside of cover 15 and installing

lock sleeve

16, 2 parcels on case lid protection cloth layer are at the surface that separates temperature case lid 10, box protection cloth layer 1, case lid protection cloth layer 2 and first temperature-isolating waterproof bed course 3 are the TPU layer, lock compressing tightly cover 15 and elastic rope 14 through lock sleeve 16, and then be convenient for tighten up elastic string bag 5 through elastic rope 14.

Further, the upper end face of the heat insulation box body 11 is provided with a sealing arc-shaped groove 13, the lower end face of the heat insulation box cover 10 is provided with a convex ring 12, the convex ring 12 is made of rubber, the thickness of the convex ring 12 is larger than the depth of the sealing arc-shaped groove 13, and the tightness of structural contact is convenient to improve.

Furthermore, braces connectors 6 are installed on two sides of the outer surface of the box body protective cloth layer 1, one of the braces is located on the right side, weaving braces 7 are fixedly arranged on the surface of the braces connectors 6, a metal buckle ring is fixedly arranged at one end of each weaving brace 7, a semicircular buckle ring is fixedly arranged at the other end of each weaving brace 7, the other brace connector is located on the left side, a semicircular buckle ring is fixedly arranged on the surface of each braces connector 6, long braces can be hung between the two semicircular buckle rings, and the whole braces can be conveniently carried through the long braces, the braces connectors 6 and the weaving braces 7.

Further, the second heat-insulating waterproof cushion layer 4 is installed on the outer side of the convex ring 12, the second heat-insulating waterproof cushion layer 4 is fixedly connected with the box cover protective cloth layer 2 through weaving, and the first heat-insulating waterproof cushion layer 3 and the second heat-insulating waterproof cushion layer 4 are convenient for separating and protecting the inner side of the ice bag.

Further, the upper end face of the box cover protective cloth layer 2 is provided with a hidden storage bag 8, the middle of the upper end face of the hidden storage bag 8 is provided with a zipper groove 9, the inner side of the zipper groove 9 is provided with a zipper strip and a zipper puller, and articles can be conveniently hidden and stored through the hidden storage bag 8.

Further, the both ends of elasticity string bag 5 are all fixed through weaving with box protective cloth layer 1, the one end and the lock sleeve 16 of compressing tightly cover 15 pass through threaded connection, the other end that compresses tightly cover 15 is provided with elasticity toper cover, it is three-layer insulation construction to separate temperature case lid 10 and separate temperature box 11, from interior to exterior be TPU inner bag, insulating cotton and PVC shell, be convenient for tighten up and fix bungee 14 through compressing tightly cover 15 and lock sleeve 16, and then be convenient for place irregular article.

The working principle is as follows: when in use, checking whether the functions of all parts are intact, fixedly connecting the side edge of the first heat-insulating waterproof cushion layer 3 with the box body protective cloth layer 1 through weaving, connecting the box body protective cloth layer 1 with one end of the box cover protective cloth layer 2 through weaving, connecting the other end of the box cover protective cloth layer 2 with the box body protective cloth layer 1 through a zipper, placing the object to be heat-insulated on the inner side of the first heat-insulating waterproof cushion layer 3, further sealing the box body protective cloth layer 1 and the box cover protective cloth layer 2 through the zipper, further closely fitting the lower end surface of the heat-insulating box cover 10 with the upper end surface of the heat-insulating box body 11, arranging a box cover square bump 17 on the lower end surface of the heat-insulating box cover 10, arranging a box cover positioning groove 18 on the upper end surface of the heat-insulating box body 11, and effectively ensuring the positioning accuracy and the contact tightness of the heat-insulating box cover 10 and the heat-insulating box body 11 through the contact between the box cover square bump 17 and the box cover positioning groove 18 when the heat-insulating box body 11 is closed, a convex ring 12 is fixedly arranged on the lower end surface of the square convex block 17 of the box cover, the thickness dimension of the convex ring 12 is larger than the depth dimension of the sealing arc-shaped groove 13, so that the convex ring 12 can be slightly deformed by the close contact of the convex ring 12 and the sealing arc-shaped groove 13 when the thermal insulation box cover 10 is closed, the overall thermal insulation effect is effectively ensured, the leakage is avoided, the upper end surface of the box cover protective cloth layer 2 is provided with a hidden storage bag 8, the inner side of the zipper groove 9 is provided with a zipper, meanwhile, the elastic net bag 5 is arranged on the front end surface of the box body protective cloth layer 1, so that the objects which do not need to be insulated can be stored and placed through the elastic net bag 5 and the hidden storage bag 8, the use is more convenient, and the top of two bungee cord 14 runs through to compress tightly cover 15 and ties for compress tightly cover 15 and bungee cord 14 through lock sleeve 16 and lock, and then be convenient for tighten up elasticity string bag 5 through bungee cord 14.

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. The utility model provides a novel ice bag, includes thermal-insulated case lid (10) and thermal-insulated box (11), its characterized in that: a box cover square bump (17) is arranged on the side edge of the lower end face of the heat insulation box cover (10), a box cover positioning groove (18) is arranged on the upper end surface of the heat insulation box body (11), the box cover square bump (17) is matched with the box cover positioning groove (18), the inner wall of the heat insulation box body (11) is seamlessly welded with a first heat insulation waterproof cushion layer (3) through high frequency, the first heat-insulating waterproof cushion layer (3) and the box body protective cloth layer (1) are seamlessly welded through high frequency, the upper end of the box body protective cloth layer (1) is provided with a box cover protective cloth layer (2), the box body protective cloth layer (1) of the heat insulation box body (11) and the box cover protective cloth layer (2) of the heat insulation box cover (10) are sealed and closed through a waterproof zipper, the waterproof zipper is seamlessly welded with the box body protection cloth layer (1) and the box cover protection cloth layer (2) through high frequency.

2. The novel ice pack as claimed in claim 1, wherein: box protection cloth layer (1) sets up in the outside that separates temperature box (11), elasticity string bag (5) are installed to the preceding terminal surface on box protection cloth layer (1), the last side symmetry of elasticity string bag (5) runs through bungee (14), two bungee (14) outside end parcel has a compressing tightly cover (15), and two the top of bungee (14) is run through compressing tightly cover (15) and is knod, lock sleeve (16) are installed in the outside that compresses tightly cover (15), case lid protection cloth layer (2) parcel is at the surface that separates temperature case lid (10), box protection cloth layer (1), case lid protection cloth layer (2) and first temperature-isolating waterproof bed course (3) are the TPU layer.

3. A new ice pack according to claim 2, characterised in that: the upper end face of the heat insulation box body (11) is provided with a sealing arc-shaped groove (13), the lower end face of the heat insulation box cover (10) is provided with a convex ring (12), the convex ring (12) is made of rubber, and the thickness of the convex ring (12) is larger than the depth of the sealing arc-shaped groove (13).

4. A new ice pack according to claim 2, characterised in that: braces connector (6) are all installed to the both sides of box protective cloth layer (1) surface, and one of them is located the right side the fixed surface of braces connector (6) is equipped with weaves braces (7), the one end of weaving braces (7) is fixed and is equipped with the metal buckle, the other end of weaving braces (7) is fixed and is equipped with semi-circular buckle, and another is located left the fixed semi-circular buckle that is equipped with in surface of braces connector (6) also.

5. A new ice pack according to claim 3, characterised in that: the second heat-insulating waterproof cushion layer (4) is installed on the outer side of the convex ring (12), and the second heat-insulating waterproof cushion layer (4) is fixedly connected with the box cover protective cloth layer (2) through weaving.

6. A new ice pack according to claim 2, characterised in that: the upper end face of the box cover protective cloth layer (2) is provided with a hidden storage bag (8), the middle of the upper end face of the hidden storage bag (8) is provided with a zipper groove (9), and the inner side of the zipper groove (9) is provided with a zipper strip and a zipper puller.

7. A new ice pack according to claim 2, characterised in that: the both ends of elasticity string bag (5) are all fixed through weaving with box protection cloth layer (1), the one end and the lock sleeve (16) that compress tightly cover (15) pass through threaded connection, the other end that compresses tightly cover (15) is provided with elasticity toper cover, it is three-layer insulation construction to separate temperature case lid (10) and separate temperature box (11), from interior to exterior be TPU inner bag, heat preservation cotton and PVC shell.
