Abstract

The utility model discloses a portable intelligent medicine box, which relates to the technical field of medicine boxes. The portable intelligent medicine box comprises a medicine box body and a functional circuit fixed on the medicine box body. The medicine box body is a cylindrical box body. , including a box cover, a medicine storage middle layer and a bottom plate, and the functional circuit includes a controller, a time module, a buzzer, a limit switch, a first button, a second button, a display screen, an LED indicator, and a USB charging port. This portable smart medicine box will remind the patient to take medicine through the buzzer and LED indicator light in the designated medicine storage bin by setting the time. The limit switch that can be pressed pops out from the limit hole, the switch is disconnected, the LED indicator light is off, the buzzer stops sounding, and the medicine can be taken out and taken, and it is different from carrying it.

Description

Portable intelligent medicine box

Technical Field

The utility model relates to the technical field of medicine boxes, in particular to a portable intelligent medicine box.

Background

At present, drugs are closely related to the physical health and life of people. With the acceleration of the pace of life of people at present, people often forget to take medicines on time every day in daily life or work, and especially when traveling outside, people are easier to forget without reminding; over time, the condition of the patient will further worsen and develop, which is not good for health. Although the existing medicine box for placing the medicine is provided with the indicator light and the sound for reminding, the medicine box can be taken by mistake and even the medicine is taken by mistake, so that great inconvenience is brought to the patient for taking the medicine, and even serious consequences are caused.

Therefore, a portable intelligent medicine box is provided to solve the technical problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims to overcome the defects of the traditional technology and provide a portable intelligent medicine box aiming at the existing problems, and the utility model reminds a patient to take medicine by setting time and making sound and light of a designated medicine storage bin through a buzzer and an LED indicator light; through rotatory storage medicine middle level, when appointed storage medicine storehouse rotated to the fan-shaped breach of lid, the limit switch that can press popped out from spacing hole, and the switch disconnection to the LED pilot lamp goes out, and bee calling organ stops to make a sound, can take out the medicine and take.

In order to achieve the purpose, the technical scheme adopted by the utility model is as follows:

a portable intelligent medicine box comprises a medicine box body and a functional circuit fixed on the medicine box body;

the functional circuit includes: the device comprises a controller, a time module, a buzzer, a limit switch, a first key, a second key, a display screen, an LED indicator lamp and a USB charging port, wherein the time module, the buzzer, the limit switch, the first key, the second key, the display screen and the LED indicator lamp are in communication connection with the controller; the time module, the buzzer, the limit switch, the first key, the second key, the display screen, the LED indicator lamp and the USB charging port are electrically connected;

the medicine box body is a cylindrical box body and comprises a box cover, a medicine storage middle layer and a bottom plate;

the box cover is arranged at the upper end of the medicine box body, a fan-shaped notch is formed in the box cover and used for placing or taking out medicines, and the first button, the second button, the display screen and the USB charging port are arranged on the surface of the box cover;

the medicine storage middle layer comprises a plurality of medicine storage bins, an LED indicator light is arranged on the outer wall of each medicine storage bin, and a limit switch capable of being pressed is arranged at the bottom of each medicine storage bin; the lower end of the medicine storage middle layer is arranged on the bottom plate through a vertically arranged central rotating shaft, the upper end of the medicine storage middle layer is arranged on the box cover through a vertically arranged central rotating shaft, the medicine storage middle layer rotates around the central rotating shaft, the central rotating shaft is fixedly connected with the box cover, and the central rotating shaft is fixedly connected with the bottom plate;

the bottom plate is provided with a limiting hole, the limiting hole is used for matching with the popup of the depressible limiting switch, and the limiting hole is positioned below the corresponding fan-shaped notch of the box cover.

Further, the center pivot is the cavity, the cavity sets gradually from last to down controller, time module and bee calling organ, hollow center pivot provide accommodation space for controller, time module and bee calling organ for intelligent medicine box volume is less, portable.

Furthermore, the first key, the second key, the display screen and the USB charging port are located in the center of the box cover.

Further, the outer diameter of the pressable limit switch is smaller than the inner diameter of the limit hole.

Furthermore, the size of the fan-shaped gap formed in the box cover is equal to that of each medicine storage bin.

Further, the number of the medicine storage bins is 7.

Compared with the prior art, the utility model has the beneficial effects that:

1. according to the utility model, time is set through the first key, the medicine storage bin for medicine use is specified through the second key, and the specified medicine storage bin reminds a patient to take medicine through a buzzer and an LED indicator light as sound and light; through rotatory storage medicine middle level, when appointed storage medicine storehouse rotated to the fan-shaped breach of lid, the limit switch that can press popped out from spacing hole, and the switch disconnection to the LED pilot lamp goes out, and bee calling organ stops to make a sound, can take out the medicine and take.

2. The required medicines can be distributed in advance by arranging 7 medicine storage bins, so that the medicine is convenient to eat; the intelligent control circuit can remind the patient to take the medicine at regular time, can prevent the patient from forgetting to take the medicine, and is convenient to carry.

Drawings

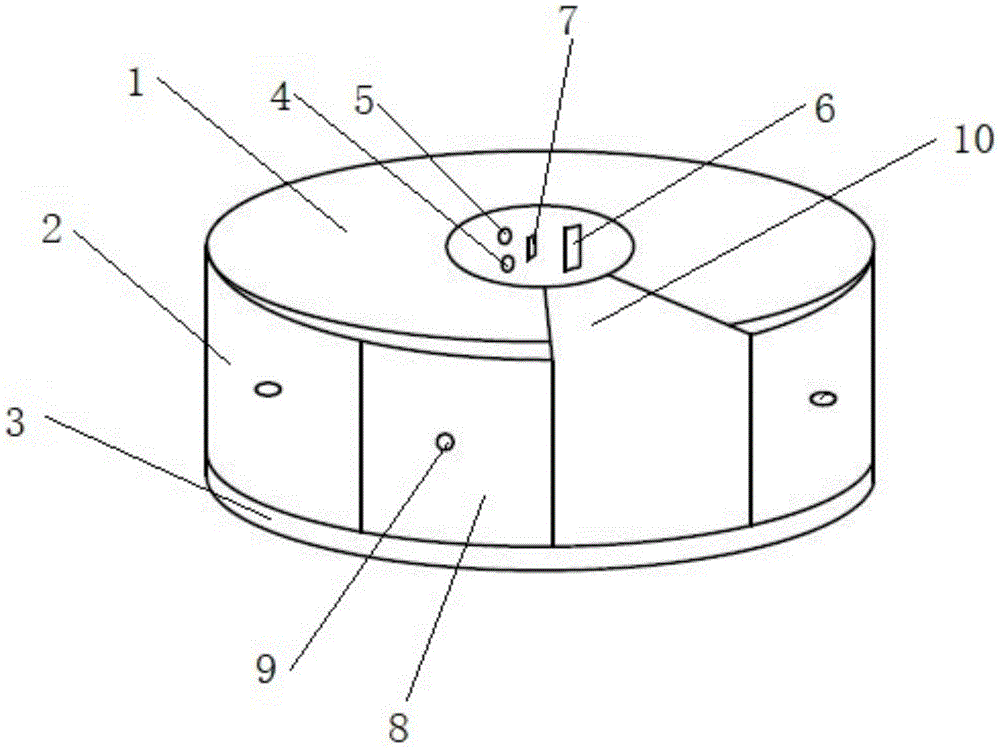

Fig. 1 is a schematic structural view of the present invention.

Fig. 2 is a top view of the lid of the present invention.

FIG. 3 is a top view of a layer of a reservoir of the present invention.

Fig. 4 is a bottom view of the base plate of the present invention.

Fig. 5 is a system control diagram of the present invention.

Detailed Description

The present invention will be described in detail below with reference to the accompanying drawings.

In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the utility model and are not intended to limit the utility model.

As shown in fig. 1-5, a portable intelligent medicine box comprises a medicine box body and a functional circuit fixed on the medicine box body;

the functional circuit includes: the device comprises a controller, a time module, a buzzer, a limit switch, a first key, a second key, a display screen, an LED indicator lamp and a USB charging port, wherein the time module, the buzzer, the limit switch, the first key, the second key, the display screen and the LED indicator lamp are in communication connection with the controller; the time module, the buzzer, the limit switch, the first key, the second key, the display screen, the LED indicator lamp and the USB charging port are electrically connected;

the controller adopts an STM32F103C8T6 chip, is a 32-bit microcontroller based on ARM Cortex-M kernel STM32 series, has the program memory capacity of 64KB, needs the voltage of 2V-3.6V and has the working temperature of-40 ℃ to 85 ℃. The intelligent medicine box is used for controlling the work of the whole intelligent medicine box;

the time module adopts a DS1302 clock chip, is additionally provided with a 31-byte static RAM, adopts an SPI three-wire interface to carry out synchronous communication with a CPU, can adopt a burst mode to transmit a plurality of bytes of clock signals and RAM data at one time, can provide a real-time clock with the advantages of seconds, minutes, time, days, weeks, months and years, can be automatically adjusted when one month is short and 31 days, has a leap year compensation function, has a working voltage as wide as 2.5-5.5V, adopts dual power supplies, namely a main power supply and a standby power supply, can be provided with a standby power supply charging mode, and provides the capability of trickle current charging for a back power supply;

the LED indicator lamp adopts a 12864 single-color OLED screen, can emit light, and has high brightness, high contrast and low power consumption, and has good display effect and portability due to smaller size and higher resolution;

the USB charging port is used for charging the intelligent medicine box, and the electric quantity of the intelligent medicine box is displayed by the display screen;

time setting and calibration: the medicine taking reminding time is set through the first key, and time can be manually adjusted through the key because time errors can occur when the DS1302 is started;

and (3) specifying a medicine cabin: the medicine bin is designated through the second key.

The medicine box body is a cylindrical box body and comprises a box cover 1, a medicine storage middle layer 2 and a bottom plate 3;

the medicine box comprises a box cover body, a first button 4, a second button 5, a display screen 6 and a USB charging port 7, wherein the box cover 1 is arranged at the upper end of the medicine box body, a fan-shaped notch 10 is formed in the box cover and used for placing or taking out medicines, and the first button 4, the second button 5, the display screen 6 and the USB charging port 7 are arranged on the surface of the box cover;

the medicine storage middle layer 2 comprises a plurality of medicine storage bins 8, the outer wall of each medicine storage bin 8 is provided with an LED indicator lamp 9, and the bottom of each medicine storage bin 8 is provided with a limit switch 11 capable of being pressed; the lower end of the medicine storage middle layer 2 is arranged on the bottom plate 3 through a vertically arranged central rotating shaft 12, the upper end of the medicine storage middle layer 2 is arranged on the box cover 1 through a vertically arranged central rotating shaft 12, the medicine storage middle layer 2 rotates around the central rotating shaft 12, the central rotating shaft 12 is fixedly connected with the box cover 1, and the central rotating shaft 12 is fixedly connected with the bottom plate 3;

the bottom plate 3 is provided with a limiting hole 13, the limiting hole 13 is used for matching with the popping of the depressible limiting switch, and the limiting hole 13 is positioned below the corresponding fan-shaped notch 10 of the box cover.

Further, central pivot 12 is the cavity, the cavity sets gradually from last to down controller, time module and bee calling organ, hollow central pivot provide accommodation space for controller, time module and bee calling organ for intelligent medicine box body is small, portable.

Further, the first button 4, the second button 5, the display screen 6 and the USB charging port 7 are located in the center of the box cover.

Further, the external diameter of the depressible limit switch 11 is smaller than the internal diameter of the limit hole 13.

Furthermore, the size of the fan-shaped gap 10 formed in the box cover 1 is equal to that of each medicine storage bin 8.

Further, the number of the medicine storage bins 8 is 7.

It should be noted that the utility model is a portable intelligent medicine box, and the working principle thereof is as follows:

when the medicine storage box is used, a user sets time through the first key, specifies the medicine storage bin for medicine use through the second key, orderly places medicines by rotating the middle medicine storage layer to the fan-shaped notch of the box cover, and can carry the medicine box after the setting is finished. When the set time is up, the LED of each medicine box can remind the user of eating the medicine in the region, the buzzer vibrates to make a sound, and the sound and the light remind at the same time, so that the probability that the user forgets to take the medicine is reduced.

The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, and any modifications, equivalents and improvements made within the spirit and principle of the present invention are intended to be included within the scope of the present invention.

Claims (6)

1. A portable intelligent medicine box, characterized in that: comprising a medicine box body and a functional circuit fixed on the medicine box body; The functional circuit includes: a controller, a time module, a buzzer, a limit switch, a first button, a second button, a display screen, an LED indicator light and a USB charging port, the time module, the buzzer, the limit switch The switch, the first button, the second button, the display screen and the LED indicator are connected in communication with the controller; the time module, the buzzer, the limit switch, the first button, the second button, the display screen, the LED indicator and the Electrical connection to the USB charging port; The medicine box body is a cylindrical box body, including a box cover, a medicine storage middle layer and a bottom plate; The box cover is arranged on the upper end of the medicine box body, and a fan-shaped notch is provided on the box cover for putting in or taking out the medicine, and the surface of the box cover is provided with the first button, the second button, the display screen, and the USB charging port; The medicine storage middle layer includes a plurality of medicine storage bins, LED indicators are installed on the outer wall of each medicine storage bin, and a limit switch that can be pressed is installed at the bottom of each medicine storage bin; the lower end of the medicine storage middle layer passes through the vertical The straight central rotating shaft is installed on the bottom plate, the upper end of the medicine storage middle layer is installed on the box cover through the vertically arranged central rotating shaft, the medicine storage middle layer rotates around the central rotating shaft, the central rotating shaft is fixedly connected with the box cover, and the central rotating shaft is fixed with the bottom plate connect; The bottom plate is provided with a limit hole, the limit hole is used for cooperating with the ejection of the limit switch that can be pressed, and the limit hole is located below the corresponding fan-shaped notch of the box cover. 2 . The portable smart medicine box according to claim 1 , wherein the central rotating shaft is a hollow cavity, and the hollow cavity is provided with the controller, the time module and the buzzer in sequence from top to bottom. 3 . 3 . The portable smart medicine box according to claim 1 , wherein the first button, the second button, the display screen and the USB charging port are located in the center of the box cover. 4 . 4 . The portable smart medicine box according to claim 1 , wherein the outer diameter of the depressable limit switch is smaller than the inner diameter of the limit hole. 5 . 5 . The portable smart medicine box according to claim 1 , wherein the fan-shaped notch opened on the box cover is equal to the size of each of the medicine storage bins. 6 . 6 . The portable smart medicine box according to claim 1 , wherein there are seven medicine storage bins. 7 .
