Abstract
The utility model discloses a geomembrane production winding device, which relates to the technical field of geomembranes and comprises a base, wherein a movable arm mechanism is arranged at the top of the base through an adjusting mechanism, the movable arm mechanism comprises a movable arm, a first rotating shaft is rotatably connected onto the movable arm, a first rotating disc is fixed on the side surface of the first rotating shaft, a fixed arm mechanism is arranged at one end, far away from the adjusting mechanism, of the top of the base, and the fixed arm mechanism comprises a fixed arm. Compared with the prior art, the adjustable winding machine has the advantages that the movable arm mechanism is driven to be close to the fixed arm mechanism through the adjusting mechanism, winding rollers of different specifications can be conveniently installed, the winding rollers can be conveniently detached after winding is finished, the use is very flexible, the processing efficiency is very high, meanwhile, the stabilizing frame mechanism is adopted to balance the winding rollers in the winding process, the geomembrane is extended by utilizing the guide rollers, and the winding smoothness and the attractiveness of the geomembrane can be conveniently improved.
Description
Technical Field
The utility model relates to the technical field of geomembranes, in particular to a geomembrane production winding device.
Background
In the production process of geomembrane, need utilize special coiling mechanism to carry out the geomembrane rolling, but current geomembrane takes off after collecting the completion a large amount of time of cost staff, seriously influences the production efficiency of geomembrane, uses to exist not enoughly, for this reason we propose a geomembrane production coiling mechanism.
SUMMERY OF THE UTILITY MODEL
The utility model provides a geomembrane production winding device, which solves the technical problems that a large amount of time is spent on workers when a winding drum is taken down after the collection of the existing geomembrane is finished, and the production efficiency of the geomembrane is seriously influenced.
In order to solve the technical problem, the utility model provides a geomembrane production winding device, which comprises a base, the top of the base is provided with a movable arm mechanism through an adjusting mechanism, the movable arm mechanism comprises a movable arm, the movable plate is rotatably connected with a first rotating shaft, a first rotating disc is fixed on the side surface of the first rotating shaft, a fixed arm mechanism is arranged at one end of the top of the base, which is far away from the adjusting mechanism, the fixed arm mechanism comprises a fixed arm, a second motor is arranged on the side surface of the fixed arm, an output shaft of the second motor penetrates through the fixed arm and is connected with a second rotating shaft, a second rotating disc is fixed on the side surface of the second rotating shaft, a wind-up roll is arranged between the first rotating disc and the second rotating disc, guide roller mechanisms are installed on the side faces of the movable arm mechanism and the fixed arm mechanism, and a stabilizing frame mechanism is installed on the side face of the fixed arm.
Preferably, the adjusting mechanism comprises a first motor installed on the side face of the base, an output shaft of the first motor is inserted into the base and connected with a lead screw, a threaded sleeve is connected onto the lead screw through threads, a sliding block is fixed on the threaded sleeve and is connected with the base in a sliding mode, and the movable arm is fixed to the top of the sliding block.
Preferably, the side of first carousel is fixed with first fixed pin, the side of second carousel is fixed with the second fixed pin, the quantity of first fixed pin and second fixed pin is two sets of, first fixed pin and second fixed pin insert the inside of guide roll and with the guide roll joint.
Preferably, the stabilizing frame mechanism comprises a supporting rod fixed on the side face of the fixed arm, the bottom of the supporting rod is provided with the stabilizing frame through a telescopic mechanism, and the stabilizing frame is of an arc plate structure.
Preferably, telescopic machanism is including fixing the sleeve on the bracing piece, telescopic inside sliding connection has the movable rod, the movable rod runs through the sleeve and is connected with the steady rest, the movable rod is T type pole, install the spring between movable rod and the sleeve.
Preferably, the guide roll mechanism includes the fixed plate, the both ends of fixed plate side are all rotated and are connected with the guide roll, be provided with the screw thread on the guide roll, the rotation direction of screw thread is opposite on two guide rolls.
Compared with the related art, the geomembrane production winding device provided by the utility model has the following beneficial effects:
the utility model provides a geomembrane production winding device, wherein a movable arm mechanism is driven by an adjusting mechanism to be close to a fixed arm mechanism, so that winding rollers with different specifications can be conveniently installed, the winding rollers can be conveniently dismounted after being wound, and the geomembrane production winding device is very flexible to use and has very high processing efficiency.
The utility model provides a winding device for geomembrane production, which is characterized in that a winding roller is balanced by adopting a stabilizer mechanism in the winding process, and the geomembrane is extended by utilizing a guide roller, so that the winding smoothness and the attractiveness of the geomembrane are conveniently improved.
Drawings
Fig. 1 is a front view of a geomembrane production rolling device according to the present invention;

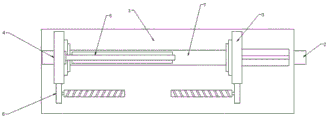

FIG. 2 is a top view of FIG. 1;
FIG. 3 is a front cross-sectional view of FIG. 1;
FIG. 4 is a cross-sectional view of the telescoping mechanism of FIG. 3;
fig. 5 is a front view of the guide roller mechanism of fig. 1.
Reference numbers in the figures: the device comprises a base 1, an adjusting mechanism 2, a first motor 21, a lead screw 22, a thread bush 23, a slide block 24, a movable arm mechanism 3, a movable arm 31, a first rotating shaft 32, a first rotating disc 33, a first fixing pin 34, a fixing arm mechanism 4, a fixing arm 41, a second motor 42, a second rotating shaft 43, a second rotating disc 44, a second fixing pin 45, a stabilizing frame mechanism 5, a supporting rod 51, a telescopic mechanism 52, a sleeve 521, a movable rod 522, a spring 523, a stabilizing frame 53, a guide roller mechanism 6, a fixing arm 61, a guide roller 62 and a wind-up roller 7.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments; all other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Embodiment, as shown in fig. 1 to 5, the geomembrane production rolling device provided by the present invention includes a base 1, a movable arm mechanism 3 is installed on the top of the base 1 through an adjusting mechanism 2, the adjusting mechanism 2 includes a first motor 21 installed on the side surface of the base 1, an output shaft of the first motor 21 is inserted into the base 1 and connected with a lead screw 22, a threaded sleeve 23 is connected on the lead screw 22 through a thread, a slider 24 is fixed on the threaded sleeve 23, the slider 24 is slidably connected with the base 1, a movable arm 31 is fixed on the top of the slider 24, the movable arm mechanism 3 includes a movable arm 31, a first rotating shaft 32 is rotatably connected on the movable plate 31, a first rotating disc 33 is fixed on the side surface of the first rotating shaft 32, a fixed arm mechanism 4 is installed on one end of the top of the base 1 away from the adjusting mechanism 2, the fixed arm mechanism 4 includes a fixed arm 41, a second motor 42 is installed on the side surface of the fixed arm 41, an output shaft of the second motor 42 penetrates through the fixing arm 41 and is connected with a second rotating shaft 43, a second rotating disc 44 is fixed on the side surface of the second rotating shaft 43, a winding roller 7 is installed between the first rotating disc 33 and the second rotating disc 44, a first fixing pin 34 is fixed on the side surface of the first rotating disc 33, a second fixing pin 45 is fixed on the side surface of the second rotating disc 44, the number of the first fixing pin 34 and the number of the second fixing pin 45 are two, the first fixing pin 34 and the second fixing pin 45 are inserted into the guide roller 7 and clamped with the guide roller 7, guide roller mechanisms 6 are installed on the side surfaces of the movable arm mechanism 3 and the fixing arm mechanism 4, stabilizing frame mechanisms 5 are installed on the side surfaces of the fixing arm 4, the movable arm mechanism is driven by the adjusting mechanism to be close to the fixed arm mechanism, so that winding rollers of different specifications can be conveniently mounted, the winding rollers can be conveniently dismounted after being wound, and the winding roller is very flexible to use and has very high processing efficiency.
The steady rest mechanism 5 is including fixing the bracing piece 51 in fixed arm 41 side, steady rest 53 is installed through telescopic machanism 52 in the bottom of bracing piece 51, steady rest 53 is the circular arc plate structure, telescopic machanism 52 is including fixing the sleeve 521 on bracing piece 51, the inside sliding connection of sleeve 521 has the movable rod 522, the movable rod 522 runs through sleeve 521 and is connected with steady rest 53, the movable rod 522 is T type pole, install spring 523 between movable rod 522 and the sleeve 521, guide roll mechanism 6 is including fixed plate 61, the both ends of fixed plate 61 side all rotate and are connected with guide roll 62, be provided with the screw thread on the guide roll 62, the direction of turning of screw thread is opposite on two guide roll 62, adopt steady rest mechanism to balance the wind-up roll in the in-process of rolling, and utilize the guide roll to extend the geomembrane, the planarization and the aesthetic property of the rolling of convenient improvement geomembrane.
The working principle is as follows:
the implementation steps of innovation points are as follows:
the first step is as follows: when the winding device is used, firstly, the winding roller 7 is sleeved into the second fixing pin 45, then, the winding roller 7 is fixed with the second turntable 44, the first motor 21 is started, the output shaft of the first motor 21 drives the screw rod 22 to rotate, the screw rod 22 drives the threaded sleeve 23 through threaded transmission, the threaded sleeve 23 drives the sliding block 24 to slide on the base 1, the sliding block 24 drives the movable arm mechanism 3 to be close to the winding roller 7, the first fixing pin 34 is inserted into the winding roller 7, and then, the winding roller 7 and the first turntable 33 are fixed through bolts;
the second step is that: the geomembrane penetrates through the two guide rollers 6 and then is wound on the winding roller 7, then the second motor 42 is started, the output shaft of the second motor 42 drives the second rotary table 44 through the second rotary shaft 43, the second rotary table 44 drives the first rotary table 33 through the winding roller 7, the first rotary table 33 drives the first rotary shaft 32 to rotate in the movable arm 31, and the rotating winding roller 7 is used for winding the geomembrane;
the third step: in the rolling process, tension is applied to two sides of the geomembrane by the two groups of guide rollers 6 with opposite screw threads, so that the geomembrane is rolled flatly, when the rolling roller 7 rolls the large geomembrane to increase the volume, the side stabilizing frames 53 drive the movable rods 522 to insert into the sleeves 521 to extrude the springs 523, and the stability in rolling is improved by the stabilizing frames 53.
In summary, compared with the prior art, the adjustable winding machine has the advantages that the movable arm mechanism is driven to be close to the fixed arm mechanism through the adjusting mechanism, so that winding rollers of different specifications can be conveniently installed, the winding rollers can be conveniently detached after being wound, the use is very flexible, the processing efficiency is very high, meanwhile, the winding rollers are balanced in the winding process by adopting the stabilizing frame mechanism, the geomembrane is extended by utilizing the guide rollers, and the winding smoothness and the attractiveness of the geomembrane can be conveniently improved.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a geomembrane production coiling mechanism, includes base (1), its characterized in that: movable arm mechanism (3) is installed through adjustment mechanism (2) at the top of base (1), movable arm mechanism (3) are including movable arm (31), it is connected with first pivot (32) to rotate on movable arm (31), the side of first pivot (32) is fixed with first carousel (33), fixed arm mechanism (4) is installed to the one end that adjustment mechanism (2) were kept away from at the top of base (1), fixed arm mechanism (4) are including fixed arm (41), the side-mounting of fixed arm (41) has second motor (42), the output shaft of second motor (42) runs through fixed arm (41) and is connected with second pivot (43), the side of second pivot (43) is fixed with second carousel (44), install wind-up roll (7) between first carousel (33) and second carousel (44), guide roll mechanism (6) are all installed to the side of movable arm mechanism (3) and fixed arm mechanism (4) And a stabilizing frame mechanism (5) is arranged on the side surface of the fixing arm (41).
2. The geomembrane production winding device according to claim 1, wherein the adjusting mechanism (2) comprises a first motor (21) installed on the side surface of the base (1), an output shaft of the first motor (21) is inserted into the base (1) and connected with a screw rod (22), a threaded sleeve (23) is connected onto the screw rod (22) through threads, a sliding block (24) is fixed onto the threaded sleeve (23), the sliding block (24) is connected with the base (1) in a sliding manner, and the movable arm (31) is fixed onto the top of the sliding block (24).
3. The geomembrane production rolling device according to claim 1, wherein a first fixing pin (34) is fixed to a side surface of the first rotating disk (33), a second fixing pin (45) is fixed to a side surface of the second rotating disk (44), the number of the first fixing pin (34) and the number of the second fixing pin (45) are two, and the first fixing pin (34) and the second fixing pin (45) are inserted into the interior of the rolling roll (7) and clamped with the rolling roll (7).
4. The geomembrane production rolling device according to claim 1, wherein said stabilizer mechanism (5) comprises a support rod (51) fixed on the side of said fixing arm (41), the bottom of said support rod (51) is provided with a stabilizer frame (53) through a telescopic mechanism (52), and said stabilizer frame (53) is of an arc plate structure.
5. The geomembrane production rolling device according to claim 4, wherein the telescoping mechanism (52) comprises a sleeve (521) fixed on a support rod (51), a movable rod (522) is slidably connected inside the sleeve (521), the movable rod (522) penetrates through the sleeve (521) and is connected with the stabilizing frame (53), the movable rod (522) is a T-shaped rod, and a spring (523) is installed between the movable rod (522) and the sleeve (521).
6. The geomembrane production winding device according to claim 1, wherein the guide roller mechanism (6) comprises a fixing plate (61), guide rollers (62) are rotatably connected to both ends of the side surface of the fixing plate (61), threads are arranged on the guide rollers (62), and the threads on the two guide rollers (62) are oppositely rotated.
