Abstract
The utility model relates to the technical field of a neonatal phototherapy protection device, in particular to a neonatal three-dimensional phototherapy protection eyeshade which comprises a shading pad and shading pieces, wherein the shading pad is an open shading pad or a closed shading pad, the open shading pad is of an annular three-dimensional structure with a hollow middle part, the closed shading pad is of an integral structure which is concave and convex, the shading pieces are pasted on the outer layer of the shading pad, and binding bands are arranged on two sides of the shading pad for fixing. In the design of the utility model, the structure of the light shading body conforms to human engineering, is more suitable for the appearance structure of eyes, provides space for the eyes of a child patient, is more comfortable to wear, can effectively reduce the damage of the eyes of the child to blue light irradiation, has strong stability and is not easy to fall off when in use, and is suitable for being worn for a long time; the infant care product is made of high-quality non-woven fabrics and elastic materials, is soft, comfortable and safe, and is suitable for infants with various head shapes.
Description
Technical Field
The utility model relates to the technical field of phototherapy protection devices for newborns, in particular to a stereoscopic phototherapy protection eyeshade for newborns.
Background
Neonatal pathological jaundice is a common disease of a newborn, phototherapy can effectively reduce the level of indirect bilirubin in serum of an infant patient, but high-intensity blue light irradiation can cause conjunctival congestion, corneal ulcer and retinal injury, and in order to protect eyes of the newborn, an eye patch must be worn during treatment.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a stereoscopic phototherapy eyeshade for a newborn, which solves the problems in the background technology.
The utility model provides a three-dimensional phototherapy eyeshade of neonate, includes shading pad 1 and lens hood 2, shading pad 1 is open shading pad 101 or closed shading pad 102, shading pad 1 one side sets up lens hood 2, and both sides are equipped with bandage 4 and are used for fixing.
The open type shading pad 101 is of an annular three-dimensional structure with a hollow middle part.
The shading sheet 2 is of a black flat sheet structure.
The closed shading pad 102 is of an inward-concave and outward-convex integral structure, the outer layer of the closed shading pad 102 is an outer shading pad layer 103, the inner layer is an inner shading pad layer 104, and the two sides of the closed shading pad 102 are provided with the binding bands 4 for fixing.
The outer light shielding cushion layer 103 and the inner light shielding cushion layer 104 are made of materials including but not limited to woven cloth or non-woven cloth, the outer light shielding cushion layer 103 is arranged on the outer wall of the closed light shielding cushion 102, the inner light shielding cushion layer 104 is arranged on the inner wall of the closed light shielding cushion 102, and foam 6 is arranged between the outer light shielding cushion layer 103 and the inner light shielding cushion layer 104.
Compared with the prior art, the utility model has the following beneficial effects:
the utility model adopts the processes of thermoplastic forming or hot pressing and the like to form the structure with the recess, the shading pad conforms to the human engineering, provides space for eyes, reduces the pressure on the eyes, improves the comfort level of a child patient, has the blocking rate on blue light of over 99 percent, and effectively reduces the damage of the eyes of a newborn to the blue light irradiation.
Drawings
Fig. 1 is a schematic overall structure diagram of a first embodiment of the present invention;
FIG. 2 is a schematic structural diagram of an open type light shielding pad according to an embodiment of the present invention;
FIG. 3 is a schematic structural diagram of a light-shielding sheet according to an embodiment of the present invention;
FIG. 4 is a schematic overall structure diagram of a second embodiment of the present invention;
FIG. 5 is a schematic structural diagram of a second adhesive layer according to an embodiment of the present invention;
FIG. 6 is a schematic structural view of a second open type light-shielding pad according to an embodiment of the present invention;
fig. 7 is a schematic structural view of a second light-shielding sheet according to an embodiment of the utility model;
FIG. 8 is a schematic structural diagram of an embodiment of an open type light-shielding pad;
FIG. 9 is a schematic structural diagram of a third adhesive layer according to an embodiment of the present invention;
fig. 10 is a schematic structural view of a triple light-shielding sheet according to an embodiment of the present invention;
FIG. 11 is a schematic structural view of a four-sided closed type light-shielding pad according to an embodiment of the present invention;
FIG. 12 is a cross-sectional side A structure and an enlarged schematic view of a four-closed type light-shielding pad according to an embodiment of the present invention;
FIG. 13 is a schematic overall structure diagram of a fifth embodiment of the present invention;
FIG. 14 is a schematic structural diagram of a cross-sectional side B of a fifth embodiment of the present invention;

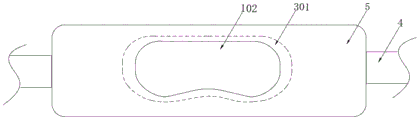

fig. 15 is an overall structural diagram of a sixth embodiment of the present invention.
In the figure: 1. a light-shielding pad; 101. an open shading mat; 102. a closed shading pad; 103. an outer light-shielding cushion layer; 104. an inner light-shielding cushion layer; 2. a shading sheet; 3. an adhesive layer; 301. a pasting area; 4. binding bands; 5. elastic cloth; 6. a sponge; 7. gluing layers; 701. hot melt adhesive; 8. a hydrogel.
Detailed Description
The present invention will be described in further detail with reference to the following examples in order to clarify technical problems, technical solutions, implementation processes and performance displays. It should be understood that the specific embodiments described herein are for illustrative purposes only. The present invention is not limited to the above embodiments. Various exemplary embodiments, features and aspects of the present disclosure will be described in detail below with reference to the accompanying drawings. In the drawings, like reference numbers can indicate functionally identical or similar elements. While the various aspects of the embodiments are presented in drawings, the drawings are not necessarily drawn to scale unless specifically indicated.
The word "exemplary" is used exclusively herein to mean "serving as an example, embodiment, or illustration. Any embodiment described herein as "exemplary" is not necessarily to be construed as preferred or advantageous over other embodiments.
Furthermore, in the following detailed description, numerous specific details are set forth in order to provide a better understanding of the present disclosure. It will be understood by those skilled in the art that the present disclosure may be practiced without some of these specific details. In some instances, methods, means, elements and circuits that are well known to those skilled in the art have not been described in detail so as not to obscure the present disclosure.
Example 1
The utility model provides a stereoscopic phototherapy eyeshade for neonates, as shown in fig. 1, fig. 2 and fig. 3, an open type shading pad 101 is made of foam or polyurethane foam, hydrogel 8 is attached to the inner surface of the open type shading pad, the hydrogel 8 is a human body contact surface, the outer surface of the open type shading pad is fixed with a shading sheet 2 through hot melt adhesive 701 and used for shading, two sides of the open type shading pad are provided with binding bands 4, and the shading sheet 2 is made of black woven fabric or black non-metal thin film.
Example 2
The utility model provides a stereoscopic phototherapy eyeshade for a newborn, as shown in fig. 4, fig. 5, fig. 6 and fig. 7, an open type light shielding pad 101 is made of foam or polyurethane foam, the inner side of the open type light shielding pad 101 is a human body contact surface, the outer side of the open type light shielding pad is connected with an adhesive layer 3 through a hot melt adhesive 701, the outer side of the adhesive layer 3 is fixed with a light shielding sheet 2 through the hot melt adhesive 701, two sides of the adhesive layer 3 are provided with binding bands 4, and the light shielding sheet 2 is made of black woven fabric or black non-metal thin film.
Example 3
The utility model provides a stereoscopic phototherapy eyeshade for neonates, as shown in fig. 8, 9 and 10, the open type shading pad 101 is made of foam cotton or polyurethane foam, the inner side of the open type shading pad 101 is a human body contact surface, the outer side of the open type shading pad is connected with the shading pad 2 through hot melt adhesive 701, the outer side of the shading pad 2 is connected with an adhesive layer 3, an adhesive area 301 is arranged in the middle of the adhesive layer 3, and the shading pad 2 is fixed on the adhesive area 301 through the hot melt adhesive 701.
Example 4
The utility model provides a stereoscopic phototherapy protective eye patch for a newborn, as shown in fig. 11 and 12, the eyeball part corresponding to a closed light shielding pad 102 is of an inward-concave and outward-convex integral structure, the inner layer is an inner light shielding cushion layer 104, the outer layer is an outer light shielding cushion layer 103, the inner light shielding cushion layer 104 is a human body contact surface, a sponge 6 is arranged between the inner light shielding cushion layer 104 and the outer light shielding cushion layer 103, and two sides of the closed light shielding pad 102 are provided with binding bands 4 for fixation.
Example 5
The utility model provides a stereoscopic phototherapy eyeshade for neonates, as shown in fig. 13 and 14, a closed shading pad 102 is of an inward-concave and outward-convex integral structure, a gluing layer 7 is arranged in the middle, the gluing layer 7 is used for attaching black shading cloth, and binding bands 4 are arranged on two sides of the closed shading pad 102 and used for fixing.
Example 6
The utility model provides a stereoscopic phototherapy eyeshade for a newborn, as shown in fig. 15, a closed shading pad 102 is of an inward-concave outward-convex integral structure, the closed shading pad 102 is attached to the outer surface of an elastic cloth 5, the inner wall of the elastic cloth 5 is a human body contact surface, a glue coating layer 7 is arranged on the outer surface of the elastic cloth 5, the glue coating layer 7 is used for adhering the closed shading pad 102, black shading cloth is attached to the outer wall of the closed shading pad 102, the elastic cloth 5 is rectangular, the material includes but is not limited to elastic cloth, and two sides of the elastic cloth are provided with binding bands 4 for fixing.
The middle of the inner shading cushion layer is made of foam, sponge or polyurethane foam.
The shading pad is made of foam, sponge or polyurethane foam.
The part of the shading pad contacting with human body can be provided with silica gel, hydrogel, hydrocolloid or acrylic acid glue.
The shading cloth is woven cloth or non-woven cloth, and the elastic cloth is woven cloth or non-woven cloth.
The foregoing shows and describes the general principles, essential features, and advantages of the utility model. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the preferred embodiments of the present invention are described in the above embodiments and the description, and are not intended to limit the present invention. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (5)
1. The utility model provides a neonate's three-dimensional phototherapy eyeshade, its characterized in that, includes shading pad (1) and anti-dazzling screen (2), shading pad (1) is open shading pad (101) or closed shading pad (102), shading pad (1) one side sets up anti-dazzling screen (2), and both sides are equipped with bandage (4) and are used for fixing.
2. The stereoscopic phototherapy eyeshade for neonates according to claim 1, characterized in that the open light-shading pad (101) is a hollow annular stereoscopic structure.
3. The stereoscopic phototherapy eyeshade for neonates according to claim 1, characterized in that the light shielding sheet (2) is a black flat sheet structure.
4. The stereoscopic phototherapy eyeshade for neonates according to claim 1, characterized in that the closed light shading pad (102) is an inward-concave and outward-convex integral structure, the outer layer of the closed light shading pad (102) is an outer light shading pad layer (103), the inner layer is an inner light shading pad layer (104), and two sides of the closed light shading pad (102) are provided with binding bands (4) for fixation.
5. The neonatal stereoscopic phototherapy eyeshade according to claim 4, characterized in that the outer light shielding cushion layer (103) and the inner light shielding cushion layer (104) are made of materials including but not limited to woven cloth or non-woven cloth, the outer light shielding cushion layer (103) is arranged on the outer wall of the closed light shielding cushion (102), the inner light shielding cushion layer (104) is arranged on the inner wall of the closed light shielding cushion (102), and foam (6) is arranged between the outer light shielding cushion layer (103) and the inner light shielding cushion layer (104).
