CN215774496U - Flower stand with rainwater collection function

Info

Publication number: CN215774496U
Application number: CN202120813277.1U
Authority: CN
Inventors: 魏文龙
Original assignee: Shanghai Liu Xiaohui Architectural Landscape Planning And Design Co ltd
Current assignee: Shanghai Liu Xiaohui Architectural Landscape Planning And Design Co ltd
Priority date: 2021-04-20
Filing date: 2021-04-20
Publication date: 2022-02-11
Anticipated expiration: 2031-04-20

Abstract

The utility model relates to the technical field of flower stands, and discloses a flower stand with a rainwater collection function. The surface is provided with openings, the inner side of the collection layer is provided with a card slot, the inside of the card slot is connected with a hanging ear, the side of the hanging ear is connected with a filter cup, and the bottom of the collection layer is connected with a collector. A water pipe, the bottom of the water collecting pipe is provided with a water storage tank, and the side of the water storage tank is connected with a water suction pipe. The flower stand with the rainwater collection function, through the hollow horizontal plate, facilitates the falling of rainwater, and is collected and stored in the water storage tank through the funnel-shaped collection layer. The plants are watered and the rainwater is recycled, which reduces the waste of water resources, realizes the sustainable development of water sources, and improves the environmental protection of the flower stand.

Description

Flower stand with rainwater collection function

Technical Field

The utility model relates to the technical field of flower stands, in particular to a flower stand with a rainwater collecting function.

Background

The flower shelf is also called green gallery, flower gallery, pergola, etc. The device is a small article facility which is composed of upright posts and a structure with lattice bars at the top and can enable vine plants to climb and cover. In various garden greenbelts, the flower stands jointly build landscape spaces integrating use functions, scenery appreciation and the like by means of active shapes, colors and plant expressions, the flower stands are designed to know the origin and growth habits of configured plants so as to create conditions and shape requirements suitable for plant growth, and the flower stands can be applied to various garden greenbelts, are usually arranged in places with beautiful landscape for rest and scenery, and can be combined with pavilions, galleries, water champs and the like to form garden building groups with attractive appearance; the flower shelf can be used for resting, shading and enjoying the cool in the green land of the residential area and the children game field; the flower shelf is used for replacing a gallery, so that the space can be contacted; the liana is climbed by the lattice walls, so that the scenery can be separated; tea rooms, cold drink departments, restaurants and the like in gardens, flower stands can also be used as pergolas, and seats are arranged; the flower shelf can also be used as a garden gate.

Common pergola does not generally have the rainwater and collects the function, and the user is difficult to carry out repeated reasonable utilization to the rainwater, causes the waste of water resource, and general pergola is not convenient for automatic waters the plant, and the practicality is relatively poor, provides a pergola that has the rainwater and collects the function for this reason.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Aiming at the defects of the prior art, the flower stand with the rainwater collection function has the advantages of being capable of collecting and utilizing rainwater, convenient for watering plants and the like, and solves the problems that the conventional flower stand does not generally have the rainwater collection function, a user is difficult to repeatedly and reasonably utilize the rainwater, water resources are wasted, the conventional flower stand is inconvenient for automatically watering the plants, and the practicability is poor.

(II) technical scheme

In order to realize the purposes of collecting and utilizing rainwater and conveniently irrigating plants, the utility model provides the following technical scheme: the utility model provides a pergola with function is collected to rainwater, includes the support body, its characterized in that: the top of support body is provided with the collection layer, the inner wall on collection layer is fixed with the diaphragm, the trompil has been seted up on the surface of diaphragm, the draw-in groove has been seted up to the inboard on collection layer, the internal connection of draw-in groove has the hangers, the avris of hangers is connected with the filter bowl, the bottom on collection layer is connected with the collector pipe, the bottom of collector pipe is provided with the water storage box, the avris of water storage box is connected with the pipe that absorbs water, the water pump is installed in the middle section of the pipe that absorbs water, the end department of the pipe that absorbs water is connected with flexible pipe, the top of flexible pipe is connected with communicating pipe, the outside of communicating pipe is provided with the support, the shower nozzle is installed to the end department of communicating pipe, the middle section of communicating pipe is provided with the valve.

Preferably, the bottom of the collection layer is arranged in a funnel shape.

Preferably, the collection layer and the transverse plate are integrally arranged, and the surface of the transverse plate is hollowed.

Preferably, the hangers are connected with the clamping grooves in a clamping manner, and the hangers are connected with the filter bowl in a welding manner.

Preferably, the supports are symmetrically arranged in 2 groups about the axis of the rack body, and each group is provided with 3 supports.

Preferably, the shower nozzle is provided with 3 equidistant, and the shower nozzle all corresponds with the junction of communicating pipe and is provided with the valve.

(III) advantageous effects

Compared with the prior art, the flower stand with the rainwater collecting function has the following beneficial effects that:

1. according to the flower stand with the rainwater collection function, rainwater can conveniently fall through the hollow transverse plate, and the rainwater is collected and enters the water storage tank for storage through the funnel-shaped collection layer, so that when the flower stand is used, the rainwater can be sprayed out by the spray head to water plants under the extraction of the water pump, the rainwater is recycled, the waste of water resources is reduced, the sustainable development of water sources is realized, and the environmental protection performance of the flower stand is improved;

2. this pergola with function is collected to rainwater through the multilayer support that sets up, adjusts the position of shower nozzle according to the height of different plants, has satisfied the user demand under the different situation, has reduced the limitation that the shower nozzle used.

Drawings

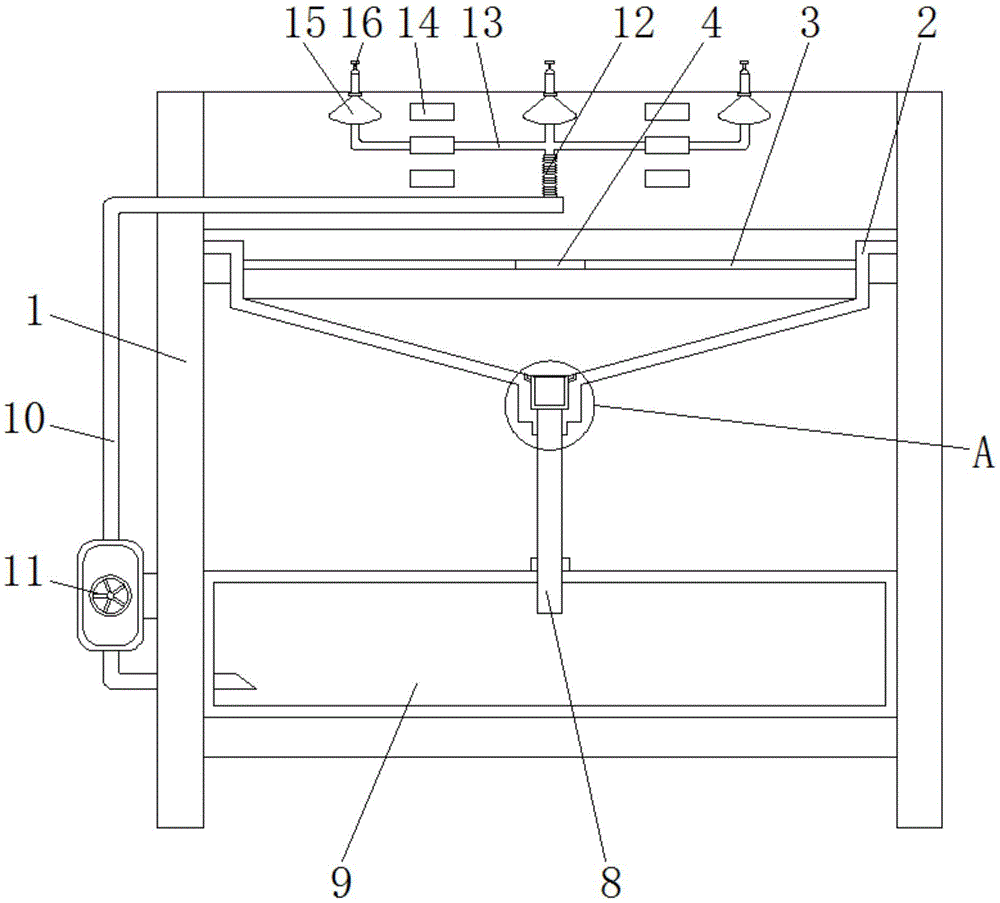

FIG. 1 is a schematic front view of the present invention;

FIG. 2 is a schematic side view of the present invention;

FIG. 3 is a schematic view of the connection structure of the horizontal plate and the collection layer according to the present invention;

FIG. 4 is an enlarged view of the structure at A in FIG. 1 according to the present invention.

In the figure: the device comprises a frame body 1, a collecting layer 2, a

transverse plate

3, 4 holes, 5 clamping grooves, 6 hanging lugs, 7 filter cups, 8 water collecting pipes, 9 water storage tanks, 10 water suction pipes, 11 water pumps, 12 telescopic pipes, 13 communicating pipes, 14 supports, 15 spray heads and 16 valves.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-4, the utility model provides a flower shelf with a rainwater collecting function, which comprises a shelf body 1, a collecting layer 2, a transverse plate 3, an opening 4, a clamping groove 5, a hanging lug 6, a filter cup 7, a water collecting pipe 8, a water storage tank 9, a water suction pipe 10, a water pump 11, an extension pipe 12, a communication pipe 13, a support 14, a spray head 15 and a valve 16, and comprises a shelf body 1, wherein the collecting layer 2 is arranged at the top of the shelf body 1, the transverse plate 3 is fixed on the inner wall of the collecting layer 2, the surface of the transverse plate 3 is provided with the opening 4, the opening 4 is convenient for a user to take out and clean the filter cup 7, the clamping groove 5 is arranged on the inner side of the collecting layer 2, the hanging lug 6 is connected inside the clamping groove 5, the filter cup 7 is connected to the side of the hanging lug 6, the water collecting pipe 8 is connected to the bottom of the collecting layer 2, the water storage tank 9 is arranged at the bottom of the water collecting pipe 8, the avris of water storage box 9 is connected with the pipe 10 that absorbs water, water pump 11 is installed in the middle section of the pipe 10 that absorbs water, the end department of the pipe 10 that absorbs water is connected with flexible pipe 12, the top of flexible pipe 12 is connected with communicating pipe 13, the outside of communicating pipe 13 is provided with support 14, and the user's accessible is with the support 14 looks block of communicating pipe 13 and different positions, adjusts the height of shower nozzle 15 to satisfy the watering needs of the plant of different heights, shower nozzle 15 is installed in the end department of communicating pipe 13, the middle section of communicating pipe 13 is provided with valve 16.

Furthermore, the bottom of the collection layer 2 is in a funnel-shaped arrangement, and the funnel-shaped arrangement of the collection layer 2 enables rainwater to be collected in a certain area in a concentrated manner, so that rainwater collection is facilitated.

Further, as an integrated structure, the collection layer 2 and the transverse plate 3 are arranged, the surface of the transverse plate 3 is hollowed out, and the flower stand is guaranteed to support the flowerpot stably without influencing the falling of rainwater.

Further, be connected for the block between hangers 6 and the draw-in groove 5, and be welded connection between hangers 6 and the filter bowl 7, through hangers 6 and draw-in groove 5's block, fix filter bowl 7, filter the impurity of rainwater by filter bowl 7, avoid impurity to get into and absorb water and cause the pipe blockage in pipe 10 and communicating pipe 13, and filter bowl 7 accessible trompil 4 takes out and clears up.

Further, the support 14 is provided with 2 groups about the axis symmetry of support body 1, and every group is provided with 3, and through a plurality of supports 14 that set up, accessible communicating pipe 13 and the block of the support 14 of co-altitude not adjust the height of shower nozzle 15 to satisfy the watering needs of co-altitude plant.

Further, shower nozzle 15 equidistant is provided with 3, and shower nozzle 15 all corresponds with the junction of communicating pipe 13 and is provided with valve 16, and a plurality of settings of shower nozzle 15 can water many basins of plants simultaneously, simultaneously under valve 16's cooperation, also can carry out single watering.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A flower stand with rainwater collection function, comprising a frame body (1), characterized in that: the top of the frame body (1) is provided with a collection layer (2), and the inner wall of the collection layer (2) is fixed with a A horizontal plate (3), the surface of the horizontal plate (3) is provided with openings (4), the inner side of the collection layer (2) is provided with a card slot (5), and the internal connection of the card slot (5) There are hanging ears (6), the sides of the hanging ears (6) are connected with a filter cup (7), and the bottom of the collection layer (2) is connected with a water collection pipe (8), the The bottom is provided with a water storage tank (9), the side of the water storage tank (9) is connected with a suction pipe (10), a water pump (11) is installed in the middle section of the suction pipe (10), and the suction pipe ( 10) A telescopic pipe (12) is connected to the end of the telescopic pipe (12), a communication pipe (13) is connected to the top end of the telescopic pipe (12), and a bracket (14) is provided on the outside of the communication pipe (13), and the communication pipe (13) is provided with a bracket (14). A nozzle (15) is installed at the end of the pipe (13), and a valve (16) is arranged in the middle section of the communication pipe (13).

2 . The flower stand with rainwater collection function according to claim 1 , wherein the bottom of the collection layer ( 2 ) is arranged in a funnel shape. 3 .

3. A flower stand with rainwater collection function according to claim 1, characterized in that: the collection layer (2) and the transverse plate (3) are integrally arranged, and the surface of the transverse plate (3) is integrated. Set for cutout.

4. A flower stand with rainwater collection function according to claim 1, characterized in that: the hanging lug (6) and the card slot (5) are in a snap-fit connection, and the hanging lug (6) is connected to the filter The cups (7) are connected by welding.

5 . The flower stand with rainwater collection function according to claim 1 , characterized in that 2 groups of the brackets ( 14 ) are symmetrically arranged with respect to the axis of the frame body ( 1 ), and each group is arranged with 3 pieces. 6 .

6. a kind of flower stand with rainwater collection function according to claim 1, is characterized in that: described spray head (15) is provided with 3 equidistant intervals, and the junction of spray head (15) and communicating pipe (13) is all Correspondingly, a valve (16) is provided.
