本实用新型提供了一种机电安装用电安全防护装置，属于机电防护设备技术领域。其技术方案为：一种机电安装用电安全防护装置，其中，包括底座，固定在底座顶面上的柜体，分别依次贯穿柜体底壁及底座的若干个导流槽，设置在柜体侧壁上的通气机构，设置在柜体顶部的挡雨机构，以及设置在柜体内顶壁上的蒸发机构。本实用新型的有益效果为：本实用新型提供的一种机电安装用电安全防护装置结构简单、防雨防水效果好、使用寿命长、防护性能高。
The utility model provides an electrical safety protection device for electromechanical installation, which belongs to the technical field of electromechanical protection equipment. The technical scheme is as follows: an electrical safety protection device for electromechanical installation, which includes a base, a cabinet fixed on the top surface of the base, and a plurality of diversion grooves respectively penetrating the bottom wall of the cabinet and the base in sequence, and arranged in the cabinet. The ventilation mechanism on the side wall, the rainproof mechanism arranged on the top of the cabinet, and the evaporation mechanism arranged on the top wall of the cabinet. The beneficial effects of the utility model are as follows: the electrical safety protection device for electromechanical installation provided by the utility model is simple in structure, good in rainproof and waterproof effect, long in service life and high in protection performance.
Description
Technical Field
The utility model relates to the technical field of electromechanical protection equipment, in particular to an electromechanical safety protection device for electromechanical installation.
Background
Electromechanical installation is a large-scale work of a project, and a project needs to be implemented in nearly half a year when a large enterprise migrates, and the technical requirements for installation are quite large, and the project contents comprise equipment such as boilers, ventilation air conditioners, refrigeration, electrics, instruments, motors, television broadcasting control and the like.
In the electromechanical installation process, the ventilating and waterproof effect of the conventional protection device of the outdoor electrical cabinet is poor, the use safety and the service life of an electrical element are easily influenced, and danger is easily caused when an installer operates the protection device.
How to solve the problems in the prior art described above is a problem to be faced by the present invention.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an electric safety protection device for electromechanical installation, which has the advantages of simple structure, good rain-proof and water-proof effects, long service life and high protection performance.
The utility model is realized by the following measures: an electric safety protection device for electromechanical installation comprises a base, a cabinet body fixed on the top surface of the base, wherein the base can be used as one protection of the cabinet body, namely the bottom of the cabinet body is positioned at a higher position and has a waterproof function, a plurality of diversion trenches sequentially penetrate through the bottom wall of the cabinet body and the base respectively, an aeration mechanism arranged on the side wall of the cabinet body, a rain shielding mechanism arranged at the top of the cabinet body, and an evaporation mechanism arranged on the top wall in the cabinet body, when in use, the electric cabinet is arranged in the cabinet body, the electric cabinet radiates heat to the outside of the cabinet body through the aeration mechanism, when the temperature in the cabinet body is higher, the evaporation mechanism is opened to accelerate the evaporation of water vapor, and the water vapor is discharged out of the cabinet body through the aeration mechanism, so that the service life of the electric cabinet is prolonged, the rain blocking mechanism at the top can primarily block rainwater to prevent the rainwater from pouring into the cabinet body, when the internal water yield of cabinet is more, rivers pass through the guiding gutter and discharge downwards, and cooperation evaporation mechanism and ventilation mechanism can realize the internal quick drying of cabinet, simple structure, and rain-proof, water-proof effects are good.
The ventilating mechanism comprises a plurality of ventilating holes formed in the side wall of the cabinet body and a plurality of baffle plates which are arranged on the inner side wall of the cabinet body and respectively correspond to the plurality of ventilating holes, the ventilating mechanism is simple in structure, when outside water vapor enters the cabinet body from the ventilating holes, the outside water vapor is initially blocked by the corresponding baffle plates, the water vapor is prevented from directly flushing the electric cabinet, and the service life of the electric cabinet is further prolonged.
The utility model is characterized in that the vent holes are obliquely arranged, the inner sides of the vent holes are higher than the outer sides of the vent holes, so that rainwater is prevented from pouring into the cabinet body through the vent holes, and the rainproof performance is further improved.
The rain shielding mechanism comprises a rain shielding plate which is arranged over the cabinet body in a spanning mode and a supporting rod which is arranged between the rain shielding plate and the cabinet body, and is simple in structure and convenient to manufacture.
The utility model is characterized in that the evaporation mechanism comprises a first motor fixed on the top wall of the cabinet body, and a fan with a rotating shaft connected with an output shaft of the first motor, when evaporation operation needs to be carried out in the cabinet body, the first motor is started to drive the fan to work, the air flow in the cabinet body is accelerated, and the rapid evaporation of the water in the cabinet body can be realized.
The electromechanical installation electric safety protection device is characterized by further comprising a lifting mechanism for controlling the vertical position of the cabinet body, when the ground is wet or water is accumulated, the lifting mechanism is started to drive the cabinet body to move upwards, water can be further prevented from being filled into the cabinet body, and the protection performance of the device is improved.
The lifting mechanism is characterized by comprising a U-shaped support with an upward opening, a top plate arranged between the open ends of the U-shaped support, a second motor fixed at the closed end of the U-shaped support, a screw rod with a vertical rotating shaft, a top end in rotating fit with the top plate and a moving plate, wherein the rotating shaft is coaxial with an output shaft of the second motor, the middle part of the screw rod is sleeved on the screw rod and is in threaded fit with the screw rod, and the end part of the moving plate is in sliding fit with the side part of the U-shaped support along the vertical direction; the movable plate with cabinet body fixed connection, during the use, when the cabinet body need be gone up and down, start the second motor, the lead screw rotates along with the second motor, and the movable plate takes place the motion along vertical direction, can realize taking place the action of vertical direction with the cabinet body of movable plate fixed connection, simple structure, convenient operation.
The utility model is characterized in that the inner walls of two sides of the U-shaped bracket are respectively provided with a sliding chute along the vertical direction, and the two ends of the moving plate are provided with sliding blocks matched with the corresponding sliding chutes.
The cabinet body comprises a first cabinet body and a second cabinet body which are arranged from outside to inside at intervals, a plurality of connecting blocks which are arranged between the first cabinet body and the second cabinet body at intervals, and absorbent cotton which is arranged between the first cabinet body and the second cabinet body in a plugging mode.
The utility model has the beneficial effects that: according to the utility model, the electrical cabinet arranged in the cabinet body radiates heat to the outside of the cabinet body through the ventilation mechanism, when the temperature in the cabinet body is higher, the evaporation mechanism is started to accelerate the evaporation of water vapor, and the water vapor is discharged out of the cabinet body through the ventilation mechanism, so that the service life of the electrical cabinet is prolonged, rainwater can be preliminarily blocked through the rain blocking mechanism at the top to prevent the rainwater from being poured into the cabinet body, when the water amount in the cabinet body is higher, water flow is discharged downwards through the diversion trench, and the rapid drying in the cabinet body can be realized by matching with the evaporation mechanism and the ventilation mechanism; the lifting mechanism is arranged, when the ground is wet or water is accumulated, the lifting mechanism is started to drive the cabinet body to move upwards, so that water can be further prevented from being poured into the cabinet body, and the protection performance of the device is improved; the water absorption cotton is arranged to absorb water vapor in the air entering the cabinet body, so that the air humidity is reduced, and further moisture-proof protection of the electric cabinet is realized.
Drawings

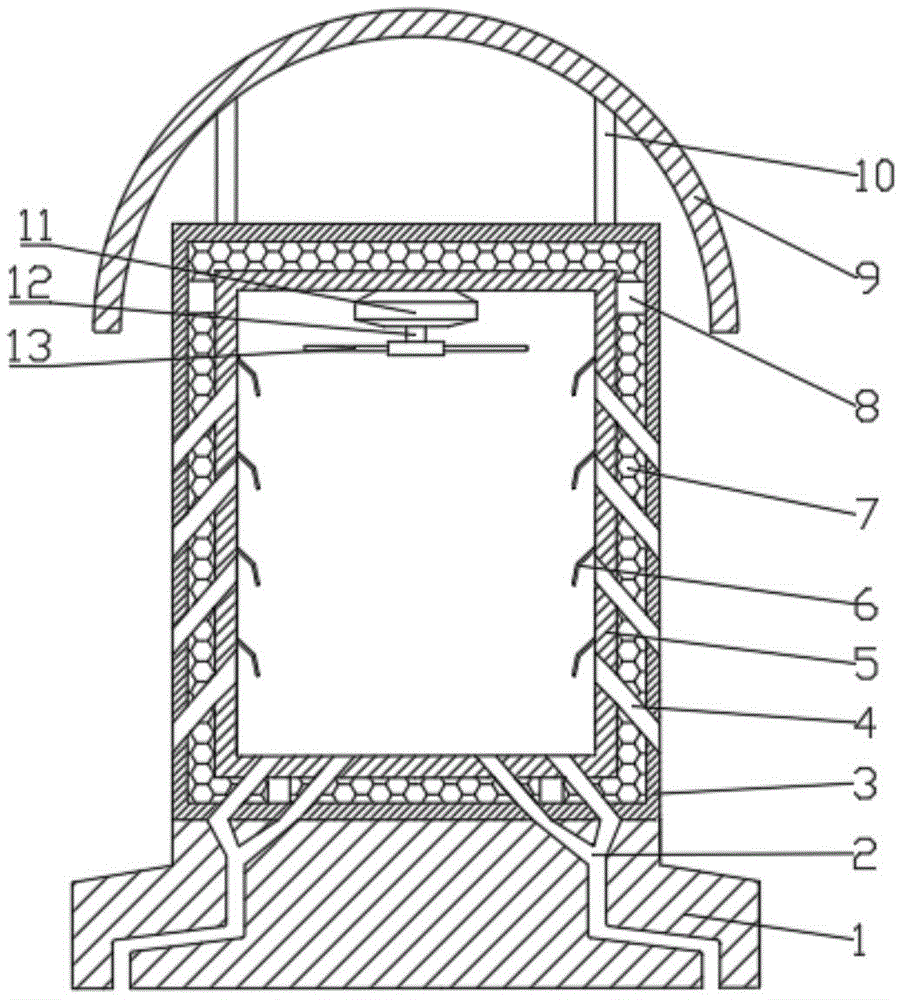

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a side view of the present invention.
Fig. 3 is a schematic view of the lifting structure of the present invention.
Wherein the reference numerals are: 1. a base; 2. a diversion trench; 3. a first cabinet; 4. a vent hole; 5. a second cabinet; 6. a baffle plate; 7. absorbent cotton; 8. connecting blocks; 9. a rain shield; 10. a support bar; 11. a first motor; 12. an output shaft; 13. a fan; 14. a top plate; 15. a U-shaped bracket; 16. a screw rod; 17. moving the plate; 18. a slider; 19. a chute; 20. a second motor.
Detailed Description
In order to clearly illustrate the technical features of the present solution, the present solution is explained below by way of specific embodiments.
Referring to fig. 1-3, the present invention is: an electric safety protection device for electromechanical installation comprises a base 1, a cabinet body fixed on the top surface of the base 1, a rain shielding mechanism arranged on the top of the cabinet body, and an evaporation mechanism arranged on the top wall of the cabinet body, wherein the base 1 can be used for protecting the cabinet body, namely the bottom of the cabinet body is positioned at a higher position and has a waterproof function, the guide grooves 2 respectively and sequentially penetrate through the bottom wall of the cabinet body and the base 1, the evaporation mechanism is arranged on the side wall of the cabinet body, the rain shielding mechanism is arranged at the top of the cabinet body, and the evaporation mechanism is arranged on the top wall of the cabinet body. Rivers pass through guiding gutter 2 and discharge downwards, and cooperation evaporation mechanism and ventilation mechanism can realize the internal rapid draing of cabinet, simple structure, and rain-proof, water-proof effects are good.
The ventilating mechanism comprises a plurality of ventilating holes 4 arranged on the side wall of the cabinet body and a plurality of baffle plates 6 which are arranged on the inner side wall of the cabinet body and respectively correspond to the plurality of ventilating holes 4, the ventilating mechanism is simple in structure, when outside water vapor enters the cabinet body from the ventilating holes 4, the outside water vapor is primarily blocked by the corresponding baffle plates 6, the water vapor is prevented from directly rushing to the electric cabinet, and the service life of the electric cabinet is further prolonged.
The utility model is characterized in that the vent holes 4 are obliquely arranged, the inner sides of the vent holes 4 are higher than the outer sides of the vent holes, so that rainwater is prevented from pouring into the cabinet body through the vent holes 4, and the rainproof performance is further improved.
The rain shielding mechanism is characterized by comprising a rain shielding plate 9 arranged over the cabinet body in a spanning mode and a supporting rod 10 arranged between the rain shielding plate 9 and the cabinet body, and the rain shielding mechanism is simple in structure and convenient to manufacture.
The utility model is characterized in that the evaporation mechanism comprises a first motor 11 fixed on the top wall of the cabinet body and a fan 13 with a rotating shaft connected with an output shaft 12 of the first motor 11, when evaporation operation needs to be carried out in the cabinet body, the first motor 11 is started to drive the fan 13 to work, the air flow in the cabinet body is accelerated, and the rapid evaporation of the water in the cabinet body can be realized.
The electromechanical installation electric safety protection device is characterized by further comprising a lifting mechanism for controlling the vertical position of the cabinet body, when the ground is wet or water is accumulated, the lifting mechanism is started to drive the cabinet body to move upwards, water can be further prevented from being filled into the cabinet body, and the protection performance of the device is improved.
The lifting mechanism is further characterized by comprising a U-shaped support 15 with an upward opening, a top plate 14 arranged between the open ends of the U-shaped support 15, a second motor 20 fixed at the closed end of the U-shaped support 15, a screw rod 16 with a rotating shaft vertical and coaxial with an output shaft of the second motor 20 and a top end rotationally matched with the top plate 14, and a moving plate 17 with a middle part sleeved on the screw rod 16 and in threaded fit with the screw rod 16 and an end part in sliding fit with the side part of the U-shaped support 15 along the vertical direction; the movable plate 17 is fixedly connected with the cabinet body, when the cabinet body needs to be lifted, the second motor 20 is started, the screw rod 16 rotates along with the second motor 20, the movable plate 17 moves in the vertical direction, the cabinet body fixedly connected with the movable plate 17 can move in the vertical direction, and the movable plate lifting device is simple in structure and convenient to operate.
The utility model is characterized in that the inner walls of two sides of the U-shaped bracket 15 are respectively provided with a sliding groove 19 along the vertical direction, and two ends of the moving plate 17 are provided with sliding blocks 18 matched with the corresponding sliding grooves 19.
The cabinet body is characterized by comprising a first cabinet body 3 and a second cabinet body 5 which are arranged from outside to inside at intervals, a plurality of connecting blocks 8 which are arranged between the first cabinet body 3 and the second cabinet body 5 at intervals, and absorbent cotton 7 which is arranged between the first cabinet body 3 and the second cabinet body 5 in a plugging manner, when air enters the cabinet body from the vent hole 4, most of water vapor can be absorbed by the absorbent cotton 7, the air humidity is reduced, and the electrical cabinet is further protected from moisture.
The technical features of the present invention which are not described in the above embodiments may be implemented by or using the prior art, and are not described herein again, of course, the above description is not intended to limit the present invention, and the present invention is not limited to the above examples, and variations, modifications, additions or substitutions which may be made by those skilled in the art within the spirit and scope of the present invention should also fall within the protection scope of the present invention.
