The utility model provides a direct air-cooled condenser equipped with solar cell panels, which comprises a bottom frame and a horizontal steam distribution pipe fixedly connected with the bottom frame. The bottom frame is provided with a fan, and also includes a solar panel located above the steam distribution pipe. The solar panel is rotatably connected to the bottom frame through a rotating device, and an enclosure is provided at the edge of the bottom frame to block the steam distribution pipe and the tube bundle row. There is a closed state and an open state between the solar panel and the shroud. When the sun is strong in summer, the device can use the open solar panels to shade and cool down the equipment in the air-cooled island, and the auxiliary equipment can provide electricity; and in winter, part of the solar panels can be closed, so that the hoarding panels and the solar panels together form a semi-enclosed structure, thereby To keep warm and antifreeze.

Description

Direct air-cooling condenser additionally provided with solar cell panel

Technical Field

The utility model relates to the technical field of auxiliary equipment of thermal power generating units, in particular to a direct air-cooling condenser additionally provided with a solar panel.

Background

A direct air-cooled condenser is a large-scale industrial heat exchange facility that cools (condenses) fluid in the direct air-cooled condenser using natural air. The direct air cooling island is also called as a direct air cooling island due to the huge size. The air cooling island is provided with a horizontal steam inlet pipe, a plurality of rows of cooling units are uniformly distributed and connected on one side of the steam inlet pipe, each cooling unit is provided with a horizontal steam distribution pipe 13 connected on one side of the steam inlet pipe, the left side and the right side of the lower side pipe wall of each steam distribution pipe 13 are respectively provided with a pipe bundle row 12 which is uniformly distributed along the length direction of the distribution pipe and radiates in a fin mode in an inclined downward mode, the lower end of each pipe bundle row 12 is connected with a condensate water discharge pipe, and each cooling unit is provided with a non-condensable gas discharge pipe. A fan 9 is needed to perform forced air cooling heat dissipation below the tube bundle rows 12 uniformly distributed in the cooling unit.

The direct air-cooling condenser is mainly used for cooling the exhaust steam of the steam turbine and keeping a certain back pressure of the unit. The air cooling island has the advantages that the illumination is strong in summer, the ambient temperature is high, the vacuum of the air cooling island is reduced, and the unit generally has the condition that the load is influenced due to high back pressure; and the environmental temperature is low in winter, the unit load is lower, and the condition that air cooling island radiating fins freeze appears again easily.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem of providing a direct air-cooling condenser with a solar cell panel, which can reduce adverse effects on normal operation in winter and summer.

In order to solve the technical problems, the technical scheme of the utility model is as follows:

the utility model provides an install solar cell panel's direct air cooling condenser additional, including the chassis and with chassis fixed connection's level to the steam distribution pipe, steam distribution pipe downside intercommunication has the tube bank to arrange, is provided with the fan on the below chassis that the tube bank was arranged, still including the solar panel that is located the steam distribution pipe top, solar panel passes through rotating device and is connected with the chassis rotation, is provided with in the edge of chassis and arranges the bounding wall that encloses including keeping off steam distribution pipe and tube bank, has closed state and open mode between solar panel and the bounding wall.

Further: the number of the solar panels is more than two, and the edges of the adjacent solar panels are mutually abutted when the solar panels are in the closed state.

Further: the rotating device comprises a support and a connecting plate which is rotatably connected with the support, the connecting plate is fixedly connected with the center of the bottom surface of the solar panel, and the support is connected with the underframe.

Further: the rotating device further comprises a rotating shaft, the bottom end of the rotating shaft is rotatably connected with the bottom frame, the top end of the rotating shaft is fixedly connected with the support, and the axial direction of the rotating shaft is perpendicular to the rotating axial direction of the connecting plate and the support.

Further: the top end of the rotating shaft is fixedly connected to the center of the bottom surface of the support, and the axis of the rotating shaft is coaxial with the axis of the fan.

Further: the rotating device also comprises a horizontal motor and a vertical motor, wherein the shell of the horizontal motor is fixedly connected with the support, and the output shaft of the horizontal motor is fixedly connected with the connecting plate; the vertical motor shell is fixedly connected with the underframe, and the vertical motor output shaft is fixedly connected with the rotating shaft.

Further: the steam distribution pipe is characterized by further comprising a steel frame, the steel frame is fixedly connected with the underframe and the coaming, the vertical motor shell is fixedly connected with the steel frame, and a gap is formed between the steel frame and the steam distribution pipe.

Further: the heating wires are arranged on the tube bundle rows and electrically connected with the solar panel.

By adopting the technical scheme, the direct air-cooling condenser with the solar cell panel has the technical effects that the direct air-cooling condenser with the solar cell panel is provided, equipment in the air-cooling island can be shaded and cooled by the opened solar cell panel when the sunlight is strong in summer, and auxiliary equipment provides electric power; and in winter, part of the solar panel is closed, so that the coaming and the solar panel jointly form a semi-closed structure to play the roles of keeping warm and preventing freezing.

Drawings

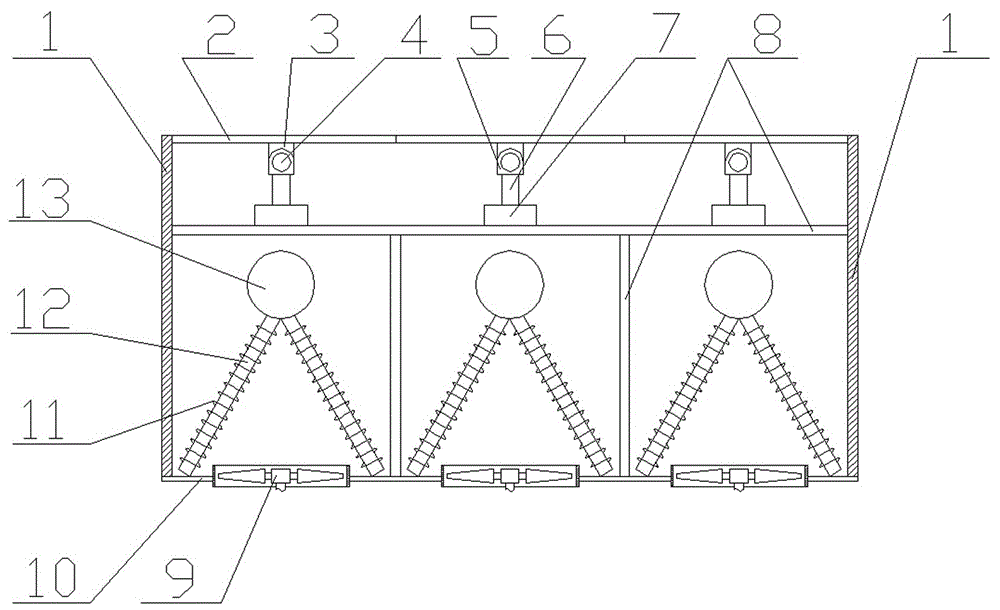

FIG. 1 is a front cross-sectional view of the present invention in a fully closed state;

FIG. 2 is a left side cross-sectional view of the present invention in a fully closed state;

FIG. 3 is a front cross-sectional view of the present invention in a fully open state;

FIG. 4 is a front cross-sectional view of the present invention in a partially opened condition;

wherein, the solar steam distribution device comprises 1-coaming, 2-solar panel, 3-connecting plate, 4-horizontal motor, 5-support, 6-rotating shaft, 7-vertical motor, 8-steel frame, 9-fan, 10-bottom frame, 11-electric heating wire, 12-tube bundle row and 13-steam distribution tube.

Detailed Description

As shown in fig. 1 to 4, the direct air-cooling condenser with the solar cell panel of the present invention, like the existing direct air-cooling condenser, also includes a bottom frame 10 and a horizontal steam distribution pipe 13 fixedly connected to the bottom frame 10, wherein a tube bundle row 12 is communicated with the lower side of the steam distribution pipe 13, and a fan 9 is disposed on the bottom frame 10 below the tube bundle row 12.

Still including being located the solar panel 2 of steam distribution pipe 13 top, solar panel 2 rotates through rotating device and chassis 10 to be connected, is provided with in the edge of chassis 10 and encloses the bounding wall 1 that keeps off including steam distribution pipe 13 and tube bank row 12, has closed state and open mode between solar panel 2 and the bounding wall 1. The closed state means that the edges of the solar panel 2 and the enclosing plate 1 are overlapped to form a closed structure, and the open state means that the edges are not overlapped to form an open structure.

In addition, since it is difficult for one solar panel 2 to cover the entire air cooling island due to the generally large size of the air cooling island, the number of solar panels 2 may be two or more as appropriate, and the edges of adjacent solar panels 2 abut against each other in the closed state.

In summer, the device can adjust all the solar panels 2 to the opening state and enable the solar panels 2 to face the sun irradiation direction generally as shown in fig. 3, and due to the shielding and light absorption effects of the solar panels 2, the steam distribution pipes 13 and the pipe bundle rows 12 in the air cooling island are in shade, so that the normal heat dissipation capability of the equipment is prevented from being influenced by the temperature rise of the equipment after the equipment is directly exposed to the sun. The power generated by the solar panel 2 can be used for illumination and the like.

In winter, when the solar panel is cold, as shown in fig. 4, most of the solar panels 2 can be in a closed state, and a small part of the solar panels 2 are opened, so that the enclosing plate 1 and the solar panels 2 form a semi-closed structure together, the convection of air in the semi-closed structure is relatively reduced, the heat preservation effect is achieved to a certain extent, and the heat dissipation fins are prevented from being frozen due to too low temperature. In addition, in order to further enhance the freezing prevention capability of the device, in this embodiment, the heating wires 11 (commonly called electric tracing) are further disposed on the tube bundle rows 12, and the heating wires 11 are electrically connected to the solar panel 2, so that the generated energy of solar energy can be utilized locally to heat the tube bundle rows 12.

In addition, this embodiment the rotating device includes support 5 and the even board 3 of being connected with support 5 rotation, even board 3 and the central department fixed connection of solar panel 2 bottom surface, and support 5 is connected with chassis 10. The connecting structure can enable the gravity center of the solar panel 2 to be positioned above the support 5, and can prevent the gradual change of the opening angle of the solar panel 2 caused by the gravity center of the solar panel being far away from the support point when the solar panel 2 is in the opening inclined posture.

In more detail, the rotating device of the present embodiment further includes a rotating shaft 6, a bottom end of the rotating shaft 6 is rotatably connected to the bottom frame 10, a top end of the rotating shaft 6 is fixedly connected to the support 5, and an axial direction of the rotating shaft 6 is perpendicular to a rotational axial direction of the connecting plate 3 and the support 5. The rotating shaft 6 is arranged, so that the solar panel 2 can not only tilt and swing vertically, but also rotate horizontally in a full circle, thereby adapting to the continuous change of the position of the sun in one day and achieving the best sun shading and electric energy conversion effects. In addition, as the solar panels 2 in the long rows are uniformly inclined at a fixed angle, if wind comes from the back side of the inclined plane, a large amount of wind can be poured into the air cooling island, so that the original airflow path of the blast of the fan 9 is disturbed, and the heat dissipation effect is influenced; and adjacent solar panel 2 just can form the space after self level is to the rotation, so then the inclined plane dorsal part comes wind just can flow away through this space to reduce the radiating influence in air cooling island.

More specifically, the top end of the rotating shaft 6 of the present embodiment is fixedly connected to the center of the bottom surface of the support 5, and the axis of the rotating shaft 6 is coaxial with the axis of the fan 9. Can make every fan 9 top all set up a solar panel 2 like this, because solar panel 2 blocks the effect and can produce the influence to the blast air flow path of fan 9, after solar panel 2 and the cooperation of fan 9 one-to-one, relatively independent operation unit has been formed, thereby can effectively improve the prediction and control to blast air flow path, especially when solar panel 2 all deflects with the slope of same angle, solar panel 2 and the fan 9 of one-to-one can prevent to produce the sinuous flow between each unit, avoid reducing the radiating efficiency.

More specifically, the rotating device of the embodiment further comprises a horizontal motor 4 and a vertical motor 7, wherein the shell of the horizontal motor 4 is fixedly connected with the support 5, and the output shaft of the horizontal motor 4 is fixedly connected with the connecting plate 3; the shell of the vertical motor 7 is fixedly connected with the underframe 10, and the output shaft of the vertical motor 7 is fixedly connected with the rotating shaft 6. The motor is used for driving the solar panel 2, so that the manual adjustment is avoided, and the trouble and the labor are wasted.

However, since the temperature in the air cooling island is relatively high, and especially the temperature of the steam distribution pipe 13 is the highest, the service life of the motor is seriously reduced due to the high temperature when the vertical motor 7 is very close to or even arranged on the steam distribution pipe 13, so the present embodiment is further provided with a steel frame 8, and the housing of the vertical motor 7 is fixedly connected with the steel frame 8. In order to firmly fix the vertical motor 7, the steel frame 8 is fixedly connected with the underframe 10 and the coaming 1. Furthermore, the steel frame 8 is spaced from the steam distribution pipe 13 to reduce the effect of the high temperature air near the steam distribution pipe 13 on the life of the vertical motor 7.

Claims

1. The utility model provides an install solar cell panel's direct air cooling condenser additional, include chassis (10) and steam distribution pipe (13) to with chassis (10) fixed connection's level, steam distribution pipe (13) downside intercommunication has tube bank row (12), is provided with fan (9), its characterized in that on chassis (10) of tube bank (12) below: still including being located solar panel (2) of steam distribution pipe (13) top, solar panel (2) are connected through rotating device and chassis (10) rotation, are provided with bounding wall (1) including enclosing steam distribution pipe (13) and tube bank row (12) at the edge of chassis (10), have closed state and open mode between solar panel (2) and bounding wall (1).

2. The direct air-cooled condenser added with the solar panel according to claim 1, characterized in that: the number of the solar panels (2) is more than two, and the edges of the adjacent solar panels (2) are mutually abutted when the solar panels are in the closed state.

3. The direct air-cooled condenser added with the solar panel according to claim 1, characterized in that: the rotating device comprises a support (5) and a connecting plate (3) rotatably connected with the support (5), the connecting plate (3) is fixedly connected with the center of the bottom surface of the solar panel (2), and the support (5) is connected with the bottom frame (10).

4. The direct air-cooled condenser added with the solar panel according to claim 3, characterized in that: the rotating device further comprises a rotating shaft (6), the bottom end of the rotating shaft (6) is rotatably connected with the bottom frame (10), the top end of the rotating shaft (6) is fixedly connected with the support (5), and the axial direction of the rotating shaft (6) is perpendicular to the rotating axial direction of the connecting plate (3) and the support (5).

5. The direct air-cooled condenser added with the solar panel according to claim 4, characterized in that: the top end of the rotating shaft (6) is fixedly connected to the center of the bottom surface of the support (5), and the axis of the rotating shaft (6) is coaxial with the axis of the fan (9).

6. The direct air-cooled condenser added with the solar panel according to claim 5, characterized in that: the rotating device further comprises a horizontal motor (4) and a vertical motor (7), the shell of the horizontal motor (4) is fixedly connected with the support (5), and the output shaft of the horizontal motor (4) is fixedly connected with the connecting plate (3); the shell of the vertical motor (7) is fixedly connected with the bottom frame (10), and the output shaft of the vertical motor (7) is fixedly connected with the rotating shaft (6).

7. The direct air-cooled condenser added with the solar panel according to claim 6, characterized in that: still include steelframe (8), steelframe (8) and chassis (10) and bounding wall (1) fixed connection, perpendicular motor (7) shell and steelframe (8) fixed connection have the interval between steelframe (8) and steam distribution pipe (13).

8. The direct air-cooled condenser added with the solar panel according to claim 1, characterized in that: the heating wires (11) are arranged on the tube bundle rows (12), and the heating wires (11) are electrically connected with the solar panel (2).
