CN215751604U

CN215751604U - Be used for product design to use portable pen

Info

Publication number: CN215751604U
Application number: CN202122113629.5U
Authority: CN
Inventors: 谭陶; 刘赫
Original assignee: Anhui University of Finance and Economics
Current assignee: Anhui University of Finance and Economics
Priority date: 2021-09-03
Filing date: 2021-09-03
Publication date: 2022-02-08
Anticipated expiration: 2031-09-03

Abstract

A portable pen for product design, comprising a pen shell and a pen, the pen shell is provided with a paper storage cylinder and a writing board rewinding cylinder arranged left and right, and the center of the paper storage cylinder is fixed with an outer end extending out. The pen tool fixing tube of the paper storage cylinder, the outer end of the pen tool fixing tube is provided with a threaded structure, the writing tool is inserted into the writing tool fixing tube, and the upper end of the writing tool is fixed with a pen tool fixing cover which is located on the upper part of the threaded structure, A ring-shaped cover covering the paper storage cylinder is screwed on the lower part of the threaded structure. A freely rotatable winding shaft runs through the writing pad rewinding cylinder. The upper end of the winding shaft is located outside the writing pad winding cylinder, and one end of the rubber writing pad runs through the writing pad. The long opening of the board rewinding drum is fixedly connected with the reeling shaft after rewinding, and the other end of the rubber writing pad is fixed with a pull-out bar located outside the writing board reeling drum. The utility model is convenient for drawing and recording on a flat paper surface, and can be stored after use, the overall volume is small, and it is easy to carry and use.

Description

Be used for product design to use portable pen

Technical Field

The utility model relates to a pen tool, in particular to a portable pen for product design.

Background

Product design is a series of technical works from the creation of a new product design task book to the design of a product sample. The work content is to set up the project requirements (including the performance, structure, specification, type, material, internal and external quality, service life, reliability, service condition, technical and economic index, etc.) in the product design task book and the implementation design task book. The product design should do: (1) the designed product is advanced and high in quality and can meet the use requirements of users. (2) The manufacturer and the user of the product can obtain better economic benefit. (3) From the practical point of view, the optimum design is made with full attention to the resource conditions and the production and living standards. (4) Attention is paid to improving the serialization, generalization and standardization level of the product. The main categories are: a new product is designed by itself; surveying and mapping imitation of external sample objects; designing an external drawing; improved design of old products. The method has the advantages that the design and drawing of products are extremely important links, such as rudimental sketches of the products, many products are generated due to one-time inspiration, the best mode for recording the inspiration is to draw the sketches of the products, the existing drawing board and painting brush is large in size, not suitable for carrying, and lack of a pen tool suitable for recording the sketches at any time.

SUMMERY OF THE UTILITY MODEL

To solve the above problems, it is an object of the present invention to provide a portable pen for product design.

In order to achieve the purpose, the technical scheme of the utility model is as follows: a portable pen for product design comprises a pen shell and a pen, wherein the pen shell is provided with a paper storage cylinder and a writing board winding cylinder which are arranged at the left and the right, a pen fixing cylinder with the outer end extending out of the paper storage cylinder is fixed at the center of the paper storage cylinder, the outer end of the pen fixing cylinder is provided with a thread structure, the pen is inserted into the pen fixing cylinder, the upper end of the pen is fixed with a pen fixing cover which is arranged at the upper part of the thread structure, an annular cover covering the paper storage cylinder is screwed on the lower part of the thread structure, a winding shaft capable of freely rotating penetrates through the writing board winding cylinder, the upper end of the winding shaft is positioned outside the writing board winding cylinder, and a rolling shaft rotating knob is fixed, one end of the rubber writing pad plate penetrates through a strip opening of the writing board rolling tube, and is fixedly connected with a winding shaft after being wound, and the other end of the rubber writing pad plate is fixedly provided with a pull-out stop strip positioned outside the writing board winding cylinder.

Furthermore, a ruler storage groove is formed between the paper storage cylinder and the writing board winding cylinder, and a ruler is inserted in the ruler storage groove.

Furthermore, a winding shaft outside the writing board winding cylinder is provided with a thread structure, and a butterfly nut used for clamping and fixing the winding shaft is screwed.

Further, a transparent label bag with an open top is fixed on the outer side wall of the pen casing.

Further, the diameter of the wing nut is larger than the diameter of the turning knob.

Through the arrangement, when the pen is used, the rubber writing base plate is pulled out, the pen fixing cover is screwed off from the threaded knot, so that the pen part is taken down, then the paper is taken out of the paper storage cylinder and placed on the rubber writing base plate, the PVC base plate can be used for replacing the rubber writing base plate, and the rubber writing base plate has a good supporting effect on the paper, so that drawing and recording on a flat paper surface are facilitated, the pen can be stored after being used, and the pen is small in overall size and convenient to carry and use.

Drawings

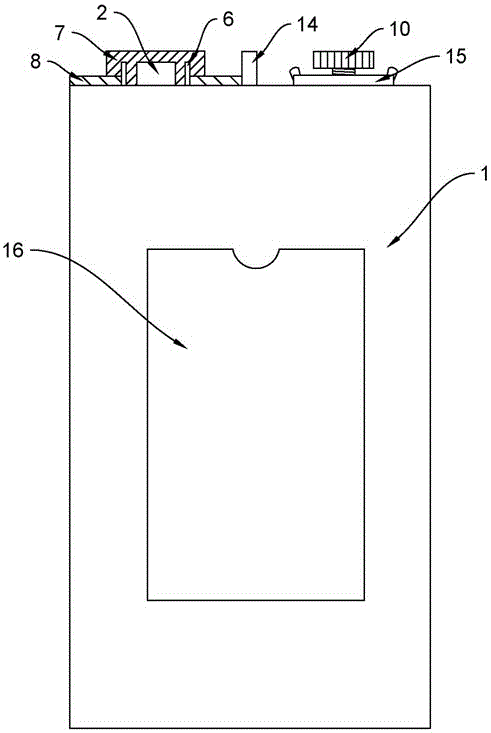

FIG. 1 is a schematic front view of the present invention;

fig. 2 is a schematic top view of the present invention.

Detailed Description

The technical solutions of the present invention will be described clearly and completely with reference to the accompanying drawings, and it should be understood that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention. In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.

In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The present embodiment is described in detail below with reference to the accompanying drawings:

this embodiment provides a portable pen for product design, please refer to fig. 1 and fig. 2 in the drawings of the specification together.

As shown in fig. 1-2, the portable pen for product design comprises a pen casing 1 and a pen 2, wherein the pen casing 1 is provided with a paper storage cylinder 3 and a writing board winding cylinder 4 which are arranged from left to right, a pen fixing cylinder 5 with an outer end extending out of the paper storage cylinder 3 is fixed at the center of the paper storage cylinder 3, a thread structure 6 is arranged at the outer end of the pen fixing cylinder 5, the pen 2 is inserted into the pen fixing cylinder 5, a pen fixing cover 7 fixed on the upper part of the thread structure 6 is fixed at the upper end of the pen 2, an annular cover 8 covering the paper storage cylinder 3 is screwed on the lower part of the thread structure, a winding shaft 9 capable of freely rotating penetrates through the writing board winding cylinder 4, the upper end of the winding shaft 9 is positioned outside the writing board winding cylinder 4 and is fixed with a winding shaft 9 rotating knob 10, one end of a rubber writing pad 11 penetrates through a long-strip opening of the writing board winding cylinder 4, and is fixedly connected with a winding shaft 9 after being wound, and a pulling-out stop bar 12 positioned outside the writing board winding drum 4 is fixed at the other end of the rubber writing pad plate 11;

during the use, pull out rubber writing pad 11, rubber writing pad 11 can be put on the unsuitable face of writing with hand such as knee on the leg, unscrew pen utensil fixed cover 7 from helicitic texture 6, thereby take off pen utensil part, then take out the paper in the paper storage cylinder 3, put on rubber writing pad 11, also can adopt the PVC backing plate to replace rubber writing pad 11, rubber writing pad 11 has good supporting role to the paper, thereby be convenient for drawing record etc. on smooth paper, the completion of use accomodates can, whole small in size, portable use.

In order to facilitate the placement of the ruler and better for product design drawing, a ruler storage groove 13 is formed between the paper storage cylinder 3 and the writing board winding cylinder 4, and a ruler 14 is inserted into the ruler storage groove 13.

In order to fix the winding shaft 9, the winding shaft 9 outside the writing board winding drum 4 is provided with a threaded structure, and a butterfly nut 15 for clamping and fixing the winding shaft 9 is screwed.

In order to facilitate the placement of the label, a transparent label pocket 16 with an open top is fixed on the outer side wall of the pen casing 1.

To facilitate turning of the wing nut 15, the wing nut 15 has a diameter greater than the diameter of the turning knob 10.

Of course, the above embodiments are only used for illustrating the technical solution of the present invention, and not for limiting the same; while the utility model has been described in detail and with reference to the foregoing embodiments, it will be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; and the modifications or the substitutions do not make the essence of the corresponding technical solutions depart from the scope of the technical solutions of the embodiments of the present invention.

Claims

1. A portable pen for product design, characterized in that: comprises a pen shell (1) and a pen (2), wherein the pen shell (1) is provided with a paper storage cylinder (3) and a writing board coiling cylinder (4) which are arranged left and right, the center of the paper storage cylinder (3) is fixed with a pen fixing cylinder (5) of which the outer end extends out of the paper storage cylinder (3), the outer end of the pen fixing cylinder (5) is provided with a thread structure (6), the pen (2) is inserted into the pen fixing cylinder (5), the upper end of the pen (2) is fixed with a pen fixing cover (7) which is arranged on the upper part of the thread structure (6), the lower part of the thread structure is screwed with an annular cover (8) which covers the paper storage cylinder (3), the writing board coiling cylinder (4) is penetrated with a freely rotatable coiling shaft (9), the upper end of the coiling shaft (9) is positioned outside the writing board coiling cylinder (4), a coiling knob (10) is fixed with the coiling shaft (9), one end of a rubber writing pad (11) penetrates through a strip opening of the writing board coiling cylinder (4), and is fixedly connected with a winding shaft (9) after being wound, and a pulling-out stop bar (12) positioned outside the writing board winding drum (4) is fixed at the other end of the rubber writing pad plate (11).

2. A portable pen for product design according to claim 1, characterized in that: a ruler storage groove (13) is arranged between the paper storage cylinder (3) and the writing board winding cylinder (4), and a ruler (14) is inserted into the ruler storage groove (13).

3. A portable pen for product design according to claim 1, characterized in that: a winding shaft (9) outside the writing board winding shaft (4) is provided with a thread structure, and a butterfly nut (15) used for clamping and fixing the winding shaft (9) is screwed.

4. A portable pen for product design according to claim 1, characterized in that: the outer side wall of the pen casing (1) is fixed with a transparent label bag (16) with an opening at the top.

5. A portable pen for product design according to claim 1, characterized in that: the diameter of the butterfly nut (15) is larger than that of the rotary knob (10).
