The utility model discloses a wear-resistant and anti-wrinkle elastic fabric, which relates to the technical field of textile fabrics and aims at solving the problems that the existing elastic fabric is poor in restorability and wear-resistant and anti-wrinkle performance, so that the consumption of a climber in a climbing process is increased, and people are easy to fatigue. The wear-resistant anti-wrinkle fabric is novel in structure, and not only can the fabric have wear-resistant anti-wrinkle characteristics, but also can the fabric have good elasticity, is in line with the use of mountaineering enthusiasts, and is suitable for popularization.
Description
Technical Field
The utility model relates to the technical field of textile fabrics, in particular to a wear-resistant and crease-resistant elastic fabric.
Background
The elastic fabric is a combination body in the functional fabric, the elastic fabric has good elasticity and constantly promotes the convenience of outdoor activities, and is quick, the strength consumption of the effective protective muscle in the stretching process, the elasticity of the fabric enables the clothing to keep synchronous with the movement rhythm, and on the basis of protecting the surface of the body, the capability of human beings for breaking through the limit is more greatly exerted.
The existing elastic fabric has poor restorability and poor wear resistance and wrinkle resistance, so that the consumption of a climber in the mountain climbing process is increased, and people are easy to fatigue. Therefore, in order to solve such problems, we propose a wear-resistant and wrinkle-resistant elastic fabric.
SUMMERY OF THE UTILITY MODEL
The wear-resistant anti-wrinkle elastic fabric provided by the utility model solves the problems that the existing elastic fabric is poor in restorability and wear-resistant anti-wrinkle performance, so that the consumption of a climber in a mountaineering process is increased, and the climber is easy to fatigue.
In order to achieve the purpose, the utility model adopts the following technical scheme:
the wear-resistant anti-wrinkle elastic fabric comprises an anti-wrinkle layer and a high-elasticity layer, wherein the anti-wrinkle layer is installed at the bottom end of the high-elasticity layer, a heat insulation layer is installed at the bottom end of the anti-wrinkle layer, the heat insulation layer is made of a polyester thermal-inductance warm-keeping fabric, an antistatic layer is installed at the bottom end of the heat insulation layer, and a skin-friendly inner layer is installed at the bottom of the antistatic layer;
the top on high elastic layer installs the inoxidizing coating, the inoxidizing coating is made by the bamboo fibre weaving, the waterproof layer is installed at the top of inoxidizing coating, the waterproof layer is made by waterproof ventilative material of polymer and the compound surface fabric of cloth, the wearing layer is installed at the top of waterproof layer.
Preferably, the skin-friendly inner layer is formed by weaving mulberry silk.
Preferably, the antistatic layer is formed by mutually winding and interweaving copper fiber yarns, stainless steel fiber yarns or carbon fiber yarns and special-shaped polyester fibers.
Preferably, a silver fiber layer is arranged in the anti-wrinkle layer, and the anti-wrinkle layer is formed by interweaving polyester fibers and fixing fibers.
Preferably, a plurality of high-elasticity core wires with the same structure are arranged in the high-elasticity layer, the high-elasticity core wires are formed by plying a first yarn, a second yarn and a third yarn, and the twisting coefficients of the first yarn, the second yarn and the third yarn are different.
Preferably, the wear-resistant layer is formed by weaving nylon fiber lines and cotton fiber lines in a warp-weft mode.
The utility model has the beneficial effects that:
1. through setting up the crease-resistant layer and set up the silver fibre layer in the crease-resistant in situ, can effectually prevent the oxidation of silver fibre layer, and silver fibre layer can be in the lack of water, can prolong the wear-out period in the open-air adverse circumstances of unconditional washing, the crease resistance that has improved the surface fabric has been reached, the life cycle of surface fabric has been improved, through setting up the wearing layer, the wearing layer is formed by nylon fiber line and cotton fibre line warp and weft knitting, the nylon fibre has better wearability, the wearability of polyamide fibre is best among the textile fiber, the effect that lets the surface fabric have good wearability has been reached.
2. Through setting up high elasticity layer, high elasticity in situ is provided with high-elastic heart yearn, and high-elastic heart yearn is woven by the winding of the first yarn, second yarn and the third yarn of different twisting coefficient and is formed, when twisting the yarn that the coefficient of twisting is different and plying the twisting, can widen and obtain high elastic restoring force's tensile interval, has reached the effect that improves surface fabric elasticity, has further improved the crease resistance of surface fabric.
In conclusion, the elastic fabric has the characteristics of wear resistance and wrinkle resistance, has good elasticity, is suitable for mountaineering enthusiasts to use, solves the problems that the existing elastic fabric is poor in restorability and wear resistance and wrinkle resistance, so that the consumption of the mountaineers is increased in the mountaineering process, and people are easy to fatigue, and is suitable for popularization.
Drawings
FIG. 1 is a schematic structural view of the present invention;

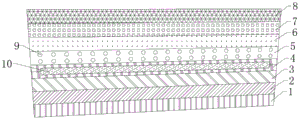

FIG. 2 is a cross-sectional view of the present invention;
fig. 3 is a view showing an installation structure of the high elastic cord of the present invention.
Reference numbers in the figures: 1. a skin-friendly inner layer; 2. an antistatic layer; 3. a heat-insulating layer; 4. an anti-wrinkle layer; 5. a high-elasticity layer; 6. a protective layer; 7. a waterproof layer; 8. a wear layer; 9. a high-elastic core wire; 91. a first yarn; 92. a second yarn; 93. a third yarn; 10. a silver fiber layer.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-2, a wear-resistant and wrinkle-resistant elastic fabric includes a wrinkle-resistant layer 4 and a high-elastic layer 5, the anti-wrinkle layer 4 is arranged at the bottom end of the high elastic layer 5, so that the fabric has good anti-wrinkle property, by arranging the silver fiber layer 10 in the anti-wrinkle layer 4, the silver fibers in the silver fiber layer 10 have good hand feeling and touch feeling, are comfortable to wear, have good air permeability, are not stiff, have good forming and are more flexible, because the anti-wrinkle layer 4 is formed by interweaving the polyester fiber and the fixed fiber, and the polyester fiber and the fixed fiber have high modulus, high strength, high elasticity, good shape retention and heat resistance, the anti-wrinkle property of the fabric can be effectively improved, the heat-insulating layer 3 is arranged at the bottom end of the anti-wrinkle layer 4, and the heat-insulating layer 3 is made of the terylene thermal-inductance heat-insulating fabric which can promote blood circulation and improve human immunity; has good deodorization effect and lasting freshness; to human safety, it is amazing, obvious health function has, be fit for the fan of climbing to use, can effectually alleviate fan of climbing's fatigue, antistatic layer 2 is installed to the bottom of heat preservation 3, antistatic layer 2 is by the copper fiber silk, stainless steel fiber silk or carbon fiber silk interweave with special-shaped polyester fiber and form, it interweaves with the winding of opposite sex polyester fiber to pass through these cellosilk, have the excellent elimination that is far above antistatic fiber and prevent electrostatic performance, parent skin inlayer 1 is installed to antistatic layer 2's bottom, parent skin inlayer 1 is woven by mulberry silk and is formed, skin that mulberry silk can give people is a silky feel, can let the people feel very comfortable when the dress.
Referring to fig. 1-3, a protective layer 6 is installed on the top of a high elastic layer 5, the protective layer 6 is made of bamboo fiber through weaving, the bamboo fiber is made of bamboo through a special process, and has the advantages of softness, warmness, bacteria resistance, moisture absorption, air permeability, environmental protection, ultraviolet resistance, natural health care, comfort and beauty, the waterproof layer 7 is installed on the top of the protective layer 6, the waterproof layer 7 is made of a high polymer waterproof air permeable material and a cloth composite fabric, the waterproof layer 7 made of the high polymer waterproof air permeable material and the cloth composite fabric can prevent rainwater from entering the interior from the exterior, and the composite fabric is provided with a plurality of nano-scale air vents, so that the waterproof function and the air permeability are achieved, the wear-resistant layer 8 is installed on the top of the waterproof layer 7, and the wear-resistant layer 8 is formed by weaving nylon fiber and cotton fiber yarn in a warp and weft mode, this kind of by nylon fiber line and the surface fabric that the cotton silk thread warp and weft was woven and is formed, breaking strength is higher, and resilience and fatigue resistance are good, can effectual improvement wearing layer 8's wearability, through be provided with the high-elastic heart yearn 9 that a plurality of structures are the same in high-elastic layer 5, and high-elastic heart yearn 9 is formed by first yarn 91, second yarn 92 and third yarn 93 plying, and first yarn 91, the twist coefficient of second yarn 92 and third yarn 93 is different, with the yarn plying of different twist coefficients, can widen the tensile interval that obtains high elastic restoring force, reached improvement surface fabric elasticity.
The working principle is as follows: when the fabric is used, the skin-friendly inner layer 1 is woven by mulberry silk, the antistatic layer 2 is formed by copper fiber yarns, stainless steel fiber yarns or carbon fiber yarns and special-shaped polyester fibers in a mutual winding and interweaving mode, the heat preservation layer 3 is made of polyester thermal inductance heat-insulation fabric, the anti-wrinkle layer 4 is formed by polyester fibers and fixed fibers in an interweaving mode, a plurality of high-elasticity core wires 9 with the same structure are arranged in the high-elasticity layer 5, the high-elasticity core wires 9 are made of yarns with different twisting coefficients in a plying mode, the stretching interval with high elastic restoring force can be widened, the elasticity of the fabric is improved, the protective layer 6 is made of bamboo fibers in a spinning mode, the waterproof layer 7 is made of high-polymer waterproof breathable materials and cloth composite fabric, and the wear-resistant layer 8 is formed by nylon fiber yarns and cotton fiber yarns in a warp-weft weaving mode.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
