手术室和供应室消毒装置，有效的解决了常规手术室和供应室消毒装置费事费力，平时的消毒工作主要靠人工将药液装进喷雾器进行喷撒，或直接用筒装消毒剂进行喷射，这种消毒方式工人的劳动强度大，并且当多种消毒液或消毒粉进行混合消毒的时候，消毒液混合不均匀导致药效无法完全发挥的问题，包括底板，所述底板的上端固定连接有罐体，底板的下端转动连接有可随底板移动而转动的转轮，罐体的内部上端转动连接有可随转轮转动而转动的第一扇叶，罐体中部转动连接有摆动框，摆动框可随第一扇叶转动而前后翻转，摆动框的左右两侧分别固定连接有第二扇叶，底板的后侧上端转动连接有可随转轮转动而转动的圆盘，罐体的后侧下端固定连接有固定杆。
The operating room and supply room disinfection device effectively solves the troublesome and laborious work of conventional operating room and supply room disinfection devices. The usual disinfection work mainly relies on manually filling the liquid medicine into the sprayer for spraying, or directly spraying with a cylinder of disinfectant. This disinfection method is labor-intensive for workers, and when a variety of disinfectants or powders are mixed for disinfection, the uneven mixing of the disinfectants leads to the problem that the efficacy of the medicine cannot be fully exerted, including the bottom plate, the upper end of which is fixedly connected with a The tank body, the lower end of the bottom plate is rotatably connected with a runner that can rotate with the movement of the bottom plate, the inner upper end of the tank body is rotatably connected with a first fan blade that can rotate with the rotation of the runner, and the middle of the tank body is rotatably connected with a swing frame, swinging The frame can be turned back and forth with the rotation of the first fan blade, the left and right sides of the swing frame are fixedly connected with the second fan blade, and the upper end of the rear side of the bottom plate is rotatably connected with a disc that can rotate with the rotation of the runner. The lower end of the side is fixedly connected with a fixing rod.
Description
Technical Field
The utility model relates to the technical field of medical assistance, in particular to a sterilizing device for an operating room and a supply room.
Background
The operating room is a place for providing operations and rescue for patients, is an important technical department of hospitals, is connected with an operating department, is close to a blood bank, a monitoring room, an anesthesia resuscitation room and the like, and is managed by grasping four ways of surgical incision infection, namely: the air of operating room, the required article of operation, doctor nurse's finger and patient's skin, infection prevention, ensure the operation success rate, require reasonable in design, it is multiple, nurse's job response is sensitive, it is swift, there is efficient work efficiency, the operating room will have a set of strict and reasonable regulation and rule and aseptic operating specification, however, current operating room degassing unit, medical personnel are when using, take trouble and difficultly, disinfection work at ordinary times mainly depends on the manual work to put into the liquid medicine atomizer and sprinkle, or directly spray with cartridge disinfectant, this kind of disinfection mode workman's intensity of labour is big, and when multiple antiseptic solution or disinfection powder carry out mixed disinfection, the antiseptic solution mixes inhomogeneous and leads to the unable complete performance of drug effect, such device is not conform to current demand obviously.
SUMMERY OF THE UTILITY MODEL
Aiming at the situation and overcoming the defects of the prior art, the utility model provides the operating room and supply room disinfection device, which effectively solves the problems that the conventional operating room and supply room disinfection device is troublesome and labor-consuming, the normal disinfection work mainly depends on manually filling liquid medicine into a sprayer for spraying or directly spraying barrel-contained disinfectants, the labor intensity of workers is high, and when various disinfectants or disinfectant powder are mixed and disinfected, the disinfectant is not uniformly mixed, so that the drug effect cannot be fully exerted.
In order to achieve the purpose, the utility model provides the following technical scheme: the multifunctional cleaning tank comprises a bottom plate, wherein the upper end of the bottom plate is fixedly connected with a tank body, the lower end of the bottom plate is rotatably connected with a rotating wheel which can rotate along with the movement of the bottom plate, the upper end inside the tank body is rotatably connected with a first fan blade which can rotate along with the rotation of the rotating wheel, the middle part of the tank body is rotatably connected with a swinging frame, the swinging frame can turn back and forth along with the rotation of the first fan blade, the left side and the right side of the swinging frame are respectively and fixedly connected with a second fan blade, the upper end of the rear side of the bottom plate is rotatably connected with a disc which can rotate along with the rotation of the rotating wheel, the lower end of the rear side of the tank body is fixedly connected with a fixed rod, the lower end of the rear side of the fixed rod is rotatably connected with a swinging rod which can swing left and right along with the rotation of the disc, and the lower end of the rear part of the swinging rod is fixedly connected with a spray head.
Preferably, the right side of the rotating wheel is coaxially and fixedly connected with a first bevel gear, the upper end of the first bevel gear is meshed with a second bevel gear, the upper end of the second bevel gear is rotatably connected with the lower end of the bottom plate, the upper end of the second bevel gear is coaxially and fixedly connected with a first belt wheel, the outer edge of the first belt wheel is connected with a belt, the rear end of the belt is connected with a second belt wheel, and the second belt wheel is rotatably connected with the lower end of the bottom plate.
Preferably, the upper end of the first belt wheel is coaxially and fixedly connected with a first bent rod, the upper end of the first bent rod is fixedly connected with an inclined rod, the upper end of the inclined rod is fixedly connected with a second bent rod, the upper end of the second bent rod is rotatably connected with the upper end of the tank body, the middle part of the inclined rod is fixedly connected with a rotating block, the front side and the rear side of the rotating block are rotatably connected with a swinging frame, and the upper end of the second bent rod is fixedly connected with a first fan blade.
Preferably, the upper end of the second belt wheel is coaxially and fixedly connected with an impeller, the outer edge of the impeller is rotatably connected with a pump body, the front end of the pump body is fixedly connected with the lower end of the rear part of the tank body, the rear end of the pump body is fixedly connected with a hose, the rear end of the hose is fixedly connected with the front end of the spray head, and the upper end of the impeller is coaxially and fixedly connected with the disc.
Preferably, the upper end of the disc is slidably connected with a moving rod, the upper end of the moving rod is fixedly connected with a limiting rod, the upper end of the limiting rod is slidably connected with a fixed rod, the rear end of the moving rod is fixedly connected with a rack, the rear end of the rack is meshed with a first gear, and the first gear is fixedly connected with the lower end of the front portion of the oscillating rod.
Preferably, the lower end of the bottom plate is fixedly connected with four universal wheels, the front end of the bottom plate is fixedly connected with a push handle, and the upper end of the tank body is fixedly connected with a filling port.
The utility model has novel structure, ingenious conception and simple and convenient operation, and effectively solves the problems that the disinfection device in the conventional operating room and supply room is troublesome and laborious, the normal disinfection work mainly depends on manually filling liquid medicine into a sprayer for spraying or directly spraying barrel-contained disinfectant, the labor intensity of workers is high in the disinfection mode, and the pesticide effect cannot be fully exerted due to uneven mixing of the disinfectant when various disinfectant solutions or disinfectant powder are mixed for disinfection.
Drawings

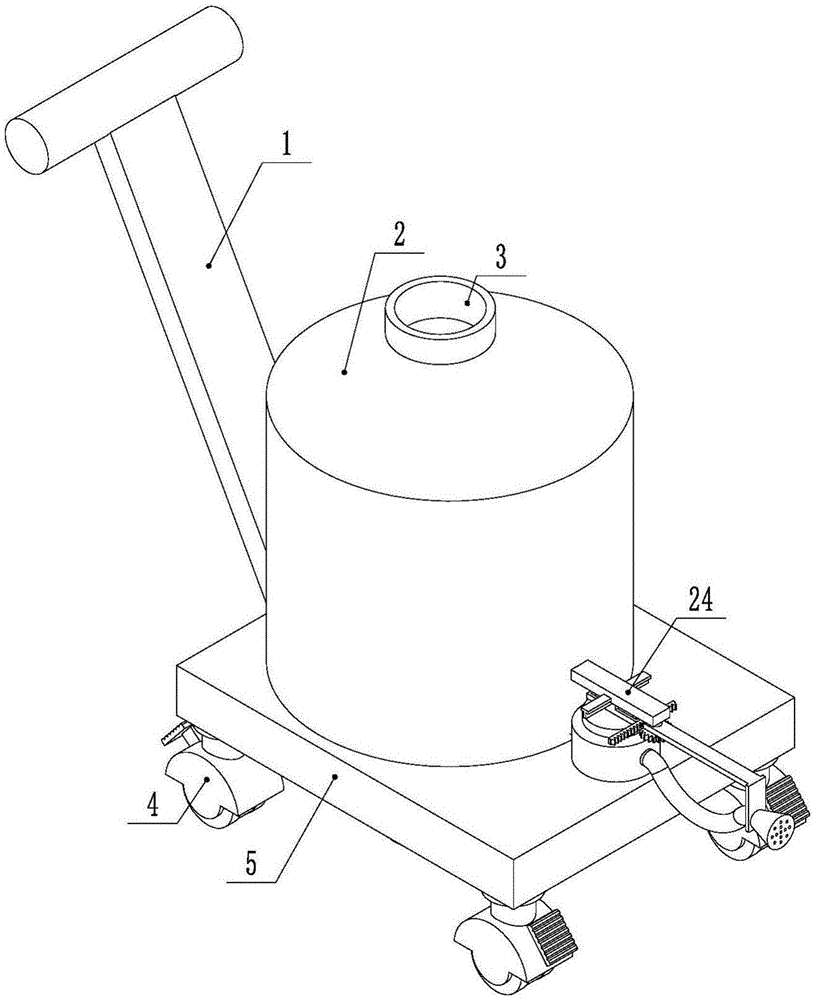

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic view of the fitting structure of the rotating wheel and the second belt wheel.
FIG. 3 is a schematic left side sectional view of the can body of the present invention.
FIG. 4 is a schematic view of a structure of the first curved rod and the second blade.
Fig. 5 is a schematic view of the impeller and the oscillating rod of the present invention in an exploded and engaged configuration.
Reference numbers in the figures: 1. a push handle; 2. a tank body; 3. a filling port; 4. a universal wheel; 5. a base plate; 6. a rotating wheel; 7. a first bevel gear; 8. a second bevel gear; 9. a first pulley; 10. a belt; 11. a second pulley; 12. a first curved bar; 13. a diagonal bar; 14. rotating the block; 15. a second curved bar; 16. a first fan blade; 17. a swing frame; 18. a second fan blade; 19. a pump body; 20. an impeller; 21. a disc; 22. a travel bar; 23. a limiting rod; 24. fixing the rod; 25. a rack; 26. a first gear; 27. a swing lever; 28. a hose; 29. and (4) a spray head.
Detailed Description
The following description of the embodiments of the present invention will be made in detail with reference to the accompanying drawings 1 to 5.
The utility model comprises a bottom plate 5, wherein the upper end of the bottom plate 5 is fixedly connected with a tank body 2, the lower end of the bottom plate 5 is rotatably connected with a rotating wheel 6 which can rotate along with the movement of the bottom plate 5, the upper end inside the tank body 2 is rotatably connected with a first fan blade 16 which can rotate along with the rotation of the rotating wheel 6, the middle part of the tank body 2 is rotatably connected with a swinging frame 17, the swinging frame 17 can turn back and forth along with the rotation of the first fan blade 16, the left side and the right side of the swinging frame 17 are respectively and fixedly connected with a second fan blade 18, the upper end of the rear side of the bottom plate 5 is rotatably connected with a disc 21 which can rotate along with the rotation of the rotating wheel 6, the lower end of the rear side of the tank body 2 is fixedly connected with a fixed rod 24, the lower end of the rear side of the fixed rod 24 is rotatably connected with a swinging rod 27 which can swing left and right along with the rotation of the disc 21, and the lower end of the rear part of the swinging rod 27 is fixedly connected with a spray head 29.
When the operating room and the supply room need to be disinfected, the medical staff is only required to push the device to move back and forth in the room, disinfectant, disinfection powder and the like are added into the tank body 2 in proportion, the rotating wheel 6 starts to rotate under the action of friction force in the moving process, when the rotating wheel 6 rotates, the first fan blade 16 in the tank body 2 is driven to start rotating, the rotating frame in the tank body 2 is simultaneously turned back and forth along with the rotation of the first fan blade 16, and then the two second fan blades 18 are driven to turn back and forth, turbulent flow is generated in the tank body 2 under the rotation of the first fan blade 16 and the second fan blades 18, liquid in the tank body 2 is stirred, the complete exertion of the drug effect is ensured, meanwhile, the disc 21 also rotates in the moving process, the disc 21 can realize that the swinging rod 27 on the rear side swings left and right at the lower part of the fixed rod 24, and then drive shower nozzle 29 horizontal hunting, thereby the antiseptic solution sprays out from shower nozzle 29 and can disinfect to indoor, and labour saving and time saving.
A first bevel gear 7 is coaxially and fixedly connected to the right side of the rotating wheel 6, a second bevel gear 8 is meshed with the upper end of the first bevel gear 7, the upper end of the second bevel gear 8 is rotatably connected with the lower end of the bottom plate 5, a first belt wheel 9 is coaxially and fixedly connected with the upper end of the second bevel gear 8, a belt 10 is connected to the outer edge of the first belt wheel 9, a second belt wheel 11 is connected to the rear end of the belt 10, and the second belt wheel 11 is rotatably connected with the lower end of the bottom plate 5.
The rotating wheel 6 rotates to drive a first bevel gear 7 which is coaxially and fixedly connected to rotate, the first bevel gear 7 rotates to drive a second bevel gear 8 with the meshed upper end to rotate, the second bevel gear 8 drives a first belt wheel 9 with the coaxially and fixedly connected upper end to rotate, and the first belt wheel 9 realizes synchronous rotation of a second belt wheel 11 through a belt 10.
The coaxial rigid coupling in upper end of first band pulley 9 has first curved bar 12, the upper end fixedly connected with down tube 13 of first curved bar 12, the upper end fixedly connected with second curved bar 15 of down tube 13, the upper end of second curved bar 15 rotates with the upper end of jar body 2 to be connected, the middle part fixedly connected with turning block 14 of down tube 13, both sides rotate with swing frame 17 around turning block 14 to be connected, the upper end and the first flabellum 16 fixed connection of second curved bar 15.
The upper end of the second belt wheel 11 is coaxially and fixedly connected with an impeller 20, the outer edge of the impeller 20 is rotatably connected with a pump body 19, the front end of the pump body 19 is fixedly connected with the lower end of the rear part of the tank body 2, the rear end of the pump body 19 is fixedly connected with a hose 28, the rear end of the hose 28 is fixedly connected with the front end of a spray head 29, and the upper end of the impeller 20 is coaxially and fixedly connected with a disc 21.
The second belt wheel 11 rotates and drives the impeller 20 to rotate in the pump body 19, at this time, negative pressure is generated in the pump body 19 to suck the disinfectant in the tank body 2 into the hose 28, and the disinfectant is uniformly sprayed out through the spray head 29, and at the same time, the disc 21 is driven to rotate.
The upper end of the disc 21 is connected with a moving rod 22 in a sliding mode, the upper end of the moving rod 22 is fixedly connected with a limiting rod 23, the upper end of the limiting rod 23 is connected with a fixed rod 24 in a sliding mode, the rear end of the moving rod 22 is fixedly connected with a rack 25, the rear end of the rack 25 is meshed with a first gear 26, and the first gear 26 is fixedly connected with the lower end of the front portion of a swinging rod 27.
The upper end fixedly connected with cylinder arch of disc 21, the cylinder arch can be along with disc 21 rotates and the circumference removes, can drive sliding connection's movable rod 22 at this moment and remove about, and gag lever post 23 can retrain movable rod 22 and only remove about, realizes that rack 25 removes about, drives the first gear 26 of meshing and rotates about realizing the horizontal hunting of swinging arms 27.
The lower end of the bottom plate 5 is fixedly connected with four universal wheels 4, the front end of the bottom plate 5 is fixedly connected with a push handle 1, and the upper end of the tank body 2 is fixedly connected with an injection port 3.
The four universal wheels 4 at the lower end of the bottom plate 5 can realize the movement of the device, the pushing handle 1 is pushed to realize the movement of the device, and disinfectant and the like can be added into the tank body 2 through the filling port 3.
When the utility model is used, when the operating room and the supply room need to be disinfected, the medical staff only needs to push the device to move back and forth in the room, disinfectant powder and the like are added in the tank body 2 according to the proportion, the rotating wheel 6 starts to rotate under the action of friction force in the moving process, when the rotating wheel 6 rotates, the first fan blade 16 in the tank body 2 is driven to start to rotate, the rotating frame in the tank body 2 is overturned back and forth along with the rotation of the first fan blade 16, and then the two second fan blades 18 are driven to overturn back and forth, turbulent flow is generated in the tank body 2 under the rotation of the first fan blade 16 and the second fan blades 18, the liquid in the tank body 2 is stirred, the complete exertion of the drug effect is ensured, meanwhile, the disc 21 also rotates in the moving process, the disc 21 can realize that the swinging rod 27 at the rear side swings left and right on the lower part of the fixed rod 24, and then drive shower nozzle 29 horizontal hunting, thereby the antiseptic solution sprays out from shower nozzle 29 and can disinfect to indoor, and labour saving and time saving.
The utility model has novel structure, ingenious conception and simple and convenient operation, and effectively solves the problems that the disinfection device in the conventional operating room and supply room is troublesome and laborious, the normal disinfection work mainly depends on manually filling liquid medicine into a sprayer for spraying or directly spraying barrel-contained disinfectant, the labor intensity of workers is high in the disinfection mode, and the pesticide effect cannot be fully exerted due to uneven mixing of the disinfectant when various disinfectant solutions or disinfectant powder are mixed for disinfection.
