CN215737506U

CN215737506U - A height-adjustable desk

Info

Publication number: CN215737506U
Application number: CN202120919946.3U
Authority: CN
Inventors: 宋伟丽; 周兆双; 蔡小平
Original assignee: Weihai Feiyu Smier Home Furnishing Co ltd
Current assignee: Weihai Feiyu Smier Home Furnishing Co ltd
Priority date: 2021-04-29
Filing date: 2021-04-29
Publication date: 2022-02-08
Anticipated expiration: 2031-04-29

Abstract

The present application relates to a height-adjustable desk, which relates to the field of office equipment. It is coaxially slidably connected with the table legs along the vertical direction, the support platform is rotatably connected in the vertical direction with a lifting screw that rotates along its axis direction, and the lifting screw is screwed with the table legs. The rotation of the lift screw makes the table leg and the lift screw thread connect with the support leg in the vertical direction, so that the height of the table leg changes, and the table leg drives the desktop to move in the vertical direction to realize the height adjustment of the desk Function, the application has the effect of enabling the desk to better meet the office needs of people with different heights.

Description

Desk with adjustable height

Technical Field

The application relates to the field of office equipment, in particular to a height-adjustable office table.

Background

The office table is a table which is convenient to work in daily life and work and social activities.

The chinese patent with the existing publication number CN209595054U discloses an office table, which comprises: a table plate, a bracket and a mounting sleeve; the table plate is arranged parallel to the horizontal plane, the bottom end of the support is supported on the ground, and the top end of the support is connected with the bottom surface of the table plate; the table plate is provided with a placing hole, the mounting sleeve is arranged at the lower part of the table plate, the top end of the mounting sleeve is arranged right opposite to the placing hole, and the mounting sleeve is connected with the table plate; the bottom of installation cover is provided with backstop portion.

Aiming at the technology, the inventor finds that when users with different heights use the office table, the required height of the office table is different, and the office table has the defect that the using requirements of people with different heights are difficult to meet in the using process.

SUMMERY OF THE UTILITY MODEL

In order to make the desk can satisfy different height crowds 'official working demand better, this application provides a height-adjustable's desk.

The application provides a desk with adjustable height adopts following technical scheme:

the utility model provides a desk with adjustable height, includes the desktop, has set firmly the table leg along vertical direction on the lower terminal surface of desktop, and the outer coaxial cover of table leg is equipped with the supporting leg, and the supporting leg is connected with the table leg along the coaxial sliding connection of vertical direction, rotates along vertical direction in the brace table to be connected with and rotates lifting screw along its axis direction, lifting screw and table leg threaded connection.

Through adopting above-mentioned technical scheme, lifting screw rotates the in-process that makes table leg and lifting screw threaded connection and supporting leg along vertical direction sliding connection, and then makes the high change of table leg, and the table leg drives the desktop and moves in vertical direction in, realizes the altitude mixture control function of desk, makes the desk can satisfy different height crowds' official working demand better.

Optionally, the bottom of lifting screw has set firmly lifting bevel gear along the horizontal direction is coaxial, and the bottom of supporting leg rotates along vertical direction to be connected with along its axis direction pivoted rotation bevel gear, and rotation bevel gear is connected with lifting bevel gear meshing.

Through adopting above-mentioned technical scheme, it makes lift bevel gear drive lifting screw to rotate the bevel gear, and lifting screw then drives the table leg and removes, makes the lift process of table leg more stable.

Optionally, the bottom of supporting leg sets firmly spacing cover, and lifting bevel gear all arranges in spacing cover and with the inner wall swing joint of spacing cover with rotating bevel gear.

Through adopting above-mentioned technical scheme, when rotating bevel gear and rotating and drive bevel gear and rotate, spacing cover makes bevel gear and the meshing connection relation between the bevel gear that rotates more firm, and then makes bevel gear that rotates can drive bevel gear that goes up and down to rotate better.

Optionally, the lifting screw is coaxially sleeved with a lifting spring, the top end of the lifting spring is fixedly connected with the table leg, the bottom end of the lifting spring is fixedly connected with the supporting leg, and when the table leg is arranged at the highest position, the lifting spring is in a normal state.

Through adopting above-mentioned technical scheme, when table leg and supporting leg relative movement, lifting spring takes place deformation, and when the table leg rose, lifting spring resumeed normal condition gradually, provides ascending thrust for the table leg, and then makes the table leg can more smoothly arrange in and move in the vertical direction.

Optionally, a synchronization rod is rotatably connected between the supporting legs in the horizontal direction, penetrates through the side walls of the supporting legs and is coaxially and fixedly connected with the circle center positions of the two rotating bevel gears.

Through adopting above-mentioned technical scheme, the synchronizing bar couples together two rotation bevel gears fixed connection, and when a rotation bevel gear rotated, the synchronizing bar made two rotation bevel gears synchronous revolution, and then made the table leg on both sides can go up and down in step.

Optionally, a sliding groove is formed in the outer wall of the table leg along the vertical direction, and a sliding block connected with the sliding groove in a sliding mode is fixedly arranged on the end face of the supporting leg.

Through adopting above-mentioned technical scheme, when table leg and supporting leg relative slip, the sliding block is arranged in the sliding tray and is slided, and the sliding tray makes the relative slip process between table leg and the supporting leg more stable through the removal orbit of restriction sliding block.

Optionally, one end of the supporting leg is rotatably connected with a rotating handle, one end of the rotating handle penetrates through the supporting leg and is arranged in the supporting leg, and the rotating handle is coaxially and fixedly connected with the end face, far away from the synchronizing rod, of one rotating bevel gear.

Through adopting above-mentioned technical scheme, when needs height-adjusting, rotatory twist grip drives and rotates bevel gear and rotate, and then makes bevel gear's rotation function more perfect.

Optionally, the both sides of supporting leg bottom set firmly the supporting seat of perpendicular to supporting leg.

Through adopting above-mentioned technical scheme, when using the desk, the supporting leg is supported on required position more steadily with the supporting seat, and then makes the desktop be difficult for taking place to rock in the use.

In summary, the present application includes at least one of the following beneficial technical effects:

1. the lifting screw rotates to enable the table legs to be in threaded connection with the lifting screw in the process and the supporting legs to be in sliding connection in the vertical direction, so that the height of the table legs is changed, the table legs drive the table top to move in the vertical direction, the height adjusting function of the office table is achieved, and the office table can better meet office demands of people with different heights.

2. When rotating bevel gear rotates and drives lifting bevel gear to rotate, the spacing cover makes the meshing connection relation between lifting bevel gear and the rotating bevel gear more firm, and then makes rotating bevel gear drive lifting bevel gear to rotate better.

3. When the table legs and the supporting legs move relatively, the lifting springs deform, and when the table legs ascend, the lifting springs gradually recover to a normal state to provide upward thrust for the table legs, so that the table legs can be more smoothly placed in the vertical direction to move.

Drawings

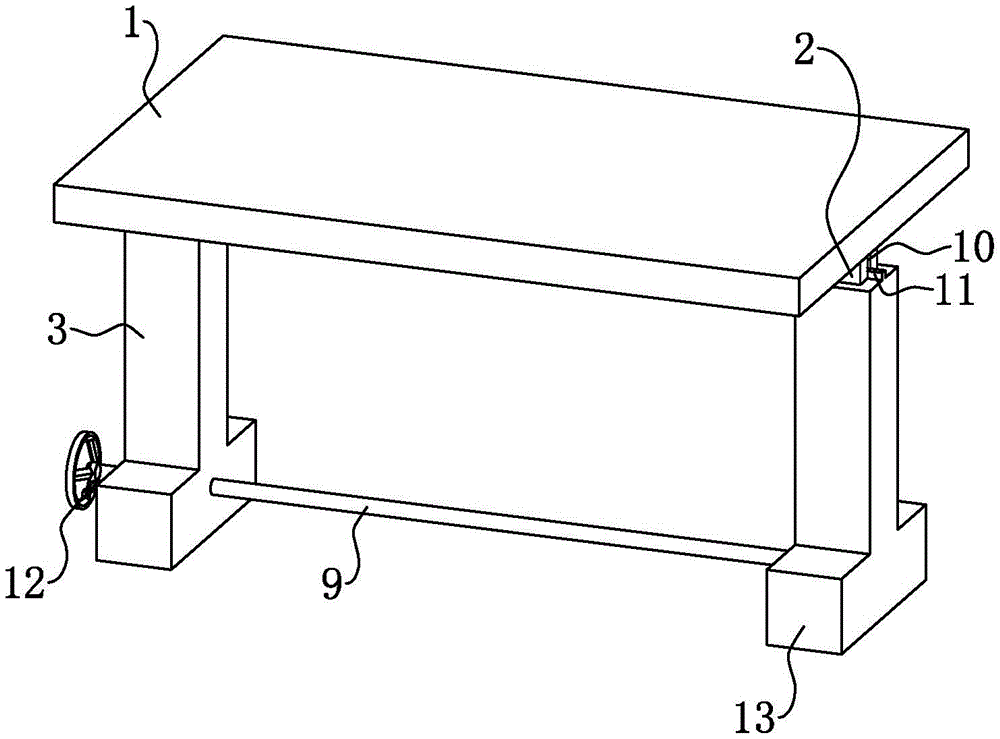

Fig. 1 is a schematic structural diagram of an embodiment of the present application.

Fig. 2 is a schematic structural view of a lifting screw and a rotary bevel gear in the embodiment of the present application.

Description of reference numerals: 1. a desktop; 2. desk legs; 3. supporting legs; 4. a lifting screw; 5. a lifting bevel gear; 6. rotating the bevel gear; 7. a limiting cover; 8. a lift spring; 9. a synchronization lever; 10. a sliding groove; 11. a slider; 12. rotating the handle; 13. and (4) supporting the base.

Detailed Description

The present application is described in further detail below with reference to the accompanying drawings.

The embodiment of the application discloses desk with adjustable height, refers to fig. 1 and 2, including desktop 1, the both ends of terminal surface have set firmly table leg 2 along vertical direction under the desktop 1, and table leg 2 is outer to be equipped with supporting leg 3 along the coaxial cover of vertical direction. When the office table works, the table top 1 is in the horizontal position to support office supplies of a user at a required position, the supporting legs 3 are abutted against the ground to support the table legs 2, and the table legs 2 support the table top 1 at the horizontal position, so that the basic use function of the office table is realized.

Referring to fig. 1 and 2, the two sides of the bottom end of the supporting leg 3 are fixedly provided with a supporting seat 13 perpendicular to the supporting leg 3, and the supporting seat 13 is arranged along the width direction of the table top 1. When using the desk, supporting seat 13 and ground looks butt, supporting leg 3 cooperatees with supporting seat 13 and increases and the area of contact between the ground, and supporting seat 13 supports supporting leg 3 on required position more steadily, and then makes desktop 1 difficult and ground emergence in the use rock.

Referring to fig. 1 and 2, the support leg 3 is slidably connected to the table leg 2 in a vertical direction coaxially. When the user need change the height of desktop 1, the user moves table leg 2 along vertical direction, makes 2 lifting movement of table leg, table leg 2 and supporting leg 3 relative slip this moment, because supporting leg 3 is static relatively with ground, consequently when table leg 2 and supporting leg 3 along vertical direction sliding connection, table leg 2 drives desktop 1 and arranges vertical direction in and removes, and then makes the change of the terrain clearance of desktop 1, realizes 1 regulatory function of desktop of desk.

Referring to fig. 1 and 2, a sliding groove 10 is provided along the vertical direction on both sides of the outer wall of the table leg 2, and sliding blocks 11 slidably connected with the sliding groove 10 along the vertical direction are fixedly provided along the length direction of the table top 1 on both sides of the upper end surface of the supporting leg 3. When a user needs to adjust the height of the desktop 1, the desk legs 2 and the supporting legs 3 slide relatively along the vertical direction, at the moment, the sliding blocks 11 are arranged in the sliding grooves 10 to slide along the vertical direction, and the sliding grooves 10 enable the relative sliding process between the desk legs 2 and the supporting legs 3 to be more stable through limiting the moving track of the sliding blocks 11.

Referring to fig. 1 and 2, a lifting screw 4 is rotatably connected to the support table in a vertical direction and is rotated in an axial direction thereof, and an upper end of the lifting screw 4 is disposed in a lower end of the table leg 2 and is coaxially screw-connected to the table leg 2. When a user needs to adjust the height of the desktop 1, the user rotates the lifting screw rod 4 to enable the upper end portion of the lifting screw rod 4 to be arranged in the lower end portion of the desk leg 2 to rotate, then the desk leg 2 is enabled to move in the vertical direction in the process of being in threaded connection with the lifting screw rod 4, then the height of the desk leg 2 is changed, the desk leg 2 drives the desktop 1 to move in the vertical direction, and the height adjusting function of the office desk is achieved.

Referring to fig. 1 and 2, lifting bevel gear 5 has set firmly along the horizontal direction is coaxial in the bottom of lifting screw 4, and the bottom of supporting leg 3 rotates along vertical direction to be connected with along its axis direction pivoted rotation bevel gear 6, and rotation bevel gear 6 is connected with lifting bevel gear 5 meshing. When a user needs to adjust the height of the desktop 1, the user rotates the rotating bevel gear 6, the rotating bevel gear 6 rotates to enable the lifting bevel gear 5 to rotate so as to drive the lifting screw rod 4 to rotate along the axis direction of the lifting bevel gear, and the lifting screw rod 4 further drives the desk legs 2 to move in the vertical direction, so that the lifting process of the desk legs 2 is more stable.

Referring to fig. 1 and 2, a synchronizing rod 9 is rotatably connected between the supporting legs 3 along the length direction of the table top 1, the end faces of the two rotating bevel gears 6 are arranged oppositely, the two ends of the synchronizing rod 9 penetrate through the side walls, close to each other, of the two supporting legs 3 respectively, and the two ends of the synchronizing rod 9 are coaxially and fixedly connected with the circle center positions of the two rotating bevel gears 6. When the user need adjust the height of desktop 1, synchronizing bar 9 couples together two and rotates bevel gear 6 fixed connection, and when the user rotated one and rotates bevel gear 6, synchronizing bar 9 followed this and rotated bevel gear 6 and rotated, and then drove another and rotated bevel gear 6 and rotate, and synchronizing bar 9 made two and rotated bevel gear 6 synchronous rotations, and then made the table leg 2 on both sides can go up and down in step better.

Referring to fig. 1 and 2, a rotating handle 12 is rotatably connected to end faces, away from each other, of the bottoms of the supporting legs 3, a rotating shaft of the rotating handle 12 is arranged along the axis direction of the rotating handle, one end of the rotating handle 12 penetrates through the supporting legs 3 and is arranged inside the supporting legs 3, and the rotating handle 12 is coaxially and fixedly connected with an end face, away from the synchronizing rod 9, of one rotating bevel gear 6. When a user needs to adjust the height of the tabletop 1, the user rotates the rotating handle 12 to drive the rotating bevel gear 6 to rotate, so that the rotating function of the rotating bevel gear 6 is more perfect and easy to control.

Referring to fig. 1 and 2, the bottom end of the supporting leg 3 is fixedly provided with a limiting cover 7, and the lifting bevel gear 5 and the rotating bevel gear 6 are both arranged in the limiting cover 7 and movably connected with the inner wall of the limiting cover 7. When the user need adjust desktop 1 height, rotate bevel gear 6 and rotate and drive bevel gear 5 and rotate, spacing cover 7 makes bevel gear 5 and the meshing connection relation between rotating bevel gear 6 more firm this moment, and then makes bevel gear 6 can drive bevel gear 5 better and rotate.

Referring to fig. 1 and 2, the lifting screw 4 is coaxially sleeved with a lifting spring 8, the top end of the lifting spring 8 is fixedly connected with the bottom end of the table leg 2, the bottom end of the lifting spring 8 is fixedly connected with the upper end of the supporting leg 3, and when the table leg 2 is arranged at the highest position, the lifting spring 8 is in a normal state. When table leg 2 and supporting leg 3 relative movement, lifting spring 8 takes place to be deformed, and when table leg 2 rose, lifting spring 8 resumeed normal condition gradually, provides ascending thrust for table leg 2, and then makes table leg 2 can more smoothly place in the vertical direction and move.

The implementation principle of the desk with the adjustable height in the embodiment of the application is as follows: when the user needs to adjust the height of the desktop 1, the user rotates the rotating handle 12 to drive the rotating bevel gears 6 to rotate, the synchronizing rod 9 fixedly connects the two rotating bevel gears 6, so that the two rotating bevel gears 6 synchronously rotate, the rotating bevel gears 6 rotate to enable the lifting bevel gears 5 to rotate and further drive the lifting screw rods 4 to rotate along the axis direction of the lifting screw rods, the lifting screw rods 4 further drive the desk legs 2 to move in the vertical direction, so that the height of the desk legs 2 is changed, the desk legs 2 drive the desktop 1 to move in the vertical direction, and the height adjusting function of the office desk is realized.

The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims

1. A height-adjustable desk, comprising a desktop (1), characterized in that: a table leg (2) is fixed along the vertical direction on the lower end surface of the desktop (1), and the table leg (2) is coaxially outside. A supporting leg (3) is sleeved, the supporting leg (3) and the table leg (2) are coaxially slidably connected along the vertical direction, and a lifting screw (4) that rotates along the axis direction is connected in the supporting table along the vertical direction, The lifting screw (4) is threadedly connected with the table leg (2).

2. A height-adjustable desk according to claim 1, wherein the bottom end of the lifting screw (4) is coaxially fixed with a lifting bevel gear (5) along the horizontal direction, and the support legs ( The bottom end of 3) is rotatably connected with a rotating bevel gear (6) along its axis direction along the vertical direction, and the rotating bevel gear (6) is meshed with the lifting bevel gear (5).

3. A height-adjustable desk according to claim 2, characterized in that: the bottom end of the support leg (3) is fixedly provided with a limit cover (7), a lifting bevel gear (5) and a rotating bevel The gears (6) are all placed in the limit cover (7) and are movably connected with the inner wall of the limit cover (7).

4. A height-adjustable desk according to claim 1, characterized in that: a lift spring (8) is provided on the outer coaxial sleeve of the lift screw (4), and the top of the lift spring (8) is connected to the desk The legs (2) are fixedly connected, and the bottom ends of the lifting springs (8) are fixedly connected with the supporting legs (3). When the table legs (2) are placed at the highest position, the lifting springs (8) are in a normal state.

5. A height-adjustable desk according to claim 2, wherein a synchronizing rod (9) is rotatably connected in the horizontal direction between the supporting legs (3), and the synchronizing rod (9) passes through The side walls of the support legs (3) are coaxially and fixedly connected with the center positions of the two rotating bevel gears (6).

6. A height-adjustable desk according to claim 1, characterized in that: sliding grooves (10) are provided on the outer walls of the table legs (2) along the vertical direction, and the support legs (3) are A sliding block (11) slidably connected with the sliding groove (10) is fixed on the end surface.

7. A height-adjustable desk according to claim 2, wherein one end of the support leg (3) is rotatably connected with a rotating handle (12), and one end of the rotating handle (12) passes through the support The leg (3) is placed in the support leg (3), and the rotating handle (12) is coaxially and fixedly connected to the end face of a rotating bevel gear (6) away from the synchronizing rod (9).

8 . The height-adjustable desk according to claim 1 , wherein the two sides of the bottom end of the support legs ( 3 ) are fixedly provided with support seats ( 13 ) perpendicular to the support legs ( 3 ). 9 .
