Spherical hollow medical constraint glove

Technical Field

The utility model belongs to the field of medical auxiliary appliances, and particularly relates to a spherical hollow medical constraint glove.

Background

When the daily nursing of intensive care unit, old and the unconscious patient is in many in the intensive care unit, and the condition that the indiscriminate syringe needle that pulls out, the incomplete indiscriminate condition of grabbing, grabbing the food foreign matter can appear when these patients are unclear or dysphoria in the consciousness not only has increased and has reset the pipe rate and also hurt patient itself and medical personnel easily, consequently need use restraint gloves to retrain the hand.

The traditional constraint gloves are flat gloves, the hands of a patient cannot stretch and move, and the patient feels restrained and uncomfortable easily. The improved constraint gloves are spherical gloves with hollow vent holes, and the defect that the hand movement space of the flat gloves is small can be overcome. However, although the spherical gloves have mesh holes or circular holes, the air permeability is still not good enough, and the gloves can cause hand itching, sultry sweating, and particularly for patients with wounds on hands, the wounds are easy to cause inflammation. And spherical restraint gloves are bigger for ordinary platykurtic gloves, accomodate the save comparatively inconvenient. The patient is more complicated and laboursome when wearing, and the restraint gloves need be repeatedly worn when the patient need be transfused or carry out blood oxygen saturation monitoring, increase patient's uncomfortable and medical personnel's burden.

SUMMERY OF THE UTILITY MODEL

The utility model provides a medical constraint glove with good air permeability and convenient use for solving the technical problems.

The spherical hollowed medical constraint glove is characterized by comprising a hand constraint sleeve and a wrist constraint end, wherein the wrist constraint end is positioned at the tail end of the hand constraint sleeve; the hand restraint sleeve is a spherical body, a plurality of air holes are formed in the hand restraint sleeve, the air holes are detachably connected with air pipes, and the tail ends of the air pipes are connected with air supply pipes and communicated with an oxygen supply device through the air supply pipes.

The further technical scheme is as follows: the interface of the gas pipe and the oxygen supply device is provided with a control valve.

The further technical scheme is as follows: the inner wall of the vent hole and the outer wall of the vent pipe are provided with threads which are matched, and the vent pipe is connected with the vent hole through threads.

The further technical scheme is as follows: the hand restraint sleeve is of a double-layer structure and comprises an inner restraint sleeve layer and an outer restraint sleeve layer, a closed interlayer cavity is formed between the inner restraint sleeve layer and the outer restraint sleeve layer, an air closing hole is formed in the outer restraint sleeve layer, and an air closing valve is installed on the air closing hole.

The further technical scheme is as follows: the hand restraint sleeve comprises an upper restraint sleeve and a lower restraint sleeve, the upper restraint sleeve and the lower restraint sleeve are connected through a connecting shaft, and the upper restraint sleeve can rotate and open and close around the connecting shaft on the lower restraint sleeve; fasteners are arranged on two sides of the lower constraint sleeve, and the upper constraint sleeve is fixed on the lower connecting sleeve through the fasteners.

The further technical scheme is as follows: the hand restraint sleeve is also provided with a through hole which is used for communicating a transfusion pipeline or a pipeline of a medical monitoring appliance.

The further technical scheme is as follows: the inner layer of the wrist restraint end is provided with a soft cushion, two sides of the wrist restraint end are provided with restraint belts, and the tail end of each restraint belt is provided with a magic tape.

The further technical scheme is as follows: 2-6 breather pipes are provided.

The further technical scheme is as follows: the hand restriction sleeve and the wrist restriction end are made of transparent thickened PVC materials.

The further technical scheme is as follows: a grip ball is also arranged in the hand constraint sleeve.

The utility model has the beneficial effects that: the pipe drawing device is simple in structure and convenient to use, can play a good restraint role, and effectively avoids accidental pipe drawing. The spherical structure of the constraint glove increases the activity space of the hand, and the hand can freely stretch and move. The restraint glove is additionally provided with the ventilating pipe and the oxygen conveying pipe which can improve air permeability, oxygen is introduced into the oxygen conveying pipe, the wound recovery of the hand injured patient is facilitated, and the comfort of the patient is improved.

Drawings

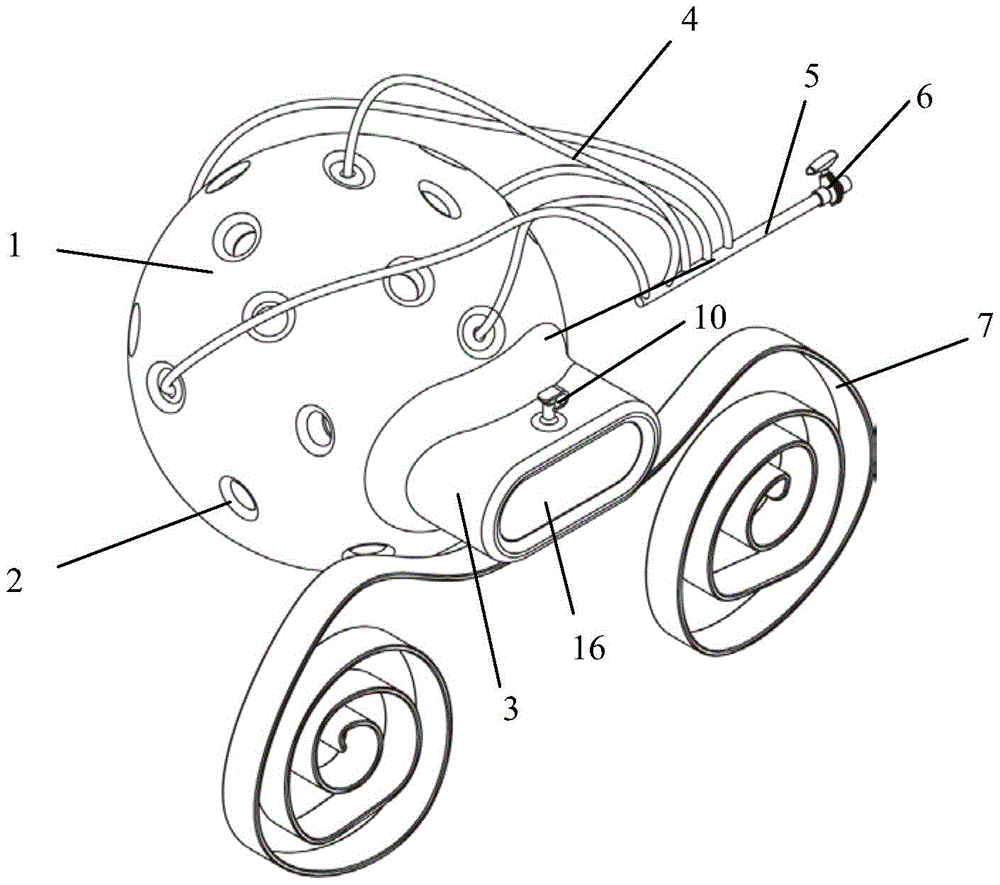

FIG. 1 is a schematic structural view of embodiment 1 of the present invention;

FIG. 2 is a schematic view of the internal structure of embodiment 2;

FIG. 3 is a schematic side view of example 3.

In the figure: 1. hand restraint sleeve, 2, air vent, 3, the about end of wrist, 4, breather pipe, 5, gas-supply pipe, 6, control valve, 7, about band, 8, the about cover skin, 9, the about cover inlayer, 10, the valve that closes, 11, last restraint cover, 12, lower restraint cover, 13, through-tube hole, 14, connecting axle, 15, fastener, 16, cushion.

Detailed Description

The utility model is further described with reference to the following figures and specific examples. It should be noted that the examples are only for specifically illustrating the present invention, and the purpose thereof is to make the technical solution of the present invention better understood by those skilled in the art, and should not be construed as limiting the present invention.

In the description of the present invention, it should be noted that the directions or positional relationships indicated as the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., appear based on the directions or positional relationships shown in the drawings, which are merely for convenience of describing the present invention and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific direction, be constructed in a specific direction and operation, and thus, should not be construed as limiting the present invention.

In the description of the present invention, it should be noted that, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" should be interpreted broadly, e.g., as being fixed or detachable or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The utility model provides a medical restraint gloves of spherical fretwork, includes the about end of the about cover of hand and wrist, and the about end of wrist is located the end of the about cover of hand, stretches into the hand through the opening of the about end of wrist in the about cover of hand, plays the restriction effect to the hand, prevents to make the patient pull out the needle tubing in disorder, snatch the foreign object.

Example 1:

as shown in fig. 1, the hand restraining sleeve 1 is a spherical structure, a plurality of vent holes 2 are arranged on the hand restraining sleeve 1, and the vent holes 2 play a role in ventilation, so that the interior of the restraining sleeve is kept dry and comfortable. Wherein, can dismantle on part air vent 2 and be connected with breather pipe 4, be equipped with the screw thread of looks adaptation on the inner wall of air vent 2 and the outer wall of breather pipe 4, breather pipe 4 threaded connection is on air vent 2. The tail ends of all the ventilation pipes 4 are communicated with the gas conveying pipe 5, and the gas conveying pipe 5 is connected with the oxygen supply device, so that oxygen can be conveyed into the hand restraining sleeve 1 through the gas conveying pipe 5 and the ventilation pipes 4. The interface of the gas transmission pipe 5 is provided with a control valve 6, and the control valve 6 can control the flow rate and the opening and closing of the gas in the gas transmission pipe.

In the preferred embodiment, 2-6 air pipes 4 are provided, and all air pipes are connected to one air pipe 5. The position and the number of the ventilation pipes 4 are selected according to the requirements of patients, and the ventilation pipes 4 are arranged on the hand restraint sleeve 1, so that the comfort of the restraint sleeve is improved.

The bottom end of the hand restraining sleeve 1 is provided with a wrist restraining end 3, and the wrist restraining end 3 is an annular body attached to a wrist and is an opening extending into the hand restraining sleeve 1. The inside cushion 16 that is equipped with of the about end 3 of wrist, cushion 16 can be foam-rubber cushion, memory cotton or silica gel for support the wrist, the protection wrist does not receive wearing and tearing, improves the travelling comfort. Restraint belts 7 are arranged on two sides of the wrist restraint end 3, and hook-and-loop fasteners are arranged at the tail ends of the restraint belts 7 on the two sides respectively and can be mutually bonded to fix the restraint gloves on the wrist.

The hand restriction sleeve 1 and the wrist restriction end 3 are made of transparent thickened PVC materials which are non-toxic, not easy to be allergic and not capable of rubbing hands, and the state in the hands can be observed at any time through the transparent hand restriction sleeve.

This embodiment is applicable to the patient that the hand suffered from the wound or is applied to in the sultry weather, through setting up breather pipe 4 and gas-supply pipe 5, carries oxygen to 1 inner chamber of hand restraint cover for the air flows in the restraint cover, is favorable to the hand wound to resume and avoids perspiring, itching, has improved the comfort level.

Example 2:

embodiment 2 is further improved on the basis of embodiment 1, in this embodiment, as shown in fig. 2, the hand restraining sleeve 1 is a spherical sleeve with a double-layer structure, and comprises a restraining sleeve outer layer 8 and a restraining sleeve inner layer 9, and a completely closed cavity interlayer is arranged between the restraining sleeve outer layer 8 and the restraining sleeve inner layer 9. The outer layer 8 of the restraint sleeve is also provided with an air-closing hole, and the air-closing hole is provided with an air-closing valve 10.

When the air pump or the inflator is used, the air pump or the inflator is aligned to the air closing hole, the cavity interlayer between the inner layer and the outer layer of the constraint sleeve is inflated, and the air closing valve 10 on the air closing hole is closed after the cavity interlayer is filled with air. After the use, the air-closing valve 10 is opened, and the air in the interlayer of the cavity is released, so that the folding storage can be realized.

The double-layer inflatable structure is convenient to store, does not occupy space and is more convenient to carry.

Example 3:

embodiment 3 is further improved on the basis of embodiment 1 or embodiment 2, in this embodiment, as shown in fig. 3, the hand restraining sleeve 1 includes an upper restraining sleeve 11 and a lower restraining sleeve 12, the upper restraining sleeve 11 is arched upward, the lower restraining sleeve 12 is arched downward, and the ends of the upper restraining sleeve 11 and the lower restraining sleeve 12 are symmetrically provided with a connecting shaft 14 and connected through the connecting shaft 14 to form a spherical structure. The connecting shaft 14 is a hinge shaft so that the upper restraining sleeve 11 can rotate upward about the connecting shafts 14 at both sides. Fasteners 15 are further arranged on two sides of the middle position of the lower restraint sleeve 12 and can be fixedly connected with the upper restraint sleeve 11 and the lower restraint sleeve 12 to fold the hand restraint sleeve into a spherical body.

The hand restraint sleeve is also provided with a through tube hole 13 which can be used for placing an infusion tube or a tube for detecting the oxygen saturation degree of blood. When the patient needs to perform infusion or monitor the blood oxygen saturation level, the fastener 15 is opened, and the upper restraining sleeve 11 is rotated upward, so that the hands inside the hand restraining sleeve 1 are fully exposed. After the infusion is performed, the infusion tube is threaded out of the through tube hole 13, the upper restraint sleeve 11 and the lower restraint sleeve 12 are closed, the fastener 15 is buckled, and the hand of the patient is completely restrained in the hand restraint sleeve 1.

This embodiment is applicable to the patient that needs the infusion or carry out relevant monitoring, need not repeated wearing restraint gloves, and is more convenient, reduces patient's discomfort.

Example 4:

example 4 a further improvement over example 1 is the placement of a grip ball within the hand restraint sleeve, which helps to relax and exercise the patient's hands and relieve the patient from fidget and stress.

In light of the foregoing description of the preferred embodiment of the present invention, many modifications and variations can be made by the worker in the light of the above teachings without departing from the spirit of the utility model. The technical scope of the present invention is not limited to the content of the specification, and must be determined according to the scope of the claims.

Claims

1. The spherical hollowed medical constraint glove is characterized by comprising a hand constraint sleeve and a wrist constraint end, wherein the wrist constraint end is positioned at the tail end of the hand constraint sleeve; the hand restraint sleeve is a spherical body, a plurality of air holes are formed in the hand restraint sleeve, the air holes are detachably connected with air pipes, and the tail ends of the air pipes are connected with air supply pipes and communicated with an oxygen supply device through the air supply pipes.

2. The spherical hollowed medical constraint glove according to claim 1, wherein a control valve is arranged at the interface between the gas delivery pipe and the oxygen supply device.

3. The spherical hollowed medical constraint glove according to claim 1, wherein the inner wall of the vent hole and the outer wall of the vent pipe are provided with threads matched with each other, and the vent pipe is connected with the vent hole through the threads.

4. The spherical hollowed medical constraint glove according to claim 1, wherein the hand constraint sleeve has a double-layer structure and comprises an inner constraint sleeve layer and an outer constraint sleeve layer, a closed interlayer cavity is formed between the inner constraint sleeve layer and the outer constraint sleeve layer, an air-tight hole is formed in the outer constraint sleeve layer, and an air-tight valve is installed on the air-tight hole.

5. The spherical hollowed medical constraint glove according to any one of claims 1 to 4, wherein the hand constraint sleeve comprises an upper constraint sleeve and a lower constraint sleeve, the upper constraint sleeve and the lower constraint sleeve are connected through a connecting shaft, and the upper constraint sleeve can rotate and open and close around the connecting shaft on the lower constraint sleeve; fasteners are arranged on two sides of the lower constraint sleeve, and the upper constraint sleeve is fixed on the lower connecting sleeve through the fasteners.

6. The spherical hollowed medical constraint glove of claim 5, wherein a through hole is further formed in the hand constraint sleeve and used for communicating with an infusion tube or a medical monitoring tool.

7. The spherical hollowed medical constraint glove as claimed in claim 1, wherein the inner layer of the wrist constraint end is provided with a soft pad, two sides of the wrist constraint end are provided with constraint belts, and the tail ends of the constraint belts are provided with magic tapes.

8. The spherical hollowed medical constraint glove of claim 1, wherein there are 2-6 ventilation tubes.

9. The spherical hollowed medical constraint glove of claim 1, wherein the hand constraint sleeve and the wrist constraint end are made of transparent thickened PVC material.

10. The spherical hollowed medical constraint glove of claim 1, wherein a grip ball is further placed in the hand constraint sleeve.
