The utility model discloses a smart socket based on the Internet of Things. There are symmetrically arranged insertion slots, the front side of the casing is located at the insertion slot, and the insertion shell is inserted and installed, the rear end of the insertion shell is fixedly installed with an access panel, the front side wall of the access panel is fixedly installed with a gasket, and the front side wall of the gasket is fixedly installed. A conductive seat is installed in crimping contact with the inner wall of the front side of the plug-in shell, a wire seat is fixedly installed at the rear end of the conductive seat, and an electrical connection seat is fixedly installed in the middle of the access panel. The utility model is reasonably designed in structure, the plug-in type combined structure can be flexibly replaced according to the use requirements, the use is convenient and fast, the plug-in is convenient, the assembly is stable, the power-on and power-off control options are multiple, and the practicability is high.

Description

Intelligent socket based on Internet of things

Technical Field

The utility model relates to the field of sockets, in particular to an intelligent socket based on the Internet of things.

Background

Although the switch socket is not like a large piece as a household appliance, the switch socket is related to the daily safety of a family and is the first line of defense for ensuring the electrical safety of the family, so that the switch socket can not be trocky when being selected. The electrical experts remind them that different kinds of switches and sockets are matched in different places. In order to prevent children from touching the socket holes with fingers or poking the socket holes with metal objects, a safety socket with a safety catch is selected for a family with children.

The existing socket is a simple mechanical socket, can not be remotely controlled and monitored, can not be powered off when nobody is at home, has a fixed structure, can only use designed jacks, can not be flexibly exchanged and collocated according to the use of the socket, and is poor in practicability.

Therefore, those skilled in the art provide a smart socket based on the internet of things to solve the problems set forth in the background art.

Disclosure of Invention

The utility model aims to provide an intelligent socket based on the Internet of things, and the intelligent socket aims to solve the problems in the background technology.

In order to achieve the purpose, the utility model provides the following technical scheme:

an intelligent socket based on the Internet of things comprises a shell, an inserting shell, a mainboard, a conductive seat, a power connection seat, a communication module and a center pillar, wherein a bottom plate is fixedly installed at the rear end of the shell, symmetrically-arranged inserting grooves are formed in the front end of the shell, the inserting shell is inserted and installed at the inserting grooves in the front side of the shell, an overhauling plate is fixedly installed at the rear end of the inserting shell, a liner is fixedly installed on the front side wall of the overhauling plate, the conductive seat is installed by pressing the front side wall of the liner against the inner wall of the front side of the inserting shell, the wire seat is fixedly installed at the rear end of the conductive seat, the power connection seat is fixedly installed in the middle of the overhauling plate, a limiting block is fixedly installed on the outer side wall of the inserting shell, a clamping groove matched with the limiting block is formed in the front side of the shell, an indicator lamp and a key are fixedly installed in the middle of the front side of the shell in a penetrating manner, a limiting sleeve is fixedly installed on the side wall of the rear end of the inserting groove of the shell in a penetrating manner, a clamping frame is fixedly installed on the rear side wall of the overhauling plate, the assembly of pegging graft with the stop collar is put up to the card, the inboard fixed mounting of stop collar has the center pillar, center pillar and the assembly of card frame joint, the inboard rear portion fixed mounting of shell has the mainboard, and mainboard front side upper portion fixed mounting has communication module, mainboard front side middle part fixed mounting has the power supply seat, and the power supply seat is pegged graft with the electrical property of connecting the electrical seat, mainboard front side left part fixed mounting has the wire row, shell left side wall seted up with wire row complex through-hole.

As a further scheme of the utility model: the conductive seat is divided into a double-plug socket, a three-plug socket and a USB socket.

As a still further scheme of the utility model: the edge of the bottom plate is provided with bolt holes which are arranged at equal intervals.

As a still further scheme of the utility model: the inner wall of the middle part of the shell is embedded with a gasket fixedly installed, the gasket is made of a magnetic rubber material, and the front side wall of the gasket is in close contact with the rear side wall of the access panel.

As a still further scheme of the utility model: the mainboard is electrically connected with the indicator lamp, the keys, the wire bar, the power supply seat, the communication module and the control module respectively, the power connection seat is electrically connected with the power supply seat in an inserting mode, and the power connection seat is electrically connected with the wire seat through a wire harness.

Compared with the prior art, the utility model has the beneficial effects that:

the utility model has reasonable structural design, a plug-in type combined structure can be flexibly replaced according to the use requirement, the use is convenient and quick, the plug-in and the pull-out are convenient, the assembly is stable, the on-off control selectivity is high, and the practicability is very high.

Drawings

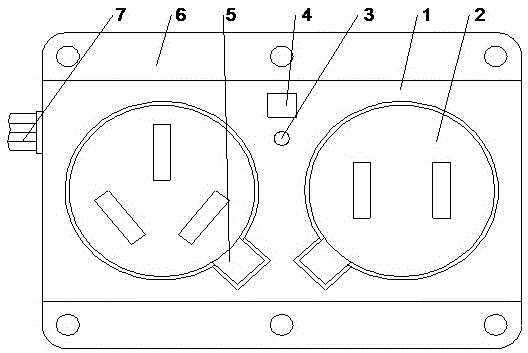

Fig. 1 is a schematic structural diagram of an intelligent socket based on the internet of things.

Fig. 2 is a schematic structural diagram of a smart jack side view angle based on the internet of things.

Fig. 3 is a schematic side view of an upper-middle portion of an internet-of-things-based smart socket.

Fig. 4 is a schematic side view of the middle-lower part of an internet-of-things-based smart socket.

In the figure: the electric wire connector comprises a shell 1, a plug-in shell 2, an indicator lamp 3, a key 4, a limiting block 5, a bottom plate 6, a wire row 7, a main board 8, an overhaul board 9, a wire seat 10, a conductive seat 11, a power connection seat 12, a power supply seat 13, a limiting sleeve 14, a clamping frame 15, a gasket 16, a communication module 17, a rubber ring 18, a control module 19 and a middle column 20.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1 to 4, in the embodiment of the utility model, an intelligent socket based on the internet of things comprises a shell 1, a plug shell 2, a mainboard 8, a conductive seat 11, a power connection seat 12, a communication module 17 and a center post 20, wherein a bottom plate 6 is fixedly installed at the rear end of the shell 1, symmetrically arranged plug slots are formed at the front end of the shell 1, the plug shell 2 is installed at the front end of the shell 1 in a plug-in manner at the plug slots, an access panel 9 is fixedly installed at the rear end of the plug shell 2, a gasket 16 is fixedly installed on the front side wall of the access panel 9, the conductive seat 11 is installed at the front side wall of the gasket 16 and the front side wall of the plug shell 2 in a compression joint manner, a wire seat 10 is fixedly installed at the rear end of the conductive seat 11, the power connection seat 12 is fixedly installed at the middle part of the access panel 9, a limit block 5 is fixedly installed on the outer side wall of the plug shell 2, a clamping groove matched with the limit block 5 is formed at the front side of the shell 1, an indicator lamp 3 and a key 4 are fixedly installed at the middle part of the front side of the shell 1 in a penetrating manner, the utility model discloses a communication terminal, including shell 1, service panel 9, middle pillar 20, mainboard 8 front side upper portion fixed mounting has

communication module

17, 8 front side middle parts fixed mounting of mainboard has power supply seat 13, and power supply seat 13 pegs graft with connecting socket 12 electrical property, 8 front side left part fixed mounting of mainboard has

wire row

7, 1 left side wall of shell has seted up the through-hole with wire row 7 complex, and the lateral wall that is located the inserting groove rear end runs through fixed mounting has stop collar 14, lateral wall fixed mounting has card frame 15 behind service panel 9, card frame 15 and the 14 assembly of pegging graft of stop collar, the inboard fixed mounting of stop collar 14 has middle pillar 20 and the assembly of card frame joint, 1 inboard rear portion fixed mounting of shell has mainboard 8, mainboard 8 front side upper portion fixed mounting has

communication module

17, 8 front side middle part fixed mounting has power supply seat 13, and power supply seat 12 electrical property pegs graft, 8 front side left part fixed mounting has

wire row

7, 1 left side wall of shell has the through-hole with wire row 7 complex.

The conductive seat 11 is divided into a double-plug socket, a triple-plug socket and a USB socket.

The edge of the bottom plate 6 is provided with bolt holes which are arranged at equal intervals.

The inner wall of the middle part of the shell 1 is embedded with a gasket 16 fixedly installed, the gasket 16 is made of magnetic rubber materials, and the front side wall of the gasket 16 is in close contact with the rear side wall of the access panel 9.

The main board 8 is electrically connected with the indicator lamp 3, the keys 4, the wire row 7, the power supply seat 13, the communication module 17 and the control module 19 respectively, the power connection seat 12 is electrically connected with the power supply seat 13 in an inserting mode, and the power connection seat 12 is electrically connected with the wire seat 10 through a wire harness.

The working principle of the utility model is as follows:

the utility model relates to an intelligent socket based on the Internet of things, which is used for supplying power, when in work, the intelligent socket is connected with a main line in series through a wire row 7, supplies power to a power connection seat 12 through a power supply seat 13, leads a conductive seat 11 to be provided with points, can supply power to the outside, and in order to adapt to different use requirements, the conductive seat 11 is divided into a double-plug socket, a three-plug socket and a USB socket, can be flexibly replaced according to use, when in replacement, the plug shell 2 only needs to be pulled out forwards, the replacement can be carried out while the plug shell is clamped by plugging, the plug-in is convenient to insert and pull out, the assembly is stable, and has guiding and magnetic attraction structures to ensure the stability of guiding and connection, and meanwhile, the communication module 17 is matched in the inner part, can carry out the networking through the thing networking, carry out remote control power-on and power-off through collecting download APP, it is convenient more stable to can carry out manual circular telegram through button 4, the selectivity is many, convenient to use.

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. The utility model provides an intelligent socket based on thing networking, includes shell (1), inserts shell (2), mainboard (8), electrically conductive seat (11), connects electrical seat (12), communication module (17) and center pillar (20), its characterized in that, shell (1) rear end fixed mounting has bottom plate (6), the inserting connection groove that the symmetry set up is seted up to shell (1) front end, shell (2) is installed in inserting connection to the position of inserting connection groove in shell (1) front side, inserts shell (2) rear end fixed mounting has access panel (9), and access panel (9) front side wall fixed mounting has liner (16), and liner (16) front side wall and inserting shell (2) front side inner wall crimping install electrically conductive seat (11), electrically conductive seat (11) rear end fixed mounting has wire seat (10), access panel (9) middle part fixed mounting has connects electrical seat (12), insert shell (2) lateral wall fixed mounting has stopper (5), the front side of the shell (1) is provided with a clamping groove matched with the limiting block (5), the middle of the front side of the shell (1) is provided with an indicator lamp (3) and a key (4) in a penetrating and fixed mode, the side wall of the shell (1) located at the rear end of the insertion groove is provided with a limiting sleeve (14) in a penetrating and fixed mode, the rear side wall of the maintenance board (9) is provided with a clamping frame (15) in a penetrating and fixed mode, the clamping frame (15) is assembled with the limiting sleeve (14) in a penetrating and fixed mode, the inner side of the limiting sleeve (14) is provided with a center pillar (20), the center pillar (20) is assembled with the clamping frame (15) in a clamping mode, the rear portion of the inner side of the shell (1) is fixedly provided with a mainboard (8), the upper portion of the front side of the mainboard (8) is fixedly provided with a communication module (17), the middle of the front side of the mainboard (8) is fixedly provided with a power supply seat (13), the power supply seat (13) is electrically connected with a power socket (12), the left portion of the front side of the mainboard (8) is fixedly provided with a wire row (7), the left side wall of the shell (1) is provided with a through hole matched with the wire row (7).

2. The smart socket based on the internet of things as claimed in claim 1, wherein the conductive socket (11) is divided into a double-plug socket, a triple-plug socket and a USB socket.

3. The smart socket based on the internet of things as claimed in claim 1, wherein bolt holes are formed at the edge of the bottom plate (6) and are arranged at equal intervals.

4. The intelligent socket based on the Internet of things is characterized in that a gasket (16) is fixedly installed on the inner wall of the middle of the shell (1) in an embedded mode, the gasket (16) is made of a magnetic rubber material, and the front side wall of the gasket (16) is in close contact with the rear side wall of the access panel (9).

5. The smart socket based on the internet of things as claimed in claim 1, wherein the main board (8) is electrically connected with the indicator lamp (3), the key (4), the wire row (7), the power supply socket (13), the communication module (17) and the control module (19) respectively, the power connection socket (12) and the power supply socket (13) are electrically connected in an inserting mode, and the power connection socket (12) is electrically connected with the wire socket (10) through a wire harness.
