CN215673974U

CN215673974U - A kind of pipe fixing bracket for municipal engineering

Info

Publication number: CN215673974U
Application number: CN202122016551.5U
Authority: CN
Inventors: 严文佳; 洪梓锴; 张盛芳
Original assignee: Guangdong Rongqing Construction Engineering Co ltd
Current assignee: Guangdong Rongqing Construction Engineering Co ltd
Priority date: 2021-08-25
Filing date: 2021-08-25
Publication date: 2022-01-28
Anticipated expiration: 2031-08-25

Abstract

The utility model discloses a pipe fixing bracket for municipal engineering, which comprises a bottom plate, a mounting seat is fixedly connected to the top of the bottom plate, a positioning mechanism is arranged on the top of the mounting seat, anti-skid feet are fixedly connected around the bottom of the bottom plate, and two ends of the bottom plate are fixedly connected with each other. Both are provided with a support switching mechanism, wherein the positioning mechanism includes a positioning frame, the top of the mounting seat is rotatably connected with a positioning frame, the positioning frame includes an upper and a lower part, and the upper and lower parts of the positioning frame are connected by a hinge. The effect is: the utility model has a compact structure and strong practicability, the positioning mechanism is convenient for better positioning and clamping of pipes of different sizes, and at the same time, the rotatable positioning frame can be used in better cooperation with the pipes, and the supporting switching mechanism is used. It is convenient and better to switch the equipment between the anti-skid feet and the universal wheel, and it can be used stably at a fixed point while moving the equipment in a time-saving and labor-saving manner.

Description

Pipeline fixed bolster for municipal works

Technical Field

The utility model relates to a fixing support, in particular to a pipeline fixing support for municipal engineering, and belongs to the technical field of municipal engineering.

Background

In China, municipal infrastructure refers to various buildings, structures, equipment and the like which are arranged in planning and construction ranges of urban areas and towns (villages) and provide paid or unpaid public products and services for residents based on government responsibilities and obligations. Various public infrastructure construction supporting in urban life all belong to municipal works category, for example common urban road, bridge, subway, underground pipeline, tunnel, river course, track traffic, sewage treatment, refuse treatment processing etc. engineering, for example again with the life closely relevant various pipelines: rainwater, sewage, water supply, reclaimed water, electric power (parts except red lines), telecommunication, heating power, gas and the like, and construction of squares, urban greening and the like belong to the municipal engineering category. And sewage treatment is also very common in the life, and road drainage system often makes sewage pile up unable the getting rid of because the jam, needs municipal works personnel to carry out the suction to sewage and shifts and discharge to other reserve pipelines, and because the suction pipeline is generally longer, needs the staff to stimulate during the laying and shifts, and is comparatively arduous, and pipeline vibrations are great in the suction process, and wearing and tearing are still comparatively serious when shifting easily.

SUMMERY OF THE UTILITY MODEL

The utility model aims to overcome the defects of the prior art and provides a pipeline fixing support for municipal engineering.

In order to solve the technical problems, the utility model provides the following technical scheme:

the utility model relates to a pipeline fixing support for municipal engineering, which comprises a bottom plate, wherein the top of the bottom plate is fixedly connected with an installation seat, the top of the installation seat is provided with a positioning mechanism, the periphery of the bottom plate is fixedly connected with anti-skidding support legs, and two ends of the bottom plate are provided with a support switching mechanism;

positioning mechanism includes the locating rack, the top of mount pad is rotated and is connected with the locating rack, the locating rack includes upper and lower two parts, just the upper and lower two parts of locating rack are passed through the hinge and are rotated the connection, one side that the hinge was kept away from to the locating rack is equipped with the connecting block, threaded hole is seted up to the connecting block, the constant head tank of size is seted up to the middle part equidistance of locating rack, the inner wall bottom of constant head tank is equipped with down the clamp splice, positioning mechanism's inner wall top sliding connection has last clamp splice, the top of going up the clamp splice is rotated and is connected with the threaded rod, the top threaded connection of threaded rod and locating rack, the top of threaded rod extends to the top and the fixedly connected with carousel of locating rack.

As a preferred scheme of the utility model, the lower clamping block and the upper clamping block are both in a V-shaped structure, and an anti-skid rubber mat is arranged on one side of the lower clamping block, which is close to the upper clamping block;

the size of the positioning groove in the positioning frame is gradually reduced.

As a preferable scheme of the utility model, the support switching mechanism comprises connecting holes, the two ends of the top of the bottom plate are symmetrically provided with the connecting holes, the inner walls of the two connecting holes and the far side are rotatably connected with a rotating plate, the bottom of the rotating plate is fixedly provided with two universal wheels, a sliding groove is arranged in the bottom plate and on the side of the connecting holes, a sliding block is connected in the sliding groove in a sliding manner, one side of the sliding block far from the connecting holes is fixedly connected with a spring, one end of the bottom of the connecting hole and close to the sliding groove is fixedly connected with a pin block, and one side of the sliding block far from the spring is fixedly connected with a pin rod.

As a preferred scheme of the utility model, the top of the sliding block extends to the top of the bottom plate and is fixedly connected with a shifting block;

one end, far away from the spring, of the pin rod penetrates into the connecting hole, the pin rod is connected with the inner portion of the bottom plate in a sliding mode, an oblique angle is arranged at the top of the pin rod, an oblique angle matched with the size of the pin rod is arranged at the bottom of the pin block, a pin groove is formed in the middle of the pin block, and the size of the pin rod is matched with the size of the pin groove in the middle of the pin block;

the bottom of the universal wheel is the bottom of the anti-skid supporting leg.

As a preferable aspect of the present invention, the bottom plate has an inverted trapezoidal structure.

The utility model has the following beneficial effects: the anti-skid device is compact in structure and high in practicability, pipelines with different sizes can be conveniently and well positioned and clamped through the positioning mechanism, meanwhile, the rotatable positioning frame can be better matched with the pipelines to be used, the device can be conveniently and well switched and supported between the anti-skid support legs and the universal wheels through the support switching mechanism, and the device can be stably used at a fixed point and can be moved in a time-saving and labor-saving manner.

Drawings

The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model and not to limit the utility model. In the drawings:

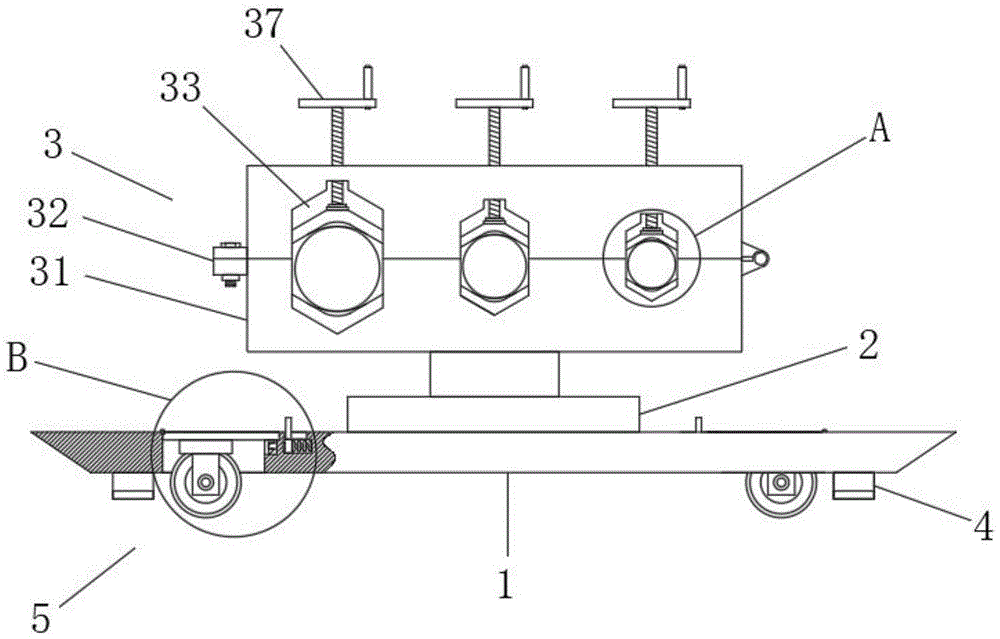

FIG. 1 is a schematic view of the structure of the universal wheel support of the present invention;

FIG. 2 is a schematic structural view of the anti-slip foot support of the present invention;

FIG. 3 is an enlarged view of the utility model at A;

FIG. 4 is an enlarged view of the utility model at B;

fig. 5 is a schematic structural view of the pin block of the present invention.

In the figure: 1. a base plate; 2. a mounting seat; 3. a positioning mechanism; 31. a positioning frame; 32. connecting blocks; 33. positioning a groove; 34. a lower clamping block; 35. an upper clamping block; 36. a threaded rod; 37. a turntable; 4. anti-skid support legs; 5. a support switching mechanism; 51. connecting holes; 52. a rotating plate; 53. a universal wheel; 54. a chute; 55. a slider; 56. a spring; 57. a pin block; 58. a pin rod.

Detailed Description

The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are described herein for the purpose of illustration and explanation and not limitation.

Examples

As shown in fig. 1-5, the utility model provides a pipeline fixing bracket for municipal engineering, which comprises a bottom plate 1, wherein the top of the bottom plate 1 is fixedly connected with a mounting seat 2, the top of the mounting seat 2 is provided with a positioning mechanism 3, the periphery of the bottom plate 1 is fixedly connected with anti-skidding support legs 4, and two ends of the bottom plate 1 are provided with support switching mechanisms 5;

the positioning mechanism 3 comprises a positioning frame 31, the top of the mounting seat 2 is rotatably connected with the positioning frame 31, the positioning frame 31 comprises an upper part and a lower part, the upper part and the lower part of the positioning frame 31 are rotationally connected through a hinge, one side of the positioning frame 31, which is far away from the hinge, is provided with a connecting block 32, the connecting block 32 is provided with a threaded hole, the middle part of the positioning frame 31 is equidistantly provided with positioning grooves 33 with the same size, the bottom of the inner wall of each positioning groove 33 is provided with a lower clamping block 34, the top of the inner wall of the positioning mechanism 3 is slidably connected with an upper clamping block 35, the top of the upper clamping block 35 is rotationally connected with a threaded rod 36, the threaded rod 36 is in threaded connection with the top of the positioning frame 31, the top of the threaded rod 36 extends to the top of the positioning frame 31 and is fixedly connected with a turntable 37, through positioning mechanism 3 be convenient for better to not unidimensional pipeline location clamp tightly, simultaneously through can pivoted locating rack 31 can be better the cooperation pipeline use.

Furthermore, the lower clamping block 34 and the upper clamping block 35 are both in a V-shaped structure, and an anti-slip rubber pad is arranged on one side of the lower clamping block 34 close to the upper clamping block 35, so that the anti-slip rubber pad can better absorb vibration generated by the pipeline and protect the pipeline;

the size of the positioning groove 33 in the positioning frame 31 is gradually reduced, so that the pipelines with different sizes can be conveniently used.

Further, support switching mechanism 5 including connecting hole 51, connecting hole 51 has been seted up to bottom plate 1's top both ends symmetry, the inner wall of two connecting holes 51 and the one side rotation of keeping away from mutually are connected with rotor plate 52, the bottom fixed mounting of rotor plate 52 has two universal wheels 53, bottom plate 1's inside and the one side that is located connecting hole 51 have seted up spout 54, spout 54's inside sliding connection has slider 55, slider 55 keeps away from one side fixedly connected with spring 56 of connecting hole 51, connecting hole 51's bottom and the one end fixedly connected with round pin piece 57 that is close to spout 54, one side fixedly connected with round pin pole 58 that spring 56 was kept away from to slider 55, be convenient for better make equipment switch the support between antiskid stabilizer blade 4 and universal wheel 53 through supporting switching mechanism 5, can also can labour saving and time saving move equipment when fixed point stable use.

Furthermore, the top of the sliding block 55 extends to the top of the bottom plate 1 and is fixedly connected with a shifting block, so that the pin block 57 can be unlocked better;

one end of the pin rod 58, which is far away from the spring 56, penetrates into the connecting hole 51, the pin rod 58 is in sliding connection with the inside of the bottom plate 1, the top of the pin rod 58 is provided with an oblique angle, the bottom of the pin block 57 is provided with an oblique angle matched with the size of the pin rod 58, the middle of the pin block 57 is provided with a pin groove, and the size of the pin rod 58 is matched with the size of the pin groove in the middle of the pin block 57;

the bottom of the universal wheel 53 is the bottom of the anti-skid legs 4, preventing the anti-skid legs 4 from contacting the ground when the universal wheel 53 is supported.

Further, the inverted trapezoid structure of the bottom plate 1 facilitates better stepping on the edge of the bottom plate 1 to tilt the other end of the bottom plate 1, and then the support switching mechanism 5 is adjusted.

Specifically, when the device is used, firstly, the device is stepped on the edge of the bottom plate 1 to tilt one end of the bottom plate 1, then the rotating plate 52 is rotated to be attached to the top of the bottom plate 1, at the moment, the pin rod 58 is clamped in the middle of the pin block 57, then the rotating plate 52 at the other end of the bottom plate 1 is clamped repeatedly, at the moment, the bottom plate 1 is supported by the universal wheel 53, the device is moved to a specified position, then a pipeline is plugged into the positioning groove 33 in the positioning mechanism 3, the corresponding positioning groove 33 is selected according to the size of the pipeline, if the pipeline is connected and cannot pass through the positioning groove 33 conveniently, the bolt in the connecting block 32 is unscrewed, the upper half part of the positioning frame 31 is rotated to be opened, then the pipeline is placed in the positioning groove 33, the positioning frame 31 is restored, after the pipeline enters the positioning groove 33, the rotary table 37 is rotated, the rotary table 37 drives the threaded rod 36 to rotate, the threaded rod 36 gradually pushes the upper clamping block 35 downwards to descend, go up clamp splice 35 and clamp splice 34 cooperation down with the pipeline clamp tightly, locating rack 31 can rotate the regulation direction simultaneously, and clamp splice 34 is equipped with anti-skidding cushion down with one side that clamp splice 35 is close to mutually on clamp splice 35 on clamp splice 34 and the last clamp splice 35, be used for absorbing the vibrations that the pipeline produced, use when the pipeline needs the fixed point, stir slider 55 this moment, slider 55 drives pin 58 and breaks away from round pin 57 middle part, simultaneously because the action of gravity makes bottom plate 1 descend, and support through anti-skidding stabilizer blade 4, universal wheel 53 promotes rotor plate 52 perk this moment, can accomodate the top at bottom plate 1 with rotor plate 52 upset.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that changes may be made in the embodiments and/or equivalents thereof without departing from the spirit and scope of the utility model. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A pipeline fixing bracket for municipal engineering, comprising a bottom plate (1), characterized in that a mounting seat (2) is fixedly connected to the top of the bottom plate (1), and a positioning seat (2) is provided on the top of the mounting seat (2). Mechanism (3), the bottom of the bottom plate (1) is fixedly connected with anti-skid feet (4) all around, and both ends of the bottom plate (1) are provided with support switching mechanisms (5);

The positioning mechanism (3) includes a positioning frame (31), a positioning frame (31) is rotatably connected to the top of the mounting seat (2), the positioning frame (31) includes an upper and lower part, and the positioning frame ( The upper and lower parts of 31) are rotationally connected by a hinge, a connecting block (32) is provided on the side of the positioning frame (31) away from the hinge, and the connecting block (32) is provided with a threaded hole, and the positioning frame (31) Positioning grooves (33) with dimensions are equally spaced in the middle of the positioning groove (33), a lower clamping block (34) is provided at the bottom of the inner wall of the positioning groove (33), and an upper clamping block (34) is slidably connected to the top of the inner wall of the positioning mechanism (3). 35), a threaded rod (36) is rotatably connected to the top of the upper clamping block (35), the threaded rod (36) is threadedly connected to the top of the positioning frame (31), and the top of the threaded rod (36) extends A turntable (37) is fixedly connected to the top of the positioning frame (31).

2. The pipeline fixing bracket for municipal engineering according to claim 1, wherein the lower clamping block (34) and the upper clamping block (35) are both "V"-shaped structures, and the lower clamping block (34) and the upper clamping block (35) A non-slip rubber pad is provided on the side adjacent to the clamping block (34) and the upper clamping block (35);

The size of the positioning groove (33) in the positioning frame (31) is progressively reduced.

3. A pipeline fixing bracket for municipal engineering according to claim 1, characterized in that the support switching mechanism (5) comprises a connecting hole (51), and two ends of the top of the bottom plate (1) are symmetrically opened with A connecting hole (51), the inner walls of the two connecting holes (51) and the side away from each other are rotatably connected with a rotating plate (52), and two universal wheels (52) are fixedly installed on the bottom of the rotating plate (52). 53), a sliding groove (54) is provided inside the bottom plate (1) and on the side of the connecting hole (51), and a sliding block (55) is slidably connected inside the sliding groove (54). A spring (56) is fixedly connected to the side of the block (55) away from the connecting hole (51), and a pin block (57) is fixedly connected to the bottom of the connecting hole (51) and one end close to the chute (54). A pin (58) is fixedly connected to the side of the slider (55) away from the spring (56).

4. A pipeline fixing bracket for municipal engineering according to claim 3, characterized in that the top of the slider (55) extends to the top of the bottom plate (1) and is fixedly connected with a dial;

One end of the pin rod (58) away from the spring (56) penetrates into the interior of the connecting hole (51), the pin rod (58) is slidably connected with the interior of the bottom plate (1), and the top of the pin rod (58) A bevel is provided, the bottom of the pin block (57) is provided with a bevel that matches the size of the pin rod (58), and a pin groove is set in the middle of the pin block (57), and the pin rod (58) The size of the pin matches the size of the pin groove in the middle of the pin block (57);

The bottom of the universal wheel (53) is the bottom of the anti-skid feet (4).

5 . The pipe fixing bracket for municipal engineering according to claim 1 , wherein the bottom plate ( 1 ) has an inverted trapezoidal structure. 6 .
