Abstract
本实用新型涉及扫洗车技术领域，且公开了一种扫洗车用的扫盘结构，包括固定座，所述固定座的右侧设有连接座，所述固定座与所述连接座之间设有连杆，所述连杆的左端通过第一U形件与所述固定座转动连接，所述连杆的右端通过所述第一U形件与所述连接座转动连接，通过调节丝杆的伸长与缩短来控制扫盘的左右角度调节，通过旋转头来控制扫盘的前后角度调节，通过液压马达与扫盘固定连接，实现扫盘的旋转，通过第一伸缩杆调节扫盘的离地高度，通过对扫盘的各个角度位置的调节，且固定座通过第一U形件固定与车架上，通过第二伸缩杆调节固定座的前后角度，实现扫盘对地面垃圾的清理效率更高，减少工作人员的工作强度。
The utility model relates to the technical field of sweeping and washing cars, and discloses a sweeping disc structure for sweeping and washing cars, which comprises a fixing seat, a connecting seat is arranged on the right side of the fixing seat, and a connecting seat is arranged between the fixing seat and the connecting seat. There is a connecting rod, the left end of the connecting rod is rotatably connected with the fixed seat through the first U-shaped piece, and the right end of the connecting rod is rotatably connected with the connecting seat through the first U-shaped piece, and the adjusting screw rod The left and right angle adjustment of the sweeping disc is controlled by elongation and shortening, the front and rear angle adjustment of the sweeping disc is controlled by the rotating head, the rotation of the sweeping disc is realized by the fixed connection of the hydraulic motor and the sweeping disc, and the rotation of the sweeping disc is adjusted by the first telescopic rod. The height from the ground is adjusted by adjusting the various angular positions of the sweeper, and the fixed seat is fixed to the frame by the first U-shaped piece, and the front and rear angles of the fixed seat are adjusted through the second telescopic rod, so that the sweeper can clean the ground garbage. Higher efficiency and reduce the work intensity of staff.
Description
Technical Field
The utility model relates to the technical field of sweeping and washing vehicles, in particular to a sweeping disc structure for sweeping and washing vehicles.
Background
In the investigation of the drivers of the sprinkler, the working efficiency of the drivers is low, the working time is long, the labor intensity is high, the sprinkler is matched with sanitation workers for cleaning the road, the workload of the sanitation workers is increased if the sanitation vehicles are not cleaned completely on a high-speed and quick road, and even the sanitation workers have life risks, so that the drivers of the sprinkler are required to be further optimized aiming at the problems of high labor intensity, low efficiency, long working time and the like of the existing sanitation vehicles and sprinklers, the flat fields such as the road surface and the square are quickly and efficiently cleaned, the time is not required to be consumed repeatedly, and the sprinkler has strong adaptability.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In view of the deficiencies of the prior art, the present invention provides a sweeping tray structure for sweeping and washing a vehicle, which solves the problems mentioned in the background above.
(II) technical scheme
In order to achieve the purpose, the utility model provides the following technical scheme: a sweeping disc structure for sweeping and washing a vehicle comprises a fixed seat, wherein a connecting seat is arranged on the right side of the fixed seat, a connecting rod is arranged between the fixed seat and the connecting seat, the left end of the connecting rod is rotatably connected with the fixed seat through a first U-shaped part, the right end of the connecting rod is rotatably connected with the connecting seat through the first U-shaped part, a first telescopic rod is arranged on the right side of the fixed seat, the left end of the first telescopic rod is rotatably connected with the fixed seat through the first U-shaped part, the right end of the first telescopic rod is rotatably connected with the connecting rod through the first U-shaped part, a first connecting plate is fixedly connected with the right side of the fixed seat, a second connecting plate is fixedly connected with the left side of the connecting seat, an adjusting screw rod is arranged between the fixed seat and the connecting seat, and the left end of the adjusting screw rod is rotatably connected with the first connecting plate through the first U-shaped part, the right end of the adjusting screw rod is rotatably connected with the second connecting plate through the first U-shaped piece, the right side of the connecting seat is fixedly connected with the rotating head, an L-shaped piece is fixed to the right side of the rotating head, a hydraulic motor is fixedly connected to the upper surface of the L-shaped piece, the bottom end of the hydraulic motor penetrates through the L-shaped piece, an output shaft of the hydraulic motor is fixedly connected with a sweeping disc, the right side of the fixing seat is fixedly connected with the second U-shaped piece, a third U-shaped piece is arranged inside the second U-shaped piece in a rotating mode through a shaft rod, and a second telescopic rod is rotatably connected inside the third U-shaped piece.
Preferably, the fixing seat is mounted on the automobile chassis frame through the first U-shaped piece.
Preferably, a brush is fixedly connected below the sweeping disc.
(III) advantageous effects
The utility model provides a sweeping disc structure for sweeping and washing a vehicle, which has the following beneficial effects:
according to the utility model, the left and right angle adjustment of the sweeping disc is controlled by the extension and the shortening of the adjusting screw rod, the front and back angle adjustment of the sweeping disc is controlled by the rotating head, the rotation of the sweeping disc is realized by fixedly connecting the hydraulic motor with the sweeping disc, the ground clearance of the sweeping disc is adjusted by the first telescopic rod, the cleaning efficiency of the sweeping disc on ground garbage is higher by adjusting each angle position of the sweeping disc, the fixed seat is fixed on the frame by the first U-shaped part, and the front and back angle of the fixed seat is adjusted by the second telescopic rod, so that the working intensity of workers is reduced.
Drawings

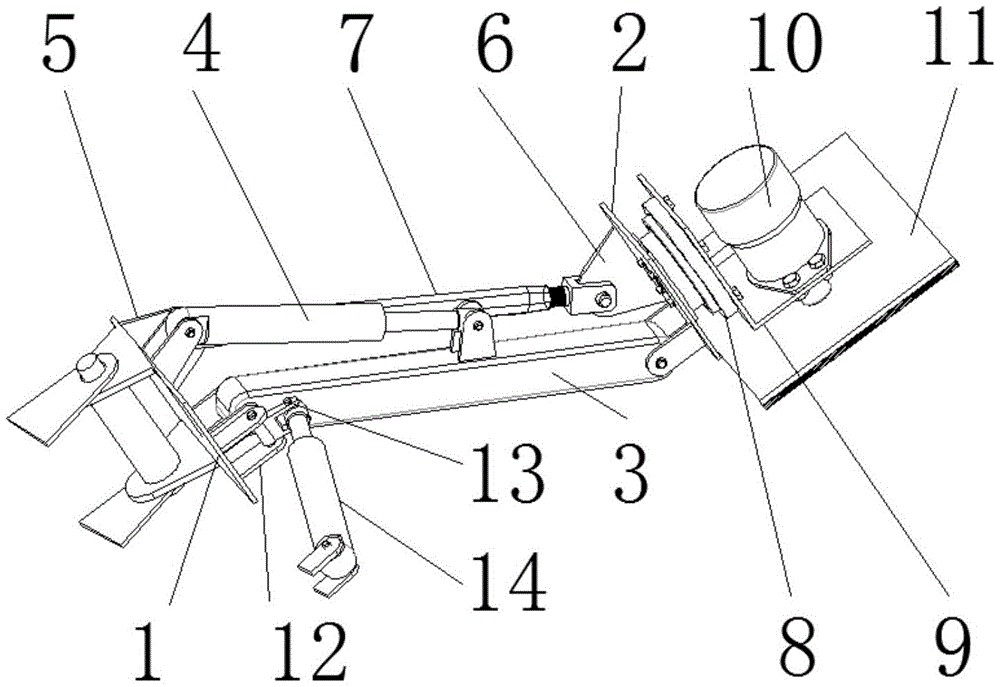

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic bottom view of the present invention with the sweeping tray removed.
In the figure: 1. a fixed seat; 2. a connecting seat; 3. a connecting rod; 4. a first telescopic rod; 5. a first connecting plate; 6. a second connecting plate; 7. adjusting the screw rod; 8. rotating the head; 9. an L-shaped piece; 10. a hydraulic motor; 11. sweeping the disc; 12. a second U-shaped piece; 13. a third U-shaped piece; 14. and a second telescopic rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
As shown in fig. 1-2, the present invention provides a technical solution: a sweeping disc structure for sweeping and washing a vehicle comprises a fixed seat 1, wherein a connecting seat 2 is arranged on the right side of the fixed seat 1, a connecting rod 3 is arranged between the fixed seat 1 and the connecting seat 2, the left end of the connecting rod 3 is rotatably connected with the fixed seat 1 through a first U-shaped part, the right end of the connecting rod 3 is rotatably connected with the connecting seat 2 through a first U-shaped part, a first telescopic rod 4 is arranged on the right side of the fixed seat 1, the left end of the first telescopic rod 4 is rotatably connected with the fixed seat 1 through a first U-shaped part, the right end of the first telescopic rod 4 is rotatably connected with the connecting rod 3 through a first U-shaped part, a first connecting plate 5 is fixedly connected with the right side of the fixed seat 1, a second connecting plate 6 is fixedly connected with the left side of the connecting seat 2, an adjusting screw rod 7 is arranged between the fixed seat 1 and the connecting seat 2, the left end of the adjusting screw rod 7 is rotatably connected with the first connecting plate 5 through a first U-shaped part, the right end of the adjusting screw rod 7 is rotatably connected with the second connecting plate 6 through a first U-shaped part, the right side of the connecting seat 2 is fixedly connected with a rotating head 8, the right side of the rotating head 8 is fixedly provided with an L-shaped part 9, the upper surface of the L-shaped part 9 is fixedly connected with a hydraulic motor 10, the bottom end of the hydraulic motor 10 penetrates through the L-shaped part 9, an output shaft of the hydraulic motor 10 is fixedly connected with a sweeping disc 11, the right side of the fixing seat 1 is fixedly provided with a second U-shaped part 12, the inside of the second U-shaped part 12 is provided with a third U-shaped part 13 through a shaft rod in a rotating manner, the inside of the third U-shaped part 13 is rotatably connected with a second telescopic rod 14, the right side of the fixing seat 1 is fixedly provided with a plurality of first U-shaped parts, the left side of the connecting seat 2 is fixedly provided with a plurality of first U-shaped parts, the fixing seat 1 is connected with the connecting seat 2 through a connecting rod 3, the connecting rod 3 rotates through the first U-shaped part and the fixing seat 1 and the connecting seat 2, the fixing seat 1 is arranged on a vehicle chassis frame, and then the connecting seat 2 is vertically adjusted by adjusting the length of the first telescopic rod 4, the right side of fixing base 1 is fixed with first connecting plate 5, and the left side of connecting seat 2 is fixed with second connecting plate 6, and accommodate the lead screw 7 both ends are fixed with first U-shaped spare, and two first U-shaped spare rotate respectively with first connecting plate 5 and second connecting plate 6 and are connected to drive the angle change about connecting seat 2 when accommodate the lead screw 7 length variation, and sweep around the dish 11 the angle change through the rotation of rotating head 8 and adjust.
Further, the fixing seat 1 is installed on a frame of the automobile chassis through the first U-shaped piece, the fixing seat 1 is installed on the frame of the automobile chassis, and then the automobile moves to drive the fixing seat 1 to move integrally, so that the road surface is cleaned.
Further, a brush is fixedly connected below the sweeping disc 11 and is in contact with the ground to wash the dirty ground.
In conclusion, the working process of the utility model is as follows: during the use, install fixing base 1 on car chassis frame through first U-shaped spare, then along with the removal of car, sweep set 11 and remove, when needs are to sweeping set 11's angle and adjusting, control through accommodate the lead screw 7 extension and shorten and sweep set 11 left and right sides angle modulation, control through rotating head 8 and sweep set 11 front and back angle modulation, through hydraulic motor 10 and sweep set 11 fixed connection, realize sweeping set 11's rotation, through the ground clearance of the flexible regulation sweep set 11 of first telescopic link 4, through the flexible front and back angle modulation of the flexible control fixing base 1 of second telescopic link 14, thereby drive the whole front and back regulation that carries out of equipment, and then guarantee to carry out optimum angle and height on different ground, accomplish cleaning ground.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
