CN215656591U - A copper strip cleaning and drying device - Google Patents
A copper strip cleaning and drying device Download PDFInfo
- Publication number
- CN215656591U CN215656591U CN202122179325.9U CN202122179325U CN215656591U CN 215656591 U CN215656591 U CN 215656591U CN 202122179325 U CN202122179325 U CN 202122179325U CN 215656591 U CN215656591 U CN 215656591U
- Authority
- CN
- China
- Prior art keywords
- station
- roller
- cleaning
- drying device
- ultrasonic cleaning
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Cleaning By Liquid Or Steam (AREA)
Abstract
本实用新型提供的一种铜带清洗干燥装置，包含上料辊筒、拉料工位、喷洒工位、刮污工位、擦拭工位、超声清洗工位、抖水工位、干燥工位、收料辊筒，拉料工位包含拉料辊筒，喷洒工位包含花洒，刮污工位包含刮污轮，擦拭工位包含第一擦拭辊筒，超声清洗工位包含超声波清洗槽、第二擦拭辊筒，抖水工位包含滚轮、支座、旋转支撑座、弹簧，干燥工位包含烘干装置。将料卷装在上料辊筒上，花洒喷水将大颗粒碎屑冲掉，刮污轮将油污、小颗粒尘屑刮掉，第一擦拭辊筒将油污擦去，第二擦拭辊筒将顽固污迹擦去，抖水工位带动铜带抖动将清洗液抖落，烘干装置将铜带烘干，收料辊筒将铜带卷起，提高对铜带的清洗效果。
The utility model provides a copper strip cleaning and drying device, comprising a feeding roller, a material pulling station, a spraying station, a dirt scraping station, a wiping station, an ultrasonic cleaning station, a water shaking station, and a drying station , Receiving roller, the pulling station includes the pulling roller, the spraying station includes the shower, the scraping station includes the scraping wheel, the wiping station includes the first wiping roller, and the ultrasonic cleaning station includes the ultrasonic cleaning tank , The second wiping roller, the water shaking station includes a roller, a support, a rotating support seat, and a spring, and the drying station includes a drying device. The material roll is mounted on the feeding roller, the large particles are washed away by the shower water, the oil and small particles are scraped off by the scraping wheel, the first wiping roller will wipe off the oil, and the second wiping roller The drum wipes off the stubborn stains, the water shaking station drives the copper belt to shake to shake off the cleaning liquid, the drying device dries the copper belt, and the receiving roller rolls up the copper belt to improve the cleaning effect of the copper belt.
Description
Technical Field
The utility model relates to the field of copper strip processing, in particular to a copper strip cleaning and drying device.
Background
The copper strip is an important material for manufacturing the battery, the production process of the copper strip comprises operations of cutting, edging, chamfering and the like, dirt such as oil stain, dust, copper scraps and the like can adhere to the copper strip in the processing process, and the copper strip needs to be cleaned before being packaged. The existing copper strip cleaning device has the problem of poor cleaning effect, the quality is difficult to guarantee, the cleaning is often required again, and the production efficiency is reduced.
Disclosure of Invention
The utility model aims to solve the problem of providing a copper strip cleaning and drying device, and improving the cleaning effect.
The utility model provides a copper strip cleaning and drying device which solves the technical problems and comprises a feeding roller and a receiving roller, wherein a material pulling station, a spraying station, a dirt scraping station, a wiping station, an ultrasonic cleaning station, a water shaking station and a drying station are sequentially arranged between the feeding roller and the receiving roller, the feeding roller is used for installing a copper strip material roll to be cleaned, the material pulling station comprises two reversely rotating material pulling rollers, the material pulling rollers are used for pulling out and forward conveying a copper strip on the copper strip material roll, the spraying station comprises two opposite showers, the showers spray water on the surface of the copper strip in conveying, the dirt scraping station comprises two reversely rotating dirt scraping wheels, the dirt scraping wheels comprise dirt scraping rollers and a plurality of soft rubber scraping plates uniformly distributed on the outer wall of the dirt scraping rollers, the wiping station comprises two reversely rotating first wiping rollers, and the outer wall of the first wiping roller is coated with a cloth layer, ultrasonic cleaning station contains ultrasonic cleaning tank, set up two antiport's in ultrasonic cleaning tank second and clean the roller, the roller outer wall cover is cleaned to the second is equipped with the wool wheel, tremble the water station and contain the gyro wheel, a support, the rotating support seat, a spring, support fixed connection is on ultrasonic cleaning tank lateral wall, the gyro wheel rotates and sets up on the rotating support seat, spring both ends difference fixed connection is in rotating support seat bottom and support top, dry station contains drying device, drying device contains entrance point and exit end, the material receiving roller is used for rolling up the copper strips that washs.
Preferably, the cloth layer is gauze.
Preferably, the soft rubber scraper is a silica gel plate.
Preferably, an electric heating rod is arranged in the ultrasonic cleaning tank and used for heating the cleaning liquid in the ultrasonic cleaning tank.
Preferably, an electric filter is arranged in the ultrasonic cleaning tank.
The utility model has the beneficial effects that: the utility model provides a copper strip cleaning and drying device which is provided with a unique structure, wherein a copper strip to be cleaned is wound on a feeding roller, one end of the copper strip is fixed on a material collecting roller after sequentially passing through a material pulling station, a spraying station, a dirt scraping station, a wiping station, an ultrasonic cleaning station, a water shaking station and a drying station, the copper strip is transmitted under the double traction of the material collecting roller and the material pulling roller, a sprinkler sprays water on the surface of the copper strip to wash away large-particle debris on the surface of the copper strip, the dirt scraping roller drives a flexible rubber scraper to rotate to scrape off oil dirt and small-particle dust on the surface of the copper strip, a cloth layer wipes off the surface of the copper strip to wipe off the oil dirt when the first wiping roller rotates, a second wiping roller drives a wool wheel to wipe off the surface of the copper strip when the copper strip is cleaned in an ultrasonic cleaning tank, the roller shakes up and down to cause the stretching deformation of a spring when the top wheel surface of the copper strip is transmitted, therefore, the shaking of the copper strip is increased to shake off the cleaning liquid on the surface, and the cleaned copper strip is rolled up by the material collecting roller after the copper strip is dried by the drying device. The copper belt cleaning device is simple in structure, can be used for comprehensively cleaning and drying the copper belt, improves the cleaning effect of the copper belt, and does not need repeated cleaning.
Drawings

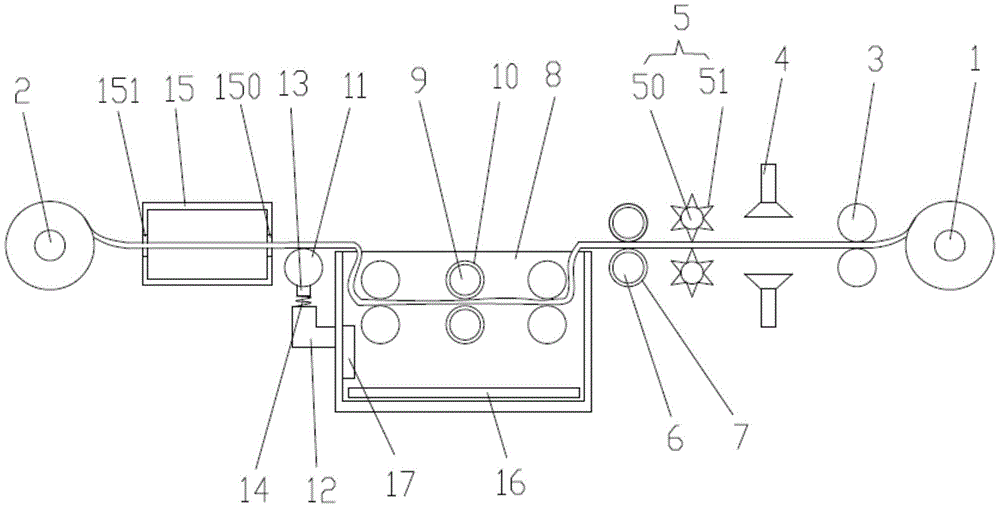

Fig. 1 illustrates a schematic cross-sectional structure of the present invention.
The reference numbers illustrate: the device comprises a feeding roller 1, a receiving roller 2, a pulling roller 3, a shower head 4, a dirt scraping wheel 5, a dirt scraping roller 50, a soft rubber scraper 51, a first wiping roller 6, a cloth layer 7, an ultrasonic cleaning tank 8, a second wiping roller 9, a wool wheel 10, a roller 11, a support 12, a rotary support base 13, a spring 14, a drying device 15, an inlet end 150, an outlet end 151, an electric heating rod 16 and an electric filter 17.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present disclosure more apparent, the technical solutions of the embodiments of the present disclosure will be described clearly and completely with reference to the drawings of the embodiments of the present disclosure. It is to be understood that the described embodiments are only a few embodiments of the present disclosure, and not all embodiments.
All other embodiments of the person skilled in the art, which are obtained without inventive work on the basis of the described embodiments of the present disclosure, are within the scope of protection of the present disclosure.
Refer to fig. 1.
The utility model provides a copper strip cleaning and drying device, which comprises a feeding roller 1 and a receiving roller 2, wherein a material pulling station, a spraying station, a dirt scraping station, a wiping station, an ultrasonic cleaning station, a water shaking station and a drying station are sequentially arranged between the feeding roller 1 and the receiving roller 2, the feeding roller 1 is used for installing a copper strip material roll to be cleaned, the material pulling station comprises two reversely rotating material pulling rollers 3, the material pulling rollers 3 are used for pulling out a copper strip on the copper strip material roll and transmitting the copper strip forward, the spraying station comprises two oppositely arranged showers 4, the showers 4 spray water on the surface of the copper strip in transmission, the dirt scraping station comprises two reversely rotating dirt scraping wheels 5, the dirt scraping wheels 5 comprise a dirt scraping roller 50 and a plurality of soft rubber scraping plates 51 uniformly distributed on the outer wall of the dirt scraping roller 50, the wiping station comprises two reversely rotating first wiping rollers 6, the outer wall of the first wiping roller 6 is coated with a cloth layer 7, ultrasonic cleaning station contains ultrasonic cleaning tank 8, set up two antiport's in ultrasonic cleaning tank 8 second and clean roller 9, roller 9 outer wall cover is cleaned to the second is equipped with wool wheel 10, tremble the water station and contain gyro wheel 11, support 12, rotating support seat 13, spring 14, support 12 fixed connection is on 8 lateral walls of ultrasonic cleaning tank, gyro wheel 11 rotates and sets up on rotating support seat 13, spring 14 both ends difference fixed connection is in rotating support seat 13 bottom and support 12 top, drying station contains drying device 15, drying device 15 contains entrance point 150 and exit end 151, receipts material roller 2 is used for rolling up the copper strips that has washd.
The specific use principle is as follows: the copper strip to be cleaned is rolled on a feeding roller 1, one end of the copper strip is fixed on a receiving roller 2 after sequentially passing through a material pulling station, a spraying station, a dirt scraping station, a wiping station, an ultrasonic cleaning station, a water shaking station and a drying station, the copper strip is conveyed under the double traction of the receiving roller 2 and the material pulling roller 3, a shower head 4 sprays water on the surface of the copper strip to wash away large-particle debris on the surface of the copper strip, a dirt scraping roller 50 drives a soft rubber scraper 51 to rotate to scrape off oil dirt and small-particle dust on the surface of the copper strip, a cloth layer 7 wipes the surface of the copper strip to wipe off the oil dirt on the surface of the copper strip when a first wiping roller 6 rotates, a second wiping roller 9 drives a wool wheel 10 to wipe off the surface of the copper strip when the copper strip is cleaned in an ultrasonic cleaning tank 8, the copper strip is conveyed on the wheel surface at the top of the roller 11 to cause the roller 11 to shake up and down, the roller 11 that shakes from top to bottom leads to spring 14 elastic expansion to increase the shake range of copper strips and shake off with the washing liquid droplet on copper strips surface, the copper strips gets into drying device 15 and exports from exit end 151 from entrance point 150, and the washing liquid on copper strips surface is dried the back by drying device 15, is rolled up the copper strips that will wash by receipts material roller 2 again, accomplishes the washing and the stoving of copper strips. The copper belt cleaning device is simple in structure, can be used for comprehensively cleaning and drying the copper belt, improves the cleaning effect of the copper belt, and does not need repeated cleaning.
Based on the above embodiment, the cloth layer 7 is gauze. The gauze has higher roughness and wear resistance, and can effectively wipe off the oil stains on the surface of the copper strip.
Based on the above embodiment, the soft rubber scraper 51 is a silicone plate. The silica gel plate has good elasticity, and the flexible glue scraper 51 can be in close contact with the copper strip when scraping the copper strip, so that the decontamination effect is improved, and the copper strip cannot be abraded.
Based on the above embodiment, the electric heating rod 16 is disposed in the ultrasonic cleaning tank 8, and the electric heating rod 16 is used for heating the cleaning liquid in the ultrasonic cleaning tank 8. The cleaning liquid in the ultrasonic cleaning tank 8 is heated by the electric heating rod 16, so that the activity of the oil stain on the surface of the copper strip is increased, and the oil stain cleaning effect is improved.
Based on the above embodiment, the ultrasonic cleaning tank 8 is provided with the electric filter 17 therein. Carry out lasting filtration through electric filter 17 to the washing liquid in ultrasonic cleaning tank 8, guarantee the cleanliness factor of washing liquid, improve the cleaning performance.
The above embodiments are merely illustrative of the preferred embodiments of the present invention, and not restrictive, and various changes and modifications to the technical solutions of the present invention may be made by those skilled in the art without departing from the spirit of the present invention, and the technical solutions of the present invention are intended to fall within the scope of the present invention defined by the appended claims.
Claims (5)
1. The utility model provides a copper strips washs drying device, contains material loading roller (1), receipts material roller (2), its characterized in that, material loading roller (1) with it has set gradually between material receiving roller (2) draws the material station, sprays the station, scrapes dirty station, cleans the station, ultrasonic cleaning station, trembles water station, dry station, material loading roller (1) is used for the installation to treat abluent copper strips material book, it contains two counter-rotating material pulling roller (3) to draw the material station, material pulling roller (3) are used for rolling up the copper strips of copper strips material and pull out the transmission forward, it contains gondola water faucet (4) of two relative settings to spray the station, gondola water faucet (4) are to the copper strips surface water spray in the transmission, it contains two counter-rotating dirty wheels (5) to scrape dirty roller (50), a plurality of evenly distributed are in scrape flexible glue scraper blade (51) on dirty roller (50) outer wall, the cleaning station comprises two reverse rotation first cleaning rollers (6), the outer wall of the first cleaning roller (6) is coated with a cloth layer (7), the ultrasonic cleaning station comprises an ultrasonic cleaning tank (8) and two reverse rotation second cleaning rollers (9) in the ultrasonic cleaning tank (8), the outer wall of the second cleaning roller (9) is sleeved with a wool wheel (10), the water shaking station comprises a roller (11), a support (12), a rotary supporting seat (13) and a spring (14), the support (12) is fixedly connected to one side wall of the ultrasonic cleaning tank (8), the roller (11) is rotatably arranged on the rotary supporting seat (13), two ends of the spring (14) are respectively and fixedly connected to the bottom of the rotary supporting seat (13) and the top of the support (12), the drying station comprises a drying device (15), the drying device (15) comprises an inlet end (150) and an outlet end (151), and the material receiving roller (2) is used for rolling up the cleaned copper strips.
2. The copper strip cleaning and drying device according to claim 1, wherein said layer of cloth (7) is gauze.
3. The copper strip cleaning and drying device according to claim 2, wherein the soft rubber scraper (51) is a silica gel plate.
4. The copper strip cleaning and drying device according to claim 3, characterized in that an electric heating bar (16) is arranged in the ultrasonic cleaning tank (8), and the electric heating bar (16) is used for heating the cleaning liquid in the ultrasonic cleaning tank (8).
5. The copper strip cleaning and drying device according to claim 4, wherein an electric filter (17) is arranged in the ultrasonic cleaning tank (8).
