Abstract
本实用新型公开了一种放液量可控的腹膜透析液保温装置，包括支架、保温箱和腹透液袋，支架上设有保温箱，保温箱内悬设有腹透液袋，安装底板的背面设有安装背板，安装背板的前面左右两侧分别设有卡槽，安装背板的左侧设有控制器和蜂鸣器、数据采集器、电池和操作屏，保温箱的箱体内底面设有温度传感器，箱体的内顶面设有重量传感器，重量传感器连接有L形挂钩，控制器分别与蜂鸣器、数据采集器、温度传感器和重量传感器连接，箱体的背面设有卡条，箱体的内侧设有电热丝。本装置利用控制器配合温度传感器和重量传感器调整透析液的温度和给液量，具有使用方便，操作简便，减少医护人员的工作量等优点。
The utility model discloses a peritoneal dialysate heat preservation device with a controllable liquid discharge volume, comprising a support, a heat preservation box and a peritoneal dialysis fluid bag. There is an installation backboard on the back, and the left and right sides of the front of the installation backboard are respectively provided with card slots. The bottom surface of the body is provided with a temperature sensor, the inner top surface of the box is provided with a weight sensor, the weight sensor is connected with an L-shaped hook, the controller is respectively connected with the buzzer, data collector, temperature sensor and weight sensor, and the back of the box is provided with There are clips, and the inner side of the box is provided with electric heating wires. The device utilizes the controller to cooperate with the temperature sensor and the weight sensor to adjust the temperature of the dialysate and the liquid supply, and has the advantages of convenient use, simple operation, and reduced workload of medical staff.
Description
Technical Field
The utility model relates to the technical field of dialysis auxiliary tools, in particular to a peritoneal dialysis solution heat preservation device with controllable liquid discharge amount.
Background
The end-stage renal patients will choose to perform peritoneal dialysis instead of treatment, and during peritoneal dialysis, 3-4 bags of peritoneal dialysis solution are required daily to expel toxins, electrolytes and the like in the patients. The peritoneal dialysis solution needs to be kept at a constant temperature of 37 ℃ and is infused into the abdominal cavity of a patient, and if the temperature is too low, the peritoneal dialysis solution can stimulate organs to cause adverse reactions such as low-temperature ischemia. In addition, the conventional peritoneal dialysis solution bag body is filled with 2000mL of peritoneal dialysis solution, and sometimes liquid is fed in batches according to the disease condition of a patient, for example, 500mL of peritoneal dialysis solution is fed once, but the bag body is not in a fixed shape, so that the liquid cannot be fed intuitively and accurately through visual observation, and the flow rate of the liquid cannot be controlled.
SUMMERY OF THE UTILITY MODEL
In view of the prior art, the utility model provides a peritoneal dialysis solution heat preservation device with controllable liquid discharge amount, which has the functions of constant-temperature liquid replacement and controllable dialysis solution consumption.
The utility model provides a peritoneal dialysis solution heat preservation device with controllable liquid discharge amount, which comprises a bracket, wherein a heat preservation box is arranged on the bracket, an peritoneal dialysis solution bag is suspended in the heat preservation box, the bracket comprises a mounting bottom plate and a mounting back plate, a central through hole is arranged in the middle of the bottom surface of the mounting bottom plate, clamping grooves are arranged on the side surfaces of the mounting back plate, a controller, a buzzer, a data collector, a battery and an operation screen are arranged on one side of the mounting back plate, the heat preservation box comprises a box body, a through hole I is arranged in the middle of the bottom surface of the box body corresponding to the central through hole, a temperature sensor is arranged on the inner bottom surface of the box body, a weight sensor is arranged on the inner top surface of the box body, the weight sensor is connected with an L-shaped hook, the controller is respectively connected with the buzzer, the data collector, the temperature sensor and the weight sensor, clamping strips matched and fixed with the clamping grooves are arranged on the side surfaces of the box body, the inner side of the box body is provided with an electric heating wire.
Furthermore, the top end of the peritoneal dialysis solution bag is provided with a first hook ring, and the bottom end of the peritoneal dialysis solution bag is provided with a flow rate regulator.
Furthermore, the top end of the installation backboard is provided with a telescopic rod, and the top end of the telescopic rod is provided with a second hook ring.
Furthermore, the top inlet pipe end and the bottom outlet pipe end of the flow rate regulator are respectively provided with a tightening ring.
Furthermore, the front of the box body is provided with a split sliding door.
Furthermore, the periphery of the outer surface of the box body is coated with a heat insulation layer.
The utility model has the beneficial effects that:
1. a temperature sensor and an electric heating wire are arranged in the heat preservation box, the temperature is set at 37 ℃ through a controller, and the peritoneal dialysis solution is in a constant temperature state;
2. set up weighing transducer hanging department, predetermine peritoneal dialysis liquid weight value through the controller, reach the accurate controllable purpose of tapping, and when tapping volume reached the weight value, but buzzer warning suggestion was closed, improved the security.
3. The installation backplate and the box carry out the buckle through draw-in groove, card strip, and the box movable mounting of being convenient for hangs on the installation backplate, has reduced the connection distance between the spare part, prevents that the connecting wire between the instrument from causing the inconvenience of infusion, and when giving liquid, can observe at any time and give the liquid condition and in time operate the controller, and the device has convenient to use, and is easy and simple to handle, reduces medical personnel's work load.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings needed to be used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only preferred embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without inventive exercise.

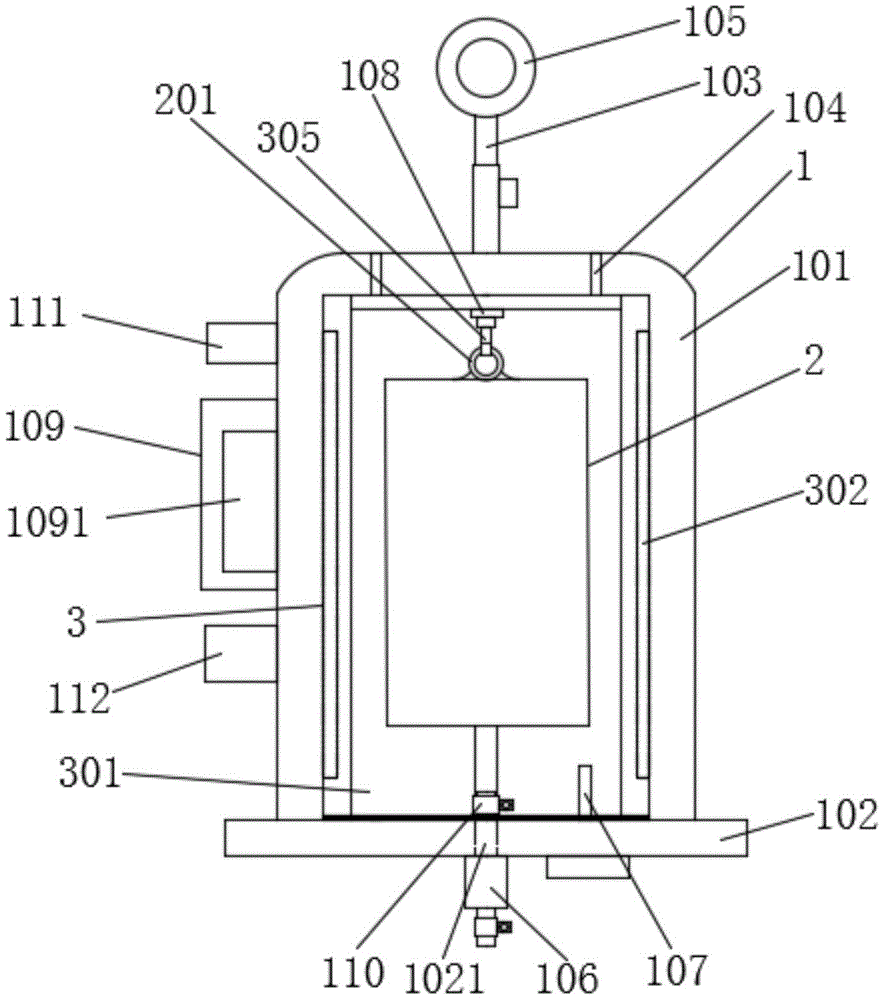

FIG. 1 is a schematic structural view of a peritoneal dialysis solution heat preservation device with controllable liquid discharge amount according to the present invention;
FIG. 2 is a schematic structural diagram of a frame of the peritoneal dialysis solution heat-preservation device with controllable liquid discharge quantity of the utility model;
FIG. 3 is a left side view of the incubator of the peritoneal dialysis solution heat-insulating apparatus of the present invention with controllable liquid discharge amount;
FIG. 4 is a front view of the incubator of the peritoneal dialysis solution incubation device of the present invention with controllable discharge amount.
In the figure, 1 bracket, 101 mounting backboard, 102 mounting baseboard, 1021 central through hole, 103 telescopic rod, 104 clamping groove, 105 second hook ring, 106 flow rate regulator, 107 temperature sensor, 108 weight sensor, 109 controller, 1091 operation screen, 110 hoop, 111 buzzer, 112 data collector, 2 peritoneal dialysis liquid bag, 201 first hook ring, 3 heat preservation box, 301 box, 302 heating wire, 303 split sliding door, 304 clamping strip, 305L-shaped hook.
Detailed Description
In order to better understand the technical content of the utility model, specific embodiments are provided below, and the utility model is further described with reference to the accompanying drawings.
Referring to fig. 1 to 4, a peritoneal dialysis solution heat preservation device with controllable liquid discharge amount comprises a bracket 1, a heat preservation box 3 is arranged on the bracket 1, an peritoneal dialysis solution bag 2 can be suspended in the heat preservation box 3, the bracket 1 comprises a mounting bottom plate 102 and a mounting back plate 101, a central through hole 1021 is arranged in the middle of the bottom surface of the mounting bottom plate 102, the central through hole 1021 is convenient for passing through a liquid conveying pipe and a flow rate regulator 106, the mounting back plate 101 is arranged on the back surface of the mounting bottom plate 102, clamping grooves 104 are arranged on both sides of the front side surface of the mounting back plate 101, a controller 109, a buzzer 111, a data collector 112, a battery (not shown) and an operation screen 1091 are arranged on the left side of the mounting back plate 101, the controller 109 is arranged on the left side of the mounting back plate 101 and suspended on a box body 301, the connection distance between parts is reduced, the inconvenience of liquid conveying caused by a connecting line between instruments and the inconvenience of non-operating personnel are prevented, and the random operation of the devices is convenient for liquid supply, the liquid feeding condition is observed at any time, and the controller 109 is operated in time, so that the safety is improved; insulation can 3 includes box 301, corresponds in the middle of the bottom surface of box 301 center through-hole department is equipped with through-hole one, and the transfer line of the peritoneal dialysis solution bag 2 of being convenient for passes for the liquid, and the interior bottom surface of box 301 is equipped with temperature sensor 107, and the interior top surface of box 301 is equipped with weight sensor 108, weight sensor 108 is connected with L shape couple 305 for hang peritoneal dialysis solution bag 2, controller 109 respectively with bee calling organ 111, data collection ware 112, temperature sensor 107 and weight sensor 108 be connected, both sides are equipped with the card strip 304 fixed with draw-in groove 104 cooperation about the back of box 301, and both sides are equipped with heating wire 302 about the box 301.
Specifically, the top end of the peritoneal dialysis solution bag 2 is provided with a first hook ring 201 which is hung to an L-shaped hook 305, and the bottom end of the peritoneal dialysis solution bag 2 is provided with a flow rate regulator which is used for regulating the flow and the speed of the dialysis solution.
Specifically, the top end of the installation back plate 101 is provided with a telescopic rod 103, and the top end of the telescopic rod 103 is provided with a second hook ring 105, so that the hanging height of the installation back plate can be conveniently adjusted.
Specifically, the top inlet tube end and the bottom outlet tube end of the flow rate regulator 106 are respectively provided with a tightening band 110 for fastening.
Specifically, the front of the box body 301 is provided with a split sliding door 303, which is convenient for placing the peritoneal dialysis solution bag 2 and preserving heat of the box body 301.
Specifically, the periphery of the outer surface of the box body 301 is coated with a heat insulation layer (not shown), so that the peritoneal dialysis solution bag 2 is changed in liquid under a constant temperature condition.
The controllable peritoneal dialysis solution heat preservation device of the volume of putting of this embodiment's theory of operation: aligning a clamping strip 304 on the back of the box body 301 with a clamping groove 104 on the mounting back plate 101, aligning a through hole I on the bottom surface of the box body 301 with a central through hole on the mounting bottom plate 102, movably mounting the box body 301 on the mounting bottom plate 102, opening a split sliding door 306 in front of the box body 301, hooking a first hook ring 203 at the top of the taken peritoneal dialysis solution bag 2 on an L-shaped hook 305 at the top in the box body 301, setting a weight threshold value by a weight sensor 108, collecting the weight of the peritoneal dialysis solution bag 2 by a data collector, and when the weight sensor 108 reaches the set weight threshold value, controlling a buzzer 111 to give an alarm to prompt medical staff by the controller 109 so as to improve the safety of solution feeding; the temperature sensor 107 is provided with a temperature threshold value, the data acquisition unit 112 acquires the temperature in the box body 301, when the detected temperature reaches the threshold value of 36 ℃, the controller 109 controls the heating wire 302 to perform power-on heating, and when the temperature of the highest threshold value of 38 ℃ is detected, the controller 109 controls the heating wire 302 to stop heating, so as to ensure that the temperature of the peritoneal dialysis solution reaches the constant-temperature transfusion.
Then, the transfusion tube at the bottom of the peritoneal dialysis solution bag 2 passes through the central through hole and is fixed by using a tightening hoop 110; the split door 306 is closed, and the second hook loop 105 of the bracket 1 is hooked on the infusion support, and the infusion tube is connected with the flow rate regulator 106.
Finally, an input value (e.g., 500g) of the peritoneal dialysis solution at a temperature of 37 ℃ is set on the operation panel 1091, so that the condition of the solution is observed at any time during the solution administration and the controller 109 is operated. The controller 109 controls the heating wire 302 to work by collecting the temperature parameter transmitted by the temperature sensor 107, and controls the temperature in the box body 301, so that the temperature of the peritoneal dialysis solution bag 2 is ensured, and the heat preservation effect is good. When the preset peritoneal dialysis solution output quantity is reached, the controller 109 controls the buzzer 111 to give an alarm, so that the medical personnel can conveniently close the operation.
In the embodiment, the controller is of a WQGPRS-323 type, the buzzer is of an LTE-1101J type, the temperature sensor is of a CWDZ11 type, and the weight sensor is of a ZLBS-I type.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, and any modifications, equivalents, improvements and the like that fall within the spirit and principle of the present invention are intended to be included therein.
Claims (6)
1. The peritoneal dialysis solution heat preservation device with controllable liquid discharge amount is characterized by comprising a support, wherein a heat preservation box is arranged on the support, an peritoneal dialysis solution bag is suspended in the heat preservation box, the support comprises a mounting bottom plate and a mounting back plate, a central through hole is formed in the middle of the bottom surface of the mounting bottom plate, clamping grooves are formed in the side surfaces of the mounting back plate, a controller, a buzzer, a data collector, a battery and an operation screen are arranged on one side of the mounting back plate, the heat preservation box comprises a box body, a first through hole is formed in the middle of the bottom surface of the box body and corresponds to the central through hole, a temperature sensor is arranged on the inner bottom surface of the box body, a weight sensor is arranged on the inner top surface of the box body and is connected with an L-shaped hook, the controller is respectively connected with the buzzer, the data collector, the temperature sensor and the weight sensor, clamping strips matched and fixed with the clamping grooves are arranged on the side surfaces of the box body, the inner side of the box body is provided with an electric heating wire.
2. The peritoneal dialysis solution incubation device of claim 1, wherein the peritoneal dialysis solution bag has a first hook at a top end and a flow rate regulator at a bottom end.
3. The peritoneal dialysis solution heat preservation device with controllable liquid discharge amount of claim 1, characterized in that the top end of the installation back plate is provided with a telescopic rod, and the top end of the telescopic rod is provided with a second hook ring.
4. The peritoneal dialysis solution incubation device of claim 2 wherein the flow rate regulator has a top inlet tube end and a bottom outlet tube end that are each provided with a clamp.
5. The peritoneal dialysis solution incubation device of claim 1 wherein the front of the housing is provided with a split door.
6. The peritoneal dialysis solution heat preservation device of claim 1, wherein the outer surface of the box is coated with a heat preservation layer.
