CN215618398U

CN215618398U - A cutting device for processing EPS decorative lines

Info

Publication number: CN215618398U
Application number: CN202120494247.9U
Authority: CN
Inventors: 钟志平
Original assignee: Hunan Zhongzhi Building Materials Co ltd
Current assignee: Hunan Zhongzhi Building Materials Co ltd
Priority date: 2021-03-09
Filing date: 2021-03-09
Publication date: 2022-01-25
Anticipated expiration: 2031-03-09

Abstract

The utility model relates to the technical field of EPS line processing, in particular to a cutting device for EPS decorative line processing. A fixing mechanism, the outer edge of the cutting table is symmetrically provided with a first arc-shaped installation groove and a second arc-shaped installation groove, and the inside of the first arc-shaped installation groove and the second arc-shaped installation groove are respectively provided with a first arc-shaped installation groove. The installation column and the second installation column, the top of the first installation column and the second installation column are provided with a mounting beam, the bottom of the installation beam is provided with a cutting mechanism, and the inside of the cutting table is also provided with a device for driving the A drive mechanism for the synchronous movement of the first installation column and the second installation column, and a controller is also provided on the worktable. The EPS decorative line processing cutting device is convenient for fixing the EPS line and adjusting the cutting angle, so as to improve the cutting efficiency.

Description

Cutting device is used in processing of EPS moulding

Technical Field

The utility model relates to the technical field of EPS (expandable polystyrene) line processing, in particular to a cutting device for EPS decorative line processing.

Background

The EPS cutting method can be divided into two types, namely blade cutting and heating wire cutting, the blade cutting machine can cut EPS boards into slices, the thickness of the slices can be below 10mm, the thickness is uniform, and the slices can be rolled up. The heating wire cutting machine is necessary equipment for processing EPS, has wide application range and is very flexible to use.

After the EPS lines are subjected to slurry scraping and curing, the two ends of the EPS lines are required to be installed at certain angles for cutting (for example, the two ends of the EPS lines are required to be cut at 45 degrees when the EPS lines are spliced at 45 degrees). The EPS moulding among the prior art uses processing cutting device generally is through setting up cutting tool or heating wire realization to the cutting of EPS moulding at the top of workstation, adjust cutting angle as required, generally adjust the angle of placing of EPS moulding through manual, but this kind of cutting device is difficult to judge cutting angle in cutting process, still need appurtenance to fix a position, and simultaneously, probably because of the EPS moulding not firmly fixed or manually operation's error and lead to taking place the skew in cutting process, cutting accuracy and cutting efficiency have been reduced.

SUMMERY OF THE UTILITY MODEL

In order to solve the technical problems, an object of the present invention is to provide a cutting device for processing an EPS decorative molding, which facilitates fixing the EPS molding and adjusting a cutting angle to improve cutting efficiency.

In order to achieve the technical effect, the utility model adopts the following technical scheme:

a cutting device for processing EPS decorative lines comprises a workbench, wherein the top of the workbench is provided with a cutting table, the cutting table is circular and is fixedly connected with the workbench, a fixing mechanism for clamping EPS lines is arranged on the cutting table, the outer edge of the cutting table is symmetrically provided with a first arc-shaped mounting groove and a second arc-shaped mounting groove, the first arc-shaped mounting groove and the second arc-shaped mounting groove are internally provided with a first mounting column and a second mounting column respectively, the tops of the first mounting column and the second mounting column are provided with mounting beams, the bottoms of the mounting beams are provided with cutting mechanisms, the interior of the cutting table is also provided with a driving mechanism for driving the first mounting column and the second mounting column to synchronously move, the worktable is also provided with a controller, and the fixing mechanism, the cutting mechanism and the driving mechanism are electrically connected with the controller.

Furthermore, the fixing mechanisms are oppositely arranged on fixing seats on two sides of the cutting table, positioning grooves are formed in the tops of the fixing seats, two-way screw shafts are horizontally arranged below the positioning grooves in the fixing seats, a first sliding block and a second sliding block are respectively arranged at two ends of each two-way screw shaft, a first clamping plate and a second clamping plate are respectively arranged on the first sliding block and the second sliding block, and a first driving motor used for driving the two-way screw shafts to rotate is further arranged on one side of each fixing seat.

Further, the cutting mechanism comprises an air cylinder arranged in the middle of the mounting cross beam and telescopic guide columns arranged on two sides of the air cylinder, mounting plates are fixedly mounted at the bottoms of the air cylinder and the telescopic guide columns, two sides of each mounting plate are respectively connected with the first mounting column and the second mounting column in a sliding mode, and a cutting tool is fixedly mounted below each mounting plate.

Further, an installation shaft is arranged between the cutting table and the workbench, and two ends of the installation shaft are respectively fixedly connected with the cutting table and the workbench.

Further, the bottom of first erection column and second erection column rotates respectively and is connected with first gear and second gear, the inside of cutting bed be provided with the installation cavity of first arc mounting groove and second arc mounting groove intercommunication, actuating mechanism is including setting up the outer ring gear at the dress intracavity side, the inboard of outer ring gear still is provided with the internal gear, first gear and second gear set up respectively the both sides of internal gear, just first gear, second gear all with internal gear, outer ring gear meshing.

Further, actuating mechanism still include through the connecting axle with inner gear fixed connection's first helical gear, first helical gear with the inner gear is coaxial to be set up, the confession has all been seted up at the middle part of first helical gear, inner gear and connecting axle the mounting groove that the installation axle passed, the inside of cutting bed still is provided with second driving motor, second driving motor's output is provided with the second helical gear, the second helical gear and the meshing of first helical gear.

Further, the cutting table is provided with the bounding wall in the outside of first arc mounting groove and second arc mounting groove, just still be provided with the direction inclined plane between first arc mounting groove and the second arc mounting groove, the workstation corresponds on this cutting table and is provided with the collecting vat.

Compared with the prior art, the utility model has the beneficial effects that: the working table is provided with the collecting tank, and the cutting table is arranged in the collecting tank, so that dust generated by cutting can be collected conveniently; simultaneously, be provided with respectively along the first erection column of the axis pivoted of the cutting bed of carrying and second erection column through the both sides at the cutting bed, the rotation through first erection column and second erection column drives the installation crossbeam at this first erection column and second erection column top and moves, rotate with installation crossbeam fixed connection's cutting tool in order to drive, when the EPS lines passes through fixed establishment to be fixed on the cutting bed, the angle of this cutting tool of accessible adjustment is in order to realize the cutting to the different angles of EPS lines, can improve cutting precision and cutting efficiency effectively.

Drawings

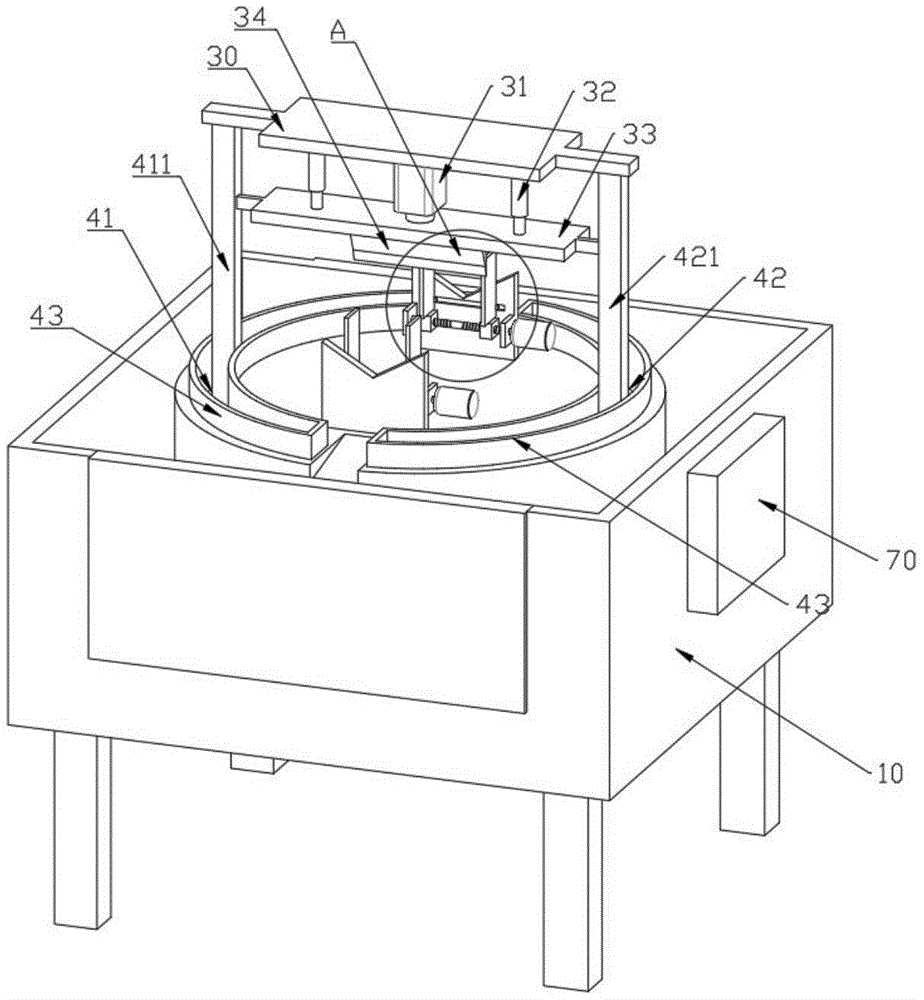

Fig. 1 is a schematic overall structure diagram of a cutting device for processing an EPS decorative molding according to an embodiment of the present invention;

fig. 2 is a schematic view of a partially enlarged structure at a position a of a cutting device for processing an EPS decorative line according to an embodiment of the present invention;

fig. 3 is a top view of a cutting device for processing an EPS decorative molding according to an embodiment of the present invention;

fig. 4 is a schematic cross-sectional structure view at a position B-B of a cutting device for processing an EPS decorative line according to an embodiment of the present invention;

the reference signs are: 10, a workbench, 11, a mounting shaft, 12, a collecting groove, 20, a cutting table, 21, a fixing seat, 211, a positioning groove, 22, a bidirectional screw shaft, 23, a first slider, 231, a first clamping plate, 24, a second slider, 241, a second clamping plate, 25, a first driving motor, 30, a mounting beam, 31, a cylinder, 32, a telescopic guide post, 33, a mounting plate, 34, a cutting tool, 41, a first arc-shaped mounting groove, 411, a first mounting column, 42, a second arc-shaped mounting groove, 421, a second mounting column, 43, a surrounding plate, 50, a mounting cavity, 51, an outer gear ring, 52, a first gear, 53, a second gear, 54, an inner gear, 55, a connecting shaft, 56, a first helical gear, 57, a second helical gear, 58, a second driving motor, 60, a guide slope, 70 and a controller.

Detailed Description

Embodiments of the present invention will be described in detail below with reference to the accompanying drawings. The following examples are only for illustrating the technical solutions of the present invention more clearly, and therefore are only examples, and the protection scope of the present invention is not limited thereby.

As shown in fig. 1-4, the cutting device for processing EPS decorative molding provided by this embodiment includes a workbench 10, a cutting table 20 is arranged at the top of the workbench 10, and the cutting table 20 is circular and the cutting table 20 is fixedly connected with the workbench 10. And a fixing mechanism for clamping the EPS lines is arranged on the cutting table 20. The outer fringe symmetry of cutting bed 20 is provided with first arc mounting groove 41 and second arc mounting groove 42, the inside of first arc mounting groove 41 and second arc mounting groove 42 is provided with first erection column 411 and second erection column 421 respectively, first erection column 411 can be followed first arc mounting groove 41 slides, second erection column 421 can be followed second arc mounting groove 42 slides. The top of first erection column 411 and second erection column 421 is provided with installation crossbeam 30, the bottom of installation crossbeam 30 is provided with cutting mechanism so that cut the EPS lines. The inside of the cutting table 20 is further provided with a driving mechanism for driving the first mounting column 411 and the second mounting column 421 to move synchronously. The worktable 10 is further provided with a controller 70, and the fixing mechanism, the cutting mechanism and the driving mechanism are electrically connected with the controller 70. When the EPS lines are clamped through the fixing mechanism, the controller 70 controls the first mounting column 411 and the second mounting column 421 to move along the first arc-shaped mounting groove 41 and the second arc-shaped mounting groove 42 respectively, so that the mounting cross beam 30 and the cutting mechanism below the mounting cross beam 30 are driven to select, and the cutting angle of the cutting mechanism is adjusted conveniently.

In this embodiment, the fixing mechanism is relatively arranged on the fixing bases 21 on two sides of the cutting table 20, the top of each fixing base 21 is provided with a positioning groove 211, and the positioning grooves 211 are in a shape like a 'V' so as to position the EPS lines. The fixed seat 21 is further horizontally provided with a bidirectional screw shaft 22 below the positioning groove 211, two ends of the bidirectional screw shaft 22 are respectively provided with a first slider 23 and a second slider 24, the first slider 23 and the second slider 24 are respectively provided with a first clamping plate 231 and a second clamping plate 241, one side of the fixed seat 21 is further provided with a first driving motor 25 for driving the bidirectional screw shaft 22 to rotate, and the first driving motor 25 is electrically connected with the controller 70. In specific implementation, the controller 70 controls the first driving motor 25 to drive the bidirectional screw shaft 22 to rotate so as to drive the first clamping plate 231 and the second clamping plate 241 to approach each other, thereby clamping the EPS thread.

In this embodiment, the cutting mechanism includes an air cylinder 31 disposed in the middle of the mounting beam 30 and telescopic guide pillars 32 disposed on both sides of the air cylinder 31, a mounting plate 33 is further fixedly mounted at the bottoms of the air cylinder 31 and the telescopic guide pillars 32, both sides of the mounting plate 33 are slidably connected to the first mounting column 411 and the second mounting column 421, respectively, and a cutting tool 34 is fixedly mounted below the mounting plate 33. In specific implementation, the controller 70 controls the extension of the air cylinder 31 to push the mounting plate 33 to move downwards, so as to cut the EPS line.

In this embodiment, a mounting shaft 11 is disposed between the cutting table 20 and the workbench 10, and two ends of the mounting shaft 11 are respectively fixedly connected to the cutting table 20 and the workbench 10, so as to support the cutting table 20.

In this embodiment, the bottom of the first mounting column 411 and the bottom of the second mounting column 421 are respectively and rotatably connected with a first gear 52 and a second gear 53, and the inside of the cutting table 20 is provided with a mounting cavity 50 communicated with the first arc-shaped mounting groove 41 and the second arc-shaped mounting groove 42. The driving mechanism comprises an outer gear ring 51 arranged on the inner side of the cavity, an inner gear 54 is further arranged on the inner side of the outer gear ring 51, the first gear 52 and the second gear 53 are respectively arranged on two sides of the inner gear 54, the inner sides of the first gear 52 and the second gear 53 are meshed with the inner gear 54, and the outer sides of the first gear 52 and the second gear 53 are meshed with the outer gear ring 51. In order to drive the internal gear 54 to move, the driving mechanism further includes a first bevel gear 56 fixedly connected to the internal gear 54 through a connecting shaft 55, the first bevel gear 56 is coaxial with the internal gear 54, and mounting grooves for the mounting shaft 11 to pass through are formed in the middle portions of the first bevel gear 56, the internal gear 54 and the connecting shaft 55. The inside of the cutting table 20 is further provided with a second driving motor 58, the output end of the second driving motor 58 is provided with a second bevel gear 57, the second bevel gear 57 is meshed with the first bevel gear 56, and the second driving motor 58 is electrically connected with the controller 70. In specific implementation, the controller 70 controls the second driving motor 58 to start, so that the second bevel gear 57 rotates to drive the first bevel gear 56 and the internal gear 54 to rotate, the internal gear 54 cooperates with the external gear ring 51 to move the first gear 52 and the second gear 53, and the first gear 52 drives the first mounting column 411 and the second gear 53 drives the second mounting column 421 to move, so as to adjust the angle of the cutting tool 34.

In this embodiment, the cutting table 20 is provided with a surrounding plate 43 at the outer sides of the first and second

arc mounting grooves

41 and 42 to prevent dust generated by cutting from entering the inside of the first and second

arc mounting grooves

41 and 42. Just still be provided with direction inclined plane 60 between first arc mounting groove 41 and the second arc mounting groove 42, workstation 10 corresponds on this cutting bed 20 and is provided with collecting vat 12 to the dust bits that produce in the EPS lines cutting process can fall into this collecting vat 12, further improves the convenience of cutting.

Although the present invention has been described in detail with reference to the preferred embodiments, it will be understood by those skilled in the art that various changes may be made and equivalents may be substituted without departing from the spirit and scope of the utility model as defined in the appended claims. The techniques, shapes, and configurations not described in detail in the present invention are all known techniques.

Claims

1. The utility model provides a cutting device is used in processing of EPS moulding which characterized in that: comprises a workbench (10), wherein a cutting table (20) is arranged at the top of the workbench (10), the cutting table (20) is circular, the cutting table (20) is fixedly connected with the workbench (10), a fixing mechanism used for clamping EPS lines is arranged on the cutting table (20), a first arc-shaped mounting groove (41) and a second arc-shaped mounting groove (42) are symmetrically arranged at the outer edge of the cutting table (20), a first mounting column (411) and a second mounting column (421) are respectively arranged in the first arc-shaped mounting groove (41) and the second arc-shaped mounting groove (42), an installation beam (30) is arranged at the top of the first mounting column (411) and the top of the second mounting column (421), a cutting mechanism is arranged at the bottom of the installation beam (30), and a driving mechanism used for driving the first mounting column (411) and the second mounting column (421) to synchronously move is further arranged in the cutting table (20), the cutting machine is characterized in that a controller (70) is further arranged on the workbench (10), and the fixing mechanism, the cutting mechanism and the driving mechanism are all electrically connected with the controller (70).

2. The cutting device for processing the EPS decorative lines as claimed in claim 1, wherein: the fixing mechanism is oppositely arranged on fixing seats (21) on two sides of the cutting table (20), positioning grooves (211) are formed in the tops of the fixing seats (21), two-way screw shafts (22) are horizontally arranged below the positioning grooves (211) of the fixing seats (21), a first sliding block (23) and a second sliding block (24) are respectively arranged at two ends of each two-way screw shaft (22), a first clamping plate (231) and a second clamping plate (241) are respectively arranged on the first sliding block (23) and the second sliding block (24), and a first driving motor (25) used for driving the two-way screw shafts (22) to rotate is further arranged on one side of each fixing seat (21).

3. The cutting device for processing the EPS decorative lines as claimed in claim 1, wherein: the cutting mechanism comprises a cylinder (31) arranged in the middle of the mounting cross beam (30) and telescopic guide columns (32) arranged on two sides of the cylinder (31), mounting plates (33) are fixedly mounted at the bottoms of the cylinder (31) and the telescopic guide columns (32), two sides of each mounting plate (33) are respectively connected with a first mounting column (411) and a second mounting column (421) in a sliding mode, and cutting tools (34) are fixedly mounted below the mounting plates (33).

4. The cutting device for processing the EPS decorative lines as claimed in claim 1, wherein: set up installation axle (11) between cutting bed (20) and workstation (10), the both ends of installation axle (11) respectively with cutting bed (20) and workstation (10) fixed connection.

5. The cutting device for processing the EPS decorative lines as claimed in claim 4, wherein: the bottom of first erection column (411) and second erection column (421) rotates respectively and is connected with first gear (52) and second gear (53), the inside of cutting platform (20) be provided with installation cavity (50) of first arc mounting groove (41) and second arc mounting groove (42) intercommunication, actuating mechanism is including setting up outer ring gear (51) at the dress intracavity side, the inboard of outer ring gear (51) still is provided with internal gear (54), first gear (52) and second gear (53) set up respectively the both sides of internal gear (54), just first gear (52), second gear (53) all with internal gear (54), outer ring gear (51) meshing.

6. The cutting device for processing the EPS decorative lines as claimed in claim 5, wherein: the driving mechanism further comprises a first bevel gear (56) fixedly connected with the inner gear (54) through a connecting shaft (55), the first bevel gear (56) and the inner gear (54) are coaxially arranged, the middle parts of the first bevel gear (56), the inner gear (54) and the connecting shaft (55) are all provided with mounting grooves for the mounting shaft (11) to pass through, a second driving motor (58) is further arranged inside the cutting table (20), a second bevel gear (57) is arranged at the output end of the second driving motor (58), and the second bevel gear (57) is meshed with the first bevel gear (56).

7. The cutting device for processing the EPS decorative lines as claimed in claim 1, wherein: the cutting table (20) is provided with a coaming (43) on the outer side of the first arc-shaped mounting groove (41) and the second arc-shaped mounting groove (42), a guide inclined plane (60) is further arranged between the first arc-shaped mounting groove (41) and the second arc-shaped mounting groove (42), and the workbench (10) is correspondingly provided with a collecting groove (12) on the cutting table (20).
