Abstract

The utility model discloses a PICC intubation nursing car, the technical solution of which is as follows: a PICC intubation nursing car, comprising a body, wheels and an operation table, the body is provided with a container for placing items required for the PICC intubation , the operating table is movably connected or separably connected with the body, and the operating table can be separated from the body and be placed on the hospital bed. Through the nursing cart and the hospital bed, the infusion device can be placed stably on the hospital bed, and enough infusion devices can be placed at the same time.

Description

PICC puts management and management car

Technical Field

The utility model relates to the field of medical equipment, in particular to a PICC (peripherally inserted central catheter) management and management vehicle.

Background

The PICC is a catheter for placing peripheral venipuncture into superior vena cava, is common in critically ill patients and tumor chemotherapy patients, is kept between the forearm and the upper arm due to the fact that most of the catheters are punctured in front of the elbow, and has the advantages that only peripheral puncture is needed, puncture risk is small, trauma is small, success rate is high, peripheral remaining infection rate is low, remaining time is long, stable venous transfusion can be provided, workload of nurses is reduced, and comfort level and satisfaction rate of patients are improved. Need use the nursing car when putting the pipe patient to the PICC of bed and infusing, the nursing car is deposited transfusion system, infusion bottle, hemostatic plaster etc..

However, the existing nursing trolley still has the following defects:

1. the surface of the infusion vehicle is not provided with a baffle, so that dilute heparin solution, physiological saline and the like can easily fall off when the vehicle is moved during puncture.

2. The space for placing objects on the table-board of the nursing vehicle is limited, more objects are placed during puncturing, the space is narrow, and the operation is inconvenient

3. The existing puncture nursing trolley can only contain articles, part of sterile articles need to be placed on a paved sterile operation surface when puncturing is carried out, the articles are easy to drop due to agitation of patients, the economic burden of the patients is increased, and the operation time of puncture nurses is prolonged.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the problems in the prior art, and provides a PICC (peripherally inserted central catheter) administration and management vehicle which can stably place infusion devices and can place enough infusion devices and is convenient to operate.

In order to achieve the purpose, the utility model adopts the following technical scheme:

the utility model provides a PICC puts management and management car, includes automobile body, wheel and operation panel, the automobile body is equipped with the container that is used for placing PICC and puts the required article of pipe, operation panel and automobile body swing joint or detachable connection, the operation panel can break away from the automobile body and the tiling is placed on the sick bed.

Preferably, a turnover mechanism is arranged between the operating platform and the vehicle body, the turnover mechanism comprises at least two turnover rods horizontally arranged side by side, and two ends of each turnover rod are respectively and rotatably connected with the operating platform and the vehicle body.

Preferably, the turning bar is arc-shaped.

Preferably, the lower surface of the operation table is provided with a cushion pad.

Preferably, the operating platform is provided with at least one extension plate for increasing the area of the top surface of the operating platform, and the extension plate can be folded outside the operating platform or folded inside the operating platform.

Preferably, the epitaxial plate is accommodated in the operation table, the operation table is provided with a chamber for accommodating the epitaxial plate, and a retraction mechanism for controlling the movement path of the epitaxial plate is arranged between the epitaxial plate and the operation table.

Preferably, the retraction mechanism comprises a slide rail and a sliding member matched with the slide rail, the slide rail is arranged in the cavity of the operating platform, and the sliding member is arranged on the epitaxial plate.

Preferably, the slide rail includes fixed track and lift track, the lift track is equipped with two rotary rods that set up side by side, and the lift track docks the fixed track at the minimum, draws outward the epitaxial board and makes the slider get into the lift track by the fixed track, and the epitaxial board rises until aliging with the operation panel through the lift track.

Preferably, the upper surface of the epitaxial plate is provided with a sinking part, a first slope is formed between the sinking part and the upper surface of the epitaxial plate, a second slope is reserved at the opening of the cavity, and when the epitaxial plate rises through the lifting track, the first slope is gradually attached to the second slope.

Compared with the prior art, the PICC that has adopted above-mentioned technical scheme puts the management and management car has following beneficial effect:

firstly, by adopting the PICC management and nursing vehicle, the operating platform can be flatly laid on a sickbed for placing infusion devices, and in the preferred scheme, the operating platform is connected with the vehicle body through the turnover rod, the operating platform can be retracted onto the vehicle body after use, and meanwhile, the turnover rod is arc-shaped, so that the structure of the turnover mechanism is more stable and is not easy to damage.

Secondly, the cushion can further maintain the stability of the operation table on the bed.

And the extension plate can increase the usable area of the operating platform, and the extension plate is internally contained in the operating platform in the preferred scheme, so that the extension plate is folded outside the operating platform relatively, and the occupied space is saved.

And fourthly, the extension plate can be retracted by the retraction mechanism, and the slide rail in the preferred scheme can ensure that the extension plate is always horizontal, so that the stability of the extension plate is ensured.

And fifthly, the first slope and the second slope are matched to reduce gaps generated when the pulled extension plate is matched with the operating table, so that the situation that the medical instrument is clamped into the gaps is not easy to occur.

Drawings

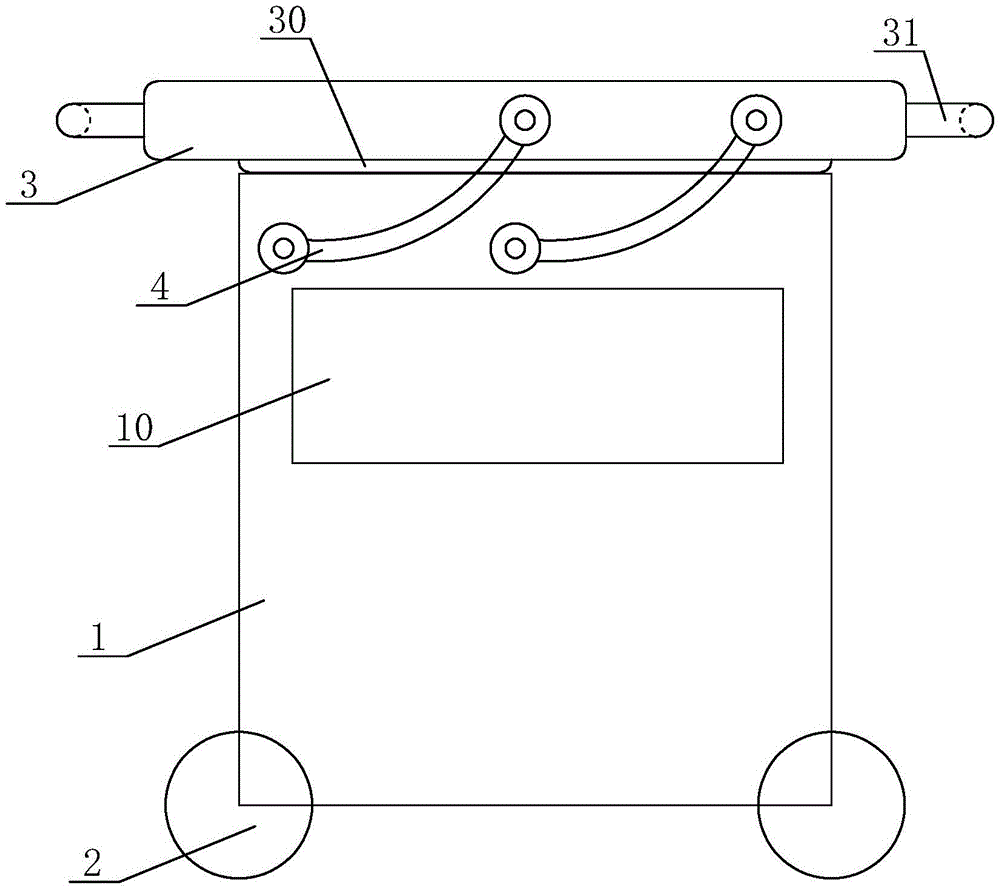

Fig. 1 is a schematic structural view of a PICC management and care vehicle according to embodiment 1 of the present invention.

Fig. 2 is a schematic diagram of an embodiment in practical use.

Fig. 3 is a schematic structural diagram of an epitaxial plate in the embodiment.

Fig. 4 is a schematic cross-sectional view of an epitaxial wafer according to an embodiment, wherein the epitaxial wafer is accommodated in a table.

Fig. 5 is a schematic sectional view of the epitaxial wafer in the embodiment, in which the epitaxial wafer is pulled out from the work table.

Reference numerals: 1. a vehicle body; 10. a container; 2. a wheel; 3. an operation table; 30. a cushion pad; 31. an epitaxial plate; 310. a sinking portion; 311. a first slope; 3110. a buffer layer; 32. a chamber; 320. a second slope; 33. a retraction mechanism; 330. a slide rail; 3301. fixing a track; 3302. a lifting rail; 3303. rotating the rod; 331. a slider; 4. a turnover mechanism; 40. a turning rod; 5. a hospital bed.

Detailed Description

The utility model is further described below with reference to the accompanying drawings.

The PICC management and maintenance vehicle comprises a vehicle body 1, wheels 2 and an operating platform 3, wherein the vehicle body 1 is provided with a container 10 for placing articles required by PICC management, the container 10 is implemented as a drawer, the container 10 is arranged on the side surface of the vehicle body 1, a turnover mechanism 4 is arranged between the operating platform 3 and the vehicle body 1, the operating platform 3 can be separated from the vehicle body 1 and tiled on a sickbed 5 through the turnover mechanism 4, the turnover mechanism 4 comprises two turnover rods 40 horizontally arranged side by side, the turnover rods 40 are arc-shaped, and two ends of each turnover rod 40 are respectively in rotary connection with the operating platform 3 and the vehicle body 1.

As shown in fig. 3 to 5, a cushion pad 30 is provided on the lower surface of the table 3, two extension plates 31 for increasing the surface area of the table 3 and two chambers 32 for accommodating the extension plates 31 are provided on the side surfaces of the table 3, and the extension plates 31 are accommodated in the chambers 32.

A retracting mechanism 33 for controlling the moving path of the extending plate 31 is arranged between the extending plate 31 and the operating platform 3, the retracting mechanism 33 comprises a sliding rail 330 and a sliding part 331 matched with the sliding rail 330, the sliding rail 330 is arranged in the cavity 32 of the operating platform 3, the sliding part 331 is arranged on the extending plate 31, the sliding rail 330 comprises a fixed rail 3301 and a lifting rail 3302, the lifting rail 3302 is provided with two rotating rods 3303 arranged side by side, the lifting rail 3302 is abutted against the fixed rail 3301 at the lowest point, the extending plate 31 is pulled outwards so that the sliding part 331 enters the lifting rail 3302 from the fixed rail 3301, the extending plate 31 is lifted up through the lifting rail 3302 until being aligned with the operating platform 3, the upper surface of the extending plate 31 is provided with a sinking part 310, a first slope 311 is formed between the sinking part 310 and the upper surface of the extending plate 31, the surface of the first slope 311 is provided with a buffer layer 3110, a second slope 320 is left at the opening of the cavity 32, when the extending plate 31 is lifted up through the lifting rail 3302, the first slope 311 gradually fits to the second slope 320.

The foregoing is a preferred embodiment of the present invention, and it will be apparent to those skilled in the art that various changes and modifications may be made without departing from the spirit of the utility model, and these should be considered to be within the scope of the utility model.

Claims (9)

1. A PICC intubation nursing car, comprising a body (1), a wheel (2) and an operating table (3), the body (1) being provided with a container (10) for placing items required for PICC intubation, which The utility model is characterized in that: the operating table (3) is movably connected or detachably connected with the body (1), and the operating table (3) can be separated from the body (1) and placed flat on the hospital bed (5). 2 . The PICC intubation nursing vehicle according to claim 1 , wherein a turning mechanism ( 4 ) is arranged between the operating table ( 3 ) and the vehicle body ( 1 ), and the turning mechanism ( 4 ) comprises at least Two inversion rods (40) are arranged horizontally side by side, and the two ends of the inversion rods (40) are respectively rotatably connected with the operating table (3) and the vehicle body (1). 3 . The PICC intubation nursing vehicle according to claim 2 , wherein the inversion rod ( 40 ) is arc-shaped. 4 . 4. The PICC intubation nursing vehicle according to claim 2 or 3, characterized in that: a buffer pad (30) is provided on the lower surface of the operating table (3). 5. The PICC intubation nursing vehicle according to claim 1 or 2, characterized in that: the operating table (3) is provided with at least one epitaxial plate (31) for increasing the surface area of the operating table (3). ), the extension plate (31) can be folded outside the operating table (3) or retracted inside the operating table (3). 6 . The PICC intubation care vehicle according to claim 5 , wherein the epitaxial plate ( 31 ) is retracted inside the operating table ( 3 ), and the operating table ( 3 ) is provided with an extension plate ( 31 ) for accommodating the epitaxial board ( 31 ). 7 . The chamber (32) is provided between the epitaxial board (31) and the operating table (3), and a retractable mechanism (33) for controlling the movement path of the epitaxial board (31) is provided. 7 . The PICC intubation nursing vehicle according to claim 6 , wherein the retractable mechanism ( 33 ) comprises a sliding rail ( 330 ) and a sliding member ( 331 ) matched with the sliding rail ( 330 ). 8 . , the sliding rail (330) is arranged in the chamber (32) of the operating table (3), and the sliding member (331) is arranged on the extension plate (31). 8 . The PICC intubation nursing vehicle according to claim 7 , wherein the sliding rail ( 330 ) comprises a fixed rail ( 3301 ) and a lifting rail ( 3302 ), and the lifting rail ( 3302 ) is provided with two The rotating rods (3303) are arranged side by side, the lifting rail (3302) is connected to the fixed rail (3301) at the lowest point, and the extension plate (31) is pulled out so that the sliding member (331) enters the lifting rail (3302) from the fixed rail (3301), The epitaxial plate (31) is lifted by the lifting rail (3302) until it is aligned with the operating table (3). 9 . The PICC intubation nursing vehicle according to claim 8 , characterized in that: the upper surface of the epitaxial plate ( 31 ) is provided with a sunk portion ( 310 ), and the sunk portion ( 310 ) is connected to the epitaxial plate ( 31 ). 10 . A first slope (311) is formed between the upper surfaces of the chamber (32), and a second slope (320) is left at the opening of the chamber (32). A slope (311) is gradually fitted to the second slope (320).
