CN215605095U

CN215605095U - Multifunctional cooking device

Info

Publication number: CN215605095U
Application number: CN202121481492.2U
Authority: CN
Inventors: 邢立明
Original assignee: Zhongshan Mile Electric Appliance Co ltd
Current assignee: Zhongshan Mile Electric Appliance Co ltd
Priority date: 2021-06-30
Filing date: 2021-06-30
Publication date: 2022-01-25
Anticipated expiration: 2031-06-30

Abstract

The utility model proposes a multifunctional cooking device, which comprises a heating device, a steam generator, a water tank, and a first inner pot and a second inner pot which are independent of each other. The heating device is respectively arranged in the first inner pot and the second inner pot. Above, the first inner tank is also provided with a fan and a detachable frying pan, the fan transports the heat generated by the heating device to the ingredients in the first inner tank or the ingredients in the frying pan to cook the ingredients, by forming an independent The first inner liner and the second inner liner are arranged, and a heating device, a fan and a detachable fryer are arranged on the first inner liner, so that the first inner liner can form both an oven and an air fryer. , Air fryer is integrated, which is convenient for users to use, saves space, reduces the purchase cost, and also meets the needs of users.

Description

Multifunctional cooking device

Technical Field

The utility model relates to a multifunctional cooking device.

Background

With the development of science and technology, an oven, a steam box and an air fryer are gradually appeared in a family, and due to the limited space of a family kitchen, the family is difficult to buy the oven, the steam box and the air fryer simultaneously, and the cost for buying one by one is high, so that the burden of the family is large.

SUMMERY OF THE UTILITY MODEL

In order to solve the problems, the utility model provides a functional cooking device, and aims to provide a cooking device integrating an oven and an air fryer.

The utility model provides a multifunctional cooking device which comprises a heating device, a steam generator, a water tank, a first inner container and a second inner container which are mutually independent, wherein the heating device is respectively arranged on the first inner container and the second inner container, a fan and a detachable frying pan are further arranged in the first inner container, and the fan conveys heat generated by the heating device to food materials in the first inner container or the food materials in the frying pan so as to cook the food materials.

In one or more embodiments, the first inner container is in an oven state when the fryer is disassembled, and the first inner container is in an air fryer state when the fryer is installed in the first inner container.

In one or more embodiments, the heating device is disposed at an air outlet end of the fan.

In one or more embodiments, the first inner container is formed by welding a top plate, a bottom plate, a left plate, a right plate and a back plate.

In one or more embodiments, the top plate forms an upward recess, the fan is disposed at the recess, and a driving motor is disposed above the recess.

In one or more embodiments, the second inner container is integrally formed.

The first inner container is formed by welding, the second inner container is integrally welded and formed, the production difficulty of the first inner container is reduced, the first inner container does not need to form a pulling-up die, the size of the die is not controlled, and the applicability is high.

In one or more embodiments, the water tank is arranged above the second inner container, the water inlet of the water tank is located on the panel, the water tank is located above the horizontal plane of the steam generator, water in the water tank flows onto the steam generator by utilizing pressure difference to form high-temperature steam, a water pump is not needed, energy consumption is reduced, the structure is simplified, and meanwhile cost is reduced.

The utility model has the beneficial effects that: through forming the independent first inner bag and the second inner bag that set up, set up heating device and fan and detachable fried pot on first inner bag for first inner bag both can form the oven and also can form the air and fry the pot, makes wholly collect oven, air and explodes a pot integratively, and convenience of customers uses, saves space, reduces the purchase cost simultaneously, also satisfies user's operation needs.

Drawings

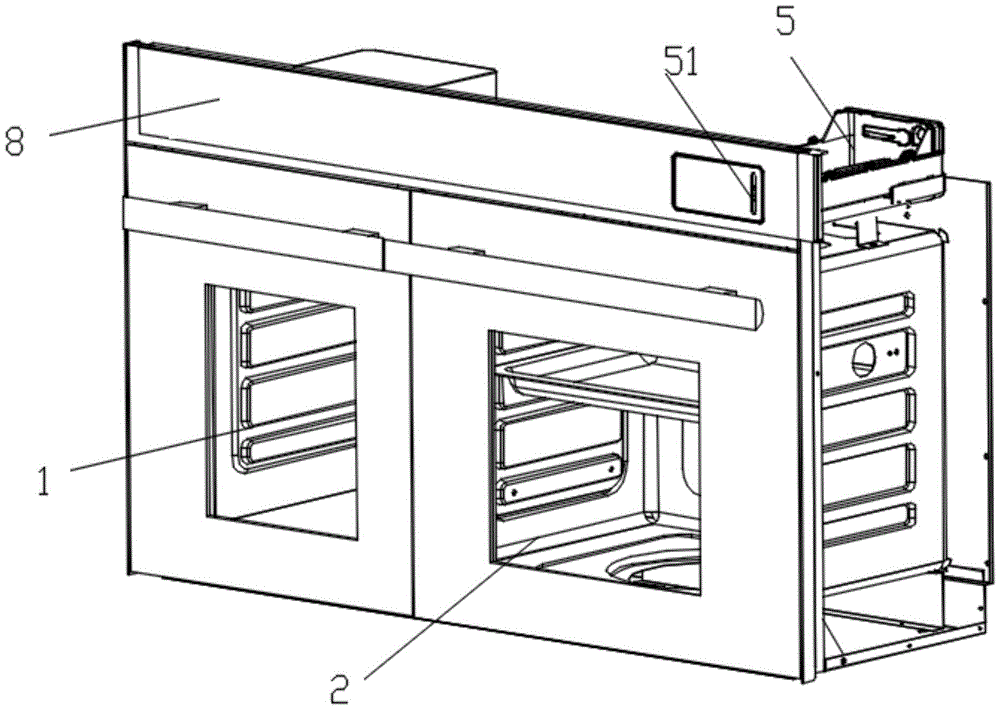

Fig. 1 is a schematic view of a multifunctional cooking apparatus.

Fig. 2 is a schematic sectional view of the multifunctional cooking apparatus.

Detailed Description

The application scheme is further described below with reference to the accompanying drawings:

referring to fig. 1-2, a multifunctional cooking device comprises a heating pipe as a heating device 3, a steam generator 4, a water tank 5, a first inner container 1 and a second inner container 2 which are independent of each other, wherein the heating device 3 is arranged on the first inner container 1 and the second inner container 2, a fan 6 and a detachable fryer 7 are further arranged in the first inner container 1, and the fan 6 conveys heat generated by the heating device 3 to food materials in the first inner container 1 or the fryer 7 to cook the food materials.

Preferably, the fryer 7 is placed in the first inner container 1, a user takes out the fryer 7 or puts in the fryer 7 according to actual needs, when the fryer 7 is detached, the first inner container 1 is in an oven state, and when the fryer 7 is installed in the first inner container 1, the first inner container 1 is in an air fryer state.

Further, heating device 3 sets up the end of giving vent to anger at fan 6, and this fan 6 not only can send the heat that heating device 3 produced to the food surface fast, can also make the heat in the first inner bag 1 even for food is heated evenly, increases the taste.

Further, the first inner container 1 is formed by welding a top plate 11, a bottom plate 12, a left plate 13, a right plate 14, and a rear plate 15.

Further, the top plate 11 forms an upward concave portion 111, the fan 6 is disposed at the concave portion 111, and the driving motor 61 is disposed above the concave portion 111.

Further, the second inner container 2 is integrally formed.

Further, the water tank 5 is disposed above the second inner container 2, and the water inlet 51 of the water tank 5 is located on the panel 8.

The above preferred embodiments should be considered as examples of the embodiments of the present application, and technical deductions, substitutions, improvements and the like similar to, similar to or based on the embodiments of the present application should be considered as the protection scope of the present patent.

Claims

1. A multifunctional cooking device, characterized in that it comprises a heating device, a steam generator, a water tank, and a first inner tank and a second inner tank independent of each other, wherein the heating device is respectively arranged in the first inner tank and the second inner tank. On the inner liner, a fan and a detachable fryer are also arranged in the first inner liner, and the fan transmits the heat generated by the heating device to the ingredients in the first inner liner or the ingredients in the fryer to cook the ingredients.

2 . The multifunctional cooking device according to claim 1 , wherein when the fryer is disassembled, the first inner pot is in an oven state, and when the fryer is installed in the first inner pot, the first inner pot is in an oven state. 3 . in air fryer state.

3 . The multifunctional cooking device according to claim 1 , wherein the heating device is arranged at the air outlet end of the fan. 4 .

4 . The multifunctional cooking device according to claim 1 , wherein the first inner container is formed by welding a top plate, a bottom plate, a left plate, a right plate and a rear plate. 5 .

5 . The multifunctional cooking device according to claim 4 , wherein the top plate forms an upward concave portion, the fan is disposed at the concave portion, and a driving motor is disposed above the concave portion. 6 .

6 . The multifunctional cooking device according to claim 1 , wherein the second inner pot is integrally welded and formed. 7 .

7 . The multifunctional cooking device according to claim 1 , wherein the water tank is arranged above the second inner tank, and the water inlet of the water tank is located on the panel. 8 .
