Abstract
The utility model discloses a multilayer hot-pressing compound machine which comprises a machine table, a dust removal area, a heating area, a pressing area, a cooling area and a material receiving support, wherein a feeding groove is formed in one end of the machine table, a plurality of partition plates are welded in the machine table, the dust removal area is arranged on one side, close to the feeding groove, in the machine table, the heating area is arranged in the machine table, the pressing area and the heating area are separated through the partition plates, the cooling area is arranged in the machine table, the cooling area and the pressing area are separated through the partition plates, the material receiving support is welded at the bottom in the other side of the machine table, and the material receiving support and the cooling area are separated through the partition plates. The dust removal area is arranged to remove dust from the raw materials, so that the influence of the dust on the raw materials on the pressing is avoided, and meanwhile, the arranged cooling area can cool the semi-finished product after hot pressing, so that the finished product can be produced quickly, and the production efficiency is increased.
Description
Technical Field
The utility model relates to the technical field of compound machines, in particular to a multi-layer hot-pressing compound machine.
Background
The compound machine is used for bonding two or more layers of materials into a whole, so that the original materials obtain new functions, the compound machine is generally used in the industries of paper, clothes, home textiles and the like, the use range is wide, meanwhile, the compound machine is also used in the printing industry, and the materials such as characters and pictures to be printed are matched with the paper through the compound machine, so that the observation and the use are convenient.
The existing multilayer hot-pressing compound machine has the defects that:
1. when the existing multilayer hot-pressing compound machine is used, because impurities such as dust and the like are attached to the surface of a material when the material enters the machine, when the material is directly pressed, the pressing effect is reduced, and the product quality is influenced;
2. after the lamination, the existing multilayer hot-pressing compound machine is slow in finished product forming due to the fact that materials are heated relatively, and high-efficiency production is not facilitated.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a multilayer hot-pressing compound machine, which is used for solving the problems that the direct pressing of the raw material surface adhered with dust in the background technology causes poor pressing effect and influences product quality, and the material is hot after pressing, the finished product is slow in forming and is not beneficial to high-efficiency production.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a multilayer hot pressing compounding machine, includes board, dust removal district, the zone of heating, nip portion, cooling district and receipts material support, the one end of board is equipped with the feed chute, the inside welding of board installs a plurality of baffles, one side that the inside of board is close to the feed chute is equipped with the dust removal district, the inside of board is equipped with the zone of heating, and uses the baffle to separate between the zone of heating and the dust removal district, the inside of board is equipped with the nip portion, and uses the baffle to separate between nip portion and the zone of heating, the inside of board is equipped with cooling district, and uses the baffle to separate between cooling district and the nip portion, the inside bottom welding of opposite side of board installs the receipts material support, and uses the baffle to separate between receipts material support and the cooling district.
Preferably, the front movable mounting of board has a plurality of operation doors, and the front movable mounting of board has the door of taking, and the door of taking is located the front of receiving the material support.
Preferably, the internally mounted in dust removal district has the dust removal board, and the internally mounted of dust removal board has the fan, and the top of dust removal board runs through and is equipped with the air outlet, and the both ends movable mounting of dust removal board has transfer gear A, and the top in dust removal district runs through and installs out bellows, and the air-out bellows is located the top of board, and the internally mounted of air-out bellows has out the fan.
Preferably, the heating block is arranged in the heating area, the conveying wheels B are movably arranged at two ends of the heating block, the heating pipe is arranged in the heating block, and the heat preservation cotton is embedded in the heating block.
Preferably, the inside of the pressing area is provided with a pressing pusher, the pressing pusher penetrates through the top of the machine table, the output end of the pressing pusher is provided with a pressing roller, the inner bottom of the pressing area is provided with a pressing wheel, and the outer side of the pressing wheel is embedded with a reinforcing belt.
Preferably, the internally mounted of cooling district has the conveyer belt, and the cooling fan is installed to the top of conveyer belt, and the cooling fan runs through at the top of board, and the top of cooling fan is connected with the cooling case, and the internally mounted of cooling case has the water-cooled tube, and the internally mounted of cooling case has the refrigeration piece, and the refrigeration piece is located the below of water-cooled tube.
Preferably, the top welding of receiving the material support installs the supporting shoe, and the material roller of receiving has been placed to the inside of supporting shoe, receives the material motor to install the below of receiving the material support, and receives the material motor and install the bottom at the board, receives the output of material motor and installs the belt, and the belt is connected with the material roller of receiving.
Compared with the prior art, the utility model has the beneficial effects that:
1. the dust removing device is provided with the dust removing area for removing dust from the raw materials entering the pressing process, so that the pressing effect is prevented from being influenced by larger dust on the raw materials, and the waste of the raw materials is avoided;
2. the utility model is provided with a cooling zone for cooling the pressed semi-finished product, accelerates the cooling and forming of materials and increases the production efficiency, a conveyor belt arranged in the cooling zone transmits the pressed product to the inside of the cooling zone, cold air in a cooling box is introduced through a cooling fan arranged above the conveyor belt to cool and cool the surface of the material, the processed product is conveyed to the outside from the conveyor belt for sorting and collection, a water cooling pipe is arranged in the cooling box and can convey external cold water to the inside of the cooling box, the air is cooled when the cooling fan sucks the air, a refrigerating sheet is arranged below the water cooling pipe, and when the cooling effect of the water cooling pipe is poor, the refrigerating sheet is opened to cool the air, so that the cooling fan sucks the cold air to cool the hot material.
Drawings
FIG. 1 is a schematic cross-sectional view of the present invention;
FIG. 2 is a schematic front view of the present invention;
FIG. 3 is a schematic view of the receiving frame of the present invention;

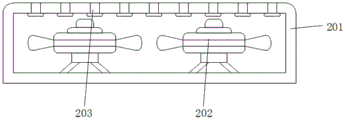

fig. 4 is a schematic diagram of the dust-removing plate structure of the present invention.
In the figure: 1. a machine platform; 101. a feed chute; 102. a partition plate; 103. an operating door; 104. taking the door; 2. a dust removal area; 201. a dust removal plate; 202. a fan; 203. an air outlet; 204. a transfer wheel A; 205. an air outlet box; 206. an air outlet machine; 3. a heating zone; 301. a heating block; 302. heating a tube; 303. heat preservation cotton; 304. a transfer wheel B; 4. a pressing area; 401. pressing and pushing the machine; 402. a press-fit roller; 403. a pressing wheel; 404. a reinforcing strip; 5. a cooling zone; 501. a conveyor belt; 502. a cooling box; 503. a water-cooled tube; 504. a refrigeration plate; 505. a cooling fan; 6. a material receiving bracket; 601. a support block; 602. a material receiving roller; 603. a material receiving motor; 604. a belt.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-4, an embodiment of the present invention is shown: a multi-layer hot-pressing compound machine comprises a machine table 1, a dust removal area 2, a heating area 3, a pressing area 4, a cooling area 5 and a material receiving support 6, wherein a feeding groove 101 is formed in one end of the machine table 1, different raw materials needing pressing can enter conveniently through the arranged feeding groove 101, the raw materials cannot affect each other, a plurality of partition plates 102 are welded and installed inside the machine table 1, different areas inside the machine table are separated through the installed partition plates 102, the different processes inside the machine table cannot interfere with each other during working, a dust removal area 2 is arranged on one side, close to the feeding groove 101, inside the machine table 1, dust removal processing is carried out on the entering raw materials through the initial dust removal area 2, the influence of dust on the pressing quality is effectively avoided, the heating area 3 is arranged inside the machine table 1, and the heating area 3 and the dust removal area 2 are separated through the partition plates 102, heating the raw material through the heating area 3 before pressing, slightly softening the raw material to facilitate pressing, arranging a pressing area 4 in the machine table 1, separating the pressing area 4 from the heating area 3 by using a partition plate 102, conveying the heated and softened raw material into the pressing area 4, pressing the heated raw material to manufacture a finished product, arranging a cooling area 5 in the machine table 1, separating the cooling area 5 from the pressing area 4 by using the partition plate 102, cooling the raw material through the cooling area 5 after pressing because the raw material is at a higher temperature and the time required for natural cooling to reach the use standard is longer, so that the raw material can be rapidly molded, the production efficiency is increased, welding and installing a material receiving bracket 6 at the bottom inside the other side of the machine table 1, separating the material receiving bracket 6 from the cooling area 5 by using the partition plate 102, and conveying the finished product onto the material receiving bracket 6, the finished products are collected through the material receiving support 6, and the material receiving support is convenient to sell.
Further, the front movable mounting of board 1 has a plurality of operation doors 103, and the front movable mounting of board 1 has door 104 of taking, and door 104 of taking is located the front of receiving material support 6, and the operation door 103 of the positive installation of board 1 is in order to open board 1 when using for the first time, arranges the transmission path of raw materials in order, and subsequent processing that lasts of being convenient for opens door 104 of taking simultaneously after having processed, retrieves the finished product on receiving material support 6.
Further, a dust removing plate 201 is installed inside the dust removing area 2, a fan 202 is installed inside the dust removing plate 201, an air outlet 203 is arranged on the top of the dust removing plate 201 in a penetrating manner, conveying wheels a204 are movably installed at two ends of the dust removing plate 201, an air outlet box 205 is installed on the top of the dust removing area 2 in a penetrating manner, the air outlet box 205 is located above the machine platform 1, an air outlet machine 206 is installed inside the air outlet box 205, when the machine is used, external materials enter the dust removing area 2 and are placed on the dust removing plate 201, because the fan 202 is installed inside the dust removing plate 201, after the air blown out by the fan 202 is pressurized through the air outlet 203, strong air is blown out to remove dust and the like on the materials, the surface of the materials is kept clean, the blown-up dust can be discharged out of the machine through the air outlet box 205 installed on the top of the dust removing area 2, secondary pollution is avoided, the air outlet machine 206 installed inside the air outlet box 205 can blow out larger air, dust generated inside the apparatus is completely discharged, and the dust-removed material is transferred to the next process by the transfer wheels a204 installed at both ends of the dust removing plate 201.
Further, the internally mounted of the zone of heating 3 has heating block 301, the both ends movable mounting of heating block 301 has transfer wheel B304, the internally mounted of heating block 301 has heating pipe 302, the inside gomphosis of heating block 301 has heat preservation cotton 303, release the heat through installing the heating block 301 inside the zone of heating 3, heat the raw materials, make the raw materials soften the pressfitting of being convenient for, internally mounted at heating block 301 has heating pipe 302, produce heat and transmission, install simultaneously that the cotton 303 of heat preservation inside the heating block 301 can avoid thermal loss, and after heating the raw materials, convey the raw materials to the inside pressfitting that carries out of pressfitting zone 4 through transfer wheel B304.
Further, a pressing pusher 401 is installed inside the pressing region 4, the pressing pusher 401 penetrates through the top of the machine table 1, a pressing roller 402 is installed at an output end of the pressing pusher 401, a pressing wheel 403 is installed at the inner bottom of the pressing region 4, a reinforcing tape 404 is embedded on the outer side of the pressing wheel 403, after the raw materials are transmitted into the pressing region 4, the pressing pusher 401 starts to work, power is generated to drive the pressing roller 402 to move downwards to press the raw materials, the pressing wheel 403 is installed below the pressing roller 402, the raw materials are pressed together through extrusion of the pressing wheel 403 and the pressing roller 402, and the mounted reinforcing tape 404 can prevent the raw materials from being inclined when being pressed, so that defective products are generated during pressing.
Further, a conveyor belt 501 is installed inside the cooling area 5, a cooling fan 505 is installed above the conveyor belt 501, the cooling fan 505 penetrates through the top of the machine table 1, a cooling box 502 is connected to the top end of the cooling fan 505, a water cooling pipe 503 is installed inside the cooling box 502, a refrigerating sheet 504 is installed inside the cooling box 502, the refrigerating sheet 504 is located below the water cooling pipe 503, the conveyor belt 501 installed inside the cooling area 5 transmits the pressed product to the cooling area 5, cold air inside the cooling box 502 is introduced through the cooling fan 505 installed above the conveyor belt 501, cooling treatment is performed on the surface of the material, the treated product is conveyed to the outside from the conveyor belt 501 for sorting and collection, the water cooling pipe 503 is installed inside the cooling box 502, external cold water can be conveyed to the inside of the cooling box 502, and the air is cooled when the cooling fan 505 sucks air, and a cooling plate 504 is installed below the water-cooling pipe 503, and when the cooling effect of the water-cooling pipe 503 becomes poor, the cooling plate 504 is opened to cool the air, so that the cooling fan 505 continuously sucks in the cold air to cool the hot material.
Further, receive the top welded mounting of material support 6 and have supporting shoe 601, material receiving roller 602 has been placed to supporting shoe 601's inside, receive the below of material support 6 and install material receiving motor 603, and receive material motor 603 and install the bottom at board 1, belt 604 is installed to the output of material receiving motor 603, and belt 604 is connected with material receiving roller 602, supporting shoe 601 of receiving the installation of material support 6 top can support material receiving roller 602 when using, the raw materials transmission of being convenient for process is come and collect, and install material receiving motor 603 in the below of receiving material support 6, when receiving the material, start material receiving motor 603, transmit material receiving roller 602 with the power of receiving material motor 603 through belt 604 on, drive material receiving roller 602 and rotate, collect the finished product.
The working principle is as follows: the raw materials entering the pressing fit are dedusted by the dust removing area 2, the pressing fit effect is prevented from being influenced by larger dust on the raw materials, the raw materials are prevented from being wasted, when the dust remover is used, external materials enter the dust removing area 2 and are placed on the dust removing plate 201, because the fan 202 is arranged in the dust removing plate 201, the air blown by the fan 202 is pressurized by the air outlet 203, stronger air is blown out to remove the dust and the like on the materials, the surface of the materials is kept clean, the blown dust can be discharged out of the device through the air outlet box 205 arranged at the top of the dust removing area 2, the secondary pollution is avoided, the air outlet machine 206 arranged in the air outlet box 205 can blow out larger air to completely discharge the dust generated in the device, and the dedusted materials are conveyed to the next process through the conveying wheels A204 arranged at the two ends of the dust removing plate 201, meanwhile, a cooling area 5 is arranged to cool the pressed semi-finished product, so as to accelerate the cooling and forming of the material and increase the production efficiency, the conveyor belt 501 arranged inside the cooling zone 5 conveys the pressed products to the inside of the cooling zone 5, the cool air inside the cooling compartment 502 is introduced by the cooling fan 505 installed above the conveyor 501, the surface of the material is cooled, the treated product is conveyed to the outside from the conveyor belt 501 for arrangement and collection, a water cooling pipe 503 is installed inside the cooling tank 502, and can transport external cold water to the inside of the cooling tank 502, when the cooling fan 505 sucks air, the air is cooled, a cooling plate 504 is arranged below the water cooling pipe 503, when the cooling effect of the water cooling pipe 503 is poor, the cooling fins 504 are opened to cool the air, so that the cooling fan 505 sucks cold air to cool the hot material.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (7)
1. The utility model provides a multilayer hot pressing compounding machine, includes board (1), dust removal district (2), the district of heating (3), nip (4), cooling district (5) and receipts material support (6), its characterized in that: one end of the machine table (1) is provided with a feeding groove (101), a plurality of partition plates (102) are welded and installed inside the machine table (1), a dust removing area (2) is arranged on one side of the inside of the machine table (1) close to the feeding groove (101), a heating area (3) is arranged inside the machine table (1), the heating area (3) and the dust removal area (2) are separated by a partition plate (102), a press-fit area (4) is arranged inside the machine table (1), the pressing area (4) and the heating area (3) are separated by a partition plate (102), a cooling area (5) is arranged inside the machine table (1), and the cooling area (5) and the pressing area (4) are separated by a clapboard (102), a material receiving bracket (6) is welded and installed at the bottom inside the other side of the machine table (1), and the material receiving bracket (6) and the cooling area (5) are separated by a partition plate (102).
2. The multi-layer thermal press bonding machine as claimed in claim 1, wherein: the front movable mounting of board (1) has a plurality of operation door (103), and the front movable mounting of board (1) has door (104) of taking, and door (104) of taking are located the front of receiving material support (6).
3. The multi-layer thermal press bonding machine as claimed in claim 1, wherein: the utility model discloses a dust removal machine, including dust removal district (2), the internally mounted of dust removal district (2) has dust removal board (201), the internally mounted of dust removal board (201) has fan (202), the top of dust removal board (201) runs through and is equipped with air outlet (203), the both ends movable mounting of dust removal board (201) has transfer gear A (204), the top of dust removal district (2) runs through and installs out bellows (205), and goes out the top that bellows (205) are located board (1), the internally mounted that goes out bellows (205) has out fan (206).
4. The multi-layer thermal press bonding machine as claimed in claim 1, wherein: the heating device is characterized in that a heating block (301) is arranged inside the heating zone (3), two ends of the heating block (301) are movably provided with conveying wheels B (304), a heating pipe (302) is arranged inside the heating block (301), and heat insulation cotton (303) is embedded inside the heating block (301).
5. The multi-layer thermal press bonding machine as claimed in claim 1, wherein: the laminating machine is characterized in that a laminating pushing machine (401) is arranged inside the laminating area (4), the laminating pushing machine (401) penetrates through the top of the machine table (1), a laminating roller (402) is arranged at the output end of the laminating pushing machine (401), a laminating wheel (403) is arranged at the inner bottom of the laminating area (4), and a reinforcing belt (404) is embedded on the outer side of the laminating wheel (403).
6. The multi-layer thermal press bonding machine as claimed in claim 1, wherein: the internally mounted of cooling district (5) has conveyer belt (501), cooling fan (505) are installed to the top of conveyer belt (501), and cooling fan (505) run through at the top of board (1), and the top of cooling fan (505) is connected with cooling box (502), and the internally mounted of cooling box (502) has water-cooling pipe (503), and the internally mounted of cooling box (502) has refrigeration piece (504), and refrigeration piece (504) are located the below of water-cooling pipe (503).
7. The multi-layer thermal press bonding machine as claimed in claim 1, wherein: receive the top welded mounting of material support (6) and have supporting shoe (601), receive material roller (602) have been placed to the inside of supporting shoe (601), receive the below of material support (6) and install and receive material motor (603), and receive material motor (603) and install the bottom at board (1), receive the output of material motor (603) and install belt (604), and belt (604) and receive material roller (602) and be connected.
