Abstract

The utility model relates to the technical field of cleaning machines, in particular to a rotary cleaning mechanism and a cleaning device, which comprise a workbench, wherein a water collecting basin is arranged at the lower part of the workbench, a water delivery pipe for guiding water is inserted into the lower part of the water collecting basin, supporting legs are detachably arranged at four corners of the lower end surface of the workbench, a supporting plate is arranged among the supporting legs, a first water tank is arranged on the right side of the top end of the supporting plate, and the bottom end of the water delivery pipe extends into the first water tank; the base, the workstation top is located to the base, the wash port that is used for the drainage is seted up to the bottom wall in the base, and the bottom of wash port runs through the workstation, lateral wall detachable is equipped with the motor behind the base, the output of motor extends into in the base, and is equipped with the round bar. The device can be effectual rotate to food and whitewash clean operation, whitewashes more thoroughly, and the cleaning performance is more ideal, has improved cleaning device and to the clear efficiency of food, more accords with actual user demand.

Description

Rotary cleaning mechanism and cleaning device
Technical Field
The utility model relates to the technical field of cleaning machines, in particular to a rotary cleaning mechanism and a cleaning device.
Background
The cleaning machine is used for washing and filtering pollutants generated or invaded by the hydraulic system during manufacturing, assembling, using and maintaining; the device can also be suitable for regular maintenance and filtration of working oil, improves the cleanliness, and avoids or reduces faults caused by pollution, thereby ensuring the high performance, high reliability and long service life of hydraulic system equipment;
the existing food cleaning machine generally realizes cleaning in the following two ways: the first method is to utilize a rotary cleaning basket to form rotary water flow to rinse the food; the second is that water is pumped to a certain height from the bottom of the cleaning barrel by a water pump and then is sprayed out, so that food is sprayed, the cleaning effect of a rotating water flow mode is general, food flows gradually along with waves easily in the cleaning process, the cleaning effect on dirty food is weaker, some improved water flows rise and fall to be leached, but the dispersive flushing force is weak; the latter method is relatively stable and has less wear to the food during cleaning, but because the spray heads of the existing food cleaning machines are all fixed, the places which can not be cleaned or the phenomenon of uneven cleaning can occur in the spray cleaning process, and therefore, the existing cleaning device needs to be improved.
SUMMERY OF THE UTILITY MODEL
In order to solve the problems, the utility model designs a rotary cleaning mechanism and a cleaning device.
In order to achieve the technical purpose and achieve the technical effects, the utility model is realized by the following technical scheme:
the rotary cleaning mechanism and the cleaning device comprise a workbench, wherein a water collecting basin is arranged at the lower part of the workbench, a water conveying pipe for guiding water is inserted into the lower part of the water collecting basin, supporting legs are detachably arranged at four corners of the lower end surface of the workbench, a supporting plate is arranged among the supporting legs, a first water tank is arranged on the right side of the top end of the supporting plate, and the bottom end of the water conveying pipe extends into the first water tank;
the base is arranged at the top end of the workbench, a drain hole for draining water is formed in the inner bottom wall of the base, the bottom end of the drain hole penetrates through the workbench, a motor is detachably arranged on the rear side wall of the base, the output end of the motor extends into the base, a round rod is arranged, the outer wall of the round rod is movably connected with the inner wall of the base through two bearings, and the two bearings are respectively arranged on the front inner wall and the rear inner wall of the base;
the painting mechanism is arranged on the round rod and is used for painting the workpiece;
the cleaning mechanism is arranged at the top ends of the supporting plate and the base and used for cleaning the workpiece.
Preferably, the painting mechanism comprises a cylinder, connecting rods, a scraper and a hairbrush, the cylinder is arranged on the outer wall of the round rod, the outer wall of the cylinder is provided with the connecting rods, and the scraper and the hairbrush are arranged on two sides of the outer wall of each connecting rod respectively.
Preferably, the connecting rods are distributed on the outer wall of the cylinder at intervals of 90 degrees clockwise.
Preferably, the cleaning mechanism comprises a second water tank, a water pump, a water guide pipe, a connecting pipe, a hollow rectangular plate and a sprayer, the left side of the top end of the supporting plate is arranged on the second water tank, the detachable end of the top end of the second water tank is provided with the water pump, the end of the right side of the water pump is provided with one end of the water guide pipe, the other end of the water guide pipe extends into the second water tank, the left side end of the water pump is provided with one end of the connecting pipe, the detachable end of the rectangular plate is arranged on the left side of the top end of the base, the other end of the connecting pipe extends into the rectangular plate, and the right side wall of the rectangular plate is provided with the sprayer.
Preferably, the outer ring of the bearing is fixedly connected with the inner wall of the base through a bearing seat, and the inner ring of the bearing is connected with the outer wall of the round rod in an interference fit manner.
The utility model has the beneficial effects that:
through the water pump with the cleaning solution in the water tank two on through the shower nozzle blowout to the outer wall of food, carry out cleaning operation to food, it is rotatory to make round bar drive scraper blade and brush through the motor, it is rotatory to overturn the operation to food through the scraper blade is rotatory, whitewash the operation to food through the brush rotation, through the cooperation of brush and shower nozzle spun cleaning solution, it whitewashes cleaning operation to rotate to food, the device can effectually carry out rotatory whitewashing cleaning operation to food, whitewash more thoroughly, the cleaning performance is more ideal, carry out comprehensive cleaning operation to food, avoid having clean dead angle, the operation is more simple and convenient, cleaning device is to the clear efficiency of food has been improved, more accord with actual user demand.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

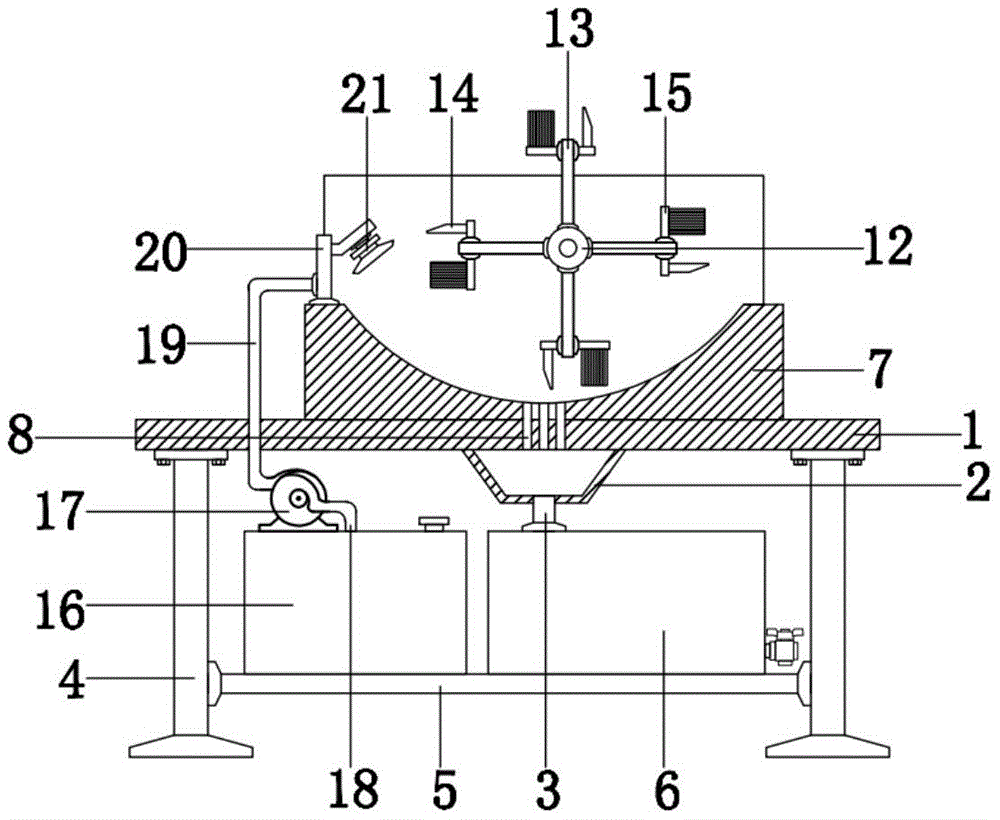

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a right side sectional view of the base of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. the water-saving device comprises a workbench, 2, a water collecting basin, 3, a water conveying pipe, 4, supporting legs, 5, supporting plates, 6, a first water tank, 7, a base, 8, drain holes, 9, a motor, 10, a round rod, 11, a bearing, 12, a cylinder, 13, a connecting rod, 14, a scraper, 15, a brush, 16, a second water tank, 17, a water pump, 18, a water guide pipe, 19, a connecting pipe, 20, a rectangular plate, 21 and a spray head.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-2, the rotary cleaning mechanism and the cleaning device comprise a workbench 1, wherein a water collecting basin 2 is arranged at the lower part of the workbench 1 and used for collecting cleaned cleaning liquid, a water delivery pipe 3 for guiding water is inserted into the lower part of the water collecting basin 2, supporting legs 4 are detachably arranged at four corners of the lower end surface of the workbench 1 and used for supporting the workbench 1, supporting plates 5 are arranged between the supporting legs 4, a water tank I6 is arranged at the right side of the top end of each supporting plate 5, the bottom end of the water delivery pipe 3 extends into the water tank I6, and the cleaned cleaning liquid is recovered; the cleaning liquid cleaning machine comprises a base 7, wherein the base 7 is arranged at the top end of a workbench 1, a drain hole 8 for draining water is formed in the inner bottom wall of the base 7, the bottom end of the drain hole 8 penetrates through the workbench 1, the cleaned cleaning liquid is conveniently drained, a motor 9 is detachably arranged on the rear side wall of the base 7, the output end of the motor 9 extends into the base 7 and is provided with a round rod 10, the outer wall of the round rod 10 is movably connected with the inner wall of the base 7 through two bearings 11, and the two bearings 11 are respectively arranged on the front inner wall and the rear inner wall of the base 7; the painting mechanism is arranged on the round rod 10 and is used for painting the workpiece; the cleaning mechanism is arranged at the top ends of the supporting plate 5 and the base 7 and used for cleaning the workpiece.
Preferably, the painting mechanism comprises a cylinder 12, a connecting rod 13, a scraping plate 14 and a brush 15, the cylinder 12 is arranged on the outer wall of the round rod 10, the connecting rods 13 are arranged on the outer wall of the cylinder 12, the scraping plate 14 and the brush 15 are respectively arranged on two sides of the outer wall of the connecting rod 13, the scraping plate 14 rotates to be in contact with food, food is overturned, and the brush 15 rotates to be in contact with the food, so that the food is painted.
Preferably, the connecting rods 13 are distributed on the outer wall of the cylinder 12 at intervals of 90 degrees clockwise, and the food is continuously turned over and whitewashed through the circumferential rotation motion of the scraping plates 14 and the brushes 15, so that the food is more thoroughly whitewashed.
Preferably, the cleaning mechanism includes two 16 water tanks, water pump 17, aqueduct 18, connecting pipe 19, hollow rectangular plate 20 and shower nozzle 21, two 16 water tanks locate the 5 top left sides in backup pad, two 16 top detachable of water tanks are equipped with water pump 17, water pump 17 right side end is equipped with the one end of aqueduct 18, the other end of aqueduct 18 extends into in two 16 water tanks, water pump 17 left side end is equipped with the one end of connecting pipe 19, 7 top left sides are located to rectangular plate 20 detachable, the other end of connecting pipe 19 extends into rectangular plate 20 in, rectangular plate 20 right side wall is equipped with shower nozzle 21, carry into rectangular plate 20 through aqueduct 18 and connecting pipe 19 with the cleaning solution in two 16 water tanks through water pump 17, and spout to the outer wall of food through shower nozzle 21, clean the operation to food.
Preferably, the outer ring of the bearing 11 is fixedly connected with the inner wall of the base 7 through a bearing seat, the inner ring of the bearing 11 is connected with the outer wall of the round rod 10 in an interference fit manner, the round rod 10 is fixed through the bearing 11, and the round rod 10 is convenient to rotate through the bearing 11.
All the electric parts and components in the present case are universal standard parts or components known by the skilled person, the structure and principle of the electric parts and components can be known by the technical manual or the conventional experimental method, the model and the present scheme can be adapted to operate normally, all the electric parts and the power supply adapted to the electric parts in the present case are connected through a lead, and an appropriate controller is selected according to the actual situation to meet the control requirement, and the specific connection and control sequence are realized.
One specific application of this embodiment is:
when the food brush is used, food is placed in the base 7, cleaning solution in the water tank II 16 is conveyed into the rectangular plate 20 through the water guide pipe 18 and the connecting pipe 19 by the water pump 17 and is sprayed out to the outer wall of the food through the spray head 21 to clean the food, the round rod 10 is driven by the motor 9 to drive the cylinder 12, the connecting rod 13, the scraper 14 and the brush 15 to rotate, the scraper 14 rotates to be in contact with the food to turn over the food, the brush 15 rotates to be in contact with the food to brush the food, the scraper 14 and the brush 15 do circumferential rotation motion to continuously turn over the food and brush the food, the food is thoroughly brushed, the brush 15 is matched with the cleaning solution sprayed out by the spray head 21 to rotationally brush the food, the cleaned cleaning solution is discharged into the water collecting basin 2 through the water discharge hole 8 and is discharged into the water tank I6 through the water delivery pipe 3 to be collected, the rotary painting cleaning operation of the food is completed.
It is to be understood that the above description is not intended to limit the present invention, and the present invention is not limited to the above examples, and those skilled in the art should understand that they can make various changes, modifications, additions and substitutions within the spirit and scope of the present invention.

Claims (5)

1. Rotatory wiper mechanism and belt cleaning device, its characterized in that: comprises that
The water collecting device comprises a workbench (1), wherein a water collecting basin (2) is arranged at the lower part of the workbench (1), a water conveying pipe (3) for guiding water is inserted into the lower part of the water collecting basin (2), supporting legs (4) are detachably arranged at four corners of the lower end surface of the workbench (1), supporting plates (5) are arranged among the supporting legs (4), a first water tank (6) is arranged on the right side of the top end of each supporting plate (5), and the bottom end of the water conveying pipe (3) extends into the first water tank (6);
the water drainage device comprises a base (7), wherein the base (7) is arranged at the top end of a workbench (1), a drain hole (8) for draining water is formed in the inner bottom wall of the base (7), the bottom end of the drain hole (8) penetrates through the workbench (1), a motor (9) is detachably arranged on the rear side wall of the base (7), the output end of the motor (9) extends into the base (7) and is provided with a round rod (10), the outer wall of the round rod (10) is movably connected with the inner wall of the base (7) through two bearings (11), and the two bearings (11) are respectively arranged on the front inner wall and the rear inner wall of the base (7);
the painting mechanism is arranged on the round rod (10) and is used for painting the workpiece;
the cleaning mechanism is arranged at the top ends of the supporting plate (5) and the base (7) and used for cleaning the workpiece.
2. The rotary cleaning mechanism and cleaning device according to claim 1, wherein: whitewash the mechanism and include drum (12), connecting rod (13), scraper blade (14) and brush (15), drum (12) are located on the outer wall of round bar (10), the outer wall of drum (12) is equipped with a plurality of connecting rods (13), the outer wall both sides of connecting rod (13) are equipped with scraper blade (14) and brush (15) respectively.
3. The rotary cleaning mechanism and cleaning device according to claim 2, wherein: the connecting rods (13) are distributed on the outer wall of the cylinder (12) at intervals of 90 degrees clockwise.
4. The rotary cleaning mechanism and cleaning device according to claim 1, wherein: clean mechanism includes water tank two (16), water pump (17), aqueduct (18), connecting pipe (19), hollow rectangular plate (20) and shower nozzle (21), backup pad (5) top left side is located in water tank two (16), water tank two (16) top detachable is equipped with water pump (17), water pump (17) right side end is equipped with the one end of aqueduct (18), the other end of aqueduct (18) extends into in case two (16), water pump (17) left side end is equipped with the one end of connecting pipe (19), base (7) top left side is located to rectangular plate (20) detachable, the other end of connecting pipe (19) extends into rectangular plate (20), rectangular plate (20) right side wall is equipped with shower nozzle (21).
5. The rotary cleaning mechanism and cleaning device according to claim 1, wherein: the outer ring of the bearing (11) is fixedly connected with the inner wall of the base (7) through a bearing seat, and the inner ring of the bearing (11) is connected with the outer wall of the round rod (10) in an interference fit manner.
