Abstract
本实用新型提供一种多功能折叠衣架，包括挂钩，对称设于挂钩底部两侧的撑杆，其特征在于挂钩通过铰轴并列设置前、后两个，每个挂钩与对应的撑杆相连接，每个撑杆至少设为两节伸缩杆，该伸缩杆内端与对应挂钩的底部相连接。可方便地使两撑杆绕铰轴旋转而撑开或者折叠，再通过撑杆的伸缩进一步延长凉晒范围，便于凉晒大小不同的衣服，或者缩短折叠后的长度，方便收纳、携带衣架，不占用空间，使其具有多功能性。
The utility model provides a multifunctional folding clothes hanger, which comprises hooks and struts symmetrically arranged on both sides of the bottom of the hooks. , each strut is set to at least two telescopic rods, and the inner end of the telescopic rod is connected with the bottom of the corresponding hook. The two struts can be easily rotated around the hinge shaft to be stretched or folded, and then the drying range can be further extended through the expansion and contraction of the struts, which is convenient for drying clothes of different sizes, or shortening the folded length, which is convenient for storing and carrying clothes hangers. Does not take up space, making it versatile.
Description
Technical Field
The utility model relates to a clothes hanger, in particular to a multifunctional folding clothes hanger, and belongs to the technical field of design and manufacture of daily necessities.
Background
The clothes rack is one of indispensable articles in daily life of people, and plays an important role in airing clothes. Most of the existing clothes hangers are of fixed structures, are inconvenient to store and carry, are particularly long and are more difficult to store and carry. In case of a person on business trip, the washed clothes cannot be dried, and the storage space for household use is large. There is therefore a need for improvements in the prior art.
Disclosure of Invention
The utility model provides a multifunctional folding clothes hanger, which aims to solve the problem that the existing clothes hanger is difficult to carry and store due to the adoption of a fixed structure.
The utility model is completed by the following technical scheme: the utility model provides a multi-functional folding clothes hanger, including the couple, the vaulting pole of couple bottom both sides is located to the symmetry, its characterized in that couple is through hinge parallel arrangement preceding, back two, every couple is connected with the vaulting pole that corresponds, every vaulting pole is established to two sections telescopic links at least, this telescopic link inner is connected with the bottom that corresponds the couple, so that two vaulting poles strut or folding around the hinge rotation, the flexible further extension of rethread vaulting pole is aired the scope or is shortened the length after folding, be convenient for aired the clothes or accomodate, carry clothes hanger, make it have the multifunctionality.
The shape, size and opening direction of the two hooks arranged in parallel in the front and the back are consistent, and the hinge shaft is horizontally arranged at the joint of the two hooks and the two support rods, so that the support rods at the two sides and the hooks can rotate along the hinge shaft to be combined or unfolded.
The stay bar is at least set into two telescopic links that cup joint each other and form, and this telescopic link inner is connected with the bottom that corresponds the couple to adjust stay bar length through the telescopic link, be convenient for accomodate when contracting and put, be convenient for the clothing sunning when extending.
A plurality of hanging holes are formed in the support rod at intervals and are horizontal through holes, so that the clamp can be connected through the hanging holes and used for airing small clothes.
The opening part of one of the front and the rear hooks arranged in parallel is provided with a barrier strip, the bottom end of the barrier strip is connected with the lower end of the opening of the hook, the top end of the barrier strip is inclined and extends towards the upper side of the outer side and then is connected with the upper end of the opening of the hook and is not connected with the upper end of the opening of the hook, and the barrier strip is an elastic strip so that after the hook is hung on the airing rope, the opening of the hook is blocked by the barrier strip, and the hook is prevented from being blown by wind to be separated from the airing rope.
The contact surfaces of the tops of the front hook and the rear hook which are arranged in parallel are respectively provided with a bulge and a clamping groove which are matched and connected with each other, so that the two hooks can be fixed through the bulges and the clamping grooves after being unfolded or folded, and the support rods on two sides are prevented from rotating along the hinge shaft.
The utility model has the following advantages and effects: adopt above-mentioned scheme, can conveniently make two vaulting poles rotatory and strut or fold around the hinge, the range is shone in the sun to the flexible further extension of rethread vaulting pole, is convenient for the clothes of the difference of sunning size, perhaps shortens the length after folding, conveniently accomodates, carries clothes hanger, and occupation space is not made it have the multifunctionality. Is an ideal clothes rack.
Drawings

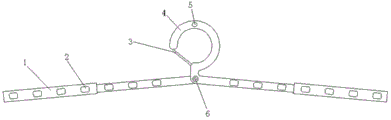

FIG. 1 is a front view of the present invention;
FIG. 2 is a folded view of the present invention.
Detailed Description
The utility model is further described below with reference to the accompanying drawings.
The utility model provides a multifunctional folding clothes hanger, which comprises a hook 4 and support rods 1 symmetrically arranged at two sides of the bottom of the hook 4, wherein the hook 4 is arranged in parallel in a front and a rear direction through a hinge shaft 6, each hook 4 is connected with the corresponding support rod 1, each support rod 1 is provided with two telescopic rods which are mutually sleeved, and the inner ends of the telescopic rods are connected with the bottoms of the corresponding hooks 4; the shape, size and opening direction of the two hooks 4 which are arranged in parallel in front and back are consistent, and the hinge shaft 6 is horizontally arranged at the connecting part of the two hooks 4 and the two support rods 1; a plurality of hanging holes 2 are formed in each support rod 1 at intervals, hanging holes 2 are formed in the side wall of each section of telescopic rod at intervals, and the hanging holes 2 are horizontal through holes; a barrier strip 3 is arranged at the opening of one of the front and the rear hooks 4 which are arranged in parallel, the bottom end of the barrier strip 3 is connected with the lower end of the opening of the hook 4, the top end of the barrier strip 3 is connected with and disconnected with the upper end of the opening of the hook 4 after extending obliquely upwards outwards, and the barrier strip 3 is an elastic strip to prevent the hook 4 from being separated from the rope; the contact surfaces of the tops of the front and the rear hooks 4 which are arranged in parallel are respectively provided with a bulge 5 and a clamping groove 7 which are matched and connected with each other, so that the two hooks 4 can be fixed through the bulge 5 and the clamping groove 7 after being unfolded or folded.
Claims (6)
1. A multifunctional folding clothes hanger comprises a hook and support rods symmetrically arranged on two sides of the bottom of the hook, and is characterized in that the hook is arranged in a front mode and a rear mode in parallel through a hinge shaft, each hook is connected with the corresponding support rod, each support rod is at least provided with two telescopic rods, and the inner ends of the telescopic rods are connected with the bottoms of the corresponding hooks.
2. The multifunctional foldable clothes hanger according to claim 1, wherein the shape, size and opening direction of the two hooks arranged in parallel in front and back are the same, and the hinge shaft is horizontally arranged at the connection position of the two hooks and the two support rods.
3. The multifunctional foldable clothes hanger according to claim 1, wherein the stay bar is at least two telescopic bars sleeved with each other, and the inner ends of the telescopic bars are connected with the bottoms of the corresponding hooks.
4. The multifunctional foldable clothes hanger of claim 1, wherein the stay bar is provided with a plurality of hanging holes at intervals, and the hanging holes are provided as horizontal through holes.
5. The multifunctional foldable clothes hanger according to claim 1, wherein a blocking strip is provided at the opening of one of the front and rear hooks, the blocking strip is connected to the lower end of the opening of the hook at the bottom end, and is connected to and disconnected from the upper end of the opening of the hook after the top end of the blocking strip is inclined and extended upward and outward, and the blocking strip is an elastic strip.
6. The multifunctional foldable clothes hanger according to claim 1, wherein the contact surfaces of the tops of the front and rear hooks arranged side by side are respectively provided with a protrusion and a slot which are matched with each other.
