CN215532554U

CN215532554U - A graphic design aid

Info

Publication number: CN215532554U
Application number: CN202122004612.6U
Authority: CN
Inventors: 温朝一
Original assignee: Lanzhou University of Technology
Current assignee: Lanzhou University of Technology
Priority date: 2021-08-24
Filing date: 2021-08-24
Publication date: 2022-01-18
Anticipated expiration: 2031-08-24

Abstract

The utility model discloses an auxiliary equipment for plane design, which relates to the technical field of auxiliary plane design. The groove, the regulating groove is I-shaped, a functional sleeve is arranged between the two regulating grooves, and both ends of the functional sleeve are interspersed with functional ejector rods which are matched with the regulating groove. The device can realize the storage of graphic design drawing boards and drawings, so that the device not only has the auxiliary effect of design, but also assists the user to carry and protect the design tools. In addition, while taking into account the storage and protection of the device, the device utilizes a flexible structure. , the structure used for storage and protection, such as functional racks, adjustment plates, functional sleeves, etc., can also be adjusted together, so that the equipment can also provide an adjustable support structure and a support plane that is easy to design, and adapt to different needs. Adjust to a suitable angle for the user.

Description

Planar design auxiliary assembly

Technical Field

The utility model relates to the technical field of plane design assistance, in particular to plane design assistance equipment.

Background

The flat design is also called visual transmission design, which is a communication and expression mode by 'vision', and creates and combines symbols, pictures and characters through a plurality of modes, thereby making the visual expression for transmitting ideas or messages, and when the flat design is carried out, a relatively stable working environment is often required to be established through auxiliary devices.

When the existing plane design works, the desktop is required to be flat normally, the desktop is in a stable state, the desk is frequently used and has a fall, so that the desk is uneven, the plane design is not limited to indoor or fixed design positions, a design tool is required to be carried for investigation or field design, a single drawing board or drawing paper does not utilize the operation of the plane design, the working difficulty is increased, the finished quality is difficult to control, the carrying is also very inconvenient, a supporting structure and a supporting plane need to be searched, and the implementation of auxiliary design is realized.

SUMMERY OF THE UTILITY MODEL

The utility model provides a planar design auxiliary device, which solves the technical problem of the planar design auxiliary device.

In order to solve the technical problem, the plane design auxiliary equipment provided by the utility model comprises a function frame, wherein adjusting plates matched with the function frame are arranged on two sides of the function frame, adjusting grooves are formed in the side walls, close to one side of the function frame, of the adjusting plates, the adjusting grooves are I-shaped, a function sleeve is arranged between every two adjusting grooves, and function ejector rods matched with the adjusting grooves are arranged at two ends of the function sleeve in an inserted mode.

Furthermore, the adjusting plate is of an I-shaped structure, a middle shaft rotating rod is arranged between the bottom of the adjusting plate and the bottom of the function frame, the cross section of the middle shaft rotating rod is an equilateral hexagon, and the middle shaft rotating rod penetrates through the adjusting plate and is inserted into the bottom of the function frame.

Furthermore, a plurality of spring contraction rods are arranged between the adjusting plate and the function frame, and the spring contraction rods are in threaded connection with the adjusting plate through threaded sleeves.

Furthermore, one side symmetry of function cover outer wall is equipped with the function mount, the top interlude of regulation and control groove be equipped with a plurality of with function ejector pin matched with adjusting screw.

Further, the function frame is the U-shaped structure, the inside of function frame diapire be equipped with function cover matched with roof, the bottom of roof is equipped with a plurality of evenly distributed's function spring, the avris department of roof is equipped with rather than matched with rubber strip.

Further, the top of function frame both sides wall has all seted up the function groove, the top in function groove is equipped with a plurality of restriction boards, the inside interlude of restriction board be equipped with function groove threaded connection's fixed pin.

Compared with the related art, the plane design auxiliary equipment provided by the utility model has the following beneficial effects: equipment can realize accomodating to graphic design drawing board and drawing, let equipment not only have the supplementary effect of design, can also the assistant user carry and protect the designing tool, furthermore, equipment is when taking into account to accomodate the protection, the nimble structure of equipment utilization, can also be used for accomodating the structure of protection, such as function frame, the regulating plate, function cover etc. cooperate the adjustment, let equipment can also provide a bearing structure that can regulate and control and the bearing plane of being convenient for design, and adjust to the suitable angle of user according to the demand adaptability of difference, thereby the going on of better auxiliary design operation, and then let equipment more practical.

Drawings

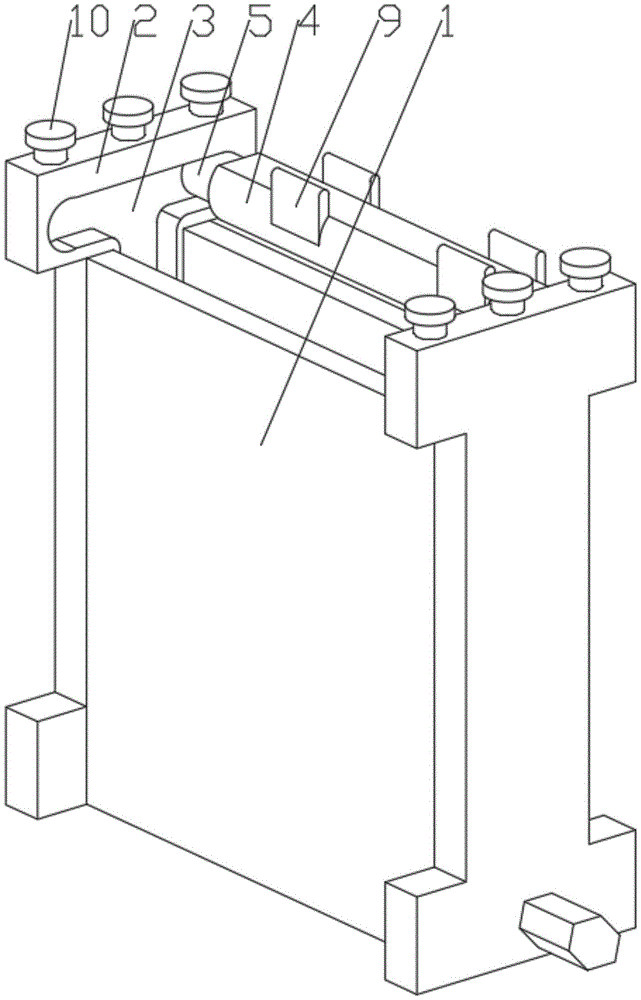

FIG. 1 is a schematic structural view of a floor plan auxiliary apparatus;

FIG. 2 is a schematic view showing a structure of an adjustment plate of the flat design assistance apparatus;

FIG. 3 is a schematic structural view of a functional sleeve of the floor standing accessory;

FIG. 4 is a schematic structural view of a functional tank of the flat design auxiliary device;

fig. 5 is a structural view of a functional spring and a top plate of the flat design assistance apparatus.

Reference numbers in the figures: 1. the functional frame, 2, regulating plate, 3, regulating groove, 4, functional sleeve, 5, functional ejector rod, 6, middle shaft rotating rod, 7, spring contraction rod, 8, thread sleeve, 9, functional fixing frame, 10, regulating screw, 11, functional spring, 12, functional groove, 13, limiting plate, 14, fixing pin, 15, top plate, 16 and rubber strip.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments; all other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the first embodiment, the first step is,

as shown in fig. 1-2, the utility model comprises a function frame 1, wherein both sides of the function frame 1 are respectively provided with an adjusting plate 2 matched with the function frame, the adjusting plate 2 is provided with an adjusting groove 3 near the side wall of one side of the function frame 1, the adjusting groove 3 is in an i shape, a function sleeve 4 is arranged between every two adjusting grooves 3, both ends of the function sleeve 4 are respectively inserted with a function ejector rod 5 matched with the adjusting groove 3, the adjusting plate 2 is in an i-shaped structure, a center shaft rotating rod 6 is arranged between the bottom of the adjusting plate 2 and the bottom of the function frame 1, the cross section of the center shaft rotating rod 6 is in an equilateral hexagon shape, the center shaft rotating rod 6 penetrates through the adjusting plate 2 and is inserted at the bottom of the function frame 1, a plurality of spring contraction rods 7 are arranged between the adjusting plate 2 and the function frame 1, and the spring contraction rods 7 are in threaded connection with the adjusting plate 2 through thread sleeves 8, from the design of counting up, the thread bush 8 is fixed in regulating plate 2, when using, can select to connect different positions and spring shrink pole 7 of quantity that varies through the thread bush 8, so, can control two regulating plate 2's shrinkage intensity, adjust the clamp force, and provide a structure that can dismantle, in addition, when the equilateral hexagon structure of axis bull stick 6 can let regulating plate 2 regard as bearing structure, have regular regulatory function and anti-skidding function.

In the second embodiment, the first embodiment of the method,

as shown in fig. 3-5, on the basis of the first embodiment, a function fixing frame 9 is symmetrically arranged on one side of the outer wall of the function sleeve 4, a plurality of adjusting screws 10 matched with the function mandril 5 are inserted into the top end of the adjusting and controlling groove 3, the function frame 1 is of a U-shaped structure, a top plate 15 matched with the function sleeve 4 is arranged inside the bottom wall of the function frame 1, a plurality of uniformly distributed function springs 11 are arranged at the bottom end of the top plate 15, rubber strips 16 matched with the top plate 15 are arranged at the side of the top plate 15, function grooves 12 are arranged at the top of the two side walls of the function frame 1, a plurality of limiting plates 13 are arranged at the top end of the function grooves 12, fixing pins 14 connected with the function grooves 12 in a threaded manner are inserted into the limiting plates 13, and the existence of the function springs 11 and the top plate 15 can be more conveniently stored and taken out by users in the function frame 1, let equipment use more convenient, fixed pin 14 then can be to function ejector pin 5 when adjusting in regulation and control groove 3, carry out position restriction to it, let equipment adjustment back, can have more comprehensive, stable fixed.

The working principle is as follows: when the portable multifunctional drawing board is normally carried, a planar design drawing board, a planar design drawing, a draft and the like can be placed in a groove in the functional frame 1 through the U-shaped structure of the functional frame 1, if the width of the planar design drawing board is larger than that of the functional frame 1, because the adjusting plates 2 on two sides can be contracted through the spring contraction rods 7, the planar design drawing board, the planar design drawing and the draft can be pulled to the width distance which can be placed in, then two sides can be fixed under the action of spring contraction pulling, meanwhile, because the spring contraction rods 7 are connected and fixed with the adjusting plates 2 through the thread sleeves 8, the adjusting plates 2 on two sides or one side can be detached according to different requirements to meet different requirements, when design drawing is carried out, the drawing board or the drawing board can be directly placed on the outer side wall of the functional frame 1, the functional frame 1 is used for supporting structures and planes, and the limiting plates 13 at the functional groove 12 of the functional frame 1 can also be screwed, the drawing board is easily jacked up through the functional spring 11 and the top plate 15, then the drawing board is taken out for fast creation, in order to avoid the situation that the supporting condition is insufficient in the design process, the drawing board can be inserted into the functional fixing frame 9 on the side wall of the functional sleeve 4, the functional sleeve 4 is moved to the upper part of the functional frame 1 through the functional ejector rod 5 in the regulating and controlling groove 3, at the moment, the functional sleeve 4 can rotate by matching with the functional ejector rod 5, so that the drawing board and the functional frame 1 can form an angle for mutual supporting, the drawing board is prevented from slipping by the functional fixing frame 9 and the angle range capable of mutual supporting is ensured, the drawing board can be mutually supported with the functional frame in an angle in a larger range, an operator can more select the use angle desired by himself, in addition, because the bottom of the adjusting plate 2 is provided with the middle shaft rotating rod 6 connected with the functional frame 1, and the middle shaft rotating rod 6 is of a hexagonal column structure, the adjusting plates 2 on the two sides can be rotated to form different angles with the function frame 1 after being separated from the spring contraction rod 7, so that the adjusting plates 2 can be utilized to form a supporting structure to form matching support of different angles for the function frame 1, a designer has more use angles, and better auxiliary design and use are achieved.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A floor-planning assistance device comprising a functional rack (1), characterized in that: the both sides of function frame (1) all are equipped with rather than matched with regulating plate (2), regulating plate (2) are close to regulation and control groove (3) have been seted up to function frame (1) one side lateral wall, regulation and control groove (3) are the I-shaped, two liang be equipped with function cover (4) between regulation and control groove (3), the both ends of function cover (4) all alternate be equipped with regulation and control groove (3) matched with function ejector pin (5).

2. The planar design auxiliary equipment according to claim 1, wherein the adjusting plate (2) is of an I-shaped structure, a central shaft rotating rod (6) is arranged between the bottom of the adjusting plate (2) and the bottom of the functional frame (1), the cross section of the central shaft rotating rod (6) is an equilateral hexagon, and the central shaft rotating rod (6) penetrates through the adjusting plate (2) and is inserted into the bottom of the functional frame (1).

3. A floor planning assistance device according to claim 1, characterised in that a plurality of spring retraction rods (7) are provided between the adjustment plate (2) and the functional frame (1), and the spring retraction rods (7) are in threaded connection with the adjustment plate (2) by means of threaded sleeves (8).

4. The planar design auxiliary equipment as claimed in claim 1, wherein one side of the outer wall of the functional sleeve (4) is symmetrically provided with a functional fixing frame (9), and the top end of the regulating and controlling groove (3) is inserted with a plurality of adjusting screws (10) matched with the functional mandril (5).

5. A floor design auxiliary device according to claim 1, characterized in that the functional frame (1) is a U-shaped structure, a top plate (15) matched with the functional sleeve (4) is arranged inside the bottom wall of the functional frame (1), a plurality of uniformly distributed functional springs (11) are arranged at the bottom end of the top plate (15), and a rubber strip (16) matched with the top plate is arranged at the side of the top plate (15).

6. The planar design auxiliary equipment is characterized in that the top parts of two side walls of the functional frame (1) are respectively provided with a functional groove (12), the top end of the functional groove (12) is provided with a plurality of limiting plates (13), and fixing pins (14) which are in threaded connection with the functional groove (12) are inserted into the limiting plates (13).
