Abstract
The utility model relates to a medical orthopedic instrument disinfection device, which comprises a disinfection box and a support frame, wherein the support frame is arranged at the bottom of the disinfection box, a fixed frame is arranged in the disinfection box, the top of the fixed frame is connected with a placing basket through a slide rail, the bottom of the placing basket is connected with a rotating motor through a rotating shaft, the rotating motor is arranged on the fixed frame, the inner wall of the disinfection box is provided with a cleaning pipe, a spray nozzle is arranged on the cleaning pipe, the disinfection pipe is arranged below the cleaning pipe, the top of the disinfection box is provided with a sealing cover, the top of the sealing cover is provided with a steam connecting port, the two sides of the steam connecting port are symmetrically provided with an air inlet and an air outlet valve, one side of the disinfection box is movably connected with the sealing cover through a movable frame, the bottom of the disinfection box is respectively connected with a waste water box and a waste disinfectant box through a shunt valve, the structure is simple, the design is reasonable, different disinfection modes can be adopted according to different instruments, so that the requirement of instrument disinfection is met.
Description
Technical Field
The utility model relates to a medical orthopedic instrument disinfection device, and belongs to the technical field of medical instruments.
Background
Orthopedics is one of the most important departments of a hospital, common orthopedic diseases mainly include scapulohumeral periarthritis, cervical spondylosis, lumbar disc herniation, tendonitis, arthritis, synovitis, joint dislocation, fracture and the like, when the diseases are serious, the diseases can be treated generally by performing an operation, and the orthopedic disease operations are completed through surgical instruments, so that the instrument disinfection device is very large in orthopedic disease operations, the surgical instruments are divided into a plurality of types, the required disinfection modes are different, a plurality of disinfection devices in different modes are required for disinfection, a plurality of disinfection devices in different modes are required, space is occupied, the operation is troublesome, and the generated waste water and waste disinfectant are also required to be temporarily treated and stored, so that pollution is avoided.
SUMMERY OF THE UTILITY MODEL
The technical problem to be solved by the utility model is to overcome the existing defects, and provide a medical orthopedic instrument disinfection device, which can support instruments by arranging a placing basket, then wash the instruments by spraying water through a spray head, ensure the comprehensive cleaning of the instruments by rotating the placing basket, disinfect the instruments in different modes by arranging a disinfection pipe and a steam connector, thereby meeting the disinfection requirements of different instruments and avoiding the damage of the instruments.
In order to solve the technical problems, the utility model provides the following technical scheme:
the utility model provides a medical science is apparatus degassing unit for orthopedics, includes disinfect box and support frame, just the support frame is installed in the disinfect box bottom, install the mount in the disinfect box, there is the basket through sliding rail connection at the mount top, it is connected with the rotating electrical machines through the pivot to place the basket bottom, just the rotating electrical machines is installed on the mount, the disinfect box inner wall is provided with the scavenge pipe, install the shower nozzle on the scavenge pipe, the scavenge pipe is installed to the scavenge pipe below, the disinfect box top is provided with sealed lid, sealed lid top is provided with the steam connector, steam connector bilateral symmetry is provided with air intake and air outlet valve, through adjustable shelf swing joint between disinfect box one side and the sealed lid, the disinfect box bottom is connected with waste water tank and useless disinfectant box respectively through the flow divider valve.
Further, a sealing cover is installed on the outer side of the rotating motor, and the sealing cover is fixedly installed on the fixing frame.
Further, the spray heads are installed inside the cleaning pipe, and all face the position where the basket is placed.
Further, install drying blower in the air inlet, the drying blower outside is provided with the sterilization net, the sterilization net outside is provided with the dust screen.
Further, the adjustable shelf includes the dead lever, the movable rod is installed through the pivot in dead lever top, just movable rod one end fixed mounting is at the sealing cap top, movable mounting has hydraulic telescoping rod between dead lever one side and the movable rod.
Furthermore, a filtering tank is arranged in the waste water tank and the waste disinfectant tank, a storage cavity is formed in the bottom of the filtering tank, and ultraviolet disinfection lamps are symmetrically arranged on the top of the storage cavity.
The utility model has the beneficial effects that:
1. the placing basket is arranged, so that the instruments can be supported, then the instruments are cleaned by spraying water through the spray head, and the instruments are comprehensively cleaned by the rotation of the placing basket;
2. through the arrangement of the disinfection pipe and the steam connecting port, instruments can be disinfected in different modes, so that the disinfection requirements of different instruments are met, and the damage of the instruments is avoided;
3. through setting up waste water case and useless antiseptic solution case, can separately store the waste water that washs the production, the useless antiseptic solution that the disinfection produced, conveniently handle, can filter and disinfect waste water and useless antiseptic solution simultaneously, avoid producing the pollution.
Drawings
The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model and not to limit the utility model.

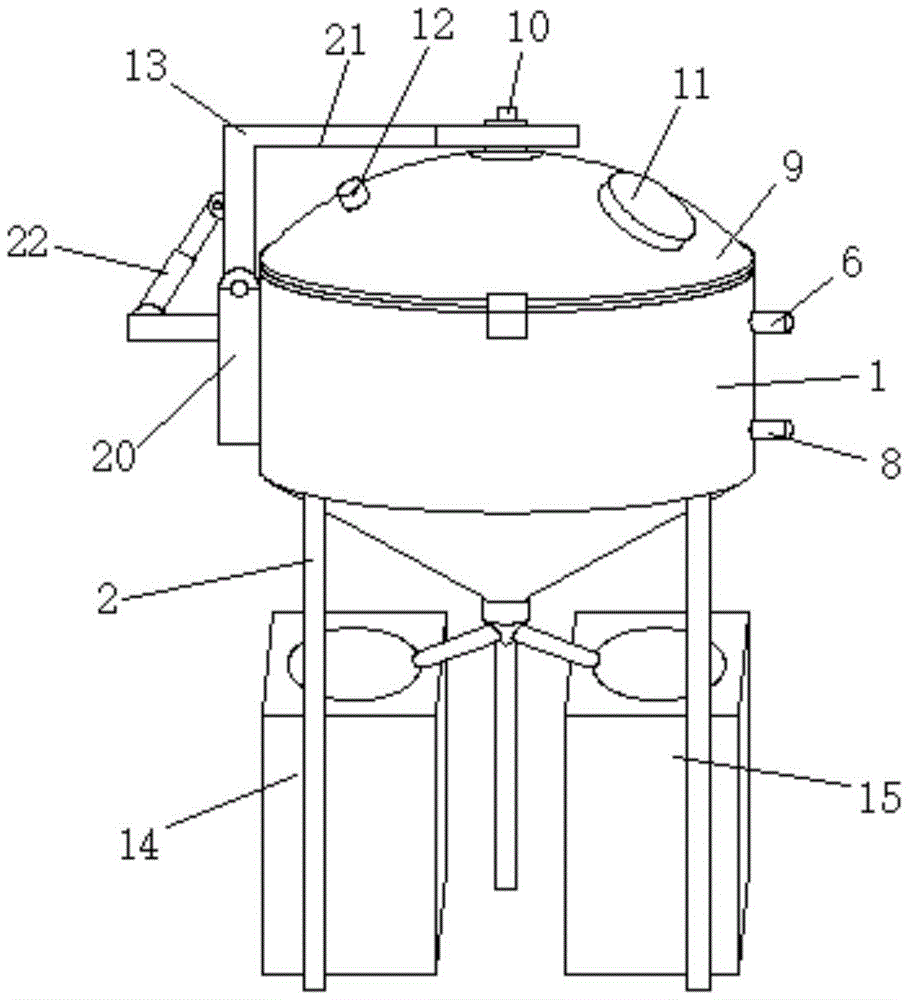

FIG. 1 is a schematic structural diagram of an instrument disinfection device for medical orthopedics department.
FIG. 2 is a structural diagram of a disinfection box of the medical orthopedic instrument disinfection device.
Fig. 3 is a structure diagram of an air inlet of the medical orthopedic instrument disinfection device.
FIG. 4 is a structural view of a waste disinfectant tank of the medical orthopedic instrument disinfecting device according to the present invention.
Reference numbers in the figures: 1. a sterilizing box; 2. a support frame; 3. a fixed mount; 4. placing a basket; 5. a rotating electric machine; 6. cleaning the tube; 7. a spray head; 8. sterilizing the tube; 9. a sealing cover; 10. a steam connection port; 11. an air inlet; 12. an air outlet valve; 13. a movable frame; 14. a wastewater tank; 15. a waste disinfectant tank; 16. a sealing cover; 17. a drying fan; 18. sterilizing the net; 19. a dust screen; 20. fixing the rod; 21. a movable rod; 22. a hydraulic telescopic rod; 23. a filter tank; 24. a storage chamber; 25. an ultraviolet disinfection lamp.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are described herein for the purpose of illustration and explanation and not limitation.
As shown in fig. 1-4, an apparatus disinfection device for medical orthopedics comprises a disinfection box 1 and a support frame 2, wherein the support frame 2 is installed at the bottom of the disinfection box 1, a fixed frame 3 is installed in the disinfection box 1, the top of the fixed frame 3 is connected with a placing basket 4 through a sliding rail, the apparatus can be supported, then the apparatus can be cleaned by spraying water through a spray nozzle 7, and the apparatus can be cleaned by rotating the placing basket 4, the bottom of the placing basket 4 is connected with a rotating motor 5 through a rotating shaft, the rotating motor 5 is installed on the fixed frame 3, the inner wall of the disinfection box 1 is provided with a cleaning pipe 6, the cleaning pipe 6 is provided with the spray nozzle 7, a disinfection pipe 8 is installed below the cleaning pipe 6, the top of the disinfection box 1 is provided with a sealing cover 9, the top of the sealing cover 9 is provided with a steam connecting port 10, and the apparatus can be disinfected in different ways, thereby satisfy the disinfection needs of different apparatus, avoid the apparatus to damage, steam connector 10 bilateral symmetry is provided with air intake 11 and air outlet valve 12, through adjustable shelf 13 swing joint between 1 one side of disinfect box and the sealed lid 9, 1 bottom of disinfect box is connected with waste water tank 14 and useless disinfectant case 15 respectively through the flow divider, can separately store the waste water that washs the production, the useless antiseptic solution that the disinfection produced, conveniently handles, can filter waste water and useless antiseptic solution simultaneously and disinfect, avoids producing the pollution.
As shown in fig. 1, the movable frame 13 includes a fixed rod 20, a movable rod 21 is installed at the top of the fixed rod 20 through a rotating shaft, one end of the movable rod 21 is fixedly installed at the top of the sealing cover 9, a hydraulic telescopic rod 22 is movably installed between one side of the fixed rod 20 and the movable rod, the sealing cover 9 is conveniently supported, and a fixing buckle is further arranged between the sealing cover 9 and the outer side of the sterilizing box 1.
As shown in fig. 2, a sealing cover 16 is installed outside the rotating electrical machine 5, and the sealing cover 16 is fixedly installed on the fixing frame 3, so that the rotating electrical machine 5 can be protected in a sealing manner, damage to the rotating electrical machine 5 caused by water, disinfectant or steam is avoided, the spray head 7 is installed inside the cleaning pipe 6, and the spray head 7 faces the position of the placing basket 4.
As shown in fig. 3, a drying fan 17 is installed in the air inlet 11, a sterilization net 18 is arranged outside the drying fan 17, and a dust screen 19 is arranged outside the sterilization net 18, so that the instruments can be conveniently dried after cleaning or disinfection, and the cleanness of the entering air can be ensured.
As shown in fig. 4, a filtering tank 23 is arranged in the waste water tank 14 and the waste disinfectant tank 15, a storage cavity 24 is arranged at the bottom of the filtering tank 23, and ultraviolet disinfection lamps 25 are symmetrically arranged at the top of the storage cavity 24, so that the waste water tank 14 and the waste disinfectant tank 15 can be disinfected.
The working principle of the utility model is as follows: during the use, place surgical instruments in placing basket 4, then cover sealed lid 9, open rotating electrical machines 5, it is rotatory to drive and place basket 4, surgical instruments washs placing basket 4 through shower nozzle 7 water spray, then the water after the washing gets into waste water tank 14 through the flow divider and filters the back storage, according to surgical instruments's disinfection requirement, carry out antiseptic solution soaking disinfection or disinfection steam high temperature disinfection to surgical instruments, carry out quick drying to surgical instruments through drying blower 17 after the disinfection is accomplished, conveniently use.
The above embodiments are preferred embodiments of the present invention, and those skilled in the art can make variations and modifications to the above embodiments, therefore, the present invention is not limited to the above embodiments, and any obvious improvements, substitutions or modifications made by those skilled in the art based on the present invention are within the protection scope of the present invention.
Claims (6)
1. The utility model provides a medical science is apparatus degassing unit for orthopedics, includes disinfect box (1) and support frame (2), just install in disinfect box (1) bottom support frame (2), its characterized in that: a fixed frame (3) is arranged in the sterilizing box (1), the top of the fixed frame (3) is connected with a placing basket (4) through a sliding rail, the bottom of the placing basket (4) is connected with a rotating motor (5) through a rotating shaft, the rotating motor (5) is arranged on the fixed frame (3), the inner wall of the disinfection box (1) is provided with a cleaning pipe (6), a spray head (7) is arranged on the cleaning pipe (6), a disinfection pipe (8) is arranged below the cleaning pipe (6), the top of the sterilizing box (1) is provided with a sealing cover (9), the top of the sealing cover (9) is provided with a steam connecting port (10), an air inlet (11) and an air outlet valve (12) are symmetrically arranged on two sides of the steam connecting port (10), one side of the disinfection box (1) is movably connected with the sealing cover (9) through a movable frame (13), the bottom of the disinfection box (1) is respectively connected with a waste water box (14) and a waste disinfectant box (15) through a shunt valve.
2. The medical orthopedic instrument disinfecting device according to claim 1, wherein: a sealing cover (16) is installed on the outer side of the rotating motor (5), and the sealing cover (16) is fixedly installed on the fixing frame (3).
3. The medical orthopedic instrument disinfecting device according to claim 1, wherein: the spray heads (7) are arranged on the inner side of the cleaning pipe (6), and the spray heads (7) face the position where the basket (4) is placed.
4. The medical orthopedic instrument disinfecting device according to claim 1, wherein: install drying blower (17) in air intake (11), drying blower (17) outside is provided with sterilization net (18), sterilization net (18) outside is provided with dust screen (19).
5. The medical orthopedic instrument disinfecting device according to claim 1, wherein: the adjustable shelf (13) comprises a fixed rod (20), a movable rod (21) is installed at the top of the fixed rod (20) through a rotating shaft, one end of the movable rod (21) is fixedly installed at the top of the sealing cover (9), and a hydraulic telescopic rod (22) is movably installed between one side of the fixed rod (20) and the movable rod.
6. The medical orthopedic instrument disinfecting device according to claim 1, wherein: be provided with filter tank (23) in waste water case (14) and useless disinfectant box (15), filter tank (23) bottom is provided with deposits chamber (24), it is provided with ultraviolet ray disinfection lamp (25) to deposit chamber (24) top symmetry.
