Abstract
本实用新型涉及发动机设备加工的技术领域，特别是涉及一种发动机水箱端盖弯折装置，包括底座，底座上安装有工作台，工作台的中间由上至下开设有升降腔，升降腔中活动设置有弯折机构，弯折机构包括弯折板块与辅助弯折板，辅助弯折板活动设置在弯折板块中。本实用新型通过将端盖放置在存放腔中，通过控制定位板的升降，即可对端盖进行限位固定，进而可避免在加工过程中，由于对端盖的固定导致弯折不精准；通过控制弯折机构的升降，进而可对放置在存放腔中的端盖进行弯折，同时可通过调节弯折机构内部的辅助弯折板，使得辅助弯折板可突出，对需要弯折的端盖进行轻微的弯折，便于根据实际情况对端盖进行弯折加工，实用性高。
The utility model relates to the technical field of engine equipment processing, in particular to an engine water tank end cover bending device, comprising a base, a workbench is mounted on the base, a lifting cavity is opened in the middle of the workbench from top to bottom, and the lifting cavity is A bending mechanism is movably arranged, the bending mechanism includes a bending plate and an auxiliary bending plate, and the auxiliary bending plate is movably arranged in the bending plate. By placing the end cover in the storage cavity, the utility model can limit and fix the end cover by controlling the lifting and lowering of the positioning plate, thereby avoiding inaccurate bending caused by the fixing of the end cover during the processing; By controlling the lifting and lowering of the bending mechanism, the end cover placed in the storage cavity can be bent, and at the same time, the auxiliary bending plate inside the bending mechanism can be adjusted so that the auxiliary bending plate can protrude. The end cover is slightly bent, which is convenient for bending the end cover according to the actual situation, and has high practicability.
Description
Technical Field
The utility model relates to the technical field of engine equipment processing, in particular to an engine water tank end cover bending device.
Background
The water tank is an important component of the water-cooled engine, and is an important component of a heat dissipation loop of the water-cooled engine, the water tank can absorb heat of a cylinder block, the engine is prevented from overheating, the specific heat capacity of water is large, the temperature is not increased much after the heat of the cylinder block is absorbed, so the heat of the engine passes through a liquid loop of cooling water, the water is used as a heat carrier for heat conduction, and then the heat is dissipated in a convection mode through a large-area heat dissipation fin so as to maintain the proper working temperature of the engine. And the end cover of the water tank is a carrier for protecting the water tank.
The water tank end cover is after plasticity, need buckle the fine setting to the end cover, and the device of buckling of current water tank end cover is not convenient for carry out spacing fixed to the end cover in-service use, leads to buckling the end cover and must be accurate inadequately, and can not buckle slightly to it according to actual demand, has certain limitation.
SUMMERY OF THE UTILITY MODEL
Aiming at the defects in the prior art, the bending device for the end cover of the water tank of the engine, provided by the utility model, can effectively limit and fix the end cover in the process of bending the end cover, so that the problem of inaccurate end cover bending is avoided; and can slightly buckle the end cover according to actual demand, the practicality is high.
In order to solve the technical problems, the utility model provides the following technical scheme:
a bending device for an end cover of an engine water tank comprises a base, wherein a workbench is arranged on the base, a lifting cavity is formed in the middle of the workbench from top to bottom, a bending mechanism is movably arranged in the lifting cavity and comprises a bending plate block and an auxiliary bending plate, and the auxiliary bending plate is movably arranged in the bending plate block; the worktable is provided with a storage cavity, the storage cavity is perpendicular to the lifting cavity, and a positioning plate is movably arranged in the storage cavity.
Further, install the support on the workstation, install the pneumatic cylinder on the support, install first telescopic link on the pneumatic cylinder, the output of first telescopic link with bending mechanism rigid coupling.
Furthermore, a second telescopic rod is fixedly installed inside the bent plate, a sliding plate is fixedly connected to the output end of the second telescopic rod, the sliding plate is slidably arranged on the inner wall of the bent plate, and the sliding plate is fixedly connected with the auxiliary bent plate.
Furthermore, the bottom ends of the bending plate block and the auxiliary bending plate are both arc-shaped, and the bottom end of the auxiliary bending plate can coincide with the bottom end of the bending plate block.
Furthermore, a plurality of cavities are formed in the workbench, a third telescopic rod is installed in each cavity, and the output end of each third telescopic rod is fixedly connected with the positioning plate.
Furthermore, the bottom end of the storage cavity is provided with an anti-skid pad.
According to the technical scheme, the utility model has the beneficial effects that:
the end cover is placed in the storage cavity, and the end cover can be limited and fixed by controlling the lifting of the positioning plate, so that the problem that the end cover is not accurately bent due to the fixation in the machining process can be avoided; through the lift of control bending mechanism, and then can buckle placing the end cover of depositing in the chamber, the inside supplementary bent plate of bending mechanism is adjusted to the accessible simultaneously for supplementary bent plate can be outstanding, and then the supplementary bent plate of accessible carries out slight the buckling to the end cover that needs buckle, is convenient for buckle the processing according to actual conditions to the end cover, and the practicality is high.
Drawings
In order to more clearly illustrate the detailed description of the utility model or the technical solutions in the prior art, the drawings that are needed in the detailed description of the utility model or the prior art will be briefly described below. Throughout the drawings, like elements or portions are generally identified by like reference numerals. In the drawings, elements or portions are not necessarily drawn to scale.
FIG. 1 is a schematic view of the overall structure of the present invention;

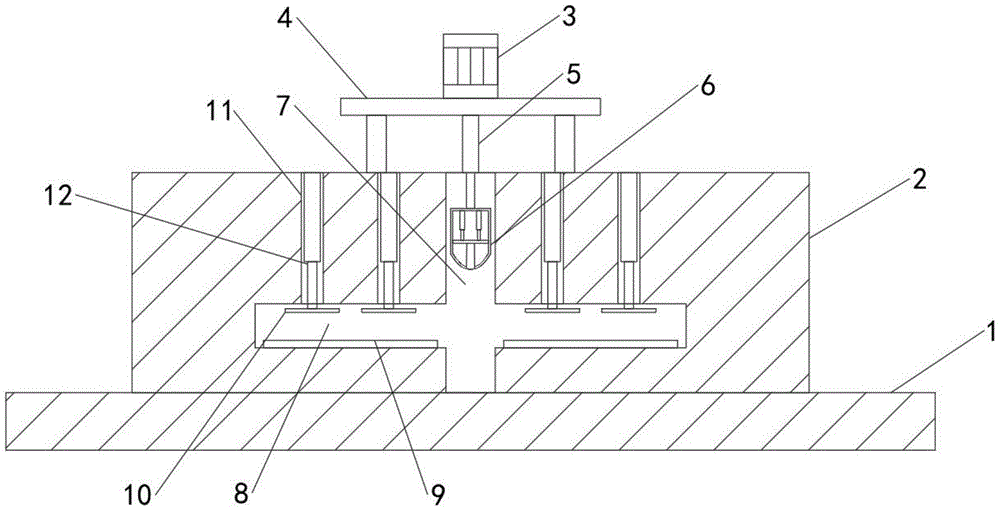

FIG. 2 is an overall cross-sectional view of the present invention;
FIG. 3 is a cross-sectional view of the bending mechanism of the present invention.
Reference numerals:
1-base, 2-workbench, 3-hydraulic cylinder, 4-bracket, 5-first telescopic rod, 6-bending mechanism, 601-bending plate, 602-sliding plate, 603-auxiliary bending plate, 604-second telescopic rod, 7-lifting cavity, 8-storage cavity, 9-non-slip mat, 10-positioning plate, 11-cavity and 12-third telescopic rod.
Detailed Description
Embodiments of the present invention will be described in detail below with reference to the accompanying drawings. The following examples are only for illustrating the technical solutions of the present invention more clearly, and therefore are only examples, and the protection scope of the present invention is not limited thereby.
Referring to FIGS. 1-3: an engine water tank end cover bending device comprises a base 1, wherein a workbench 2 is mounted on the base 1, a lifting cavity 7 is formed in the middle of the workbench 2 from top to bottom, a bending mechanism 6 is movably arranged in the lifting cavity 7, the bending mechanism 6 comprises a bending plate 601 and an auxiliary bending plate 603, and the auxiliary bending plate 603 is movably arranged in the bending plate 601; the worktable 2 is provided with a storage cavity 8, the storage cavity 8 is perpendicular to the lifting cavity 7, and a positioning plate 10 is movably arranged in the storage cavity 8.
In practical use, the end cover is placed in the storage cavity 8, and the end cover can be limited and fixed by controlling the lifting of the positioning plate 10, so that the problem that the end cover is not accurately bent due to the fixation in the machining process can be avoided; through the lift of control bending mechanism 6, and then can buckle placing the end cover in depositing chamber 8, the inside supplementary bent plate 603 of bending mechanism 6 is adjusted to the accessible simultaneously for supplementary bent plate 603 can be outstanding, and then supplementary bent plate 603 of accessible carries out slight the buckling to the end cover that needs buckle, is convenient for buckle the processing to the end cover according to actual conditions, and the practicality is high.
In this embodiment, install support 4 on workstation 2, install pneumatic cylinder 3 on the support 4, install first telescopic link 5 on the pneumatic cylinder 3, the output of first telescopic link 5 with 6 rigid couplings of the mechanism of buckling, accessible control pneumatic cylinder 3 drives first telescopic link 5 and stretches out and draws back, and then can promote the mechanism of buckling 6 and go up and down, buckle to the end cover of placing, and the practicality is high.
In this embodiment, the second telescopic link 604 is fixedly installed inside the bending plate 601, the output end of the second telescopic link 604 is fixedly connected with the sliding plate 602, the sliding plate 602 is slidably disposed on the inner wall of the bending plate 601, the sliding plate 602 is fixedly connected to the auxiliary bending plate 603, the second telescopic link 604 can be controlled by the control device to drive the sliding plate 602 to go up and down inside the bending plate 601, so that the auxiliary bending plate 603 can be pushed to go up and down, and the placed end cap can be finely adjusted, so that the practicability is high.
In this embodiment, the bottom of plate 601 and the supplementary board 603 of buckling is the arc setting, and the bottom of supplementary board 603 of buckling can with the plate 601 bottom coincidence of buckling, can be convenient for buckle the end cover, and the practicality is high.
In this embodiment, a plurality of cavities 11 have been seted up in workstation 2, install third telescopic link 12 in the cavity 11, the output of third telescopic link 12 with locating plate 10 rigid coupling, accessible control third telescopic link 12 for third telescopic link 12 drives locating plate 10 and goes up and down, and then carries out spacing fixed to the end cover of placing, avoids buckling the in-process because fixed shakiness to the end cover, leads to buckling inaccurate.
In this embodiment, deposit the bottom in chamber 8 and install slipmat 9, can be convenient for place the end cover, the practicality is high.
The second telescopic rod 604 and the third telescopic rod 12 are both electrically controlled telescopic rods.
The working principle is as follows: the staff places the end cover in depositing chamber 8, control third telescopic link 12, make third telescopic link 12 drive locating plate 10 and go up and down, and then can carry out spacing fixed to the end cover of placing, fixed back, through the start-up of the first telescopic link 5 of pneumatic cylinder 3 control, and then drive bending mechanism 6 and go up and down, through bending mechanism 6's lift, can buckle to fixed end cover, simultaneously according to actual demand, control second telescopic link 604, make second telescopic link 604 drive sliding plate 602 go up and down, and then can drive supplementary bending plate 603 and go up and down, slightly buckle to the end cover, therefore, the practicality is high.
Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; while the utility model has been described in detail and with reference to the foregoing embodiments, it will be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention, and they should be construed as being included in the following claims and description.
Claims (6)
1. The utility model provides an engine water tank end cover device of buckling, includes base (1), install workstation (2), its characterized in that on base (1): a lifting cavity (7) is formed in the middle of the workbench (2) from top to bottom, a bending mechanism (6) is movably arranged in the lifting cavity (7), the bending mechanism (6) comprises a bending plate block (601) and an auxiliary bending plate (603), and the auxiliary bending plate (603) is movably arranged in the bending plate block (601); the storage cavity (8) is formed in the workbench (2), the storage cavity (8) is perpendicular to the lifting cavity (7), and the positioning plate (10) is movably arranged in the storage cavity (8).
2. The engine water tank end cover bending device according to claim 1, characterized in that: install support (4) on workstation (2), install pneumatic cylinder (3) on support (4), install first telescopic link (5) on pneumatic cylinder (3), the output of first telescopic link (5) with bending mechanism (6) rigid coupling.
3. The engine water tank end cover bending device according to claim 1, characterized in that: a second telescopic rod (604) is fixedly installed inside the bending plate block (601), the output end of the second telescopic rod (604) is fixedly connected with a sliding plate (602), the sliding plate (602) is arranged on the inner wall of the bending plate block (601) in a sliding mode, and the sliding plate (602) is fixedly connected with the auxiliary bending plate (603).
4. The engine water tank end cover bending device according to claim 3, characterized in that: the bottom ends of the bending plate block (601) and the auxiliary bending plate (603) are both arranged in an arc shape, and the bottom end of the auxiliary bending plate (603) can coincide with the bottom end of the bending plate block (601).
5. The engine water tank end cover bending device according to claim 1, characterized in that: a plurality of cavities (11) are formed in the workbench (2), third telescopic rods (12) are installed in the cavities (11), and output ends of the third telescopic rods (12) are fixedly connected with the positioning plate (10).
6. The engine water tank end cover bending device according to claim 1, characterized in that: and the bottom end of the storage cavity (8) is provided with an anti-skid pad (9).
