Abstract

The utility model discloses a clothing suitable for children with drainage tubes to put on and take off, which relates to the technical field of medical auxiliary appliances. The utility model comprises a clothes body, the front and back sides of the clothes body are of the same layout, the cuffs on both sides are connected with pocket-type components through the installation mechanism, the end of the pocket-type components close to the cuffs is provided with a drawstring tie, and one side of the clothes body is provided with a drawstring tie. The fabrics of the sleeves and the waists on both sides are symmetrically separated and connected by a plurality of velcro, and a seamless gap is formed between the clothes that are not connected by the velcro. The drainage tube is positioned on both sides and is worn on both sides, which saves time and effort and improves the efficiency of clinical care. This garment is bonded with Velcro made of skin-friendly material, and the stitching is made of boneless stitching, giving children a comfortable and safe wearing experience. No buttons are used. The zipper can prevent children from swallowing foreign bodies and reduce potential risks in clinical nursing work.

Description

Clothes suitable for drainage tube infant wears to take off

Technical Field

The utility model belongs to the technical field of medical auxiliary appliances, and particularly relates to a garment suitable for being put on and taken off by a patient with a drainage tube.

Background

The department wears the ordinary belt type fashion for the infant now, wears to take off the mode and adds the frenulum for the pullover, and this type of clothes relatively is fit for the mild disease patient and wears to take off, does not suit the severe infant in the PICU department, and the severe infant moves inconveniently and the state of an illness is critical complicated, generally needs to rely on the auxiliary treatment of all kinds of medical instrument clinically, and the existing belt type fashion is worn to take off inconveniently to the infant of whole body intubate, also makes clinical care work such as getting needle and changing dressings become difficult loaded down with trivial details.

In order to solve the problems, the utility model provides a garment suitable for a child patient with a drainage tube to put on and take off.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide clothes suitable for being worn by a drainage tube infant, and solves the problem that a conventional tie-type fashion and fashion clothes worn by an infant patient in a department are not suitable for being used by a serious infant patient in a PICU department.

In order to solve the technical problems, the utility model is realized by the following technical scheme:

the utility model relates to a garment suitable for being put on and taken off by a patient with a drainage tube, which comprises a garment body, wherein the front surface and the back surface of the garment body are in the same format, cuffs at two sides are connected with pocket type parts through mounting mechanisms, one end of each pocket type part close to the cuffs is provided with a drawstring tying belt, the cloth of one side sleeve and the waist at two sides of the garment body are symmetrically separated, and are connected through a plurality of magic tapes, seamless gaps are formed between the clothes materials which are not connected by the magic tapes, the front and back surfaces of the clothes body have the same type, can be according to the drainage tube of different positions and the two-sided wearing, labour saving and time saving improves clinical care efficiency, and this clothes adopts the magic of close skin material to paste the bonding, and the department of sewing up adopts the boneless to make up, gives the comfortable and peaceful dress of infant and experiences, does not use the button, and the infant can be avoided swallowing the foreign matter, reduces the potential risk in the clinical care work.

Further, pocket type part is close to the peripheral part fixedly connected with collar of the one end of cuff, and two slotted holes have been seted up to cavity and collar week in the collar, and sliding connection has the drawstring frenulum that runs through the slotted hole in the collar, and the drawstring frenulum is used for tieing the collar tightly to can be in the operation fixed infant's hand, avoid scratching and influence the drainage tube.

Further, the relative side of the clothing material of clothes body one side sleeve and both sides waist between respectively the public magic subsides of fixedly connected with and female magic subsides, the public magic subsides and the female magic subsides that distribute from top to bottom are convenient for medical personnel to operate.

Further, the magic subsides adopt neonate's dedicated close skin material, avoid the magic to paste to cause influences such as prick to infant's skin.

Further, the medial surface of pocket type part is provided with the cotton that absorbs water, and the cotton that absorbs water of soft texture can adsorb the sweat on the infant hand to can avoid the infant to damage the nail because of scratching.

The utility model has the following beneficial effects:

at present, no clothes specially for the critically ill children exists in the market, the young critically ill children are limited to cooperate with clinical treatment cognition, moods and the like easily appear, extra time is needed for appeasing the mood of the children to cooperate with treatment, difficulty is brought to clinical treatment nursing work, for the drainage tube critically ill children with inconvenient action, the clothes are easy to wear and take off, the clothes are convenient to change and wash, the pain in the treatment process of the children can be effectively relieved, for clinical staff, a one-piece type full-open design can be used for inserting and arranging the drainage tube on the children, the clothes can be conveniently opened at any time for changing the medicine or checking/cleaning the wound for the children, the hand wrapping constraint function added to cuffs can also help the clinical staff to fix and appease the restlessness to the children with disorder in a sickbed, the clothes can be used for the young and critically ill children, and can also be made into different sizes, be fit for each age stage severe patient and use, this patent can be used widely in each big hospital severe medical science branch of academic or vocational study, and for the clinical treatment work of severe provides convenience, save time and human cost improve treatment efficiency, to the patient, this kind is worn to take off simple and easy clothes and also can reduce the nursing degree of difficulty in the use, alleviates patient's misery, and help patient is recovered early, and this patent not only can bring economic benefits for the enterprise and also can satisfy severe patient's actual demand.

Of course, it is not necessary for any product in which the utility model is practiced to achieve all of the above-described advantages at the same time.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

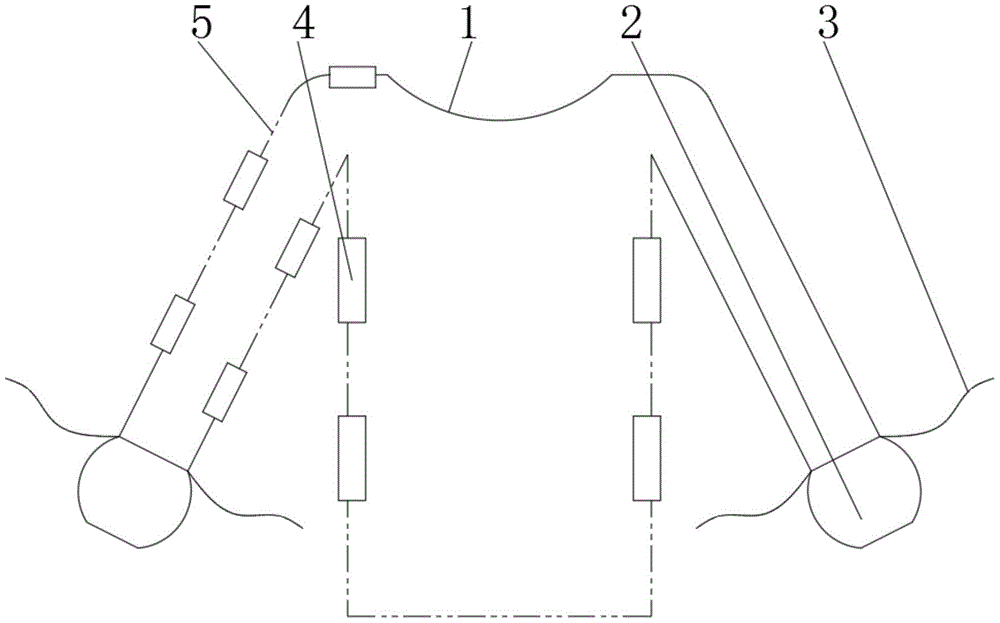

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the construction of a pocket component of the present invention;

fig. 3 is a schematic structural view of the magic tape of the present invention.

In the drawings, the components represented by the respective reference numerals are listed below: 1. a garment body; 2. a pocket component; 3. a drawstring tie; 4. magic tape; 5. no gap is sewed; 6. a mounting ring; 401. male magic tape; 402. female magic subsides.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "upper", "middle", "outer", "inner", and the like, indicate orientations or positional relationships, are used for convenience in describing the present invention and simplifying the description, but do not indicate or imply that the referenced components or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.

Referring to fig. 1-3, the present invention relates to a garment for a patient with a drainage tube to put on and take off, comprising a garment body 1, wherein the front and back surfaces of the garment body 1 have the same format, cuffs at both sides are connected with pocket type members 2 through mounting mechanisms, one end of the pocket type members 2 near the cuffs is provided with a drawstring tying band 3, clothes at one side sleeve and waist at both sides of the garment body 1 are symmetrically separated and connected through a plurality of magic tapes 4, the magic tapes 4 are made of a skin-friendly material special for newborns, thereby preventing the magic tapes 4 from pricking the skin of the patient, a seamless gap 5 is formed between the clothes not connected with the magic tapes 4, a male magic tape 402 and a female magic tape 402 are fixedly connected between the opposite side surfaces of the clothes at one side sleeve and waist at both sides of the garment body 1, the male magic tape 402 and the female magic tape 402 distributed up and down are convenient for the medical care personnel to operate, the positive and negative two sides version of clothes is the same, can be according to the drainage tube of different positions and the two sides is worn, and labour saving and time saving improves clinical care efficiency, and 4 bonds are pasted to the magic that this clothes adopted the parent's skin material, and the department of sewing up adopts the no bone to make up, gives the comfortable and comfortable dress of feeling at ease of infant and experiences, does not use the button, and the zip fastener can avoid the infant to swallow the foreign matter, reduces the potential risk in the clinical care work.

Preferably, pocket type part 2 is close to the peripheral part fixedly connected with collar 6 of the one end of cuff, and cavity and collar 6 week survey in the collar 6 and have seted up two slotted holes, and sliding connection has the drawstring frenulum 3 that runs through the slotted hole in the collar 6, and drawstring frenulum 3 is used for tieing collar 6 tightly to can fix infant's hand in the operation, avoid scratching and influence the drainage tube.

Preferably, the medial surface of pocket type part 2 is provided with the cotton that absorbs water, and the cotton that absorbs water of soft texture can adsorb the sweat on the infant's hand to can avoid the infant to hurt the nail because of scratching.

As shown in fig. 1-3, this embodiment is a method for using a garment suitable for a child patient to wear and take off a drainage tube, comprising: compared with the existing common hospital dress, the hospital dress more meets the actual clinical requirements of critically ill children, saves time for wearing and taking off, is convenient to change and wash, adopts a one-piece full-open design, and has the advantages of strong viscosity, falling prevention and the like because the shoulder part at one side, the sleeves and the waist parts at two sides are all opened and are bonded by the magic tapes 4 which are made of special skin-friendly soft materials for infants; the part without the seam 5 can be opened at any time, so that the clinical nursing work such as wound scrubbing, dressing change, injection, inspection and the like is facilitated; the gap part beside the magic tapes 4 on the waist parts at the two sides can be used for placing or arranging the drainage tube on the body of the sick child; the neckline openings of the clothes are the same in size, the clothes can be worn on the front side and the back side to adapt to the drainage tubes on the body parts of the children patients, the seam joint on the other side is sewn without bones, and the clothes are soft and comfortable and do not irritate the skin of the children patients. Both sides cuff department adopts pocket type part 2 to realize a bag design to the supplementary fixed infant hand in drawstring frenulum 3 prevents to scratch, pulls the drainage tube, can effectively tie and pacify the infant of irritability because of the sick pain, alleviates the clinical care degree of difficulty, improves work efficiency.

In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the utility model. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the utility model disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the utility model to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the utility model and the practical application, to thereby enable others skilled in the art to best utilize the utility model. The utility model is limited only by the claims and their full scope and equivalents.

Claims (5)

1. The utility model provides a clothes suitable for drainage tube infant wears to take off, includes clothes body (1), its characterized in that: the front and back faces of the clothes body (1) are the same in format, cuffs of two sides are connected with pocket type components (2) through mounting mechanisms, one ends, close to the cuffs, of the pocket type components (2) are provided with drawstring tying belts (3), one side sleeves of the clothes body (1) and clothes materials at the waist portions of the two sides are symmetrically separated, the clothes materials are connected through a plurality of magic tapes (4), and a seamless gap (5) is formed between the clothes materials which are not connected through the magic tapes (4).

2. The garment for the infant with the drainage tube to put on and take off according to claim 1, wherein a mounting ring (6) is fixedly connected to the outer peripheral portion of one end of the pocket component (2) close to the cuff, the mounting ring (6) is hollow, two slotted holes are formed in the mounting ring (6) at the periphery, and a drawstring tying band (3) penetrating through the slotted holes is slidably connected in the mounting ring (6).

3. The garment for the infant with the drainage tube to put on and take off according to claim 1, wherein a male magic tape (401) and a female magic tape (402) are fixedly connected between the sleeve at one side and the opposite sides of the garment material at the waist parts at the two sides of the garment body (1), and the male magic tape (401) and the female magic tape (402) are connected in an adhesive manner.

4. The garment for the infant with the drainage tube to wear and take off according to claim 1, wherein the magic tape (4) is made of a natural fiber material of cotton, wool and silk hemp.

5. The garment for the infant patient to wear and take off the drain tube according to claim 1, wherein the inner side surface of the pocket member (2) is provided with absorbent cotton.
