Abstract
The utility model discloses a full-automatic packaging machine, which comprises a workbench, a sliding lifting grabbing structure, a first lifting mechanism, a conveying mechanism, a packaging table structure, a supporting frame, a heat-sealing cutting mechanism and a packaging structure, wherein a heat-sealing film is paved on the packaging table through the arrangement of an electric telescopic rod, a fixed frame, a rotating fixed shaft mechanism, a heat-sealing film roll, a fixed block, a guide frame, a connecting block, a second lifting mechanism, a movable clamping plate and a fixed clamping plate, then an article placed on the conveying mechanism is grabbed through the sliding lifting grabbing structure and then placed on the packaging table, then the heat-sealing cutting mechanism and the packaging structure carry out heat-sealing packaging and redundant cutting of the heat-sealing film under the action of the first lifting mechanism, then the packaged article is conveyed to the conveying mechanism through a conveying connecting plate and a conveying roller mechanism for conveying, and manpower and material resources are reduced, the efficiency of device packing has been improved, can pack different article as required, has reduced the limitation of device use.
Description
Technical Field
The utility model relates to the technical field of packaging machines, in particular to a full-automatic packaging machine.
Background
The packaging machine is a machine for packaging products, and plays a role in protection and beauty. The packaging machine mainly comprises assembly line type integral production packaging and product peripheral packaging equipment, and an automatic control packaging system for design and installation, so that the product quality and the production efficiency of the packaging machinery industry are improved.
Because simple structure when packing article, current packagine machine often needs artifical arrangement at the packing completion back, very big increase workman's amount of labour, reduced work efficiency, and current packagine machine can only pack specific article, can not pack different article as required, and the practicality is poor, and the limitation is high.
Aiming at the problems, the utility model provides a full-automatic packaging machine in order to reduce manpower and material resources, reduce the labor intensity of workers, improve the packaging efficiency of the device, increase the packaging quality of the device, package different articles according to the requirement, increase the practicability of the device and reduce the limitation of the use of the device.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a full-automatic packaging machine which has the advantages of reducing manpower and material resources, reducing the labor intensity of workers, improving the packaging efficiency of the device, increasing the packaging quality of the device, packaging different articles according to the requirement, increasing the practicability of the device, reducing the limitation of the use of the device and solving the problems in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a full-automatic packaging machine, includes that workstation, slip go up and down to snatch structure, first elevating system, transport mechanism, package post structure, support frame, heat-seal cutting mechanism and packaging structure, the support frame sets up the both ends at the workstation top, and transport mechanism sets up in the centre at the workstation top, and first elevating system sets up in the inner chamber of two relative one sides of support frame, and the package post structure sets up in transport mechanism's upper end, and the slip goes up and down to snatch the structure and set up the both sides at the package post structure, and heat-seal cutting mechanism sets up in the upper end of packaging structure, and packaging structure sets up the upper end at the package post structure.
Further, the sliding lifting grabbing structure is arranged at one end, close to the inlet of the conveying mechanism, of the packaging table.
Furthermore, two ends of the heat-sealing cutting mechanism are respectively connected with a group of lifting slide block structures in the two first lifting mechanisms.
Further, the packing platform structure includes mount, packing platform, conveying connecting plate and conveying roller mechanism, and the packing platform sets up the top at the mount, and the conveying connecting plate setting is kept away from at the packing platform and is slided the one side that goes up and down to snatch the structure.
Further, the conveying roller mechanism is provided with a plurality of uniform cavities embedded in the top of the conveying connecting plate.
Further, packaging structure includes electric telescopic handle, fixed frame, rotatory fixed axle mechanism, the heat-seal membrane is rolled up, the fixed block, the guide frame, the connecting block, second elevating system, activity splint and solid fixed splint, fixed frame and connecting block are connected with two electric telescopic handle relative one side respectively, the heat-seal membrane is rolled up through the inner wall connection of rotatory fixed axle mechanism with fixed frame both sides, the fixed block sets up the both ends in the fixed frame bottom, the guide frame sets up between two fixed blocks, second elevating system sets up in the inner chamber of electric telescopic handle one side is kept away from to the connecting block, the activity splint are connected with second elevating system, gu fixed splint set up the lower extreme at the activity splint.
Further, the ends, far away from the fixing frame and the connecting block, of the two electric telescopic rods are structurally connected with the other group of lifting slide blocks in the first lifting mechanism.
Compared with the prior art, the utility model has the following beneficial effects:
the utility model provides a full-automatic packaging machine, wherein a sliding lifting grabbing structure is arranged at one end of a packaging table close to an inlet of a conveying mechanism, two ends of a heat-sealing cutting mechanism are respectively connected with a group of lifting slide block structures in two first lifting mechanisms, a conveying roller mechanism is provided with a plurality of uniform lifting slide block structures embedded in an inner cavity at the top of a conveying connecting plate, one ends of two electric telescopic rods far away from a fixing frame and a connecting block are respectively connected with the other group of lifting slide block structures in the first lifting mechanism, a heat-sealing film is paved on the packaging table through the arrangement of the electric telescopic rods, the fixing frame, a rotating fixing shaft mechanism, a heat-sealing film roll, a fixing block, a guide frame, the connecting block, a second lifting mechanism, a movable clamping plate and a fixing clamping plate, then the articles placed on the conveying mechanism are grabbed through the sliding lifting grabbing structure, then the articles are placed on the packaging table, and then the heat-sealing cutting mechanism and the packaging structure are respectively lifted and lifted according to the heights of the articles under the action of the first lifting mechanism The thing carries out heat-seal packing and unnecessary cutting heat-seal membrane, and the good article of later packing convey on conveying mechanism through conveying connecting plate and transfer roller mechanism convey, have alleviateed manpower and materials, have reduced staff's intensity of labour, have improved the efficiency of device packing, have increased the packing quality of device, can pack the article of difference as required, have increased the practicality of device, have reduced the limitation that the device used.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a partial schematic structural view of the present invention;
FIG. 3 is a schematic view of the structure of the package of the present invention;

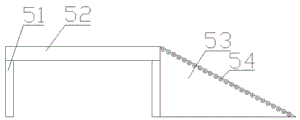

FIG. 4 is a structural diagram of a packaging table according to the present invention
FIG. 5 is an enlarged view of the position A in FIG. 2 according to the present invention.
In the figure: the automatic packaging machine comprises a workbench 1, a sliding lifting grabbing structure 2, a first lifting mechanism 3, a conveying mechanism 4, a packaging table structure 5, a fixing frame 51, a packaging table 52, a conveying connecting plate 53, a conveying roller mechanism 54, a supporting frame 6, a heat-sealing cutting mechanism 7, a packaging structure 8, an electric telescopic rod 81, a fixing frame 82, a rotary fixing shaft mechanism 83, a heat-sealing film roll 84, a fixing block 85, a guide frame 86, a connecting block 87, a second lifting mechanism 88, a movable clamping plate 89 and a fixing clamping plate 810.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-5, a full-automatic packaging machine comprises a worktable 1, a sliding lifting grabbing structure 2, first lifting mechanisms 3, a conveying mechanism 4, a packaging table structure 5, a supporting frame 6, a heat-sealing cutting mechanism 7 and a packaging structure 8, wherein the supporting frame 6 is arranged at two ends of the top of the worktable 1, the conveying mechanism 4 is arranged in the middle of the top of the worktable 1, the first lifting mechanism 3 is arranged in an inner cavity at one side of the two supporting frames 6 opposite to each other, the packaging table structure 5 is arranged at the upper end of the conveying mechanism 4, the sliding lifting grabbing structures 2 are arranged at two sides of the packaging table structure 5, the sliding lifting grabbing structure 2 is arranged at one end of the packaging table 5 close to the inlet of the conveying mechanism 4, the heat-sealing cutting mechanism 7 is arranged at the upper end of the packaging structure 8, two ends of the heat-sealing cutting mechanism 7 are respectively connected with a group of lifting slide blocks in the two first lifting mechanisms 3, the packaging structure 8 is arranged at the upper end of the packaging platform structure 5, the packaging platform structure 5 comprises a fixed frame 51, a packaging platform 52, a conveying connecting plate 53 and a conveying roller mechanism 54, the packaging platform 52 is arranged at the top of the fixed frame 51, the conveying connecting plate 53 is arranged at one side of the packaging platform 52 far away from the sliding lifting grabbing structure 2, the conveying roller mechanism 54 is provided with a plurality of uniformly embedded cavities at the top of the conveying connecting plate 53, the packaging structure 8 comprises an electric telescopic rod 81, a fixed frame 82, a rotating fixed shaft mechanism 83, a heat-sealing film roll 84, a fixed block 85, a guide frame 86, a connecting block 87, a second lifting mechanism 88, a movable clamping plate 89 and a fixed clamping plate 810, the fixed frame 82 and the connecting block 87 are respectively connected with one side opposite to the two electric telescopic rods 81, the heat-sealing film roll 84 is connected with the inner walls at two sides of the fixed frame 82 through the rotating fixed shaft mechanism 83, the fixed blocks 85 are arranged at two ends of the bottom of the fixed frame 82, the guide frame 86 is arranged between the two fixed blocks 85, the second lifting mechanism 88 is arranged in an inner cavity of one side of the connecting block 87 far away from the electric telescopic rod 81, the movable clamp plate 89 is connected with the second lifting mechanism 88, the fixed clamp plate 810 is arranged at the lower end of the movable clamp plate 89, one ends of the two electric telescopic rods 81 far away from the fixed frame 82 and the connecting block 87 are both structurally connected with the other group of lifting slide blocks in the first lifting mechanism 3, the heat-sealing film is paved on the packaging table 52 through the electric telescopic rod 81, the fixed frame 82, the rotary fixed shaft mechanism 83, the heat-sealing film roll 84, the fixed block 85, the guide frame 86, the connecting block 87, the second lifting mechanism 88, the movable clamp plate 89 and the fixed clamp plate 810, the articles placed on the conveying mechanism 4 are grabbed through the sliding lifting grabbing structure 2, then the articles are placed on the packaging table 52, and then the heat-sealing cutting mechanism 7 and the packaging structure 8 are lifted and lifted up and down respectively according to the heights of the articles under the action of the first lifting mechanism 3 to advance the packaged articles into the packaged articles Go heat-seal packing and unnecessary cutting heat-seal membrane, later the good article of packing convey conveying on conveying mechanism 4 through conveying connecting plate 53 and conveying roller mechanism 54, have alleviateed manpower and materials, have reduced staff's intensity of labour, have improved the efficiency of device packing, have increased the packing quality of device, can pack different article as required, have increased the practicality of device, have reduced the limitation that the device used.
In summary, the following steps: the utility model provides a full-automatic packaging machine which comprises a workbench 1, a sliding lifting grabbing structure 2, a first lifting mechanism 3, a conveying mechanism 4, a packaging table structure 5, a supporting frame 6, a heat-sealing cutting mechanism 7 and a packaging structure 8, wherein the heat-sealing film is laid on a packaging table 52 through the arrangement of an electric telescopic rod 81, a fixed frame 82, a rotary fixed shaft mechanism 83, a heat-sealing film roll 84, a fixed block 85, a guide frame 86, a connecting block 87, a second lifting mechanism 88, a movable clamping plate 89 and a fixed clamping plate 810, then the object placed on the conveying mechanism 4 is grabbed through the sliding lifting grabbing structure 2 and then placed on the packaging table 52, then the heat-sealing cutting mechanism 7 and the packaging structure 8 respectively lift and lower according to the height of the object under the action of the first lifting mechanism 3 to carry out heat-sealing packaging and redundant cutting of the heat-sealing film on the object to be packaged, and then the packaged object is conveyed to the conveying mechanism 4 through a conveying connecting plate 53 and a conveying roller mechanism 54 to be conveyed Manpower and material resources are reduced, the labor intensity of workers is reduced, the packaging efficiency of the device is improved, the packaging quality of the device is increased, different articles can be packaged according to needs, the practicability of the device is improved, and the use limitation of the device is reduced.
In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the utility model. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the utility model disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the utility model to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the utility model and the practical application, to thereby enable others skilled in the art to best utilize the utility model. The utility model is limited only by the claims and their full scope and equivalents.
Claims (7)
1. The utility model provides a full-automatic packaging machine, includes workstation (1), slides and goes up and down to snatch structure (2), first elevating system (3), transport mechanism (4), package platform structure (5), support frame (6), heat-seal cutting mechanism (7) and packaging structure (8), its characterized in that: support frame (6) set up the both ends at workstation (1) top, and transport mechanism (4) set up in the centre at workstation (1) top, and first elevating system (3) set up in the inner chamber of two support frame (6) relative one side, and package post structure (5) set up the upper end at transport mechanism (4), and the slip is gone up and down to snatch structure (2) and set up the both sides at package post structure (5), and heat-seal cutting mechanism (7) set up the upper end at package post structure (8), and package post structure (8) set up the upper end at package post structure (5).
2. The fully automatic packaging machine according to claim 1, characterized in that: the sliding lifting grabbing structure (2) is arranged at one end of the packaging table (52) close to the inlet of the conveying mechanism (4).
3. The fully automatic packaging machine according to claim 1, characterized in that: and two ends of the heat-sealing cutting mechanism (7) are respectively structurally connected with a group of lifting slide blocks in the two first lifting mechanisms (3).
4. The fully automatic packaging machine according to claim 1, characterized in that: the packaging table structure (5) comprises a fixing frame (51), a packaging table (52), a conveying connecting plate (53) and a conveying roller mechanism (54), the packaging table (52) is arranged at the top of the fixing frame (51), and the conveying connecting plate (53) is arranged on one side, far away from the sliding lifting grabbing structure (2), of the packaging table (52).
5. The fully automatic packaging machine according to claim 4, characterized in that: the conveying roller mechanism (54) is provided with a plurality of uniform cavities embedded in the top of the conveying connecting plate (53).
6. The fully automatic packaging machine according to claim 1, characterized in that: the packaging structure (8) comprises an electric telescopic rod (81), a fixed frame (82), a rotary fixed shaft mechanism (83), a heat-sealing film roll (84), a fixed block (85), a guide frame (86), a connecting block (87), a second lifting mechanism (88), a movable clamping plate (89) and a fixed clamping plate (810), wherein the fixed frame (82) and the connecting block (87) are respectively connected with one side opposite to the two electric telescopic rods (81), the heat-sealing film roll (84) is connected with the inner walls of two sides of the fixed frame (82) through the rotary fixed shaft mechanism (83), the fixed block (85) is arranged at two ends of the bottom of the fixed frame (82), the guide frame (86) is arranged between the two fixed blocks (85), the second lifting mechanism (88) is arranged in an inner cavity of one side, far away from the electric telescopic rod (81), of the connecting block (87), the movable clamping plate (89) is connected with the second lifting mechanism (88), the fixed splint (810) is arranged at the lower end of the movable splint (89).
7. The fully automatic packaging machine according to claim 6, characterized in that: and one ends of the two electric telescopic rods (81), which are far away from the fixed frame (82) and the connecting block (87), are structurally connected with the other group of lifting slide blocks in the first lifting mechanism (3).
