Abstract
本实用新型公开一种财务管理数据转换装置，包括显示屏和外壳，所述外壳的前端设置有显示屏，所述外壳的下端右侧设置有开关按钮，所述外壳的后端设置有固定板，所述固定板通过固定螺丝与外壳的后端固定，所述固定板的下端内部设置有支撑板，通过在装置的外壳后端设置了固定槽，固定槽内设置了散热板，散热板上设置了散热孔，这样就可以将散热板从固定槽内取出，清洗散热孔内的灰尘，散热板的外围设置了固定条，可以使散热板与固定槽内固定后更加密封，在散热板的外侧设置了固定块，固定块可以插在固定槽内，将散热板与固定槽内进行固定，这样可以使散热板不会轻易在固定槽内移动，在散热板的后端设置了推动块，让散热板在取出的时候更加的方便。
The utility model discloses a financial management data conversion device, comprising a display screen and a casing, the front end of the casing is provided with a display screen, the lower end of the casing is provided with a switch button on the right side, and the rear end of the casing is provided with a fixing plate , the fixing plate is fixed with the rear end of the casing by fixing screws, a support plate is arranged inside the lower end of the fixing plate, a fixing groove is arranged at the rear end of the casing of the device, a heat dissipation plate is arranged in the fixing groove, and a heat dissipation plate is arranged in the fixing groove. The heat dissipation hole is set, so that the heat dissipation plate can be taken out from the fixing groove, and the dust in the heat dissipation hole can be cleaned. The outer periphery of the heat dissipation plate is provided with a fixing strip, which can make the heat dissipation plate and the fixing groove more sealed after being fixed in the heat dissipation plate. A fixing block is set on the outside, and the fixing block can be inserted into the fixing slot to fix the heat sink and the fixing slot, so that the heat sink will not easily move in the fixing slot, and a push block is set at the rear end of the heat sink. Makes it easier to remove the heatsink.
Description
Technical Field
The utility model belongs to the technical field related to financial management, and particularly relates to a financial management data conversion device.
Background
Financial management is the management of the acquisition (investment) of assets, the financing (financing) and the amount of cash in operation (operating funds), and the allocation of profits, with a certain overall objective. The financial management is a component of enterprise management, and is an economic management work for organizing the financial activities of enterprises and processing financial relations according to financial management principles and financial regulation systems. In brief, financial management is an economic management work for organizing financial activities of enterprises and handling financial relationships, and data conversion is carried out by using a computer when data conversion is carried out on financial management.
The prior financial management data conversion device technology has the following problems: present financial management data conversion equipment is when using, need change in the financial management data input computer, when using the computer, can produce the heat in the computer, fan through in the computer is with inside hot-blast from the louvre discharge, long-time back of using, can accumulate more dust in the louvre, when wasing the downthehole dust of louvre from the outside, be close to the inboard dust of louvre and be difficult to clear up out, if the dust in the louvre does not have the sanitization, the heat dissipation when using of computer will be influenced like this.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a financial management data conversion device, which solves the problems that when dust in a heat dissipation hole is cleaned from the outside, the dust close to the inner side of the heat dissipation hole is not easy to clean, and if the dust in the heat dissipation hole is not cleaned, the heat dissipation of a computer in use is influenced.
In order to achieve the purpose, the utility model provides the following technical scheme: a financial management data conversion device comprises a display screen and a shell, wherein the front end of the shell is provided with the display screen, a switch button is arranged on the right side of the lower end of the shell, a fixing plate is arranged at the rear end of the shell, the fixing plate is fixed with the rear end of the shell through a fixing screw, a supporting plate is arranged inside the lower end of the fixing plate, the lower end of the supporting plate is provided with a bottom plate, the lower side of the rear end of the shell is provided with a USB hole and an earphone hole, the USB hole is positioned on the right side of the earphone hole, the left side of the rear end of the shell is provided with a fixed groove, the fixing groove is internally provided with a heat dissipation plate, the periphery of the heat dissipation plate is provided with a fixing strip, the fixing strip is positioned in the fixing groove, be provided with the louvre on the heating panel, the rear end left side of heating panel is provided with promotes the piece, the upper and lower both ends left side of heating panel all is provided with the fixed block.
Preferably, the supporting plate and the bottom plate are both of a structure made of metal materials, and the shell is of a structure made of white hard plastic materials.
Preferably, the supporting plate is fixed with the fixing plate through a fixing screw, and the number of the USB holes is two.
Preferably, the switch button can move up and down at the lower end of the shell, and the support plate and the bottom plate are integrally cast.
Preferably, the rear end of the heat dissipation plate is provided with three pushing blocks, and the heat dissipation plate, the fixing strip and the three pushing blocks are integrally cast.
Preferably, the heat dissipation plate can move left and right in the fixing groove, and the heat dissipation plate is provided with a plurality of heat dissipation holes.
Preferably, the number of the heat dissipation plates is two, and the two heat dissipation plates are respectively located on the left side and the right side of the rear end of the shell.
Compared with the prior art, the utility model provides a financial management data conversion device, which has the following beneficial effects:
1. this financial management data conversion equipment through the cooperation of heating panel and fixed slot, makes the heating panel take out in can following the fixed slot on the computer case, washs the louvre on the heating panel, just so can be with the dust sanitization in the louvre.
2. This financial management data conversion equipment, through the cooperation of fixed slot and fixed strip, make the heating panel can remove in the fixed slot, let the heating panel more sealed with the fixed slot in.
3. This financial management data conversion equipment through the cooperation that promotes piece and heating panel, makes the heating panel can be through promoting more convenient taking out in the fixed slot of piece.
4. This financial management data conversion equipment, through the cooperation of heating panel and fixed block, make the heating panel can with the fixed slot in better fixed.
The utility model arranges the fixing groove at the back end of the shell of the device, arranges the heat dissipation plate in the fixing groove, arranges the heat dissipation holes on the heat dissipation plate, thus the heat dissipation plate can be taken out from the fixing groove to clean the dust in the heat dissipation holes, arranges the fixing strip at the periphery of the heat dissipation plate to make the heat dissipation plate more sealed after being fixed with the fixing groove, arranges the fixing block at the outer side of the heat dissipation plate, the fixing block can be inserted in the fixing groove to fix the heat dissipation plate with the fixing groove, thus the heat dissipation plate can not easily move in the fixing groove, arranges the pushing block at the back end of the heat dissipation plate to make the heat dissipation plate more convenient when being taken out, when in use, the heat dissipation plate moves outwards in the fixing groove through the pushing block to make the fixing block move out from the fixing groove, after the heat dissipation holes on the heat dissipation plate are cleaned, the heat dissipation plate is inserted in the fixing groove through the fixing strip, after the fixing block is inserted into the fixing groove, the heat dissipation plate and the fixing groove are fixed.
Drawings
The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model without limiting the utility model in which:

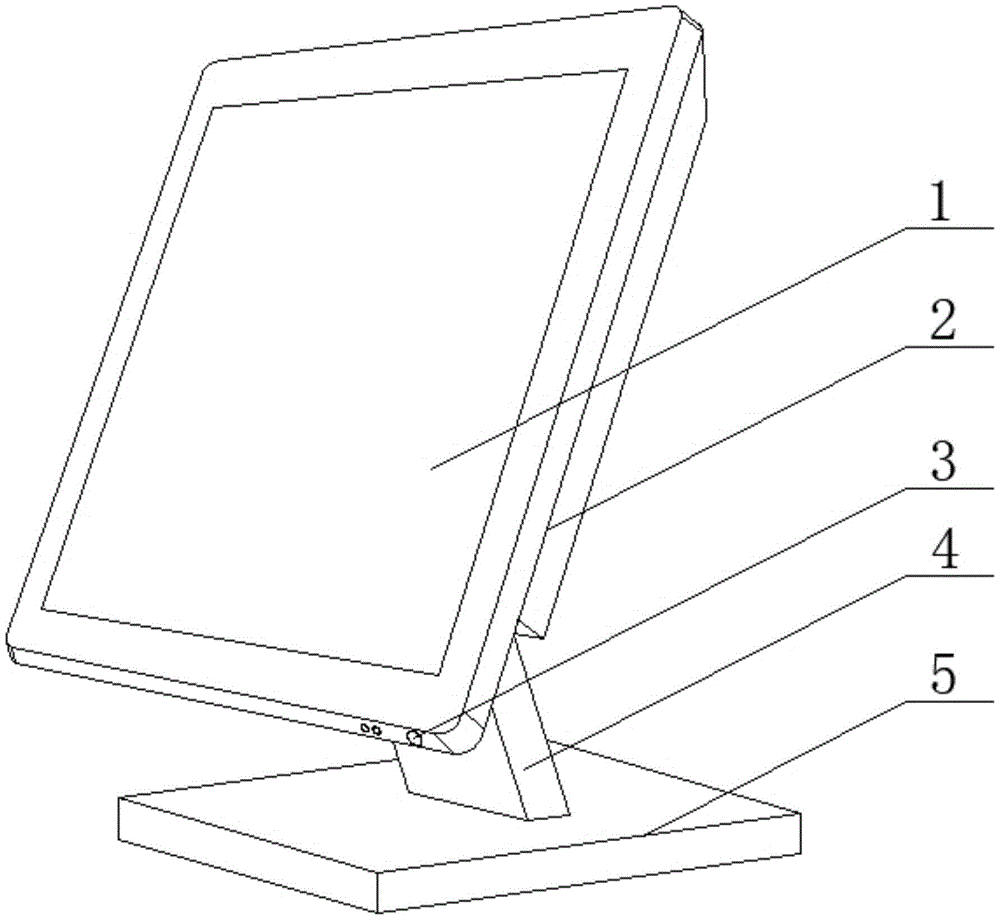

FIG. 1 is a schematic diagram of an appearance structure of a financial management data conversion apparatus according to the present invention;
FIG. 2 is a schematic diagram of a rear side of a financial management data conversion device according to the present invention;
FIG. 3 is a schematic diagram of a heat dissipation plate moving structure of the financial management data conversion apparatus according to the present invention;
FIG. 4 is a schematic diagram of an external structure of a heat dissipation plate of the financial management data conversion apparatus according to the present invention;
FIG. 5 is a schematic top view of a heat sink plate of the financial management data conversion device according to the present invention;
in the figure: 1. a display screen; 2. a housing; 3. a switch button; 4. a support plate; 5. a base plate; 6. a USB hole; 7. a fixing plate; 8. a pushing block; 9. heat dissipation holes; 10. a heat dissipation plate; 11. fixing screws; 12. an earphone hole; 13. fixing grooves; 14. a fixed block; 15. and (4) fixing the strip.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example one
Referring to fig. 1-5, the present invention provides a technical solution: the utility model provides a financial management data conversion equipment, including display screen 1 and shell 2, the front end of shell 2 is provided with display screen 1, the lower extreme right side of shell 2 is provided with shift knob 3, the rear end of shell 2 is provided with fixed plate 7, fixed plate 7 is fixed with the rear end of shell 2 through fixed screw 11, the inside backup pad 4 that is provided with of lower extreme of fixed plate 7, the lower extreme of backup pad 4 is provided with bottom plate 5, the rear end downside of shell 2 is provided with USB hole 6 and earphone hole 12, USB hole 6 is located the right side of earphone hole 12, the rear end left side of shell 2 is provided with fixed slot 13, be provided with heating panel 10 in the fixed slot 13, the periphery of heating panel 10 is provided with fixed strip 15, fixed strip 15 is located fixed slot 13, be provided with louvre 9 on the heating panel 10, the rear end left side of heating panel 10 is provided with and promotes piece 8, the upper and lower both ends left side of heating panel 10 all is provided with fixed block 14.
Example two
Referring to fig. 1 and fig. 2, the present invention provides a technical solution: the utility model provides a financial management data conversion equipment, backup pad 4 and bottom plate 5 are the structure that the metal material constitutes, the metal material can make more durable of component, shell 2 is the structure that white duroplastic material constitutes, it can make more light to set up like this, backup pad 4 is fixed with fixed plate 7 through fixed screw 11, USB hole 6 is provided with two altogether, it can be more convenient at the user equipment to set up like this, shift knob 3 can reciprocate at the lower extreme of shell 2, it just can use to set up like this, backup pad 4 pours the shaping with bottom plate 5 as an organic whole, it can make the component more convenient in the preparation to pour integratively.
EXAMPLE III
Referring to fig. 2, fig. 3, fig. 4 and fig. 5, the present invention provides a technical solution: the utility model provides a financial management data conversion equipment, the rear end of heating panel 10 is provided with three promotion piece 8 altogether, heating panel 10, the shaping is pour as an organic whole to fixed strip 15 and three promotion piece 8, integrative pouring can make the component more convenient in the preparation, heating panel 10 can remove about the inside of fixed slot 13, be provided with a plurality of louvre 9 on the heating panel 10 altogether, it just can take off heating panel 10 and wash to set up like this, heating panel 10 is provided with two altogether, two heating panels 10 are located the left and right sides of 2 rear ends of shell respectively, set up like this and to make the better heat dissipation of device.
The working principle and the using process of the utility model are as follows: after the device is installed, the device is placed at a place needing to be used, the bottom plate 5 is positioned on a desktop, the switch button 3 at the lower end of the shell 2 is pressed, equipment starts to be used, financial management data are input into a computer, when electricity is used, heat generated in the computer can be discharged from the heat dissipation holes 9 in the heat dissipation plate 10 through the internal fan, after the device is used for a long time, more dust can be accumulated in the heat dissipation holes 9, at the moment, the heat dissipation plate 10 is taken out from the fixing groove 13 through the pushing block 8, the heat dissipation holes 9 in the heat dissipation plate 10 are cleaned, after the cleaning is carried out, the fixing strips 15 on the heat dissipation plate 10 are inserted into the fixing groove 13, and after the fixing block 14 is inserted into the fixing groove 13, the heat dissipation plate 10 and the fixing groove 13 are fixed, so that the heat dissipation plate 10 cannot easily move in the fixing groove 13.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. A financial management data conversion device, includes display screen (1) and shell (2), its characterized in that: the front end of the shell (2) is provided with a display screen (1), the right side of the lower end of the shell (2) is provided with a switch button (3), the rear end of the shell (2) is provided with a fixing plate (7), the fixing plate (7) is fixed with the rear end of the shell (2) through a fixing screw (11), a supporting plate (4) is arranged inside the lower end of the fixing plate (7), the lower end of the supporting plate (4) is provided with a bottom plate (5), the lower side of the rear end of the shell (2) is provided with a USB hole (6) and an earphone hole (12), the USB hole (6) is positioned on the right side of the earphone hole (12), the left side of the rear end of the shell (2) is provided with a fixing groove (13), a heat dissipation plate (10) is arranged in the fixing groove (13), a fixing strip (15) is arranged on the periphery of the heat dissipation plate (10), and the fixing strip (15) is positioned in the fixing groove (13), the radiating plate (10) is provided with radiating holes (9), the left side of the rear end of the radiating plate (10) is provided with a pushing block (8), and the left sides of the upper end and the lower end of the radiating plate (10) are provided with fixing blocks (14).
2. A financial management data conversion apparatus according to claim 1, wherein: the supporting plate (4) and the bottom plate (5) are both structures made of metal materials, and the shell (2) is made of white hard plastic materials.
3. A financial management data conversion apparatus according to claim 1, wherein: the supporting plate (4) is fixed with the fixing plate (7) through a fixing screw (11), and the number of the USB holes (6) is two.
4. A financial management data conversion apparatus according to claim 1, wherein: the switch button (3) can move up and down at the lower end of the shell (2), and the support plate (4) and the bottom plate (5) are integrally cast.
5. A financial management data conversion apparatus according to claim 1, wherein: the rear end of the heat dissipation plate (10) is provided with three pushing blocks (8), and the heat dissipation plate (10), the fixing strip (15) and the three pushing blocks (8) are integrally cast.
6. A financial management data conversion apparatus according to claim 1, wherein: the heat dissipation plate (10) can move left and right in the fixing groove (13), and a plurality of heat dissipation holes (9) are formed in the heat dissipation plate (10).
7. A financial management data conversion apparatus according to claim 1, wherein: the heat dissipation plates (10) are arranged in two, and the two heat dissipation plates (10) are respectively located on the left side and the right side of the rear end of the shell (2).
