The utility model relates to detachable spectacles, comprising a spectacle frame, lenses and temples; the spectacle frame comprises a connecting block, an upper edge block connected with the connecting block, and a bottom edge block connected with the upper edge block; the bottom edge block includes a pull hook the hook part, the extension part connected with the hook part, and the fixing part connected with the extension part; the hook part is hinged with the upper edge block, the fixing part is provided with a fastening screw, and the fastening screw passes through the fixing part and the upper edge block The connection is fixed; the lens is arranged between the upper edge block and the bottom edge block; the lens includes a light-transmitting sheet and a buffer strip connected with the light-transmitting sheet; the buffer strip is arranged between the light-transmitting sheet and the frame. The above-mentioned detachable glasses, the lens is supported and fixed by setting the bottom edge block and the upper edge block, one end of the bottom edge block is hinged with the upper edge block through the hook portion, and the other end of the bottom edge block is connected and fixed with the upper edge block by tightening screws. , Realize the replacement of lenses, do not need to buy multiple glasses, and reduce the cost of use.

Description

Detachable glasses

Technical Field

The utility model relates to the technical field of glasses, in particular to a pair of detachable glasses.

Background

The glasses are simple optical devices manufactured for correcting eyesight or protecting eyes, and consist of lenses and a frame, along with the progress and development of the society, the glasses not only can be used as a tool for correcting eyesight, but also can be used as a cosmetic ornament, and the glasses have the functions of adjusting the luminosity entering the eyes, correcting eyesight, protecting the safety of the eyes and clinically treating eye diseases. The function of the spectacle frame is that the spectacle frame is matched with lenses to form the spectacle which is worn on the eyes of a person to play a role of a bracket, and the spectacle frame also has the functions of beauty treatment and decoration. Modern fashion people emphasize that the glasses are harmonious with facial makeup and clothes of modern people and reflect the signs of social hierarchy, elegant study, fashion and the like.

The sunglasses need to be worn in the sufficient service environment of sunlight in the use of current glasses, need wear near-sighted glasses correcting near-sighted, need wear the distant vision mirror correcting far-sighted, because lens and picture frame are fixed structure, so need purchase a plurality of glasses at the in-process of in-service use, use cost is high.

SUMMERY OF THE UTILITY MODEL

In view of this, it is necessary to provide a detachable glasses to solve the problem of high use cost.

A detachable eyeglass comprising:

the picture frame comprises a connecting block, an upper edge block connected with the connecting block and a bottom edge block connected with the upper edge block; the bottom edge block comprises a pull hook part, an extension part connected with the pull hook part and a fixing part connected with the extension part; the pull hook part is hinged with the upper edge block, a fastening screw is arranged on the fixing part, and the fastening screw penetrates through the fixing part to be connected and fixed with the upper edge block;

the lens is embedded on the mirror frame and is arranged between the upper edge block and the bottom edge block; the lens comprises a light-transmitting sheet and a buffer strip connected with the light-transmitting sheet; the buffer strip is arranged between the light-transmitting piece and the mirror frame; and

the glasses legs are hinged with the glasses frame.

The detachable glasses are characterized in that the lenses are fixedly clamped through the bottom edge block and the upper edge block, one end of the bottom edge block is hinged with the upper edge block through the pull-hook part, and the other end of the bottom edge block is fixedly connected with the upper edge block through the fastening screw, so that the lenses are replaced without purchasing a plurality of glasses, and the use cost is reduced; and through set up the buffering strip between printing opacity piece and picture frame, guarantee the reliability of connecting, absorb the ability that bears impact load of printing opacity piece simultaneously, prevent to drop and damage.

In one embodiment, the buffer strip is arranged in a hollow round tubular structure, and the buffer strip extends along the periphery of the light-transmitting sheet.

In one embodiment, the outer edge of the light-transmitting sheet is provided with an embedding groove which is arranged in a circular arc groove-shaped structure, and the buffer strip is embedded in the embedding groove.

In one embodiment, a clamping block is arranged at one end of the upper edge block, and the clamping block is arranged in a rectangular structure.

In one embodiment, the hook portion is disposed in an n-shaped structure, and the hook portion is hooked on an outer side of the fixture block.

In one embodiment, the fixing part is arranged in a straight plate-shaped structure, and the fixing part is abutted with the end part of the upper edge block.

In one embodiment, the upper edge block is arranged in a circular arc structure, and the extension part is arranged in a circular arc structure.

In one embodiment, the number of the upper edge blocks is two, and the two upper edge blocks are oppositely arranged at two ends of the connecting block.

In one embodiment, the side arms are fixedly connected with the upper edge block, and the side arms are oppositely arranged on two sides of the glasses frame.

In one embodiment, a nose support is arranged on the bottom edge block, and the nose support is arranged at one end, close to the pull hook part, of the bottom edge block.

Drawings

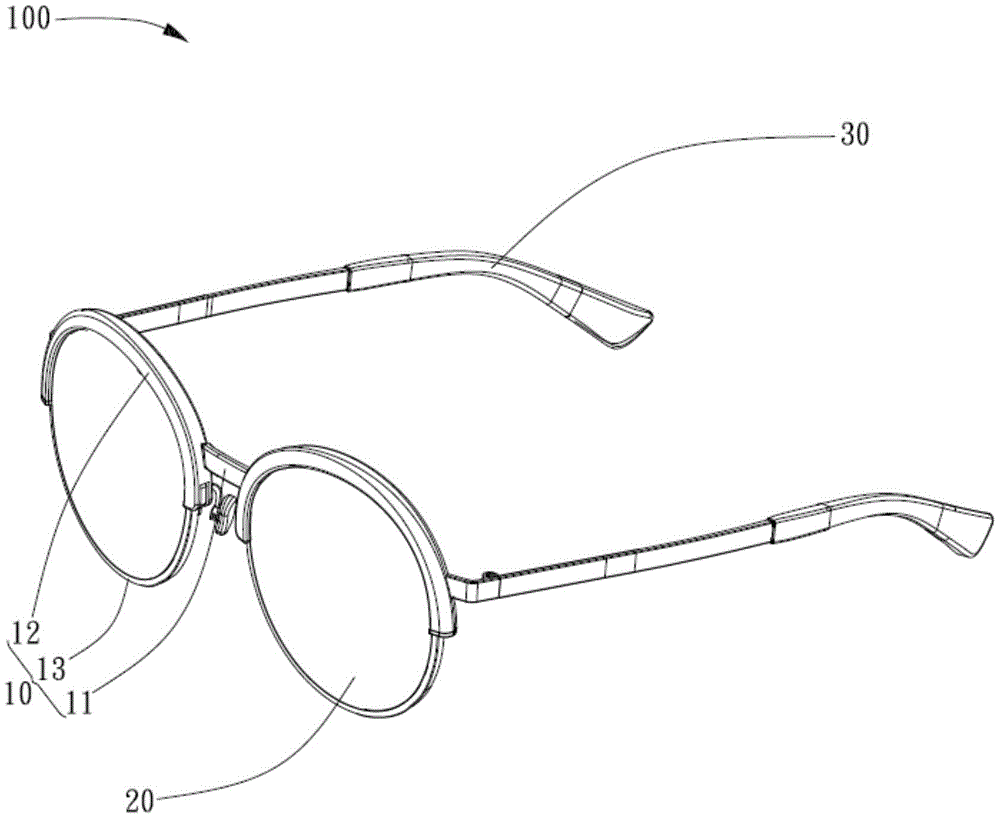

Fig. 1 is a schematic structural view of a pair of detachable glasses according to an embodiment of the present invention;

fig. 2 is an exploded schematic view of the detachable glasses shown in fig. 1.

The reference numbers in the drawings have the meanings given below:

100. a pair of detachable glasses;

10. a mirror frame; 11. connecting blocks; 12. an upper edge block; 13. a bottom edge block; 14. a clamping block; 15. a hook pulling part; 16. an extension portion; 17. a fixed part; 18. fastening screws; 19. a nose pad;

20. a lens; 21. a light transmitting sheet; 22. a buffer strip; 25. an embedding groove;

30. the glasses legs.

Detailed Description

In order to make the aforementioned objects, features and advantages of the present invention comprehensible, embodiments accompanied with figures are described in detail below. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention. This invention may, however, be embodied in many different forms and should not be construed as limited to the embodiments set forth herein.

In the description of the present invention, it is to be understood that the terms "central," "longitudinal," "lateral," "length," "width," "thickness," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," "clockwise," "counterclockwise," "axial," "radial," "circumferential," and the like are used in the orientations and positional relationships indicated in the drawings for convenience in describing the utility model and to simplify the description, and are not intended to indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the utility model.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In the description of the present invention, "a plurality" means at least two, e.g., two, three, etc., unless specifically limited otherwise.

In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," "secured," and the like are to be construed broadly and can, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; they may be directly connected or indirectly connected through intervening media, or they may be connected internally or in any other suitable relationship, unless expressly stated otherwise. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.

In the present invention, unless otherwise expressly stated or limited, the first feature "on" or "under" the second feature may be directly contacting the first and second features or indirectly contacting the first and second features through an intermediate. Also, a first feature "on," "over," and "above" a second feature may be directly or diagonally above the second feature, or may simply indicate that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature may be directly under or obliquely under the first feature, or may simply mean that the first feature is at a lesser elevation than the second feature.

It will be understood that when an element is referred to as being "secured to" or "disposed on" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. The terms "vertical," "horizontal," "upper," "lower," "left," "right," and the like as used herein are for illustrative purposes only and do not denote a unique embodiment.

Referring to fig. 1 and 2, a pair of detachable glasses 100 according to an embodiment of the present invention includes a frame 10, a lens 20 embedded in the frame 10, and a temple 30 hinged to the frame 10; the detachable glasses 100 are worn on the eyes of a human body to correct or protect the vision of the eyes of the human body.

The frame 10 is arranged along the vertical direction, and the frame 10 is erected above the nose of a human body; the frame 10 includes a connecting block 11, an upper edge block 12 connected to the connecting block 11, and a lower edge block 13 connected to the upper edge block 12. The connecting block 11 is arranged along the horizontal direction, the connecting block 11 corresponds to the position of the nose of a human body, and the connecting block 11 is arranged between the eyes of the human body; the upper edge block 12 is arranged in an arc structure, the upper edge block 12 is arranged in an upward convex shape, and the upper edge block 12 is fixedly connected with the connecting block 11; the bottom edge block 13 is arranged in an arc structure, the bottom edge block 13 is arranged in a downward convex structure, the bottom edge block 13 is respectively connected with the two ends of the upper edge block 12, and the bottom edge block 13 and the upper edge block 12 are spliced to form a circular structure. In this embodiment, a latch 14 is disposed at one end of the upper edge block 12, the latch 14 is disposed in a rectangular structure, the latch 14 is disposed along the horizontal direction, and the latch 14 is disposed at one end of the upper edge block 12 close to the connecting block 11.

Further, the bottom block 13 includes a hook portion 15, an extension portion 16 connected to the hook portion 15, and a fixing portion 17 connected to the extension portion 16. The hook part 15 is hinged with the upper edge block 12, the hook part 15 is arranged in an n-shaped structure, the hook part 15 is hooked on the outer side of the fixture block 14, and the bottom edge block 13 is hinged with the upper edge block 12 through the hook part 15; the extending part 16 is arranged in an arc-shaped structure, and the extending part 16 and the upper edge block 12 are symmetrically arranged; the fixing portion 17 is disposed in a straight plate structure, the fixing portion 17 is disposed at an end of the extending portion 16 away from the hook portion 15, and the fixing portion 17 abuts against an end portion of the upper edge block 12. Furthermore, the fixing portion 17 is provided with a fastening screw 18, the fastening screw 18 is disposed along a vertical direction, the fastening screw 18 is perpendicular to the disposing direction of the fixing portion 17, the fastening screw 18 passes through the fixing portion 17 to be connected and fixed with the upper edge block 12, and further, the bottom edge block 13 is connected and fixed with the upper edge block 12. In this embodiment, the number of the upper edge blocks 12 is two, the two upper edge blocks 12 are oppositely disposed at two ends of the connecting block 11, the number of the bottom edge blocks 13 is the same as that of the upper edge blocks 12, the number of the bottom edge blocks 13 is two, the two bottom edge blocks 13 are respectively connected and fixed with the two upper edge blocks 12, the hook portions 15 of the two bottom edge blocks 13 are disposed at one end of the bottom edge block 13 close to the connecting block 11, and the two upper edge blocks 12 correspond to the positions where the eyes of the human body are disposed. The bottom edge block 13 is provided with a nose support 19, the nose support 19 is arranged at one end of the bottom edge block 13 close to the pulling hook part 15, and the nose support 19 is abutted with the position of the bridge of the nose of the human body so as to erect the spectacle frame 10 on the nose.

The lens 20 is embedded on the frame 10, the lens 20 is arranged between the upper edge block 12 and the bottom edge block 13, the lens 20 is arranged along the vertical direction, and the position of the lens 20 corresponds to the position of the eyes of a human body; the lens 20 includes a light-transmitting sheet 21 and a buffer strip 22 connected to the light-transmitting sheet 21. The light transmission sheet 21 is arranged in a circular structure, the light transmission sheet 21 is arranged in the vertical direction, and the light transmission sheet 21 is used for correcting or protecting the eyesight of the eyes of a human body; this buffering strip 22 sets up between printing opacity piece 21 and picture frame 10, and this buffering strip 22 is the setting of cavity circle tubular structure, and buffering strip 22 extends the setting along the periphery of printing opacity piece 21, and buffering strip 22 cover is established in the outside of printing opacity piece 21, and this buffering strip 22 is used for improving the reliability of being connected between printing opacity piece 21 and the picture frame 10, and buffering strip 22 passes through elastic deformation when receiving impact load simultaneously, absorbs impact load in order to protect printing opacity piece 21. In the embodiment, the outer edge of the light-transmitting sheet 21 is provided with an embedding groove 25, the embedding groove 25 is arranged in a circular arc groove-shaped structure, the embedding groove 25 is circumferentially arranged on the outer curved surface of the light-transmitting sheet 21, and the buffer strip 22 is embedded in the embedding groove 25.

The glasses legs 30 are hinged to the glasses frame 10, the glasses legs 30 are arranged in a long strip structure, the glasses legs 30 are fixedly connected with the upper edge block 12, the glasses legs 30 are oppositely arranged on two sides of the glasses frame 10, and the positions of the glasses legs 30 corresponding to the ears of a human body are arranged, so that wearing stability is improved.

According to the detachable glasses 100, the lenses 20 are fixedly held by arranging the bottom edge block 13 and the upper edge block 12, one end of the bottom edge block 13 is hinged with the upper edge block 12 through the pull-hook part 15, and the other end of the bottom edge block 13 is fixedly connected with the upper edge block 12 through the fastening screw 18, so that the lenses 20 are replaced without purchasing a plurality of glasses, and the use cost is reduced; and through set up buffering strip 22 between printing opacity piece 21 and picture frame 10, guarantee the reliability of connection, absorb the ability that bears the impact load of printing opacity piece 21 simultaneously, prevent to drop and damage.

The technical features of the embodiments described above may be arbitrarily combined, and for the sake of brevity, all possible combinations of the technical features in the embodiments described above are not described, but should be considered as being within the scope of the present specification as long as there is no contradiction between the combinations of the technical features.

The above-mentioned embodiments only express several embodiments of the present invention, and the description thereof is more specific and detailed, but not construed as limiting the scope of the utility model. It should be noted that, for a person skilled in the art, several variations and modifications can be made without departing from the inventive concept, which falls within the scope of the present invention. Therefore, the protection scope of the present patent shall be subject to the appended claims.
