Abstract
The utility model is suitable for the field of constructional engineering, and provides a safety net reinforcing device, which comprises a safety net and a fixing plate, and also comprises: the clamping mechanism is installed on the fixing plate and comprises a clamping assembly, a resetting assembly and a fastening assembly, the clamping assembly is fixedly connected with the safety net through the fastening assembly and is used for fixing the safety net in a clamping mode, and the resetting assembly is used for enabling the clamping assembly to reset rapidly when the safety net is detached from the clamping assembly. Fastening components passes through fastening components with safety net and fixed plate fixed connection, then through the steel pipe fixed connection on installation component with clamping mechanism and the building site, when needs are dismantled or are changed the safety net, the centre gripping of clamping components is loosened to operation fastening components, then reset assembly makes clamping components reset, the quick dismantlement safety net of being convenient for, safety net lifting surface area is even when clamping mechanism is connected with the safety net, reduces the friction of safety net for the safety net is firmer, and the security obtains improving.
Description
Technical Field
The utility model belongs to the field of constructional engineering, and particularly relates to a safety net reinforcing device.
Background
The building safety net is a building device capable of preventing objects on a building on a construction site from falling and injuring workers by crashing, the building safety net must be subjected to appearance inspection once a week in use, sundries are cleaned in time, after the building safety net is impacted by a large load, a new net is replaced or the building safety net is inspected in time, and the building safety net can be continuously used after whether serious deformation, abrasion, breakage, connection part falling and the like are confirmed to be intact, however, various protective nets on the market still have various problems.
Current building safety net carries out fixed connection through the iron wire with safety net and steel pipe according to the demand on scene when using, when wind blows to the safety net, the safety net rocks, and the iron wire of safety net and steel pipe junction produces the friction this moment, and long-time friction can lead to the safety net junction to produce wearing and tearing, and the intensity step-down of safety net junction for the bearing capacity of safety net diminishes, influences the life of safety net.
SUMMERY OF THE UTILITY MODEL
The embodiment of the utility model aims to provide a safety net reinforcing device, and aims to solve the problems that the safety net can generate friction with iron wires, the strength of the safety net is reduced due to long-time friction, the bearing capacity of the safety net is reduced, and the service life of the safety net is influenced.
The embodiment of the utility model is realized in such a way that the safety net reinforcing device comprises a safety net and a fixing plate, and further comprises:
the clamping mechanism is installed on the fixing plate and comprises a clamping component, a resetting component and a fastening component, the clamping component is fixedly connected with the safety net through the fastening component to fixedly clamp the safety net, and the resetting component is used for enabling the clamping component to be quickly reset when the safety net is disassembled; and
the installation component is installed on the fixing plate and fixedly installs the safety net on the construction site through the clamping mechanism.
According to a further technical scheme, the clamping assembly comprises a sliding groove formed in the fixing plate, a sliding plate is connected to the sliding groove in a sliding mode, and clamping teeth used for increasing clamping force are arranged on the fixing plate and the sliding plate.
According to a further technical scheme, the fastening assembly comprises a through hole formed in the sliding plate, a threaded through hole is formed in the fixing plate, a first fastening bolt in threaded connection with the threaded through hole penetrates through the through hole, and a fastening nut is in threaded connection with the first fastening bolt.
Further technical scheme, the subassembly that resets includes fixed mounting's guide post on the fixed plate, the guide post end is provided with the limiting plate, guide post and slide sliding connection, the guide post outside is located slide and fixed plate cover and is equipped with the pressure spring that resets.
Further technical scheme, the installation component includes fixed connection's on the fixed plate connecting block, the connecting block outside is rotated and is connected with the turning block, fixed mounting has first collar on the turning block, it is connected with the second collar to rotate on the first collar, first collar passes through second fastening bolt fixed connection with the second collar.
When the safety net reinforcing device provided by the embodiment of the utility model is used, the fastening assembly fixedly connects the safety net and the fixing plate through the fastening assembly, then the clamping mechanism is fixedly connected with a steel pipe on a construction site through the mounting assembly, when the safety net needs to be disassembled or replaced, the fastening assembly is operated to loosen the clamping of the clamping assembly, then the reset assembly resets the clamping assembly, the safety net is convenient to disassemble quickly, compared with the traditional safety net, the force bearing area of the safety net is uniform when the clamping mechanism is connected with the safety net, the friction of the safety net is reduced, the safety net is firmer, and the safety is improved.
Drawings

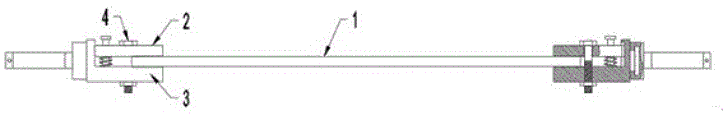

FIG. 1 is a schematic structural view of a reinforcing apparatus for a safety net according to an embodiment of the present invention;
FIG. 2 is a schematic top view of the structure of FIG. 1 according to an embodiment of the present invention;
fig. 3 is a schematic view illustrating a connection structure of the fixing plate of fig. 1 according to an embodiment of the present invention;
fig. 4 is a schematic structural diagram of the mounting assembly in fig. 1 according to an embodiment of the present invention.
In the drawings: safety net 1, slide 2, fixed plate 3, screw thread through-hole 301, turning block 4, first fastening bolt 5, first collar 6, second collar 7, through-hole 8, guide post 9, pressure spring 10 that resets, limiting plate 11, spout 12, connecting block 13, second fastening bolt 14, fastening nut 15, clamp tooth 16.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the utility model and are not intended to limit the utility model.
Specific implementations of the present invention are described in detail below with reference to specific embodiments.
As shown in fig. 1, a safety net reinforcing apparatus provided for an embodiment of the present invention includes a safety net 1 and a fixing plate 3, and further includes:
the clamping mechanism is arranged on the fixing plate 3 and comprises a clamping component, a resetting component and a fastening component, the clamping component is fixedly connected with the safety net 1 through the fastening component to fixedly clamp the safety net 1, and the resetting component is used for enabling the clamping component to be quickly reset when the safety net 1 is disassembled by the clamping component; and
the installation component is installed on the fixing plate 3 and fixedly installs the safety net 1 on a construction site through a clamping mechanism.
In the embodiment of the utility model, when the safety net 1 is used, the fastening assembly fixedly connects the safety net 1 with the fixing plate 3 through the fastening assembly, then the clamping mechanism is fixedly connected with the steel pipe on a construction site through the mounting assembly, when the safety net 1 needs to be disassembled or replaced, the fastening assembly is operated to loosen the clamping of the clamping assembly, then the reset assembly resets the clamping assembly, the safety net 1 is convenient to disassemble quickly, compared with the traditional safety net 1, the stress area of the safety net 1 is uniform when the clamping mechanism is connected with the safety net 1, the friction of the safety net 1 is reduced, the safety net 1 is firmer, and the safety is improved.
As shown in fig. 1-3, as a preferred embodiment of the present invention, the clamping assembly includes a sliding slot 12 disposed on the fixed plate 3, a sliding plate 2 slidably connected in the sliding slot 12, and clamping teeth 16 disposed on the fixed plate 3 and the sliding plate 2 for increasing the clamping force.
In the embodiment of the utility model, when in use, the safety net 1 is placed between the clamping teeth 16 of the sliding plate 2 and the fixing plate 3, the sliding plate 2 and the fixing plate 3 fixedly clamp the safety net 1 under the driving of the fastening assembly, and meanwhile, the clamping teeth 16 increase the friction force between the safety net 1 and the sliding plate 2 and the fixing plate 3, so that the clamping force is increased.
As shown in fig. 1 and 3, as a preferred embodiment of the present invention, the fastening assembly includes a through hole 8 provided on the sliding plate 2, a threaded through hole 301 is provided on the fixing plate 3, a first fastening bolt 5 threadedly coupled with the threaded through hole 301 is inserted into the through hole 8, and a fastening nut 15 is threadedly coupled to the first fastening bolt 5.
In the embodiment of the utility model, when the first fastening bolt 5 is rotated, the sliding plate 2 and the fixing plate 3 move towards each other through the matching of the first fastening bolt 5 and the threaded through hole 301, so that the sliding plate 2 and the fixing plate 3 fixedly clamp the safety net 1, and at the moment, the fastening nut 15 is rotated to lock the first fastening bolt 5, so that the first fastening bolt 5 cannot rotate, and the clamping stability is ensured.
As shown in fig. 1 and 3, as a preferred embodiment of the present invention, the resetting assembly includes a guide post 9 fixedly mounted on the fixing plate 3, a limit plate 11 is disposed at a terminal of the guide post 9, the guide post 9 is slidably connected with the sliding plate 2, and a resetting pressure spring 10 is sleeved outside the guide post 9 and on the sliding plate 2 and the fixing plate 3.
In the embodiment of the utility model, when the safety net 1 needs to be disassembled, the fastening nut 15 and the first fastening bolt 5 are reversely rotated, and the return compression spring 10 pushes the sliding plate 2 to move upwards, so that the sliding plate 2 and the fixing plate 3 loosen the safety net 1, and the disassembly and the replacement of the safety net 1 are facilitated.
As shown in fig. 1 and 4, as a preferred embodiment of the present invention, the mounting assembly includes a connecting block 13 fixedly connected to the fixing plate 3, a rotating block 4 is rotatably connected to an outer side of the connecting block 13, a first mounting ring 6 is fixedly mounted on the rotating block 4, a second mounting ring 7 is rotatably connected to the first mounting ring 6, and the first mounting ring 6 and the second mounting ring 7 are fixedly connected by a second fastening bolt 14.
In the embodiment of the utility model, the centers of the first mounting ring 6 and the second mounting ring 7 are concentric with the center of the steel pipe to be connected in the construction site by rotating the rotating block 4, and the first mounting ring 6 and the second mounting ring 7 are fixedly connected with the steel pipe through the second fastening bolt 14.
The embodiment of the utility model provides a safety net reinforcing device, when in use, a safety net 1 is placed between clamping teeth 16 of a sliding plate 2 and a fixing plate 3, when a first fastening bolt 5 is rotated, the sliding plate 2 and the fixing plate 3 move towards each other through the matching of the first fastening bolt 5 and a threaded through hole 301, so that the sliding plate 2 and the fixing plate 3 fixedly clamp the safety net 1, at the same time, a fastening nut 15 is rotated to lock the first fastening bolt 5, so that the first fastening bolt 5 cannot rotate, the clamping stability is ensured, at the same time, the clamping teeth 16 increase the friction force between the safety net 1 and the sliding plate 2 and the fixing plate 3, so that the clamping force is increased, the centers of a first mounting ring 6 and a second mounting ring 7 are concentric with the center of a steel pipe required to be connected in a construction site through rotating a rotating block 4, at the same time, the first mounting ring 6 and the second mounting ring 7 are fixedly connected with the steel pipe through a second fastening bolt 14, when the safety net 1 needs to be disassembled and replaced, the fastening nut 15 and the first fastening bolt 5 are rotated reversely, and the reset pressure spring 10 pushes the sliding plate 2 to move upwards, so that the sliding plate 2 and the fixing plate 3 loosen the safety net 1, and the safety net 1 is convenient to disassemble and replace.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, and any modifications, equivalents and improvements made within the spirit and principle of the present invention are intended to be included within the scope of the present invention.
Claims (5)
1. The utility model provides a safety net reinforcing apparatus, includes safety net and fixed plate, its characterized in that still includes:
the clamping mechanism is installed on the fixing plate and comprises a clamping component, a resetting component and a fastening component, the clamping component is fixedly connected with the safety net through the fastening component to fixedly clamp the safety net, and the resetting component is used for enabling the clamping component to be quickly reset when the safety net is disassembled; and
the installation component is installed on the fixing plate and fixedly installs the safety net on the construction site through the clamping mechanism.
2. The safety net reinforcing device according to claim 1, wherein the clamping assembly comprises a sliding groove formed on the fixing plate, a sliding plate is slidably connected in the sliding groove, and clamping teeth for increasing clamping force are arranged on the fixing plate and the sliding plate.
3. The safety net reinforcing device according to claim 2, wherein the fastening assembly comprises a through hole formed in the sliding plate, a threaded through hole is formed in the fixing plate, a first fastening bolt in threaded connection with the threaded through hole penetrates through the through hole, and a fastening nut is in threaded connection with the first fastening bolt.
4. The safety net reinforcing device according to claim 2, characterized in that the resetting component comprises guide posts fixedly mounted on the fixing plate, limiting plates are arranged at the tail ends of the guide posts, the guide posts are slidably connected with the sliding plate, and resetting pressure springs are sleeved on the sliding plate and the fixing plate outside the guide posts.
5. The safety net reinforcing device according to claim 1, wherein the mounting assembly comprises a connecting block fixedly connected to the fixing plate, a rotating block is rotatably connected to the outer side of the connecting block, a first mounting ring is fixedly mounted on the rotating block, a second mounting ring is rotatably connected to the first mounting ring, and the first mounting ring and the second mounting ring are fixedly connected through a second fastening bolt.
