Abstract
本实用新型公开了一种儿科护理用雾化器，包括雾化器本体、其壳体的两侧皆可拆装的连接有挂耳且两个挂耳间可拆装的连接有佩戴垫，所述佩戴垫的两侧皆设置有与挂耳为配合结构的挂钩，所述佩戴垫的中心处设置有透气层，所述透气层的内部填充有透气纱布垫。本实用新型在现有挂耳式结构雾化器的结构基础上，增设了佩戴垫，通过佩戴垫将两个挂耳连接在一起形成弧形的固定结构，以便于将挂耳式结构改装为佩戴式结构，避免本实用新型在佩戴时损伤患儿的耳部，同时，佩戴垫固定在患儿的后脑处，一方面，可防护患儿的后脑；另一方面，在患儿倚靠在墙壁或椅子上时，可避免了患儿的后脑直接与墙壁或椅背接触，继而优化了本实用新型的舒适性。
The utility model discloses an atomizer for pediatric nursing, which comprises an atomizer body, hanging ears detachably connected to both sides of the shell, and a wearing pad detachably connected to the two hanging ears. Both sides of the wearing pad are provided with hooks that cooperate with the hanging ears, a breathable layer is arranged at the center of the wearing pad, and the inside of the breathable layer is filled with a breathable gauze pad. The utility model adds a wearing pad on the basis of the existing structure of the hanging ear type atomizer, and connects the two hanging ears together to form an arc-shaped fixed structure through the wearing pad, so that the hanging ear type structure can be refitted into an arc-shaped fixed structure. The wearable structure prevents the ear of the child from being damaged when the utility model is worn, and at the same time, the wearing pad is fixed at the back of the child's head, on the one hand, the back of the child's head can be protected; When sitting on the chair, the back of the child's head can be prevented from directly contacting the wall or the back of the chair, thereby optimizing the comfort of the present invention.
Description
Technical Field
The utility model relates to the technical field of pediatric nursing, in particular to an atomizer for pediatric nursing.
Background
Along with the development of urban construction, air pollution is more and more serious, sand blown by the wind, haze weather, serious air infectious diseases and the like occur occasionally, dust, harmful substances, bacteria, viruses (such as avian influenza and atypical pneumonia) and the like existing in the air seriously affect the health of people, even can be fatal, particularly the resistance of children is weak, and the respiratory infection rate of the children is obviously and greatly improved when the weather is bad. To overcome these problems, air purifying breathing apparatuses such as masks, respirators, etc. have been invented.
Medical personnel wear the clarifier on children's face after, because the atomizer can often be touch to children's sex is good at when the activity, the atomizer that has now for this reason adopts hangers formula structure more, nevertheless consider that children's skin is comparatively tender, it is uncomfortable to wear the ear that the hangers made the infant easily for a long time, serious, strain the ear of infant even, the practicality is relatively poor, for this reason, the atomizer for the paediatrics nursing of a section difficult damage infant ear has been designed on the basis of the atomizer for the paediatrics nursing of present hangers structure.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a pediatric nursing atomizer to solve the problems in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme:
the utility model provides an atomizer for paediatrics nursing, includes that the both sides of atomizer body, its casing are all dismantled and assembled to be connected with the hangers and two dismantled and assembled between the hangers wear to fill up, the both sides of wearing the pad all are provided with the couple for the cooperation structure with the hangers, the center department of wearing the pad is provided with ventilative layer, the inside packing of ventilative layer has ventilative gauze pad.
As a further scheme of the utility model: an opening is formed in the breathable layer, and a bonding adhesive tape is arranged on the opening.
As a further scheme of the utility model: the utility model discloses an atomizer, including atomizer body, be provided with on the casing of atomizer body two sets of bilateral symmetry's snap-fastener son and detain group, the snap-fastener son that group includes two longitudinal symmetries is detained to the snap-fastener son, the offside that the snap-fastener son was detained is provided with the connecting band of fixing on the atomizer body, the outer end of connecting band is provided with and detains the snap-fastener box for the cooperation structure with the snap-fastener, and the one end of hangers is located the snap-fastener son and detains and the snap-fastener box between.
As a further scheme of the utility model: the shell of the atomizer body is also provided with at least two vent holes.
As a further scheme of the utility model: and a filter plate is arranged on the vent hole.
Compared with the prior art, the utility model has the beneficial effects that: through the scheme, the wearing pad is additionally arranged on the basis of the structure of the existing ear-hung type structure atomizer, the two ears are connected together through the wearing pad to form the arc-shaped fixed structure, so that the ear-hung type structure is conveniently changed into the wearing type structure, compared with the traditional ear-hung type structure, the ear-hung type structure can not be damaged when the atomizer is worn, and meanwhile, the wearing pad is fixed at the hindbrain of the infant, so that on one hand, the hindbrain of the infant can be protected; on the other hand, when the infant leans on the wall or the chair, the wearing pad is contacted with the wall or the chair back, so that the hindbrain of the infant is prevented from being directly contacted with the wall or the chair back, and the comfort of the infant seat cushion is further optimized.
Drawings

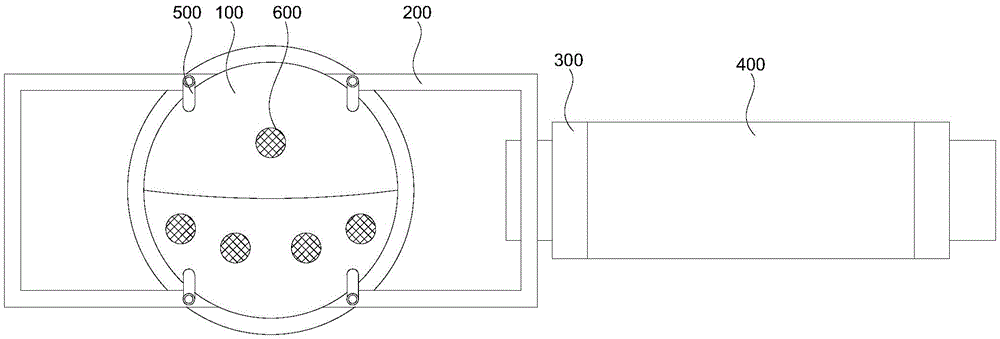

Fig. 1 is a front view of a nebulizer for pediatric nursing.
Fig. 2 is a front view of the wearing pad of the present invention.
Fig. 3 is a schematic front view of the atomizer body according to the present invention.
Fig. 4 is a schematic side view of the hook of the present invention.
The reference numerals in the figures have the following meanings:
100. an atomizer body; 200. hanging a lug; 300. wearing the cushion; 310. hooking; 400. a breathable layer; 410. a breathable gauze pad; 420. an opening; 430. bonding adhesive tapes; 500. a button group; 510. snap fastener snap; 520. a connecting belt; 530. snap fasteners and female buttons; 600. a vent hole; 610. and (4) filtering the plates.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1 to 4, in an embodiment of the present invention, an atomizer for pediatric nursing includes an atomizer body 100, two sides of a housing of the atomizer body are detachably connected with hangers 200, and a wearing pad 300 is detachably connected between the two hangers 200, two sides of the wearing pad 300 are provided with hooks 310 that are in a structure matching with the hangers 200, a ventilation layer 400 is disposed at a center of the wearing pad 300, the ventilation layer 400 is filled with a ventilation gauze pad 410, for conveniently filling the ventilation gauze pad 410, the ventilation layer 400 is provided with an opening 420, and the opening 420 is provided with an adhesive tape 430.
Considering the problem that hangers 200 were changed, be provided with two sets of bilateral symmetry's snap button on the casing of atomizer body 100 and detain group 500, snap button detains group 500 and includes two longitudinal symmetry's snap button and detains 510, the offside that snap button detained 510 is provided with the connecting band 520 of fixing on the casing of atomizer body 100, the outer end of connecting band 520 is provided with the snap button box 530 who detains 510 for the cooperation structure with snap button, and the one end of hangers 200 is located between snap button 510 and the snap button box 530, and when needing to be changed hangers 200, only need to buckle snap button box 530 from the snap button, can the efficient separation work of accomplishing hangers 200 to be convenient for medical personnel regularly change hangers 200.
On the basis of the above structure, the housing of the atomizer body 100 is further provided with at least two vent holes 600 to ensure the air permeability of the atomizer body 100, and meanwhile, the vent holes 600 are provided with filter plates 610 to facilitate the filtration of impurities in the air, thereby increasing the practical use effect of the present invention.
In view of the above situation, the wearing pad 300 is additionally arranged on the basis of the structure of the existing ear hanging type structure atomizer, the two ears 200 are connected together through the wearing pad 300 to form an arc-shaped fixed structure, so that the ear hanging type structure is conveniently changed into the wearing type structure, compared with the traditional ear hanging type structure, the ear hanging type atomizer cannot damage the ears of a child patient when being worn, and meanwhile, the wearing pad 300 is fixed at the hindbrain of the child patient, so that on one hand, the hindbrain of the child patient can be protected; on the other hand, when the infant leans on the wall or the chair, the back of the brain of the infant is prevented from directly contacting the wall or the chair back by the wearing pad 300 contacting the wall or the chair back, and then the comfort of the present invention is optimized.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (5)
1. The utility model provides a paediatrics is atomizer for nursing which characterized in that: the novel atomizer comprises an atomizer body (100) and a shell, wherein both sides of the atomizer body (100) are detachably connected with hangers (200), two hangers (200) are detachably connected with a wearing pad (300), both sides of the wearing pad (300) are provided with hooks (310) which are matched with the hangers (200), the center of the wearing pad (300) is provided with a breathable layer (400), and the breathable gauze pad (410) is filled in the breathable layer (400).
2. The nebulizer for pediatric care of claim 1, wherein: an opening (420) is formed in the breathable layer (400), and a bonding adhesive tape (430) is arranged on the opening (420).
3. The nebulizer for pediatric care of claim 1, wherein: be provided with snap fastener of two sets of bilateral symmetry on the casing of atomizer body (100) and detain group (500), snap fastener detain group (500) including two upper and lower symmetries and detain (510) according to detaining, the offside that snap fastener detained (510) is provided with connecting band (520) of fixing on atomizer body (100), the outer end of connecting band (520) is provided with and detains (510) snap fastener box (530) for the cooperation structure with the snap fastener, and the one end of hangers (200) is located between snap fastener detain (510) and snap fastener box (530).
4. The nebulizer for pediatric care of claim 1, wherein: the shell of the atomizer body (100) is also provided with at least two vent holes (600).
5. The nebulizer for pediatric care according to claim 4, wherein: the vent hole (600) is provided with a filter plate (610).
