Abstract
The utility model relates to an antibacterial device for absorbing blood oozing of a transfusion port, which comprises a positioning wing and a ring seat arranged in the center of the positioning wing, wherein the upper end of the ring seat far away from the positioning wing is connected with a cover film for plugging the upper end of the ring seat, and a dressing layer is adhered to the inner surface of the cover film facing to the ring seat; according to the antibacterial device provided by the utility model, the infusion port is limited through the ring seat, an external supporting and guiding function is provided when the infusion port is punctured, the cover film covers the ring seat in the usual nursing process, and dressing in the cover film can be used for carrying out antibacterial and anti-inflammatory nursing on a capsular bag wound and promoting the wound healing.
Description
Technical Field
The utility model belongs to the technical field of nursing, and particularly relates to an antibacterial device for absorbing blood oozing of an infusion port.
Background
An implanted intravenous administration system (VIAS), called a Port and a chemotherapy pump (Port) for short, is an intravenous infusion device which is implanted under the skin for relieving the irritation of medicine to the blood vessel of a patient and can be kept in the body for a long time, and is divided into three parts: the puncture needle comprises a non-traumatic needle (butterfly wing needle), a catheter which is placed into a subclavian vein, and an injection seat (port body) which is buried under the skin and connected with an infusion needle, wherein the injection seat is connected with the catheter which is inserted into the subclavian vein to form a long-term vascular access and plays a role similar to a port, so that the puncture needle is called as an 'infusion port', the catheter is punctured and placed into a great vein of a human body such as the subclavian vein and the superior vena cava through the skin by a small operation method, part of the catheter is buried in the subcutaneous tissue, the puncture seat at the other end is left in the subcutaneous tissue of the chest wall and is fixed by suturing, only a small suture wound is seen in the appearance of the skin after the operation, and a protruding round ball can be touched on the body surface of a patient after healing and removing the suture. The common position of the catheter of the transfusion port is the superior vena cava, the blood flow is large, the medicine, nutrient solution and blood products can be quickly diluted, and the vein sclerosis or necrosis caused by the stimulation of the blood vessel can be reduced or avoided. Compared with the common intravenous infusion, the method reduces the chance of hardening the blood vessel and also reduces the pain of repeatedly puncturing the blood vessel because the blood vessel can not be found.
Benefits of the port of infusion: (1) no pipe is exposed on the surface, so that doubtful inquiry disturbance of others is avoided; (2) the bath lotion can be used for bathing after being placed under the skin, and is more convenient for daily life; (3) the probability of infection is small, and the transfusion port is completely buried in the body, so that the transfusion port is not easy to be infected, and the problems of skin itch, red swelling and the like caused by PICC (peripherally inserted central catheter) are avoided; (4) the leakage of the medicine is avoided, and the common tube placement may cause the leakage of the chemotherapy medicine due to the 'needle running' caused by improper posture and overlarge action, stimulate the blood vessel and even cause irreversible injury. In this respect, the port has great advantages, which are substantially impossible; (5) the puncture needle can be repeatedly used for a long time, the 19G atraumatic puncture needle punctures 1000 times, the butterfly wing needle is continuously used for 7 days for calculation, and the transfusion port can be used for 19 years, but one transfusion port can also be repeatedly used for more than 10 years according to clinical use experience due to different maintenance modes of each person.
The use of the transfusion port needs to be matched with a nondestructive needle for puncture to establish a venous transfusion channel, the transfusion port base needs to be fixed and the puncture partition needs to be palpated and positioned in the puncture process, generally, a thumb, a forefinger and a middle finger of a non-dominant hand are made into a triangle, the transfusion port is fixed, the middle points of the three fingers are determined, the puncture partition is vertically inserted from the middle point of the transfusion port gently and reaches the bottom of a liquid storage tank, and the transfusion safety and smoothness are guaranteed. However, in clinical use, because patients use different types of transfusion ports and have different skin thicknesses of port placement parts and port seats, the transfusion ports are used in a short time after the port placement, blood and liquid are easy to seep at the wounds of the capsular bags, and the pain of the patients is obvious. In addition, because the operation methods and the proficiency of nurses are different, the transfusion port cannot be well fixed during puncture, the puncture success rate of the transfusion port is reduced, the problems that the medication of patients is influenced, the puncture times and the blockage of catheters are increased and the like are caused, and the pain of the patients and the medical care risk are increased.
Disclosure of Invention
The utility model aims to solve the problems in the prior art and provide an antibacterial device for absorbing the blood oozing of a transfusion port.
The purpose of the utility model is realized as follows:
the antibacterial device for absorbing the blood oozing of the transfusion port comprises a positioning wing and a ring seat arranged in the center of the positioning wing, wherein the upper end, far away from the positioning wing, of the ring seat is connected with a cover film used for plugging the upper end of the ring seat, and a dressing layer is adhered to the inner surface, facing the ring seat, of the cover film.
Preferably, the ring seat is a hollow ring structure corresponding to the bottom of the port body of the port, and the ring seat fixes the port body of the port in the hollow ring structure.
Preferably, the positioning wings are made of medical adhesive cloth with air permeability, the ring seat is made of a titanium-nickel shape memory alloy sheet, the ring seat protrudes out of the upper end faces of the positioning wings, and the ring seat and the positioning wings are connected through medical adhesive.
Preferably, an arc convex surface with air holes is formed in the middle of the cover film, and the dressing layer is adhered to the inner surface of the arc convex surface and forms the same arc convex surface.
Preferably, the cover membrane is made of medical waterproof breathable non-woven fabric, and the periphery of the cover membrane is connected with the peripheral wall of the ring seat through medical adhesive in a bonding mode.
Preferably, the dressing layer is nano-silver antibacterial gel, chitosan particles are adhered to the surface of the nano-silver antibacterial gel, and the dressing layer is connected to the inner surface of the cover film through a one-way diaphragm.
Preferably, a circle of absorption cotton layer for absorbing the oozing blood is arranged on the inner peripheral side of the cover film and at the lower end corresponding to the dressing layer.
Preferably, the diaphragm adopts a silica gel membrane, the permeation of the dressing layer is realized by utilizing the micropores of the silica gel, and the thickness of the silica gel membrane is 1-1.5 mm.
Preferably, the bottom end of the interior of the ring seat is provided with a positioning film which is bonded with the positioning wing and is provided with an array through hole.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the antibacterial device for absorbing the blood oozing of the infusion port, the infusion port is limited through the ring seat, an external supporting and guiding effect is provided when the infusion port is punctured, the cover film covers the ring seat in the ordinary nursing process, and dressing in the cover film can perform antibacterial and anti-inflammatory nursing on a bag wound and promote the wound to heal.
2. The utility model provides an antibacterial device for absorbing blood seepage of a transfusion port, which fixes the transfusion port arranged under the skin in a hollow cavity through a ring seat and clamps a port body of the transfusion port, and simultaneously, a positioning wing is stuck on the surrounding skin to prevent a base of the transfusion port from sliding.
3. According to the antibacterial device for absorbing the blood seeping from the transfusion port, the cover film covers the upper end of the ring seat to block the hollow structure of the ring seat, meanwhile, the cover film has air permeability and can keep the skin in the ring seat dry, the cotton layer on the periphery of the corresponding position of the bottom of the cover film and the inside of the ring seat can be used for absorbing the blood seeping from the wound, the dressing layer in the center of the bottom of the cover film can enable the antibacterial medicine inside the cover film to permeate into the wound through the diaphragm, and therefore the blood seeping absorption and sterilization nursing can be conducted on the wound, and the healing of the wound is promoted.
Drawings
FIG. 1 is a view showing a state of use of the port.
Fig. 2 is a schematic structural view of an antibacterial device for absorbing blood oozing from a port.
Fig. 3 is a schematic view of a ring seat of an antimicrobial device for absorbing blood oozing from a port of infusion according to the present invention.

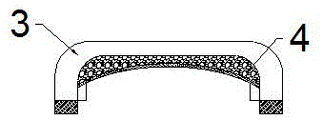

Fig. 4 is a schematic view of a cover film of an antibacterial device for absorbing blood oozing from a port of infusion according to the present invention.
In the figure: 1. positioning the wing; 2. a ring seat; 3. covering a film; 4. a dressing layer.
Detailed Description
The technical solutions in the embodiments of the present invention are clearly and completely described below with reference to the accompanying drawings, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, rather than all embodiments, and all other embodiments obtained by those skilled in the art without any creative work based on the embodiments of the present invention belong to the protection scope of the present invention.
Example 1
With reference to fig. 2, an antibacterial device for absorbing blood leakage of a transfusion port comprises a positioning wing 1 and a ring seat 2 arranged at the center of the positioning wing 1, wherein the ring seat 2 protrudes out of the upper end face of the positioning wing 1, the upper end of the ring seat 2 far away from the positioning wing 1 is connected with a cover membrane 3 used for plugging the upper end of the ring seat 2, the ring seat 2 is sleeved on the periphery of a port body base of the subcutaneous transfusion port, a notch corresponding to a catheter of the transfusion port is arranged at the bottom of the ring seat 2, the ring seat 2 is positioned on the skin through the positioning wing 1, the ring seat 2 is prevented from greatly shifting, the cover membrane 3 is plugged at an opening above the ring seat 2 when a puncture needle is not required to be punctured, and infection of a bag wound is avoided.
With reference to fig. 2, the positioning wing 1 adopts a medical adhesive cloth with air permeability, the ring seat 2 adopts a titanium-nickel shape memory alloy sheet, the ring seat 2 and the positioning wing 1 are connected by medical adhesive, the ring seat 2 made of metal has support property, and meanwhile, deformation is prevented from affecting the positioning of the infusion port, when puncture is needed, the ring seat 2 is pinched to fix the infusion port, so that the infection and secondary damage of the wound caused by direct contact with the wound of the bag are prevented.
With reference to fig. 3, the inner surface of the cover film 3 facing the ring seat 2 is adhered with a dressing layer 4, the periphery of the cover film 3 is connected with the peripheral wall of the ring seat 2 through medical glue, a ventilated gap is reserved between the cover film and the ring seat, the cover film 3 is made of medical waterproof breathable non-woven fabric, the skin at the wound is kept dry and comfortable, an arc-shaped convex surface with air holes is formed in the middle of the cover film 3, the dressing layer 4 is adhered to the inner surface of the arc-shaped convex surface and forms the same arc-shaped convex surface, a gap is reserved between the dressing layer and the skin, the situation that the dressing is always contacted with the skin and is not beneficial to the skin drying is avoided, the dressing layer 4 is nano-silver antibacterial gel, chitosan particles are adhered to the surface of the nano-silver antibacterial gel, and the healing of the wound is promoted.
Example 2
On embodiment 1's basis, the week side of epiphragma, the lower extreme that corresponds the dressing layer are equipped with the cotton layer of absorption that the round is used for adsorbing the oozing blood, and after the wound oozing blood, the cotton layer of absorption can adsorb the clearance to the oozing blood, the dressing layer passes through one-way diaphragm and connects in the internal surface of epiphragma, the diaphragm adopt the pellosil, utilize the micropore of silica gel self to realize that the infiltration of dressing layer passes through, and the intraformational medicine of dressing passes through the diaphragm and slowly permeates at the wound, forms lasting protection to patient's wound, need not frequently to change the epiphragma.
The above description is only a preferred embodiment of the present invention, and should not be taken as limiting the utility model, and any modifications, equivalents and substitutions made within the scope of the present invention should be included.
Claims (6)
