CN215378806U

CN215378806U - A multifunctional emergency mobile power supply

Info

Publication number: CN215378806U
Application number: CN202122062166.4U
Authority: CN
Inventors: 吴剑伟; 仝建锋
Original assignee: Wanlai Intelligent Technology Xi'an Co ltd
Current assignee: Wanlai Intelligent Technology Xi'an Co ltd
Priority date: 2021-08-30
Filing date: 2021-08-30
Publication date: 2021-12-31
Anticipated expiration: 2031-08-30

Abstract

The utility model relates to the technical field of paint production, in particular to a multifunctional emergency mobile power supply, comprising: an upper casing, a solar cell panel and a key panel, the multifunctional emergency mobile power supply comprises a multifunctional emergency mobile power supply host and a solar charging unit, The multifunctional emergency mobile power host includes an upper shell, a button panel, a battery pack, a lower shell, a cooling fan and a main control management module, and the button panel, the battery pack, the cooling fan and the main control management module are built into the upper shell and the lower shell. Inside the joint of the shell, the solar charging unit is composed of solar panels. The invention has rich interfaces, various charging methods, wide adjustable discharge parameters, supports various charging protocols, and matches many types of equipment, which can greatly meet the power consumption requirements of different equipment in the field. The invention provides powerful background management Function, manage various charging modules, inverter units, DC transformer modules, charge and discharge protection modules, sensors, display units, etc.

Description

Multifunctional emergency mobile power supply

Technical Field

The utility model relates to the technical field of power management systems of mobile power supplies, in particular to a multifunctional emergency mobile power supply.

Background

The multifunctional emergency mobile power supply is designed aiming at the scene of sudden task of field emergency, and is mainly used for emergency tasks such as military operation, emergency rescue and relief work and the like. Meanwhile, the device can also be used in civil occasions, such as power supply of equipment and instruments, power supply of portable equipment, power supply for outdoor operation, power supply for camping and traveling, temporary power supply for families and the like.

The traditional field temporary electricity utilization mainly has two modes: firstly, adopt small-size generator, not only the transport is troublesome, the noise is big, exposes the target easily, and operating efficiency is also slow. Secondly, the storage battery is adopted for inversion power supply, and most of the inversion power supply boxes on the market simply output currents (220V alternating current and 12V direct current) with two specifications. In the military field, the portable equipment has various models, different power supply parameters and different equipment batteries, so that a multifunctional emergency mobile power supply capable of outputting various power supply parameters is designed, the supplement of equipment electric energy under the field condition is guaranteed, different types of equipment are matched in a large range, the flow is simplified, and the working efficiency is improved.

In addition, functions (optional parts) such as Beidou/GPS positioning and mobile communication are added to the mobile power supply of the equipment, so that positioning support and background electric quantity information release can be timely carried out on a user under emergency conditions such as sudden natural disasters, emergency rescue, field operations and the like, and the position of a task worker can be timely tracked and resources can be allocated conveniently in the rear.

Therefore, the utility model is a multifunctional and comprehensive field emergency mobile power supply.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a universal solution for a backup power supply of weaponry in a field environment and solve the problem of improving the working efficiency of the weaponry in a field extremely severe environment.

In order to achieve the purpose, the utility model provides the following technical scheme: a multifunctional emergency mobile power supply, comprising: an upper shell, a solar cell panel and a key panel,

the multifunctional emergency mobile power supply comprises a multifunctional emergency mobile power supply host and a solar charging unit;

the multifunctional emergency mobile power supply host comprises an upper shell, a key panel, a battery pack, a lower shell, a cooling fan and a main control management module, wherein the key panel, the battery pack, the cooling fan and the main control management module are arranged on the inner side of the joint of the upper shell and the lower shell;

the solar charging unit is composed of a solar cell panel.

Preferably, the master control management module comprises a charging module, a display screen module, a USB output module, an adjustable output voltage module, a master control circuit module and an inverter module.

Preferably, the master control management module further comprises a liquid crystal display module, a charge-discharge protection module, a system panel, a temperature control module, a heat dissipation assembly, a Beidou/GPS module and a mobile communication module.

Preferably, the key panel comprises an alternating current input, a direct current charging input, a display panel, a first control button, a second control button and a key panel, wherein the direct current charging input is a standard aviation socket, and the alternating current input is converted into direct current through an internal direct current conversion circuit.

Preferably, the charging module comprises an alternating current input charging module and a solar energy input charging module which are arranged in the box body.

Compared with the prior art, the utility model has the beneficial effects that:

1. the utility model has rich interfaces, various charging modes, wide and adjustable discharging parameters, supports various charging protocols, has multiple matched equipment types, and can greatly meet the power consumption requirements of different field equipment.

2. The utility model provides a system with a strong background management function. The charging system comprises various charging modules, an inversion unit, a direct current transformation module, a charging and discharging protection module, a sensor, a display unit and the like. The management is intelligent, the mechanism is efficient, and accurate power state information is provided for users.

3. The Beidou/GPS module and the mobile communication module are arranged in the mobile communication terminal, so that the position service and power supply condition information communication under extreme conditions can be realized, and background scheduling is facilitated.

Drawings

FIG. 1 is a right side elevational perspective view of the structure of the present invention;

FIG. 2 is a diagram of the outdoor mobile power supply of the present invention;

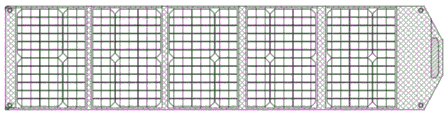

FIG. 3 is a schematic front view of the solar panel of the present invention;

FIG. 4 is a schematic view of a folded back side of a solar panel of the present invention;

FIG. 5 is a schematic view of a folded front of a solar panel of the present invention;

fig. 6 is a schematic view of a key panel structure according to the present invention.

FIG. 7 is a process flow diagram of the present invention.

In the figure: 1. an upper shell; 2. a solar panel; 3. a key panel; 301. inputting alternating current; 302. a direct current charging input; 303. a display panel; 304. a first control button; 305. a second control button; 306. a key sheet; 4. a charging module; 5. a display screen module; 6. a USB output module; 7. an adjustable output voltage module; 8. a battery pack; 9. a lower case; 10. a heat radiation fan; 11. a main control circuit module; 12. an inverter module.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-7, an embodiment of the present invention is shown:

a multifunctional emergency mobile power supply, comprising:

the method comprises the following steps: the multifunctional emergency mobile power supply comprises an upper shell 1, a solar cell panel 2 and a key panel 3, wherein the multifunctional emergency mobile power supply comprises a multifunctional emergency mobile power supply host and a solar charging unit;

the multifunctional emergency mobile power supply host comprises an upper shell 1, a key panel 3, a battery pack 8, a lower shell 9, a cooling fan 10 and a main control management module, wherein the key panel 3, the battery pack 8, the cooling fan 10 and the main control management module are arranged on the inner side of the joint of the upper shell 1 and the lower shell 9, and a solar charging unit consists of a solar cell panel 2;

the main control management module comprises a charging module 4, a display screen module 5, a USB output module 6, an adjustable output voltage module 7, a main control circuit module 11 and an inverter module 12.

The master control management module further comprises a liquid crystal display module, a charging and discharging protection module, a system panel, a temperature control module, a heat dissipation assembly, a Beidou/GPS module and a mobile communication module.

The key panel 3 comprises an ac input 301, a dc charging input 302, a display panel 303, a first control button 304, a second control button 305 and a key pad 306, the dc charging input 302 is a standard aviation socket, and the ac input 301 is converted into dc power by an internal dc conversion circuit.

The charging module 4 comprises an alternating current input charging module and a solar energy input charging module which are arranged in the box body.

The device has the following characteristics:

1. according to the emergency mobile power supply, the outer box body is a high-molecular PP alloy injection molding box body, and the emergency mobile power supply has the characteristics of corrosion resistance, falling resistance, water resistance, high and low temperature resistance, difficulty in cracking and the like; the box can adopt portable box, also can adopt pull rod formula box, all supports IP68 waterproof dustproof simultaneously, satisfies outdoor operation requirement.

2. This emergent portable power source has multiple charge mode: under the condition that the commercial power can be guaranteed, alternating current 220V is used for charging and storing energy; in a field environment, charging by using a solar panel (32V/60W) or charging by using a small miniature wind driven generator; under extreme conditions, an external hand generator can be used for charging.

3. This emergent portable power source possesses the power supply and charges the function, matches the portable equipment of multiple model. The power output end provides 220V alternating current and fixed or adjustable 0-36V direct current to the outside. The panel interface is many, can compatible aviation socket, USB socket, DC round hole socket etc.. And the power supply requirements of different types of equipment are met. Meanwhile, an external support direct current PD quick charge protocol, a high-pass QC quick charge protocol and the like are used as energy storage equipment to charge an external battery, and the charging requirement of the current electronic product can be met. For example, 220V ac power can be supplied to small appliances, office equipment, power tools, or other small ac appliances. The direct current 0-36V adjustable voltage output can meet the requirements of power supply and charging of direct current communication equipment, a welding machine, a maintenance instrument, an interphone and the like; the USB port can charge devices such as a mobile phone, a digital camera and a mobile terminal; in addition, the voltage-adjustable output is arranged to charge different types of batteries.

4. According to the emergency mobile power supply, a main control part adopts a 64-bit 8-core ARM core architecture processor. One-key start, all built-in modules of intelligent management, system are equipped with 5 cun high definition display screens, can effectively show all charge and discharge information, and the user can effectively accurately master this emergency power supply's state.

5. This emergent portable power source embeds intelligent power environmental monitoring system. The system is internally provided with a fan and a temperature sensor, and can control charging and discharging current and start a cooling fan according to the internal and external environment temperatures, so that the system is ensured to run safely and normally.

6. The emergency mobile power supply can realize communication under extreme conditions. A Beidou/GPS unit (optional piece) is arranged in the box body, and outdoor rescue positioning can be carried out; the built-in wireless communication unit (option) can timely report the actual position and the electric quantity information through the background, so that the background can carry out emergency contact, know the equipment state and carry out resource allocation.

The working principle is as follows: according to the work flow chart of fig. 7, the technical scheme that the commercial power or solar energy (or other power generation modes) are used for charging and storing energy, the external equipment is charged and powered in an emergency is provided, the intelligent control unit is used for controlling various internal modules, the power supply and charging output of various parameters is realized, and the matching of various portable equipment is met.

The mobile power supply can be input by alternating current 301 or direct current 302 shown in fig. 6. The direct current input interface is a standard aviation socket, and is convenient for different equipment to be accessed. The input of alternating current needs to be converted into direct current through an internal direct current conversion circuit. The built-in channel selection module and the filtering module set the AC input channel which is preferentially adopted and has high efficiency in current input selection.

After external electricity enters the main control circuit, the power is distributed and supplied to different functional modules through internal control. The power management module is internally provided with an intelligent power environment monitoring system. Through radiator fan on the panel, temperature sensor on mainboard and the electric core can be according to inside and outside ambient temperature, carries out the opening of charge-discharge current control and radiator fan, guarantees that system operation safety is normal, and power management still contains the outside control to power output, can be through 304 on the panel and 305 button to whole interchange, the external control of direct current.

The charging module in the main control circuit mainly performs direct current charging control to the outside, and supports various direct current PD quick charging protocols, high-pass QC quick charging protocols and the like to the outside, and the current magnitude can be automatically adapted and output according to different external battery types. Meanwhile, the panel is provided with a plurality of interfaces, so that the panel can be compatible with an aviation socket, a USB socket, a DC round hole socket and the like, and the power supply requirements of different types of equipment are met. And meanwhile, the battery cell group is controlled to supply power to the inverter module so as to realize the direct current to 220V alternating current output.

The access of the Beidou positioning module and the mobile communication module in the main control circuit can provide positioning and communication support for users and the background.

The output voltage regulating module is mainly matched with a 3-6 key board on the panel to output 6V-36V adjustable voltage.

All the information such as the charging and discharging time, the temperature, the electric quantity, the input and output prompt, the Beidou positioning signal and the like is displayed in real time through the panel 3-3 and the display module.

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. A multifunctional emergency mobile power supply, comprising: an upper shell (1), a solar panel (2) and a key panel (3), characterized in that:

The multifunctional emergency mobile power supply includes a multifunctional emergency mobile power supply host and a solar charging unit;

The multifunctional emergency mobile power host includes an upper shell (1), a key panel (3), a battery pack (8), a lower shell (9), a cooling fan (10) and a main control management module, the key panel (3) ), the battery pack (8), the cooling fan (10) and the main control management module are built in the inner side of the connection between the upper shell (1) and the lower shell (9);

The solar charging unit is composed of solar cell panels (2).

2. A multifunctional emergency mobile power supply according to claim 1, characterized in that: the main control management module comprises a charging module (4), a display screen module (5), a USB output module (6), an adjustable An output voltage module (7), a main control circuit module (11) and an inverter module (12).

3. A multifunctional emergency mobile power supply according to claim 2, characterized in that: the main control management module further comprises a liquid crystal display module, a charge and discharge protection module, a system panel, a temperature control module, a heat dissipation component, a Beidou /GPS module and mobile communication module.

4 . The multifunctional emergency mobile power supply according to claim 2 , wherein the key panel ( 3 ) comprises an AC input ( 301 ), a DC charging input ( 302 ), a display panel ( 303 ), a first A control button (304), a second control button (305) and a key board (306), the DC charging input (302) is a standard aviation socket, and the AC input (301) is converted into DC power through an internal DC conversion circuit .

5 . The multifunctional emergency mobile power supply according to claim 2 , wherein the charging module ( 4 ) comprises an AC input charging module and a solar energy input charging module placed in the box. 6 .
