CN215372296U

CN215372296U - a multipurpose lamp

Info

Publication number: CN215372296U
Application number: CN202121859342.0U
Authority: CN
Inventors: 盛传新; 吕浩; 黄鹏程
Original assignee: Wandefu Hangzhou Smart Home Co ltd
Current assignee: Wandefu Hangzhou Smart Home Co ltd
Priority date: 2021-08-10
Filing date: 2021-08-10
Publication date: 2021-12-31
Anticipated expiration: 2031-08-10

Abstract

The utility model discloses a multi-purpose lamp, comprising an LED lamp body, a lamp hoop frame matched with the LED lamp body is arranged on the outer side of the LED lamp body, and the two ends of the lamp hoop frame are respectively adjustable with the LED lamp body The middle of the lamp holder is provided with a detachable fixing piece. The LED lamp body of the utility model cooperates with different detachable fixing parts through the lamp hoop frame, which can be fixed in multiple fixing occasions, and is suitable for outdoor use; the solar panel is used to collect energy for lighting, and is suitable for long-term use in outdoor conditions.

Description

Multipurpose lamp

[ technical field ] A method for producing a semiconductor device

The utility model belongs to the technical field of illuminating lamps, and particularly relates to a multipurpose lamp.

[ background of the utility model ]

Many users need to use the portable illuminating lamp when doing events in outings or outdoors at night, but the common illuminating lamp with a power supply can be used, but the illuminating lamp can only be placed or fixed at a certain position due to lack of an effective fixing device and cannot be fixed at any place.

[ Utility model ] content

The utility model aims to solve the problem that a multipurpose lamp is inconvenient to fix when used outdoors, and provides a multipurpose lamp which has high universality and can be fixed at a plurality of outdoor positions.

In order to achieve the purpose, the utility model provides the following technical scheme that the multipurpose lamp comprises an LED lamp body, a lamp hoop frame matched with the LED lamp body is arranged on the outer side of the LED lamp body, two ends of the lamp hoop frame are respectively connected with the LED lamp body in an adjustable mode, and a detachable fixing piece is arranged in the middle of the lamp hoop frame.

The scheme is suitable for being used as a lighting lamp, an atmosphere lamp and the like outdoors and indoors, and fixing a plurality of different positions outdoors and indoors, and is characterized in that a lamp hoop frame with the outline matched with the outline of an LED lamp body is arranged at first, for example, the circular LED lamp body is matched with the circular lamp hoop frame, the rectangular LED lamp body is matched with the rectangular lamp hoop frame, the lamp hoop frame and the LED lamp body can be adjusted and fixed, namely, the lamp hoop frame and the LED lamp body can be detached and the relative fixing angle can be adjusted, then a detachable fixing piece is arranged in the middle of the lamp hoop frame, the detachable fixing piece can be selected according to the position required to be fixed by the LED lamp body, can be fixed with the lamp hoop frame, and can be hung at a high position, or placed on a platform, or fixed to other fixtures by screw threads, or inserted and fixed to other objects; after the lamp hoop frame is fixed, the LED lamp body can also be adjusted to a relatively fixed angle with the lamp hoop frame, so that a user can obtain a satisfactory light irradiation angle.

Preferably, the LED lamp body is cylindrical, one end face of the LED lamp body is provided with the LED lamp, the other end face of the LED lamp body is provided with the solar panel, and the LED lamp body is provided with a switch and an adjusting button. The LED lamp body is internally provided with the power supply, the power supply can be provided with a commercial power or other energy supplement interfaces, and the solar panel is used as an energy supplement mode, so that sunlight is collected outdoors in daytime to store energy, and the energy is supplied to the LED lamp for illumination at night; the switch can be a button or a touch switch and is used for turning on or turning off the LED lamp, and the adjusting button is used for adjusting the brightness or the chromaticity of the LED lamp.

Preferably, the lamp hoop frame is a semicircular band-shaped body, and adjustable knob-type screws are arranged at the connecting positions of the two ends of the lamp hoop frame and the side face of the LED lamp body. The adjustable knob formula screw of this scheme fixes the lamp hoop frame in LED lamp body side, unscrews slightly, and the relative angle between adjustable LED lamp body and the lamp hoop frame can be fixed this relative angle after screwing up.

Preferably, the middle part of the lamp hoop frame is provided with a strip-shaped mounting groove, and a detachable hook is arranged in the strip-shaped mounting groove. The long strip-shaped mounting groove is connected with the hook, the hook is connected with the mounting groove through bolts, the hook can slide in the mounting groove to select the best fixing position, the hook opening can be provided with the elastic stop lever, and the hook is suitable for being used when the LED lamp body is hung at a high position in a hanging mode.

Preferably, the lamp hoop frame is provided with a strip-shaped mounting groove in the middle, a table base is arranged in the strip-shaped mounting groove, the table base and the mounting groove can be detachably fixed, and the table base is provided with a fixing hole. The rectangular shape mounting groove of this scheme for be connected with desk-top base, desk-top base is bolted connection with the mounting groove, and desk-top base can slide in the mounting groove and select best fixed position, and the last fixed orifices that has in addition of desk-top base is fit for using when placing LED lamp body in flat department or passing through the fixed orifices with the screw with desk-top base fixed to other article.

Preferably, the table type base is provided with a stand column, and the top end of the stand column is detachably fixed with the mounting groove. The stand of this scheme can prolong the distance between desk-top base and the lamp hoop frame, is convenient for the installation fixed with handheld use.

Preferably, the upright post is an L-shaped upright post. The L-shaped stand column of the scheme is suitable for the LED lamp body to be installed at a higher position for downward irradiation.

Preferably, the middle of the lamp hoop frame is provided with a long strip-shaped mounting groove, a fixing column is arranged in the long strip-shaped mounting groove, one end of the fixing column is detachably fixed with the mounting groove, and the other end of the fixing column is in a sharp cone shape. The rectangular shape mounting groove of this scheme for be connected with the fixed column, the fixed column is bolted connection with the mounting groove, and the fixed column can slide in the mounting groove and select best fixed position, and the fixed column other end is sharp toper, is fit for when outdoor use, uses when disect insertion soft ground.

Preferably, the end face of the LED lamp body, which is provided with the solar panel, is provided with a ceiling mounting groove and a wire outlet hole. The ceiling mounting groove is suitable for being used when a fixing buckle is arranged on a ceiling, and the lamp hoop frame can be adjusted to be parallel to the surface of the LED lamp or directly detached without using; the wire outlet hole is convenient for being connected with an external power supply when the ceiling is installed.

The utility model has the beneficial effects that: the LED lamp body is matched with different detachable fixing pieces through the lamp hoop frame, can be used as lamps with different purposes, can also be fixed in a plurality of fixing occasions, and is suitable for indoor and outdoor use; when the solar panel is used outdoors, the solar panel is adopted to collect energy for illumination, and the solar panel is suitable for long-term use under the field condition.

The features and advantages of the present invention will be described in detail by the following embodiments in conjunction with the accompanying drawings.

[ description of the drawings ]

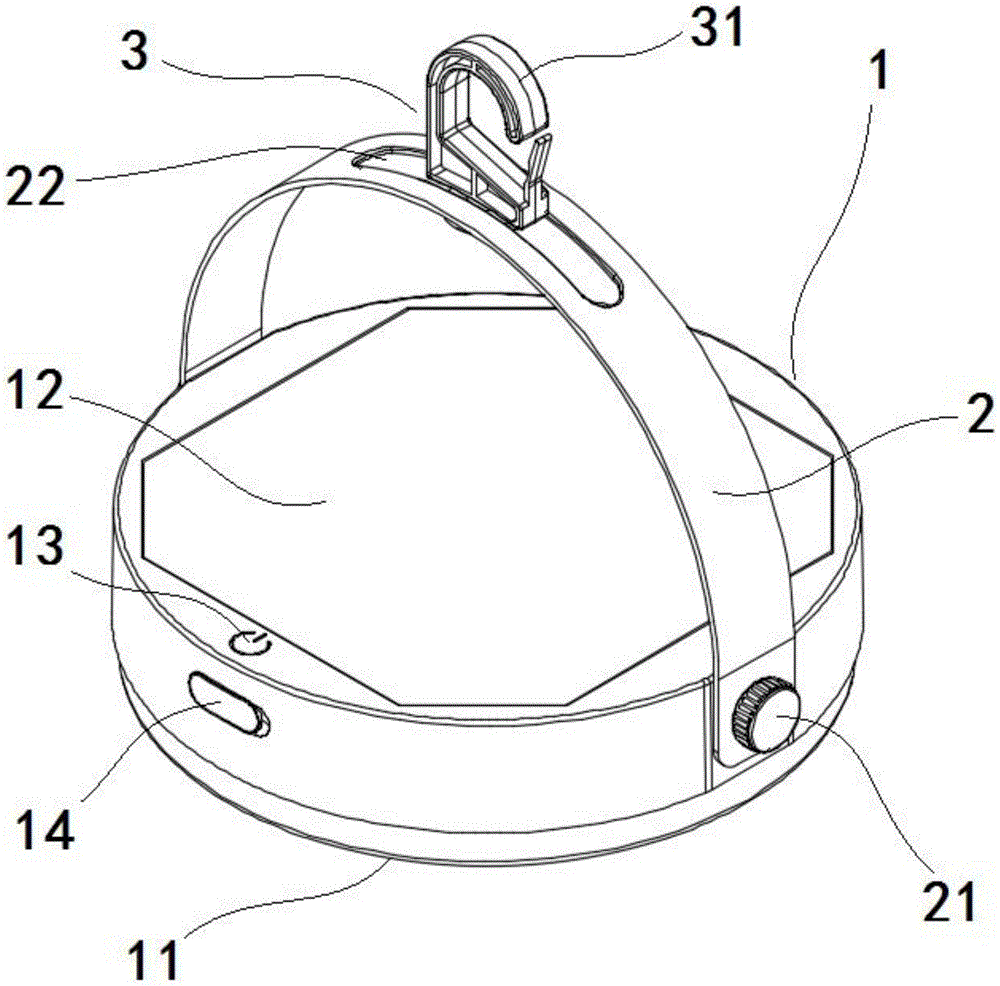

FIG. 1 is a first schematic construction of the present invention;

FIG. 2 is a second schematic construction of the present invention;

FIG. 3 is a third schematic of the present invention;

FIG. 4 is a fourth schematic of the present invention;

FIG. 5 is a schematic diagram of a fifth configuration of the present invention;

fig. 6 is a sixth structure diagram of the present invention.

In the figure: 1-LED Lamp body 2-lamp hoop frame 3-detachable fixing piece

11-LED lamp 12-solar panel 13-switch

14-adjusting button 15-ceiling mounting groove 16-wire outlet

21-knob type screw 22-mounting groove 31-hook

32-desk type base 33-upright post 34-fixed post.

[ detailed description ] embodiments

Referring to fig. 1 to 6, the embodiment discloses a multipurpose lamp, which includes an LED lamp body 1, a lamp hoop frame 2 matched with the LED lamp body 1 is arranged outside the LED lamp body 1, two ends of the lamp hoop frame 2 are respectively connected with the LED lamp body 1 in an adjustable manner, and a detachable fixing member 3 is arranged in the middle of the lamp hoop frame 2;

the LED lamp body 1 is cylindrical, an LED lamp 11 is arranged on one end face of the LED lamp body 1, a solar panel 12 is arranged on the other end face of the LED lamp body 1, and the LED lamp body 1 is provided with a switch 13 and an adjusting button 14;

the lamp hoop frame 2 is a semicircular band-shaped body, and adjustable knob type screws 21 are arranged at the connecting parts of the two ends of the lamp hoop frame 2 and the side surface of the LED lamp body 1.

As shown in fig. 1, the lamp hoop frame 2 has a strip-shaped mounting groove 22 in the middle, and a detachable hook 31 is disposed in the strip-shaped mounting groove 22.

As shown in fig. 2, the middle portion of the lamp hoop frame 2 is provided with a strip-shaped mounting groove 22, a table-type base 32 is arranged in the strip-shaped mounting groove 22, the table-type base 32 and the mounting groove 22 are detachably fixed, and a fixing hole is formed in the table-type base 32.

As shown in FIG. 3, the table base 32 is provided with a column 33, and the top end of the column 33 is detachably fixed to the mounting groove 22.

As shown in fig. 4, the pillar 33 is an L-shaped pillar.

As shown in fig. 5, the middle portion of the lamp hoop frame 2 is provided with an elongated mounting groove 22, a fixing column 34 is arranged in the elongated mounting groove 22, one end of the fixing column 34 is detachably fixed to the mounting groove 22, and the other end of the fixing column is in a pointed conical shape.

As shown in fig. 6, the end surface of the LED lamp body 1 provided with the solar panel 12 is provided with a ceiling mounting groove 15 and an outlet hole 16.

The specific using process is as follows: connecting the LED lamp body 1 with the lamp hoop frame 2, wherein the hook 31, or different table type bases 32 or fixed columns 34 are fixedly connected with the lamp hoop frame 2, or the hook 31, or different table type bases 32 or fixed columns 34 are connected with a preset fixed article, and finally the LED lamp body 1 can be used at any time after the whole is fixed;

in particular, the LED lamp body 1 can be ceiling-mounted through the ceiling-mounting groove 15.

The above embodiments are illustrative of the present invention, and are not intended to limit the present invention, and any simple modifications of the present invention are within the scope of the present invention.

Claims

1. The utility model provides a multipurpose lamp, includes LED lamp body, its characterized in that: the LED lamp comprises an LED lamp body, and is characterized in that a lamp hoop frame matched with the LED lamp body is arranged on the outer side of the LED lamp body, two ends of the lamp hoop frame are respectively in adjustable connection with the LED lamp body, and a detachable fixing piece is arranged in the middle of the lamp hoop frame.

2. A multi-purpose lamp as claimed in claim 1, wherein: the LED lamp body be cylindrical, LED lamp body a terminal surface on be equipped with the LED lamp, be equipped with solar panel on another terminal surface, the LED lamp body be equipped with switch, adjustment button.

3. A multi-purpose lamp as claimed in claim 1, wherein: the lamp hoop frame is a semicircular band-shaped body, and adjustable knob type screws are arranged at the connecting positions of the two ends of the lamp hoop frame and the side face of the LED lamp body.

4. A multi-purpose lamp as claimed in claim 1, wherein: the lamp hoop frame middle part be equipped with rectangular shape mounting groove, rectangular shape mounting groove in be equipped with and dismantle the couple.

5. A multi-purpose lamp as claimed in claim 1, wherein: the lamp hoop frame middle part be equipped with rectangular shape mounting groove, rectangular shape mounting groove in be equipped with desk-top base, desk-top base and mounting groove can dismantle fixedly, desk-top base on be equipped with the fixed orifices.

6. The multipurpose lamp as claimed in claim 5, wherein: the desk type base is provided with a stand column, and the top end of the stand column and the mounting groove can be detachably fixed.

7. The multipurpose lamp as claimed in claim 6, wherein: the upright post is an L-shaped upright post.

8. A multi-purpose lamp as claimed in claim 1, wherein: the lamp hoop frame middle part be equipped with rectangular shape mounting groove, rectangular shape mounting groove in be equipped with the fixed column, fixed column one end and mounting groove can dismantle fixedly, the other end is sharp toper.

9. A multi-purpose lamp as claimed in claim 2, wherein: the LED lamp body is provided with a ceiling mounting groove and a wire outlet hole on the end face of the solar panel.
