CN215371439U - A free end with rigid flat welded lining ring flange - Google Patents
A free end with rigid flat welded lining ring flange Download PDFInfo
- Publication number
- CN215371439U CN215371439U CN202120904663.1U CN202120904663U CN215371439U CN 215371439 U CN215371439 U CN 215371439U CN 202120904663 U CN202120904663 U CN 202120904663U CN 215371439 U CN215371439 U CN 215371439U
- Authority
- CN
- China
- Prior art keywords
- flange
- chassis
- ring sleeve
- lining ring
- free end
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Flanged Joints, Insulating Joints, And Other Joints (AREA)
Abstract
本实用新型公开了一种自由端带劲平焊衬环法兰，包括法兰底盘，还包括法兰颈台和衬环套，所述法兰底盘的顶部连接有法兰颈台，所述法兰底盘的内壁构造有内缘，且内缘的外侧套接有衬环套，所述衬环套的内周构造有防滑纹，所述衬环套的侧壁与法兰底盘的底部贴合，且衬环套的侧壁构造有通孔，通孔内贯穿有与法兰底盘螺纹连接的固定螺柱，所述衬环套的内周构造有斜面，所述法兰底盘的顶部构造有多个螺栓通孔，且多个螺栓通孔呈环形阵列分布，所述法兰底盘的顶部构造有环形凹槽，所述法兰底盘和法兰颈台为一体成型结构，所述法兰底盘的内径和法兰颈台的内径大小相等。法兰底盘与管道之间的贴合效果较好，且管道安装连接后不易发生脱落。
The utility model discloses a flange with a rigid flat welded lining ring at a free end, which comprises a flange chassis, a flange neck platform and a lining ring sleeve. The top of the flange chassis is connected with a flange neck platform. The inner wall of the flange chassis is constructed with an inner edge, and the outer side of the inner edge is sleeved with a lining ring sleeve, the inner circumference of the lining ring sleeve is configured with anti-skid patterns, and the side wall of the lining ring sleeve is fitted with the bottom of the flange chassis , and the side wall of the lining ring sleeve is configured with a through hole, the through hole is threaded with a fixed stud threaded with the flange chassis, the inner circumference of the lining ring sleeve is configured with a slope, and the top of the flange chassis is configured with a A plurality of bolt through holes, and the plurality of bolt through holes are distributed in an annular array, the top of the flange chassis is configured with an annular groove, the flange chassis and the flange neck platform are integrally formed, and the flange chassis is integrally formed. The inner diameter of the flange is equal to the inner diameter of the flange neck table. The fitting effect between the flange chassis and the pipeline is good, and the pipeline is not easy to fall off after installation and connection.
Description
Technical Field
The utility model relates to the technical field of flat welding flanges, in particular to a flat welding backing ring flange with a free end having a strength.
Background
The flat welded flange is generally referred to as a flat plate, and is also called a lap welded flange. The connection between the flat welding flange and the pipeline is that the pipeline is firstly inserted into the inner hole of the flange to a proper position and then lap welding is carried out. The flat welding flange is suitable for pipeline systems with low pressure grade and less serious pressure fluctuation, vibration and oscillation. The flat welding flange has the advantages that the flat welding flange is easy to center during welding and assembling, and the price is low, so the flat welding flange is widely applied. However, it is tired every day, under rugged environment, there is the not hard up problem of connection in the bolt on the flange, can appear the bolt even and drop, and the flange influences normal work with the circumstances such as connecting piece is not hard up, when adopting welded connection moreover, the flange corrodes with the junction of body easily.
To this end, we propose a flat welded liner ring flange with a free end bearing a force.
SUMMERY OF THE UTILITY MODEL
The utility model mainly aims to provide a flat welding backing ring flange with a free end having strength, which can effectively solve the problems in the background technology.
In order to achieve the purpose, the utility model adopts the technical scheme that:
a flat welding backing ring flange with a free end strength comprises a flange chassis, a flange neck platform and a backing ring sleeve, wherein the flange neck platform is connected to the top of the flange chassis, an inner edge is formed on the inner wall of the flange chassis, and the backing ring sleeve is sleeved on the outer side of the inner edge;
the inner periphery of the lining ring sleeve is provided with anti-skid grains, the side wall of the lining ring sleeve is attached to the bottom of the flange chassis, the side wall of the lining ring sleeve is provided with a through hole, and a fixing stud in threaded connection with the flange chassis penetrates through the through hole;
the inner periphery of the bushing sleeve is provided with an inclined surface.
Furthermore, a plurality of bolt through holes are formed in the top of the flange chassis and distributed in an annular array; so as to connect and fix the adjacent flange chassis.
Further, the top of the flange chassis is provided with an annular groove; the annular groove can be filled with a rubber pad, so that the sealing property between the flange base plate and the pipeline is improved.
Furthermore, the flange chassis and the flange neck platform are of an integrally formed structure; the whole structure is higher in strength and more durable.
Further, the inner diameter of the flange chassis is equal to that of the flange neck platform in size; the pipeline can conveniently pass through the flange chassis and the flange neck platform.
Compared with the prior art, the utility model has the following beneficial effects: the lining ring sleeve can improve the attaching effect between the flange chassis and the pipeline, and the inclined surface of the inner circumference structure of the lining ring sleeve enables the pipeline not to fall off easily after the pipeline passes through the flange chassis and the flange neck platform; through the annular groove that sets up, be convenient for fill the rubber pad to improve the leakproofness between pipeline and the flange chassis.
Drawings

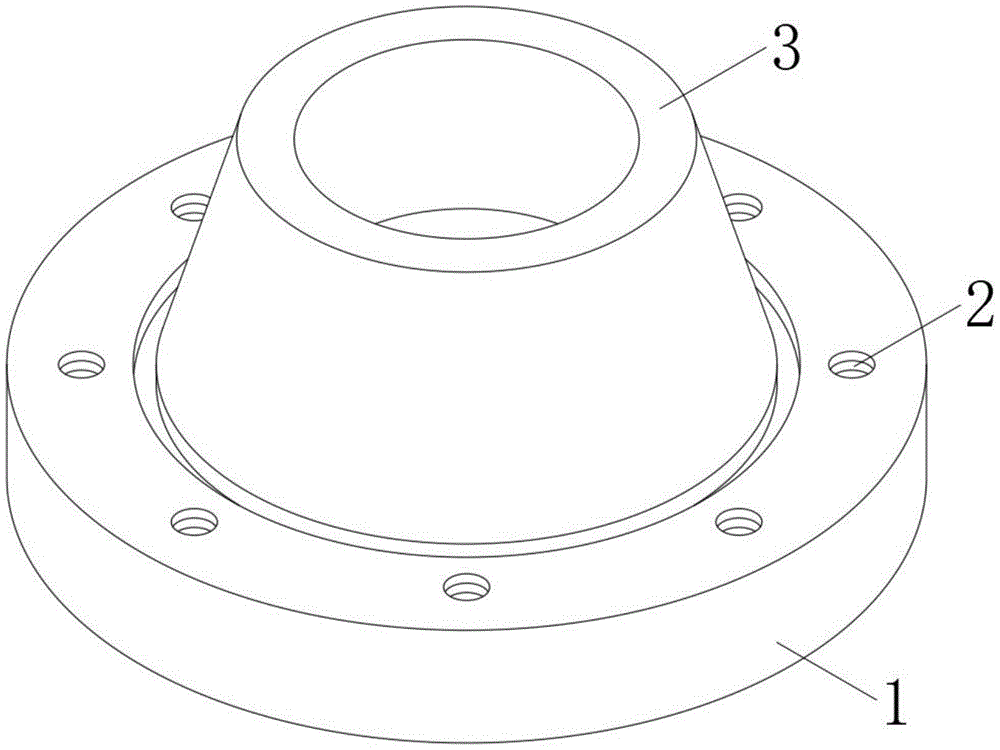

FIG. 1 is a schematic structural view of a flat welded backing ring flange with a free end having a stiffness according to the present invention.
FIG. 2 is a cross-sectional view of a free end, stiff, plain bushing ring flange of the present invention.
Fig. 3 is an enlarged view of the structure at a in fig. 2 of a free end, stiff, plain bushing ring flange of the present invention.
In the figure: 1. a flange chassis; 2. a bolt through hole; 3. a flange neck platform; 4. an annular groove; 5. A lining sleeve; 6. and fixing the stud.
Detailed Description
In order to make the technical means, the creation characteristics, the achievement purposes and the effects of the utility model easy to understand, the utility model is further described with the specific embodiments.
As shown in fig. 1-3, a flat welding backing ring flange with a free end having a stiffness comprises a flange chassis 1, a flange neck platform 3 and a backing ring sleeve 5, wherein the flange neck platform 3 is connected to the top of the flange chassis 1, an inner edge is formed on the inner wall of the flange chassis 1, and the backing ring sleeve 5 is sleeved on the outer side of the inner edge;
the inner periphery of the lining ring sleeve 5 is provided with anti-skid grains, the side wall of the lining ring sleeve 5 is attached to the bottom of the flange chassis 1, the side wall of the lining ring sleeve 5 is provided with a through hole, and a fixing stud 6 in threaded connection with the flange chassis 1 penetrates through the through hole;
the inner circumference of the bushing ring 5 is formed with a bevel.
The top of the flange chassis 1 is provided with a plurality of bolt through holes 2, and the bolt through holes 2 are distributed in an annular array; so as to connect and fix the adjacent flange chassis 1.
Wherein the top of the flange chassis 1 is configured with an annular groove 4; the annular groove 4 can be filled with a rubber pad, so that the sealing property between the flange base plate 1 and the pipeline is improved.
The flange base plate 1 and the flange neck platform 3 are of an integrally formed structure; the whole structure is higher in strength and more durable.
The inner diameter of the flange chassis 1 is equal to the inner diameter of the flange neck platform 3 in size; the pipeline is convenient to pass through the flange chassis 1 and the flange neck platform 3.
It should be noted that the utility model is a flat welding liner ring flange with a free end, when in use, the flange chassis 1 and the flange neck platform 3 are sleeved on the periphery of a pipeline, then the flange chassis 1 is pulled to a proper position, and the liner ring sleeve 5 and the periphery of the pipeline are relatively extruded in the process, so that the flange chassis 1 and the pipeline are fully fixed.
The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are described in the specification and illustrated only to illustrate the principle of the present invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the present invention, which fall within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (5)
1. A flat welding backing ring flange with a free end strength comprises a flange base plate (1) and is characterized by further comprising a flange neck platform (3) and a backing ring sleeve (5), wherein the flange neck platform (3) is connected to the top of the flange base plate (1), an inner edge is formed on the inner wall of the flange base plate (1), and the backing ring sleeve (5) is sleeved on the outer side of the inner edge;
the inner periphery of the lining ring sleeve (5) is provided with anti-skid threads, the side wall of the lining ring sleeve (5) is attached to the bottom of the flange chassis (1), the side wall of the lining ring sleeve (5) is provided with a through hole, and a fixing stud (6) in threaded connection with the flange chassis (1) penetrates through the through hole;
the inner circumference of the lining sleeve (5) is provided with an inclined surface.
2. A free end forced plain collar flange according to claim 1, wherein: the top of the flange chassis (1) is provided with a plurality of bolt through holes (2), and the bolt through holes (2) are distributed in an annular array.
3. A free end forced plain collar flange according to claim 1, wherein: the top of the flange chassis (1) is configured with an annular groove (4).
4. A free end forced plain collar flange according to claim 1, wherein: the flange base plate (1) and the flange neck platform (3) are of an integrally formed structure.
5. A free end forced plain collar flange according to claim 1, wherein: the inner diameter of the flange chassis (1) is equal to the inner diameter of the flange neck platform (3).
