本实用新型涉及市政工程建设领域，公开了一种防堵型的市政排水管道。本实用新型中，包括管道本体、保护套一和保护套二，所述管道本体的顶部焊接有入口安装套管，所述入口安装套管的内壁开设有滑动槽，所述滑动槽的内部滑动连接有滑动板，所述滑动板的内侧表面焊接有大物体挡条，大物体挡条可以阻挡体积较大的物体进入管道进水口，细防堵网可以阻止体积小的物体流入管道，当大物体挡条的外部积累了较多杂物时，通过抽拉柱上下提拉固定座就可以实现对大物体挡条的清理，从而使得管道不会堵塞，提高了该管道的便利性，保护套一和保护套二配合使用，可以将管道本体固定包裹在内部，从而避免了管道本体受到冲击后发生破损。
The utility model relates to the field of municipal engineering construction, and discloses an anti-blocking type municipal drainage pipeline. The utility model includes a pipe body, a first protective cover and a second protective cover. The top of the pipe body is welded with an inlet installation sleeve, the inner wall of the inlet installation sleeve is provided with a sliding groove, and the inside of the sliding groove slides A sliding plate is connected, and the inner surface of the sliding plate is welded with large object blocking bars. The large object blocking bars can prevent large objects from entering the water inlet of the pipeline, and the fine anti-blocking net can prevent small objects from flowing into the pipeline. When there is a lot of debris accumulated on the outside of the object block, the large object block can be cleaned by pulling the fixed seat up and down through the pulling column, so that the pipeline will not be blocked, which improves the convenience of the pipeline. The first is used in conjunction with the second protective cover, and the pipe body can be fixed and wrapped inside, thereby preventing the pipe body from being damaged after being impacted.
Description
Technical Field
The utility model belongs to the technical field of municipal engineering construction, and particularly relates to an anti-blocking municipal drainage pipeline.
Background
In China, municipal infrastructure refers to various buildings, structures, equipment and the like which are arranged in planning and construction ranges of urban areas and towns (villages) and provide paid or unpaid public products and services for residents based on government responsibilities and obligations. Various public infrastructure construction supporting in urban life all belong to municipal works category, for example common urban road, bridge, subway, underground pipeline, tunnel, river course, track traffic, sewage treatment, refuse treatment processing etc. engineering, for example again with the life closely relevant various pipelines: rainwater, sewage, water supply, reclaimed water, electric power (parts except red lines), telecommunication, heating power, gas and the like, and construction of squares, urban greening and the like belong to the municipal engineering category.
But common drainage pipe simple structure, after the live time has been of a specified duration, the condition of the inside jam of pipeline will appear to make subsequent cleaning process comparatively inconvenient.
SUMMERY OF THE UTILITY MODEL
The utility model aims to: in order to solve the problem that the inside of the pipeline is blocked after the service life is prolonged, the anti-blocking municipal drainage pipeline is provided.
The technical scheme adopted by the utility model is as follows: an anti-blocking municipal drainage pipeline comprises a pipeline body, a first protective sleeve and a second protective sleeve, wherein an inlet mounting sleeve is welded at the top of the pipeline body, a sliding groove is formed in the inner wall of the inlet mounting sleeve, a sliding plate is slidably connected inside the sliding groove, a large object barrier strip is welded on the inner side surface of the sliding plate, a fixed seat is fixedly connected to the center of the large object barrier strip, a first fixing threaded hole is formed inside the fixed seat, a threaded connector is connected to the inner thread of the first fixing threaded hole, a pipeline wall is arranged outside the pipeline body, a fine mesh fixing frame is fixedly mounted at the opening at the top of the pipeline wall, and a fine anti-blocking mesh is fixedly connected inside the fine mesh fixing frame;
protective sheath one and protective sheath two have been cup jointed to the outside of pipeline body, protective sheath one with a side that the pipeline body was laminated mutually is provided with the cotton pad that keeps warm, the joint calliper hole has been seted up to the both sides edge of protective sheath one, the both sides edge of protective sheath two bonds and has the joint calliper pole.
In a preferred embodiment, an anti-drop stopper is arranged at the top opening of the sliding groove, and a limiting sliding sheet is fixedly connected to one side surface of the sliding plate opposite to the sliding groove.
In a preferred embodiment, the number of the large object bars is four, and the size of the first fixing threaded hole is matched with that of the threaded connector.
In a preferred embodiment, the top of the threaded connector is provided with a drawing column, and the tail end of the drawing column is sleeved with a handle sleeve.
In a preferred embodiment, a cotton pad which is the same as the heat preservation cotton pad is bonded inside the first protective sleeve, and the inner diameter of the first protective sleeve and the second protective sleeve after combination is equal to the outer diameter of the pipeline body.
In a preferred embodiment, a second fixing threaded hole is formed in the middle of the outer surface of the first protective sleeve, a fixing plate is connected to the inner thread of the second fixing threaded hole in a threaded manner, and the other end of the fixing plate is fixed to the surface of the second protective sleeve.
In summary, due to the adoption of the technical scheme, the utility model has the beneficial effects that:
1. according to the utility model, the large object barrier strip can prevent a large object from entering the water inlet of the pipeline, the thin anti-blocking net can prevent a small object from flowing into the pipeline, and when more sundries are accumulated outside the large object barrier strip, the large object barrier strip can be cleaned by lifting the fixed seat up and down through the pull column, so that the pipeline cannot be blocked, and the convenience of the pipeline is improved.
2. According to the pipeline body, the first protective sleeve and the second protective sleeve are used in a matched mode, the pipeline body can be fixedly wrapped in the first protective sleeve and the second protective sleeve, the pipeline body is prevented from being damaged after being impacted, meanwhile, the heat insulation cotton pads are arranged in the first protective sleeve and the second protective sleeve, heat insulation can be conducted inside the pipeline body, the pipeline body is prevented from being broken when the pipeline body is used in cold weather, and the service life of the pipeline body is prolonged.
Drawings

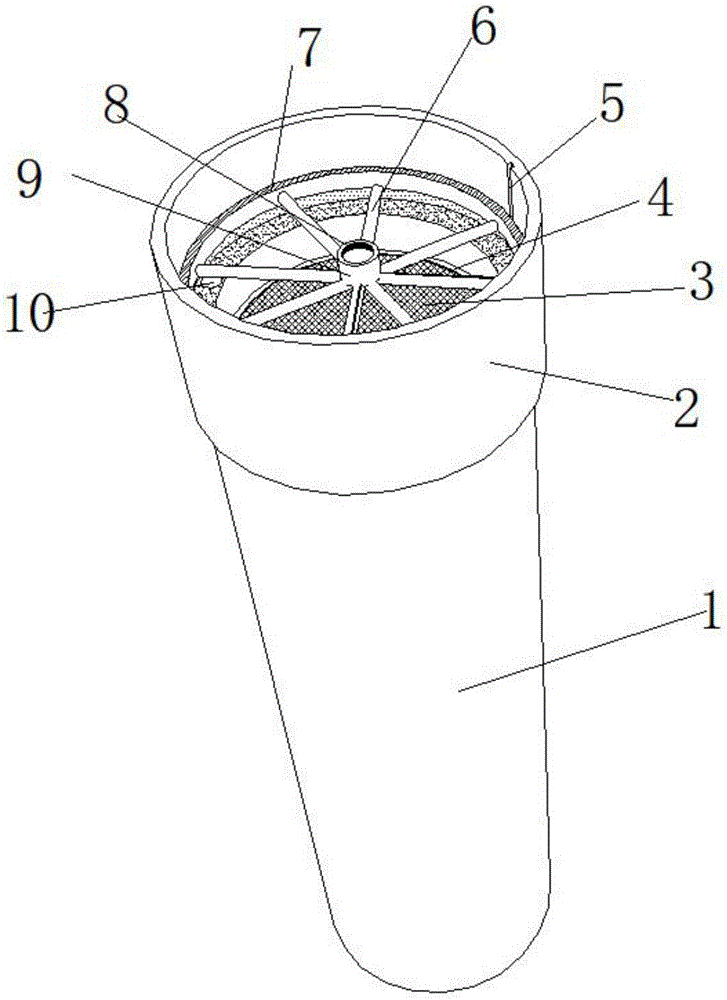

FIG. 1 is a schematic view of the structure of the pipe body of the present invention;
FIG. 2 is a schematic view of a drawing column according to the present invention;
FIG. 3 is a schematic view of a protective cover according to the present invention;
FIG. 4 is a schematic view of a second structure of the protective cover of the present invention.
The labels in the figure are: 1-a pipeline body, 2-an inlet installation sleeve, 3-a thin anti-blocking net, 4-a thin net fixing frame, 5-a sliding groove, 6-a large object barrier strip, 7-a sliding plate, 8-a first fixing threaded hole, 9-a fixing seat, 10-a pipeline wall, 11-a handle sleeve, 12-a drawing column, 13-a threaded connector, 14-a second fixing threaded hole, 15-a heat-preservation cotton pad, 16-a connecting clamping hole, 17-a first protective sleeve, 18-a second protective sleeve and 19-a connecting clamping rod.
Detailed Description
In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are some embodiments of the present invention, but not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
With reference to figures 1-4 of the drawings,
the first embodiment is as follows:
an anti-blocking municipal drainage pipeline comprises a pipeline body 1, a first protective sleeve 17 and a second protective sleeve 18, wherein an inlet mounting sleeve 2 is welded at the top of the pipeline body 1, a sliding groove 5 is formed in the inner wall of the inlet mounting sleeve 2, a sliding plate 7 can slide up and down in the sliding groove 5, the sliding plate 7 is connected in the sliding groove 5 in a sliding manner, a large object barrier strip 6 is welded on the inner side surface of the sliding plate 7, the large object barrier strip 6 can block bulky sundries at a water inlet of the pipeline so as to greatly improve the blocking condition in the pipeline body 1, a fixed seat 9 is fixedly connected at the center of the large object barrier strip 6, the large object barrier strip 6 can block bulky objects from entering the water inlet of the pipeline, a first fixed threaded hole 8 is formed in the fixed seat 9, and the first fixed threaded hole 8 is connected to the outer part of a threaded connector 13 at the bottom of a drawing column 12 through threads, therefore, the pull column 12 and the fixed seat 9 are fixed, when the surface of the large object barrier strip 6 is relatively large in garbage, the handle sleeve 11 can be held by a hand to clean the surface of the large object barrier strip 6, the pipeline wall 10 is arranged outside the pipeline body 1, the fine net fixing frame 4 is fixedly installed at the opening at the top of the pipeline wall 10, the fine anti-blocking net 3 is fixedly connected inside the fine net fixing frame 4, the fine anti-blocking net 3 can prevent small objects from flowing into the pipeline, the pipeline cannot be blocked by matching with the large object barrier strip 6, and the convenience of the pipeline is improved;
the open-top department of sliding tray 5 is provided with the anticreep dog, and sliding plate 7 is connected with spacing gleitbretter with sliding tray 5 a relative side fixed surface, and the anticreep dog can prevent effectively that sliding plate 7 from droing, has increased sliding plate 7 stability at last lower sliding process.
The top of threaded connection 13 is provided with pull post 12, and the end of pull post 12 has cup jointed handle cover 11, holds handle cover 11 during the use, can realize lifting from top to bottom pulling to pull post 12, and is simple and convenient swift.
Example two:
the protective sleeve I17 and the protective sleeve II 18 are sleeved outside the pipeline body 1, the protective sleeve I17 and the protective sleeve II 18 are matched for use, the pipeline body 1 can be fixedly wrapped in the pipeline body 1, and therefore damage of the pipeline body 1 after impact is avoided, the thermal insulation cotton pad 15 is arranged on one side face, attached to the pipeline body 1, of the protective sleeve I17, the thermal insulation cotton pad 15 can insulate the interior of the pipeline body 1, the pipeline body 1 is prevented from being broken when used in cold weather, and the service life of the pipeline body 1 is prolonged; connecting clamp hole 16 has been seted up to the both sides edge of protective sheath one 17, and the both sides edge of protective sheath two 18 bonds and has connected kelly 19, fixes protective sheath two 18 and protective sheath one 17 after the outside of pipeline body 1, inserts connecting kelly 19 into the inside of connecting clamp hole 16, forms the fixed between protective sheath one 17 and the protective sheath two 18 promptly, prevents that it from taking place to drop, has increased the fastness after protective sheath one 17 and protective sheath two 18 are fixed.
The inside bonding of two 18 of protective sheath has the cotton pad the same with the cotton pad 15 that keeps warm, and the internal diameter after protective sheath 17 and two 18 combinations of protective sheath equals the outside diameter of pipeline body 1, and the cotton pad 15 that keeps warm can keep warm for pipeline body 1, has increased pipeline body 1's life.
The second fixed screw hole 14 has been seted up at the surface middle part of protective sheath 17, and the inside threaded connection of second fixed screw hole 14 has the fixed plate, and the other end of fixed plate fixes on the surface of protective sheath two 18, uses the fixed plate just can die protective sheath one 17 and two 18 fixing clips, can not take place the condition that drops, more is fit for the staff and buries the installation to pipeline body 1 and protective sheath one 17 and two 18, and easy operation is convenient.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The above examples are only intended to illustrate the technical solution of the present invention, but not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it will be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; and such modifications or substitutions do not depart from the spirit and scope of the corresponding technical solutions of the embodiments of the present invention.
