本实用新型公开了一种用于养生的加热装置，包括电热线圈与电热板，所述电热线圈安装在电热板上，所述电热线圈设置有正负极，并相应通过导线与主板对应连接，所述主板上还设置有温度控制模块，所述温度控制模块通过导线连接主板，且主板上设置有谐振电容，所述主板上还设置有开关键和充电口，所述主板通过导线还连接有蓄电池；本装置通过温度控制模块来控制电热线圈加热时的温度，蓄电池用于该装置的供电，将装置安装在护膝、挡风被中，使用者在骑行的过程中，不仅可以起到抵挡风寒的作用，还可以对穿戴部位进行加热，并产生一定的热量，从而进一步的保护机体免受风寒，从而保护机体健康，使人们在生活的同时进行养生，应用广泛，方便人们的使用。
The utility model discloses a heating device for health preservation, which comprises an electric heating coil and an electric heating plate, wherein the electric heating coil is installed on the electric heating plate, the electric heating coil is provided with positive and negative electrodes, and is correspondingly connected with a main board through wires. The main board is also provided with a temperature control module, the temperature control module is connected to the main board through wires, and the main board is provided with a resonant capacitor, the main board is also provided with an on-off key and a charging port, and the main board is also connected to the main board by wires. Battery; the device controls the temperature of the heating coil through the temperature control module, the battery is used to power the device, and the device is installed in the knee pads and windshields, the user can not only resist the The effect of wind-cold can also heat the wearing part and generate a certain amount of heat, thereby further protecting the body from wind-cold, thereby protecting the body's health, enabling people to maintain health while living, and is widely used and convenient for people to use.
Description
Technical Field
The utility model relates to the technical field of articles for daily use, in particular to a heating device for health maintenance.
Background
Health preserving refers to a medical activity of nourishing life, strengthening physique and preventing diseases by various methods of original dactylology, thereby prolonging life. Modern health preservation refers to the active physical and mental maintenance of human body according to the life process rules.
At present, for the health preservation of people, each structure of a body needs to keep certain heat, so that the body health can be maintained, but the life rhythm is accelerated, the physical and mental health cannot be valued, the current people are in a sub-health state, and the body health problem is not a little. The knee pads and the knee pads of the electric vehicle are outdoor cold-proof articles, have the function of wind-proof knee pads, can prevent users from causing joint diseases because of riding the electric vehicle for a long time, especially people can feel cold when driving vehicles such as the electric vehicle, a motorcycle and the like in autumn and winter, especially the hand, the knee, the leg and other parts are easy to invade and invade due to long-time cold wind, when the people wear children by bike, the cold feeling of the children is stronger, the existing wind-proof quilt and the knee pad only have the function of pre-cooling, and the long-time heat cannot be kept.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a heating device for curing, which solves the problems.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a heating device for be used for health preserving, includes electric heating coil and electric plate, electric heating coil installs on the electric plate, electric heating coil is provided with positive negative pole to corresponding being connected through wire and mainboard correspondence, still be provided with temperature control module on the mainboard, temperature control module passes through the wire and connects the mainboard, and is provided with resonant capacitor on the mainboard, still be provided with the on & off switch on the mainboard and charge the mouth, the mainboard still is connected with the battery through the wire.
Preferably, the temperature control module controls the temperature of the electrothermal coil.
Preferably, the on-off key controls the on-off of the electric heating coil, and the charging port charges the storage battery.
Preferably, the heating device formed by the electric heating coil and the electric heating plate is used for one of a health-preserving kneepad or a wind-proof quilt.
The utility model has the beneficial effects that: this device controls the temperature when electric heat coil heats through temperature control module, the battery is used for the device's power supply, install the device at the knee-pad, keep out the wind by in, the user is at the in-process of riding, not only can play the effect of keeping out the wind-cold, can also heat wearing the position, and produce certain heat, thereby further protection organism avoids the wind-cold, this device mountable is arranged in warming up hand treasure, moxa-moxibustion box, the knee-pad, protect the waist, keep out the wind by relevant products such as quilt, can hand-carry and use, thereby protect the organism healthy, make people keep in good health in the life, use extensively, make things convenient for people's use.
Drawings

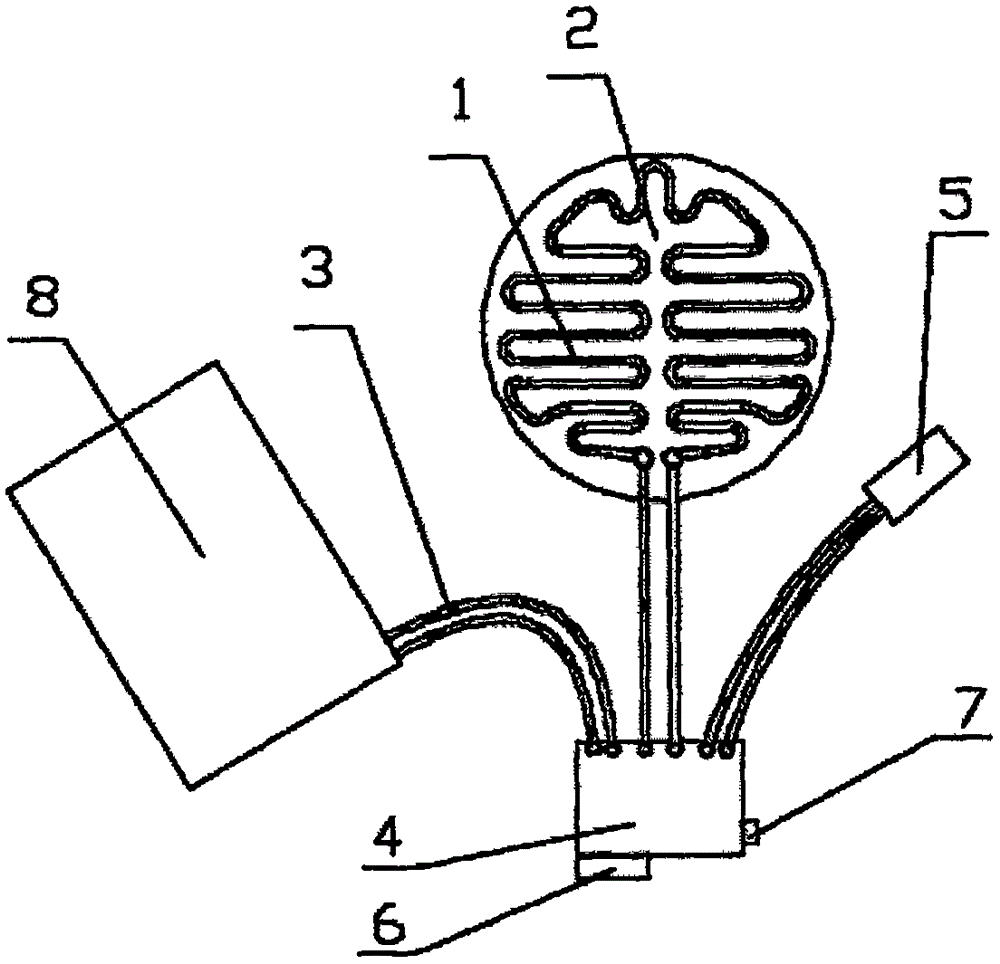

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of a knee brace;
FIG. 3 is a diagram of one use of the present invention;
fig. 4 is another use diagram of the present invention.
In the figure: 1 electric heating coil, 2 electric heating plates, 3 wires, 4 main boards, 5 temperature control modules, 6 on-off keys, 7 charging ports and 8 storage batteries.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example one
Referring to fig. 1, the present invention provides a technical solution: a heating device for health maintenance comprises an electric heating coil 1 and an electric heating plate 2, wherein the electric heating coil 1 is installed on the electric heating plate 2, the electric heating coil 1 is made of Beijing Sheng brand, the area of the electric heating coil 1 can be arranged and installed according to actual needs so as to be suitable for installation and use of different products, the electric heating coil 1 is of a surrounding type so as to improve heating efficiency and uniformly heat each area, the electric heating coil 1 is provided with a positive electrode and a negative electrode and correspondingly connected with a main board 4 through a lead 3, the main board 4 is also provided with a temperature control module 5, the temperature control module 5 is connected with the main board 4 through the lead 3, the main board 4 is provided with a resonant capacitor, the temperature control module 5 is made of Siemens brand and can be directly set at the temperature when leaving a factory, the temperature of the electric heating coil 1 can be detected through the temperature control module 5, the main board 4 is provided with a resonant capacitor, in order to avoid the influence of high-frequency current on normal operation, the mainboard 4 is further provided with an on-off switch 6 and a charging port 7, the mainboard 4 is further connected with a storage battery 8 through a conducting wire 3, the electric heating coil 1 is controlled to be opened or closed through the on-off switch 6, and the storage battery 8 is charged through the charging port 7.
Referring to fig. 2 and 3, in the embodiment provided by the present invention, the knee pad is installed in the knee pad, and the switch key on the main board 4 is controlled to heat the knee, so as to protect the knee, fill the body with heat and protect the physical and mental health.
Example two
Referring to fig. 4, in another embodiment provided by this embodiment, the device is installed in a wind-proof quilt, and can generate heat to the body during the riding process, so as to keep a certain heat to each structure of the body of the rider and maintain the health of the body.
This electric heating coil 1 and mainboard 4 are connected between each can be used to the installation (not drawn in the picture) of products such as hand warmer, moxibustion box, waist support, can hand-carry and use to the protection organism is healthy, makes people obtain the health preserving in the life, uses extensively, makes things convenient for people's use.
The utility model is implemented as follows: temperature when controlling electric heating coil 1 heating through temperature control module 5, battery 8 is used for the device's power supply, open or close through on & off switch 6 control electric heating coil 1, charge battery 8 through charging mouth 7, install the device in the knee-pad, keep out the wind by, the user is at the in-process of riding, not only can play the effect of keeping out the wind-cold, can also heat wearing the position, and produce certain heat, thereby further protection organism avoids the wind-cold, this device mountable is used for warming hand precious, moxa-moxibustion box, the knee-pad, waist support, keep out the wind by in relevant products such as, can hand-carry and use, thereby protect the organism healthy, make people carry out the health preserving in the life, use extensively, make things convenient for people's use.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
