CN215318427U

CN215318427U - Cubic apparatus hydraulic press equipment rack construction

Info

Publication number: CN215318427U
Application number: CN202120944894.5U
Authority: CN
Inventors: 王铮
Original assignee: Liaoning Tanlong Jinzheng Carbon Technology Co ltd
Current assignee: Jinzheng Carbon Technology Liaoning Co ltd
Priority date: 2021-04-30
Filing date: 2021-04-30
Publication date: 2021-12-28
Anticipated expiration: 2031-04-30

Abstract

The utility model discloses an assembly frame structure of a six-sided top hydraulic press, which comprises a bracket, sliding rods are fixedly connected to both sides of the inner wall of the bracket, and the electric hoist is fixed to the bottom of the inner wall of the bracket. The hook body is movably connected with the inner wall of the ring body, a placing seat is fixedly connected to the bottom of the horizontal plate, and both sides of the placing seat are threadedly connected with bolts. The top hydraulic press assembles the frame structure. The six-sided top hydraulic press assembles the frame structure, through the cooperation between the electric hoist, the horizontal plate, the placing seat, the bolt and the clamping jaw, etc., so that when the six-sided top hydraulic press needs to be assembled, the user can assemble the six-sided top hydraulic press. When the top and horizontal plates are moving, they are installed. After installation, the bottom of the hydraulic press can be placed on the bottom of the workpieces on both sides of the hydraulic press for installation. The installation is safe and labor-saving.

Description

Cubic apparatus hydraulic press equipment rack construction

Technical Field

The utility model relates to the technical field of cubic hydraulic presses, in particular to an assembling frame structure of a cubic hydraulic press.

Background

The cubic press is divided into a hinge type and a pull rod type, the highest pressure of a 6-surface and 8-surface pressing cavity is about 15-30 GPa, the cubic press is produced by a plurality of companies at home, the cubic press is a large-cavity press which is widely used at home, and the press has the advantages of strong self-centering property, low manufacturing cost, easy operation and the like, and is used for synthesizing diamond, cubic boron nitride (cBN) and the like at homeSuper-super Hard materialAlthough current cubic press can realize the processing that can be to the diamond to cubic press, nevertheless exist when installing cubic press, comparatively hard, need carry out a plurality of personnel and go on installing cubic press through the crane, comparatively hard, and install dangerous higher problem.

SUMMERY OF THE UTILITY MODEL

Aiming at the defects of the prior art, the utility model provides an assembling frame structure of a cubic apparatus press, which solves the partial background technical problems that the installation of the cubic apparatus press by a plurality of personnel is laborious and the installation danger is high because the installation of the cubic apparatus press by a crane is laborious in the prior art.

In order to achieve the purpose, the utility model is realized by the following technical scheme: the utility model provides a cubic apparatus hydraulic press equipment rack construction, includes the support, the equal rigid coupling in inner wall both sides of support has the slide bar, two the outer wall of slide bar all slides and links to each other there is the sliding sleeve, two the outer wall one end rigid coupling of sliding sleeve has the diaphragm, the top rigid coupling of diaphragm has the ring body, the inner wall bottom rigid coupling of support has the electric hoist, the electric hoist rigid coupling is in the inner wall top of support, the hook body of electric hoist links to each other with the inner wall activity of ring body, the bottom rigid coupling of diaphragm has places the seat, the equal screw thread in both sides of placing the seat links to each other there is the bolt.

Preferably, the four corners of the bottom of the support are fixedly connected with universal wheels.

Preferably, through grooves are processed on two sides of the inner wall of the support.

Preferably, the outer wall both ends of support all rotate through the bearing frame and link to each other and have first screw rod, one end the bottom rigid coupling of first screw rod has the motor, the outer wall one end rigid coupling of motor is in the outer wall one end of support, two the equal screw thread of outer wall of first screw rod links to each other has first thread bush, two the equal rigid coupling in horizontal pole of outer wall one end of first thread bush, two the outer wall of horizontal pole slides with the inner wall in two logical grooves respectively and links to each other, two the equal rigid coupling in outer wall one end of horizontal pole has the riser.

Preferably, the tops of the two first screws are fixedly connected with grooved wheels, and the outer walls of the two grooved wheels are movably connected through a belt.

Preferably, two the equal rigid coupling of outer wall one end of riser has two body of rods, two the outer wall of the body of rod all rotates through the connecting axle and links to each other there is the clamping jaw, two the spout inner wall of clamping jaw slides and links to each other there is the slider, the rear end face rigid coupling of slider has the second thread bush, the inner wall screw thread of second thread bush links to each other there is the second screw rod, the outer wall rigid coupling of second screw rod has the handle, the second screw rod passes through the bearing and links to each other with the riser rotation.

Advantageous effects

The utility model provides a cubic apparatus hydraulic press assembling frame structure. The assembling rack structure of the cubic hydraulic press has the advantages that through the matching of the electric hoist, the transverse plate, the placing seat, the bolt, the clamping jaw and the like, when the cubic hydraulic press needs to be assembled, a user can fix the top of the cubic hydraulic press at the placing seat through the bolt and can drive the transverse plate to move up and down through the electric hoist, when the transverse plate moves, the transverse plate can drive the top of the cubic hydraulic press to horizontally and stably rise through the sliding connection of the sliding sleeve and the sliding rod, in addition, the top of the cubic hydraulic press does not shake in moving, the installation stability is improved, after the top of the cubic hydraulic press rises, the user can rotate the handle, the handle can drive the second screw rod to rotate, further, the second screw rod can drive the second thread sleeve and the sliding block to move, and further, the sliding connection is realized through the sliding grooves of the sliding block and the clamping jaw, make two clamping jaws can carry out the centre gripping to the both sides work piece of cubic hydraulic press, and then stabilize fixedly, and switch on external power supply with the motor, make the motor can drive the first screw rod in left side and rotate, when the first screw rod in left side rotates, through the drive of two sheaves and belt, make two first screw rods rotate in step, and then make the rotation of the first screw rod of two first thread bush accessible, drive the horizontal pole, the riser, the both sides work piece of clamping jaw and cubic hydraulic press rises, laminate with the top of cubic hydraulic press, and install, after the installation, can place the both sides work piece bottom at cubic hydraulic press with the bottom of cubic hydraulic press, and install, the installation security is high, and it is comparatively laborsaving to install.

Drawings

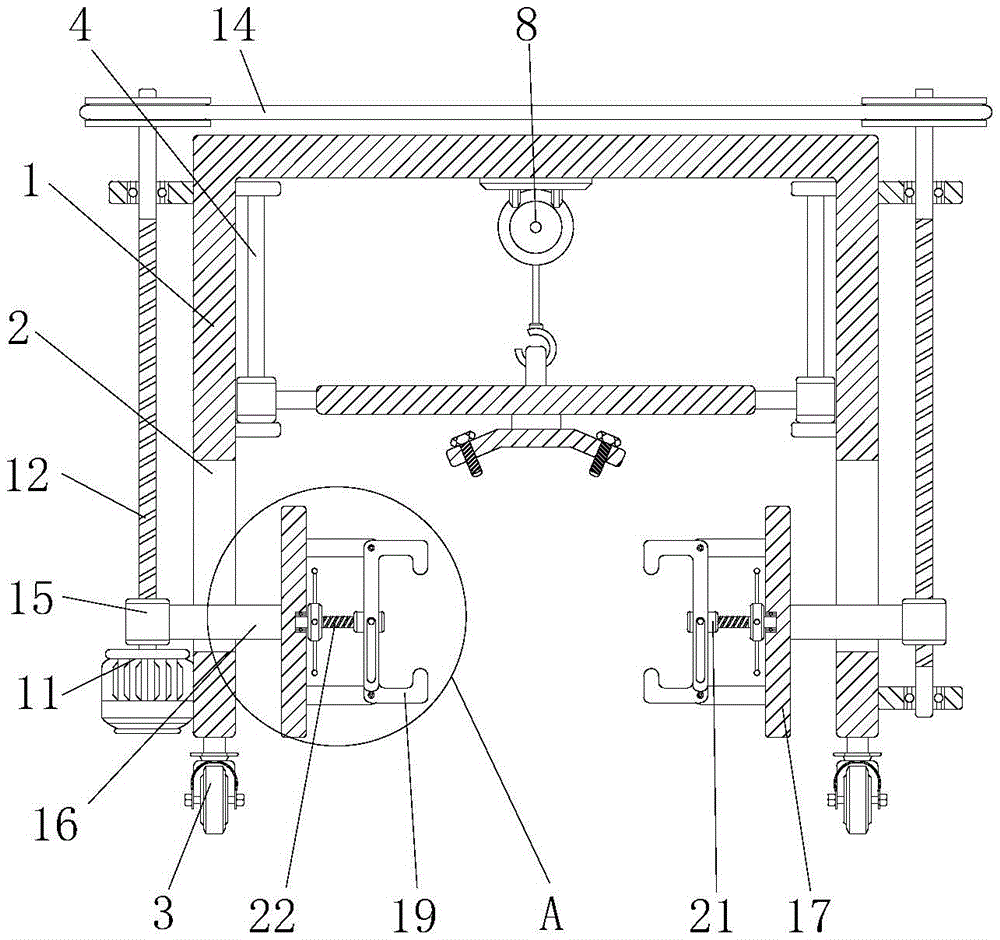

FIG. 1 is a schematic structural diagram of the present invention.

FIG. 2 is a schematic view of the structure of a belt, an electric hoist and a sliding rod of the present invention;

fig. 3 is a schematic structural diagram of a in fig. 1.

In the figure: 1. a support; 2. a through groove; 3. a universal wheel; 4. a slide bar; 5. a sliding sleeve; 6. a transverse plate; 7. A ring body; 8. an electric hoist; 9. a placing seat; 10. a bolt; 11. a motor; 12. a first screw; 13. A grooved wheel; 14. a belt; 15. a first threaded sleeve; 16. a cross bar; 17. a vertical plate; 18. a rod body; 19. A clamping jaw; 20. a slider; 21. a second threaded sleeve; 22. a second screw; 23. a handle.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: a cubic hydraulic press assembly frame structure comprises a support 1, slide bars 4 are fixedly connected with two sides of the inner wall of the support 1, slide sleeves 5 are connected with the outer walls of the two slide bars 4 in a sliding manner, so that the slide sleeves 5 can perform lifting motion on the outer walls of the slide bars 4, a transverse plate 6 is fixedly connected with one ends of the outer walls of the two slide sleeves 5, so that the transverse plate 6 can be connected with the slide bars 4 in a sliding manner through the slide sleeves 5 to perform stable lifting motion, a ring body 7 is fixedly connected with the top of the transverse plate 6, an electric hoist 8 is fixedly connected with the bottom of the inner wall of the support 1, the type of the electric hoist 8 is selected according to actual working requirements, the electric hoist 8 is fixedly connected with the top of the inner wall of the support 1, a hook body of the electric hoist 8 is movably connected with the inner wall of the ring body 7, a placing seat 9 is fixedly connected with the bottom of the transverse plate 6, bolts 10 are screwed on two sides of the placing seat 9 and are used for fixing a top workpiece of a cubic press at the placing seat 9, the equal rigid coupling in bottom four corners of support 1 has universal wheel 3 for support 1 can remove, and the inner wall both sides of support 1 are all processed and are had logical groove 2.

The two ends of the outer wall of the bracket 1 are respectively connected with a first screw 12 through a bearing seat in a rotating way, the bottom of the first screw 12 at one end is fixedly connected with a motor 11, one end of the outer wall of the motor 11 is fixedly connected with one end of the outer wall of the bracket 1, the model of the motor 11 is selected according to the actual working requirement, the outer walls of the two first screws 12 are respectively connected with a first thread bush 15 through threads, one end of the outer wall of each first thread bush 15 is fixedly connected with a cross rod 16, the outer walls of the two cross rods 16 are respectively connected with the inner walls of the two through grooves 2 in a sliding way, so that the cross rods 16 can perform lifting motion on the inner walls of the through grooves 2, vertical plates 17 are fixedly connected at one ends of the outer walls of the two cross rods 16, grooved wheels 13 are fixedly connected at the tops of the two first screw rods 12, the two first screws 12 can synchronously rotate through the driving of the two grooved pulleys 13 and the belt 14, and the outer walls of the two grooved pulleys 13 are movably connected through the belt 14.

The equal rigid coupling of outer wall one end of two risers 17 has two bodies of rod 18, the outer wall of two bodies of rod 18 all rotates through the connecting axle and links to each other has clamping jaw 19, clamping jaw 19 is used for fixed cubic press's both sides work piece to carry out the centre gripping fixed, the spout inner wall of two clamping jaws 19 slides and links to each other has slider 20, slider 20's rear end face rigid coupling has second thread bush 21, the inner wall screw thread of second thread bush 21 links to each other has second screw rod 22, second screw rod 22's outer wall rigid coupling has handle 23, handle 23 is used for driving second screw rod 22 and rotates, second screw rod 22 rotates with riser 17 through the bearing and links to each other.

The working principle is as follows: when the cubic hydraulic press needs to be assembled, a user can fix the top of the cubic hydraulic press at the placing seat 9 through the bolt 10, and can switch on an external power supply through the electric hoist 8 to drive the transverse plate 6 to perform lifting motion, when the transverse plate 6 moves, the transverse plate 6 can drive the top of the cubic hydraulic press to perform horizontal stable lifting through the sliding connection of the sliding sleeve 5 and the sliding rod 4, and the top of the cubic hydraulic press does not shake in moving, so that the installation stability is improved, after the top of the cubic hydraulic press rises, the user can rotate the handle 23 to drive the second screw 22 to rotate, so that the second screw 22 can drive the second thread sleeve 21 and the sliding block 20 to move, and further, the sliding grooves of the sliding block 20 and the clamping jaws 19 are connected in a sliding manner, so that the two clamping jaws 19 can clamp workpieces on two sides of the cubic hydraulic press, and then stabilize fixedly, and switch on external power supply with motor 11, make motor 11 can drive left side first screw 12 and rotate, when left side first screw 12 rotates, through the drive of two sheave 13 and belt 14, make two first screw 12 rotate in step, and then make the rotation of two first screw 15 accessible first screws 12 of first thread bush, drive horizontal pole 16, riser 17, the both sides work piece of clamping jaw 19 and cubic hydraulic press rises, laminate with the top of cubic hydraulic press, and install, after the installation, can place the bottom of cubic hydraulic press in the both sides work piece bottom of cubic hydraulic press, and install, the installation security is high, and the installation is comparatively laborsaving.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A six-sided top hydraulic press assembly frame structure, comprising a bracket (1), characterized in that both sides of the inner wall of the bracket (1) are fixed with sliding rods (4), and two of the sliding rods ( 4) A sliding sleeve (5) is slidably connected to the outer walls of the two sliding sleeves (5), a transverse plate (6) is fixedly connected to one end of the outer walls of the two sliding sleeves (5), and a ring body (6) is fixedly connected to the top of the transverse plate (6). 7), an electric hoist (8) is fixedly connected to the bottom of the inner wall of the bracket (1), the electric hoist (8) is fixed to the top of the inner wall of the bracket (1), and the hook body of the electric hoist (8) is connected to the top of the inner wall of the bracket (1). The inner walls of the ring body (7) are movably connected, a placing seat (9) is fixedly connected to the bottom of the horizontal plate (6), and both sides of the placing seat (9) are threadedly connected with bolts (10).

2. A six-sided top hydraulic press assembling frame structure according to claim 1, characterized in that, all four corners of the bottom of the bracket (1) are fixed with universal wheels (3).

3. A six-sided top hydraulic press assembly frame structure according to claim 1, characterized in that, both sides of the inner wall of the bracket (1) are machined with through grooves (2).

4. A six-sided top hydraulic press assembling frame structure according to claim 1, characterized in that, both ends of the outer wall of the bracket (1) are connected with a first screw (12) through a bearing seat, and one end is connected with a first screw (12). A motor (11) is fixedly connected to the bottom of the first screw (12), one end of the outer wall of the motor (11) is fixed to one end of the outer wall of the bracket (1), and the outer walls of the two first screws (12) are both The threads are connected with a first threaded sleeve (15), one end of the outer walls of the two first threaded sleeves (15) is fixedly connected to the transverse rod (16), and the outer walls of the two transverse rods (16) are respectively connected with the two The inner walls of the through grooves (2) are slidably connected, and a vertical plate (17) is fixedly connected to one end of the outer walls of the two transverse rods (16).

5. A six-sided top hydraulic press assembling frame structure according to claim 4, wherein a sheave (13) is fixed on the tops of the two first screws (12), and the two The outer wall of the sheave (13) is movably connected by a belt (14).

6. A six-sided top hydraulic press assembly frame structure according to claim 4, wherein two rod bodies (18) are fixedly connected to one end of the outer wall of the two vertical plates (17), and the two The outer walls of the rod body (18) are rotatably connected with clamping claws (19) through the connecting shaft, and sliding blocks (20) are slidably connected to the inner walls of the sliding grooves of the two clamping claws (19). A second threaded sleeve (21) is fixedly connected to the rear end surface, the inner wall of the second threaded sleeve (21) is threadedly connected with a second screw (22), and the outer wall of the second screw (22) is fixedly connected with a handle (23). ), the second screw (22) is rotatably connected to the vertical plate (17) through a bearing.
