Abstract

The utility model discloses an art paint grinding device, comprising a support plate, a surface of the support plate is fixedly connected with a rectangular long block, a third rectangular groove is formed on the surface of the rectangular long block, and the support plate is An electric push rod is fixedly connected to the surface of the plate near the inner wall of the third rectangular groove, the top of the electric push rod is fixedly connected with a connecting plate, the surface of the connecting plate is fixedly connected with a fixing frame, and the surface of the fixing frame is fixedly connected with a fixing frame. There is a rotating motor; the electric push rod drives the connecting plate to slide, and the connecting plate drives the grinding wheel on the surface of the rotating motor to slide down. The setting of the electric push rod makes it easier for the grinding wheel to slide up and down to grind the paint. When grinding the paint, it will not shake to prevent poor grinding effect, and the rectangular block is detachable, which is convenient for disassembly and cleaning after grinding the paint.

Description

Fine arts coating grinder

Technical Field

The utility model belongs to the technical field of grinding equipment, and particularly relates to an art paint grinding device.

Background

Along with the improvement of people's material standard of living, people's spirit life's level also constantly improves thereupon, and people often like to hang some works of fine arts on the wall of family or directly draw on the wall at home, at the in-process of fine arts drawing, must have not had the coating of drawing a little, and fine arts coating is mixed through solid-state pigment water at initial state and forms.

The existing art paint grinding device is complex in structure and complex in operation, and the ground paint is not convenient to clean.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide an art paint grinding device to solve the problems in the background technology.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a fine arts coating grinder, includes the bearing board, the fixed surface of bearing board is connected with the rectangle rectangular block, third rectangle recess has been seted up on the surface of rectangle rectangular block, the surface of bearing board is close to third rectangle recess inner wall position fixedly connected with electric putter, electric putter's top fixedly connected with connecting plate, the fixed surface of connecting plate is connected with the mount, the surface of mount is provided with the rotating electrical machines, the fixed surface of rotating electrical machines output shaft is connected with the grinding miller.

Preferably, the surface of the bearing plate is provided with a first rectangular groove, the inner wall of the first rectangular groove is provided with a rectangular block, the surface of the rectangular block is provided with a second rectangular groove, the surface of the rectangular block is provided with a water inlet hole, and the side surface of the rectangular block is fixedly connected with a connecting cylinder.

Preferably, the inner wall fixedly connected with fixed block of first rectangle recess, the mounting groove that uses with the fixed block cooperation is seted up on the bottom surface of rectangular block, rectangular block and first rectangle recess swing joint.

Preferably, the inner wall of the third rectangular groove is provided with a sliding groove, the surface of the connecting plate is fixedly connected with a connecting rod at a position close to the inner wall of the sliding groove, and the connecting rod is movably connected with the sliding groove.

Preferably, the surface of the bearing plate is provided with a through hole, the inner wall of the through hole is movably connected with a discharge barrel, the rotating motor is fixedly connected with the fixing frame, and the bottom surface of the bearing plate is fixedly connected with supporting legs.

Preferably, the surface of the rectangular block is provided with a discharge hole matched with the connecting cylinder, and the connecting cylinder is movably connected with the discharge cylinder.

Compared with the prior art, the utility model has the beneficial effects that:

1. the electric push rod and the connecting plate are arranged to enable the connecting plate to slide up and down, the connecting plate drives the grinding wheel on the surface of the rotating motor to slide down, and the electric push rod enables the grinding wheel to slide up and down to grind the coating more simply.

2. The setting up of fixed block makes the rectangular block can not rock when grinding coating and prevents that the grinding effect is poor, and the rectangular block can be dismantled, is convenient for dismantle the clearance after grinding coating, and the supporting legs can prevent bearing board and ground contact, prevents the problem that moist reduction life.

Drawings

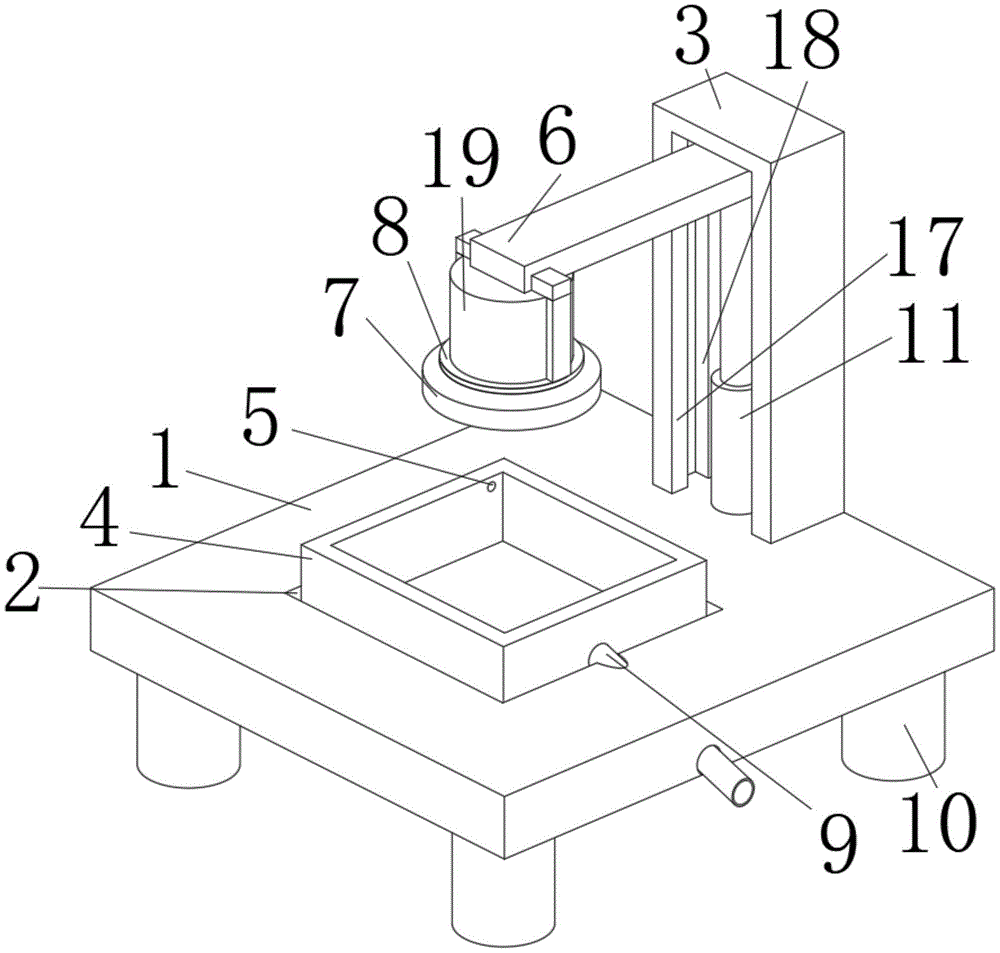

FIG. 1 is a schematic view of an overall structure of an art paint grinder according to the present invention;

FIG. 2 is a schematic view of a connecting plate and a connecting rod of the art paint grinder of the present invention;

FIG. 3 is a schematic structural view of a rectangular block and a second rectangular groove of the art paint grinder of the present invention;

FIG. 4 is a schematic structural view of a support plate and a first rectangular groove of the art paint polishing apparatus according to the present invention;

in the figure: 1. a support plate; 2. a first rectangular groove; 3. a rectangular long block; 4. a rectangular block; 5. a water inlet hole; 6. a connecting plate; 7. a grinding wheel; 8. a fixed mount; 9. a discharging barrel; 10. supporting legs; 11. an electric push rod; 12. a connecting rod; 13. a connecting cylinder; 14. a through hole; 15. a fixed block; 16. a second rectangular groove; 17. a third rectangular groove; 18. a chute; 19. a rotating electric machine.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1 to 4, the present invention provides a technical solution: the utility model provides a fine arts coating grinder, including bearing board 1, the fixed surface of bearing board 1 is connected with rectangle rectangular block 3, third rectangle recess 17 has been seted up on rectangle rectangular block 3's surface, bearing board 1's surface is close to third rectangle recess 17 inner wall position fixedly connected with electric putter 11, electric putter 11's top fixedly connected with connecting plate 6, connecting plate 6's fixed surface is connected with mount 8, mount 8's surface is provided with rotating electrical machines 19, the fixed surface of rotating electrical machines 19 output shaft is connected with grinding miller 7, electric putter 11 drives connecting plate 6 and slides, connecting plate 6 drives the grinding miller 7 downslide on rotating electrical machines 19 surface, electric putter 11's setting makes grinding miller 7 upper and lower slip grinding coating more simple.

Furthermore, the surface of the bearing plate 1 is provided with a first rectangular groove 2, the inner wall of the first rectangular groove 2 is provided with a rectangular block 4, the surface of the rectangular block 4 is provided with a second rectangular groove 16, the surface of the rectangular block 4 is provided with a water inlet 5, the side surface of the rectangular block 4 is fixedly connected with a connecting cylinder 13, the inner wall of the first rectangular groove 2 is fixedly connected with a fixed block 15, the bottom surface of the rectangular block 4 is provided with a mounting groove matched with the fixed block 15 for use, the rectangular block 4 is movably connected with the first rectangular groove 2, the inner wall of the third rectangular groove 17 is provided with a sliding groove 18, the surface of the connecting plate 6 is fixedly connected with a connecting rod 12 at a position close to the inner wall of the sliding groove 18, the connecting rod 12 is movably connected with the sliding groove 18, the fixed block 15 is arranged to ensure that the rectangular block 4 cannot shake during paint grinding to prevent poor grinding effect, the rectangular block 4 can be disassembled, and is convenient for disassembly and cleaning after paint grinding, the supporting feet 10 prevent the supporting plate 1 from contacting the ground, and prevent the problems of moisture and reduced service life.

Further, a through hole 14 is formed in the surface of the bearing plate 1, a discharge barrel 9 is movably connected to the inner wall of the through hole 14, a rotating motor 19 is fixedly connected with the fixed frame 8, supporting legs 10 are fixedly connected to the surface of the bottom of the bearing plate 1, a discharge hole matched with the connection barrel 13 is formed in the surface of the rectangular block 4, and the connection barrel 13 is movably connected with the discharge barrel 9.

The working principle and the using process of the utility model are as follows: when the device is used for grinding paint, the paint is put into a second rectangular groove 16 formed in the surface of a rectangular block 4, a power supply starts an electric push rod 11 in a third rectangular groove 17 formed in the surface of a rectangular long block 3, the electric push rod 11 drives a connecting plate 6 to slide downwards, a connecting rod 12 on the surface of the connecting plate 6 slides along a sliding groove 18 formed in the inner wall of the third rectangular groove 17, the connecting plate 6 slides downwards to drive a grinding wheel 7 on the surface of a rotating motor 19 to slide downwards, so that the grinding wheel 7 can grind the paint in the second rectangular groove 16, the power supply starts the rotating motor 19, an output shaft of the rotating motor 19 drives the grinding wheel 7 to rotate, a water source is connected to a water inlet 5 to enable the paint to be put into water during grinding, the ground paint flows out of a discharge barrel 9 into a container, the discharge barrel 9 is sleeved on the surface of a connecting barrel 13, and when the paint needs to be cleaned after being ground, the rectangular block 4 is taken out for cleaning.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

The above description is only for the purpose of illustrating the technical solutions of the present invention and not for the purpose of limiting the same, and other modifications or equivalent substitutions made by those skilled in the art to the technical solutions of the present invention should be covered within the scope of the claims of the present invention without departing from the spirit and scope of the technical solutions of the present invention.

Claims

1. The utility model provides an art paint grinder, includes bearing board (1), its characterized in that: the surface fixed connection of bearing board (1) has rectangle long piece (3), third rectangle recess (17) have been seted up on the surface of rectangle long piece (3), the surface of bearing board (1) is close to third rectangle recess (17) inner wall position fixedly connected with electric putter (11), the top fixedly connected with connecting plate (6) of electric putter (11), the surface fixed connection of connecting plate (6) has mount (8), the surface of mount (8) is provided with rotating electrical machines (19), the surface fixed connection of rotating electrical machines (19) output shaft has grinding miller (7).

2. The art paint grinding apparatus as claimed in claim 1, wherein: first rectangle recess (2) have been seted up on the surface of bearing board (1), the inner wall of first rectangle recess (2) is provided with rectangular block (4), second rectangle recess (16) have been seted up on the surface of rectangular block (4), inlet opening (5) have been seted up on the surface of rectangular block (4), side fixedly connected with connecting cylinder (13) of rectangular block (4).

3. An art paint grinding apparatus as claimed in claim 2, wherein: the inner wall fixedly connected with fixed block (15) of first rectangle recess (2), the mounting groove that uses with fixed block (15) cooperation is seted up on the bottom surface of rectangle piece (4), rectangle piece (4) and first rectangle recess (2) swing joint.

4. The art paint grinding apparatus as claimed in claim 1, wherein: the inner wall of the third rectangular groove (17) is provided with a sliding groove (18), the surface of the connecting plate (6) is fixedly connected with a connecting rod (12) at a position close to the inner wall of the sliding groove (18), and the connecting rod (12) is movably connected with the sliding groove (18).

5. The art paint grinding apparatus as claimed in claim 1, wherein: the supporting device is characterized in that a through hole (14) is formed in the surface of the supporting plate (1), a discharging barrel (9) is movably connected to the inner wall of the through hole (14), a rotating motor (19) is fixedly connected with a fixing frame (8), and supporting legs (10) are fixedly connected to the surface of the bottom of the supporting plate (1).

6. An art paint grinding apparatus as claimed in claim 2, wherein: the surface of the rectangular block (4) is provided with a discharge hole matched with the connecting cylinder (13), and the connecting cylinder (13) is movably connected with the discharge cylinder (9).
