Abstract
The utility model discloses a filter cartridge dust remover convenient for filter cartridge replacement, which comprises a base, wherein a supporting plate is arranged on one side of the top of the base, a box body is arranged on the top of the supporting plate, a guide plate is arranged on the inner side wall of the box body, a clamping block is arranged in the middle of the inner side wall of the box body, a spring is arranged on one side of the clamping block, and a filter cartridge is arranged in the clamping block. Through straining a section of thick bamboo, the clamp splice, a spring, the deflector, collection dirt funnel, the setting of filter screen and collection dirt box, when the air pump arrives the box with outside air from the intake pipe output trachea inside, the deflector can make the air blow into toward the position of straining a section of thick bamboo according to the direction of deflector, make the inside dust of box get into strain a section of thick bamboo, the inside filter screen that is provided with of collection dirt funnel, can filter partial remaining dust along with the flow of air, the air after the filtration is discharged from the air exit, and partial tiny dust will get into in the collection dirt box.
Description
Technical Field
The utility model relates to the technical field of filter cartridge dust removal, in particular to a filter cartridge dust remover convenient for filter cartridge replacement.
Background
The filter cartridge dust remover is formed by taking a filter cartridge as a filter element or adopts a pulse blowing dust remover, and the filter cartridge dust remover can be divided into an inclined insertion type, a side-mounted type, a hoisting type and an upper-mounted type according to the mounting mode. The filter cartridge type dust remover is divided into a long fiber polyester filter cartridge type dust remover, a composite fiber filter cartridge type dust remover, an anti-static filter cartridge type dust remover, an inflaming retarding filter cartridge type dust remover, a film-coated filter cartridge type dust remover, a nanometer filter cartridge type dust remover and the like.
The filter cartridge dust remover convenient for replacing the filter cartridge in the prior art has the defects that:
1. in the filter cartridge dust remover convenient for replacing the filter cartridge in the prior art, part of devices are difficult to replace the filter cartridge and collect dust when in use, and have certain limitation when in use;
2. in the filter cartridge dust remover convenient for replacing the filter cartridge in the prior art, part of devices are difficult to clean the filter cartridge when in use, so that the filter cartridge is easy to block.
SUMMERY OF THE UTILITY MODEL
The present invention is directed to a filter cartridge dust collector for facilitating replacement of a filter cartridge, so as to solve the problems of the background art.
In order to achieve the purpose, the utility model provides the following technical scheme that a supporting plate is arranged on one side of the top of a base, a box body is arranged on the top of the supporting plate, a guide plate is arranged on the inner side wall of the box body, a clamping block is arranged in the middle of the inner side wall of the box body, a spring is arranged on one side of the clamping block, and a filter cartridge is arranged in the clamping block.
Preferably, the inner bottom wall of the box body is provided with a dust collecting funnel, a filter screen is arranged in the dust collecting funnel, the bottom of the dust collecting funnel is provided with a dust collecting box, and one side of the dust collecting funnel is provided with an air outlet.
Preferably, the inside wall of box is provided with movable clamp, the surface that the activity pressed from both sides sets up threaded hole, threaded connection has the bolt in the threaded hole, the surface that the activity pressed from both sides is provided with the water catch bowl through the bolt.
Preferably, the top of box is provided with driving motor, driving motor's output is connected with the bull stick, the bottom of bull stick is provided with the brush.
Preferably, a water inlet is formed in one side of the box body, a fixing seat is installed on one side of the box body, an air pump is arranged at the top of the fixing seat, an air inlet pipe is arranged at the input end of the air pump, and an air outlet pipe is arranged at the output end of the air pump.
Preferably, the back of the box body is provided with a push handle, and one side of the bottom of the base is provided with a universal wheel.
Compared with the prior art, the utility model has the following beneficial effects:
1. according to the utility model, through the arrangement of the filter cartridge, the clamping block, the spring, the guide plate, the dust collection funnel, the filter screen and the dust collection box, when the air pump outputs external air from the air inlet pipe to the air pipe to reach the interior of the box body, the guide plate can blow air to the position of the filter cartridge according to the direction of the guide plate, so that dust in the interior of the box body enters the filter cartridge, part of residual dust particles enter the dust collection funnel, and because the filter screen is arranged in the dust collection funnel, part of residual dust can be filtered along with the flowing of the air, the filtered air is discharged from the air outlet, and part of fine dust enters the dust collection box.
2. According to the utility model, through the arrangement of the driving motor, the rotating rod, the brush, the water inlet, the movable clamp and the water collecting tank, when the device stops working, the interior of the filter cylinder needs to be cleaned, so that blockage caused by excessive dust is prevented, the service life of the filter cylinder is reduced, the output end of the driving motor drives the rotating rod to rotate, the brush is arranged at the bottom end of the rotating rod, the interior of the filter cylinder can be cleaned, the water pipe is introduced from the water inlet, water is added when the brush cleans the interior of the filter cylinder, so that the filter cylinder can be cleaned cleaner, the water collecting tank can be used for collecting sewage cleaned by the filter cylinder, and the device is beneficial to prolonging the service life of the filter cylinder.
Drawings

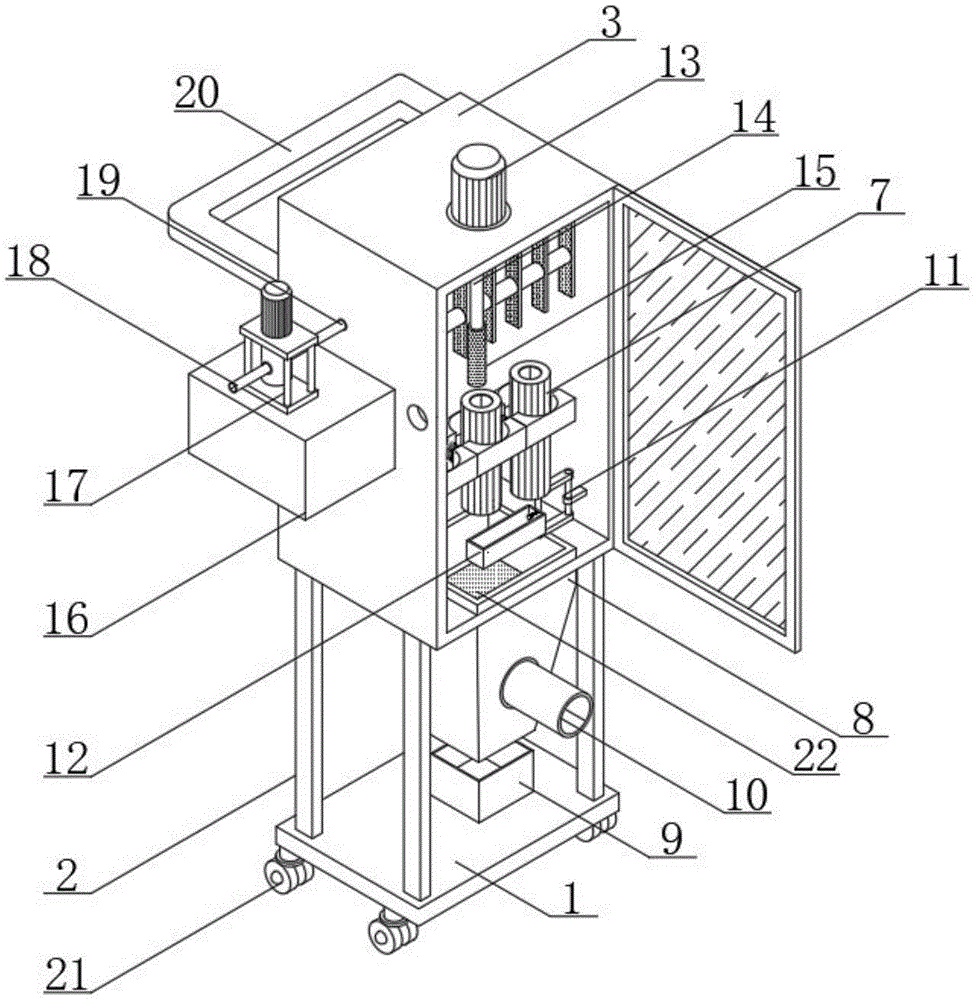

FIG. 1 is a perspective view of the structure of the present invention;
FIG. 2 is a schematic cross-sectional view of the present invention;
FIG. 3 is a schematic perspective view of a clamping block according to the present invention;
fig. 4 is a schematic perspective view of the guide plate of the present invention.
In the figure: 1. a base; 2. a support plate; 3. a box body; 4. a guide plate; 5. a clamping block; 6. a spring; 7. a filter cartridge; 8. a dust collecting funnel; 9. a dust collecting box; 10. an air outlet; 11. a movable clamp; 12. a water collection tank; 13. a drive motor; 14. a rotating rod; 15. a brush; 16. a fixed seat; 17. an air pump; 18. an air inlet pipe; 19. an air outlet pipe; 20. a pushing handle; 21. a universal wheel; 22. and (4) a filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, such as "connected," which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-4, in an embodiment of the present invention, a filter cartridge deduster convenient for filter cartridge replacement, the filter cartridge deduster convenient for filter cartridge replacement, a support plate 2 is arranged on one side of the top of a base 1, a box body 3 is arranged on the top of the support plate 2, a guide plate 4 is arranged on the inner side wall of the box body 3, a clamping block 5 is arranged in the middle of the inner side wall of the box body 3, a spring 6 is arranged on one side of the clamping block 5, a filter cartridge 7 is arranged inside the clamping block, a dust collecting funnel 8 is arranged on the inner bottom wall of the box body 3, a filter screen 22 is arranged inside the dust collecting funnel 8,
the filter cartridge 7, the clamping block 5, the spring 6, the guide plate 4, the dust collection funnel 8, the filter screen 22 and the dust collection box 9 are arranged, when the air pump 17 conveys external air from the air inlet pipe 18 into the air inlet pipe 19 and into the box body 3, the guide plate 4 can blow the air to the position of the filter cartridge 7 according to the direction of the guide plate 4, so that dust in the box body 3 enters the filter cartridge 7, and partial residual dust particles enter the dust collection funnel 8, and because the filter screen 22 is arranged in the dust collection funnel 8, partial residual dust can be filtered along with the flowing of the air, the filtered air is discharged from the air outlet 10, and partial fine dust enters the dust collection box 9, the device is convenient to clamp and replace the filter cartridge 7 in use, the operation is simple, the dust is centralized, and the subsequent treatment is convenient;
the bottom of the dust collecting funnel 8 is provided with a dust collecting box 9, one side of the dust collecting funnel 8 is provided with an air outlet 10, the inner side wall of the box body 3 is provided with a movable clamp 11, the surface of the movable clamp 11 is provided with a threaded hole, the inner part of the threaded hole is connected with a bolt in a threaded way, the surface of the movable clamp 11 is provided with a water collecting tank 12 through the bolt, the top of the box body 3 is provided with a driving motor 13, the output end of the driving motor 13 is connected with a rotating rod 14, the bottom end of the rotating rod 14 is provided with a brush 15,
the device comprises a driving motor 13, a rotating rod 14, a brush 15, a water inlet, a movable clamp 11 and a water collecting tank 12, when the device stops working, the interior of a filter cartridge 7 needs to be cleaned, so that blockage caused by excessive dust is prevented, the service life of the filter cartridge 7 is shortened, the output end of the driving motor 13 drives the rotating rod 14 to rotate, the brush 15 is arranged at the bottom end of the rotating rod 14, the interior of the filter cartridge 7 can be cleaned, a water pipe is introduced from the water inlet, water is added when the brush 15 cleans the interior of the filter cartridge 7, so that the filter cartridge 7 can be cleaned more cleanly, the water collecting tank 12 can collect sewage cleaned by the filter cartridge 7, and the device is favorable for prolonging the service life of the filter cartridge;
the water inlet has been seted up to one side of box 3, and fixing base 16 is installed to one side of box 3, and the top of fixing base 16 is provided with air pump 17, and the input of air pump 17 is provided with intake pipe 18, and the output of air pump 17 is provided with outlet duct 19, and the back mounted of box 3 has pushing hands 20, and one side of base 1 bottom is provided with universal wheel 21.
In the utility model, the working steps of the device are as follows:
1. through the matching work of the filter cartridge 7, the clamping block 5, the spring 6, the guide plate 4, the dust collection funnel 8, the filter screen 22 and the dust collection box 9, when the air pump 17 conveys external air from the air inlet pipe 18 into the air inlet pipe 19 to the interior of the box body 3, the guide plate 4 can blow the air to the position of the filter cartridge 7 according to the direction of the guide plate 4, so that dust in the interior of the box body 3 enters the filter cartridge 7, and partial residual dust particles enter the dust collection funnel 8;
2. through driving motor 13, the bull stick 14, brush 15, the water inlet, the cooperation work of activity clamp 11 and water catch bowl 12, when the device stop work, need clear up 7 insides of straining a section of thick bamboo, prevent that the dust from leading to the fact the jam excessively, reduce and strain 7 life of a section of thick bamboo, driving motor 13's output drives bull stick 14 and rotates, be provided with brush 15 because of bull stick 14 bottom, can clear up 7 insides of straining a section of thick bamboo, let in the water pipe from the water inlet, the limit adds water when brush 15 is to straining 7 inside clearance of a section of thick bamboo, can be so that the cleaner of straining 7 clearance, the sewage that 7 clearance of straining a section of thick bamboo can be collected in the setting of water catch bowl 12, the device is favorable to improving the life who strains a section of thick bamboo.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. A filter cartridge dust remover convenient for filter cartridge replacement comprises a base (1) and is characterized in that: one side at base (1) top is provided with backup pad (2), the top of backup pad (2) is provided with box (3), deflector (4) are installed to the inside wall of box (3), the middle part of box (3) inside wall is provided with clamp splice (5), one side of clamp splice (5) is provided with spring (6), the inside of clamp splice is provided with strains a section of thick bamboo (7).
2. A filter cartridge changer for facilitating filter cartridge replacement as recited in claim 1, wherein: the dust collecting device is characterized in that a dust collecting funnel (8) is installed on the inner bottom wall of the box body (3), a filter screen (22) is arranged inside the dust collecting funnel (8), a dust collecting box (9) is arranged at the bottom of the dust collecting funnel (8), and an air outlet (10) is formed in one side of the dust collecting funnel (8).
3. A filter cartridge changer for facilitating filter cartridge replacement as recited in claim 1, wherein: the inside wall of box (3) is provided with movable clamp (11), the surface of activity clamp (11) is seted up threaded hole, threaded hole internal thread is connected with the bolt, the surface of activity clamp (11) is provided with water catch bowl (12) through the bolt.
4. A filter cartridge changer for facilitating filter cartridge replacement as recited in claim 1, wherein: the top of box (3) is provided with driving motor (13), the output of driving motor (13) is connected with bull stick (14), the bottom of bull stick (14) is provided with brush (15).
5. A filter cartridge changer for facilitating filter cartridge replacement as recited in claim 1, wherein: the water inlet has been seted up to one side of box (3), fixing base (16) are installed to one side of box (3), the top of fixing base (16) is provided with air pump (17), the input of air pump (17) is provided with intake pipe (18), the output of air pump (17) is provided with outlet duct (19).
6. A filter cartridge changer for facilitating filter cartridge replacement as recited in claim 1, wherein: the back of the box body (3) is provided with a push handle (20), and one side of the bottom of the base (1) is provided with a universal wheel (21).
