CN215309164U - Pediatric retention type scalp needle - Google Patents
Pediatric retention type scalp needle Download PDFInfo
- Publication number
- CN215309164U CN215309164U CN202121074915.9U CN202121074915U CN215309164U CN 215309164 U CN215309164 U CN 215309164U CN 202121074915 U CN202121074915 U CN 202121074915U CN 215309164 U CN215309164 U CN 215309164U
- Authority
- CN
- China
- Prior art keywords
- needle
- needle body
- scalp
- fixed
- pediatric
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Finger-Pressure Massage (AREA)
Abstract
The utility model relates to the technical field of retention type scalp needles and discloses a retention type scalp needle for pediatrics. This paediatrics is with delaying formula scalp acupuncture, the outside of needle body is provided with the stopper, the outside of stopper is provided with the supporting shoe, the outside of supporting shoe is provided with spacing piece, the stopper can be fixed the needle body, can avoid the needle body to cause infiltration or roll-off because the patient moves about, thereby can play limiting displacement to the needle body, the supporting shoe can play the fixed action to the needle body, can avoid the patient activity to touch the needle body, can play the guard action to the needle body, spacing piece can fix the needle body through the sticky tape, thereby can avoid when directly restricting the needle body, it drags the patient's needle body that the sticky tape caused to drag, thereby can play the limiting displacement to the needle body.
Description
Technical Field
The utility model relates to the technical field of retention type scalp needles, in particular to a retention type scalp needle for pediatrics.
Background
Pediatrics is a comprehensive medical science that comprehensively studies physical and mental development, health care and disease prevention and treatment in the pediatric period. Health and hygiene issues related to the childhood and adolescent age are all within the pediatric scope. The treated object is in growth and development stage. The task of pediatrics is to continuously explore the pediatric medical theory, reduce morbidity and mortality on the basis of practice, enhance the physique of children and teenagers, and improve the health care and disease prevention and treatment level of the children and the teenagers. The pediatric range of ages varies from infancy to adolescence and is the pediatric range in countries around the world.
The detained needle is a needle which can be repeatedly used for a plurality of times by once puncturing a blood vessel when a transfusion bottle is used for a long time, and can relieve the pain of a patient caused by a plurality of injections.
In the process of children treatment, because a patient needs to be transfused for a long time, a pediatric retention scalp needle is needed.
Some pediatric retention scalp needles currently on the market:
(1) after the fixing device is used, the exposed needle body is generally fixed and sealed by the adhesive tape, so that the phenomenon that the needle moves due to the action of a patient is avoided, but the needle body is touched by the patient when the patient acts due to the fixing mode, and the influence is caused to the daily life of the patient;
(2) the existing needle body is generally a straight needle, the needle body acts on the scalp to cause inconvenience in fixing the needle body, the needle body is forcibly fixed, the needle body is seriously exposed, and therefore the retention of the needle body is influenced.
We have therefore proposed a pediatric retention scalp needle in order to solve the problems set out above.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In view of the above-mentioned shortcomings in the prior art, the present invention provides a pediatric retention scalp needle to solve the problem of inconvenience in fixing and hiding the needle body of some pediatric retention scalp needles in the market proposed in the above-mentioned background art.
(II) technical scheme
In order to achieve the purpose, the utility model is realized by the following technical scheme:
a retention scalp needle for pediatrics comprises a needle body, wherein a connecting needle is arranged at one end of the needle body, a needle head is arranged at one end of the connecting needle, a connecting head is arranged at the other end of the needle body, and a limiting block is arranged on the outer side of the needle body;
the outside of stopper is provided with the supporting shoe, the outside of supporting shoe is provided with spacing piece.
Further, the one end at the needle body is fixed to the one end of connecting the needle, it is fixed that the connection needle is one hundred twenty degrees with the needle body, the other end at the connection needle is fixed to the one end of syringe needle, syringe needle and needle body parallel arrangement, the other end of syringe needle is surely equipped with the oblique angle.
Furthermore, the connector is fixed at the other end of the needle body, the bottom of the connector is fixed on the outer side surface of the needle body close to the other end, and the connector is communicated with the needle body.
Further, the top of connector is provided with the block, the block adopts the rubber to make, the top at the connector is established to the block cover, the block can be dismantled with the connector and be connected.
Further, the stopper adopts plastics to make, the through-hole has been seted up to one side of stopper, the needle body sets up in the through-hole, the needle body is fixed in the inboard of stopper.
Furthermore, the limiting piece is made of sponge, an installation opening is formed in the bottom of the limiting piece, the supporting block is fixed in the installation opening, and the supporting block is made of plastic.
Furthermore, the supporting block is concave, the limiting block is movably arranged on the inner side of the supporting block and matched with the inner side of the supporting block, and the limiting block is detachably connected with the supporting block.
(III) advantageous effects
Compared with the prior art, the utility model has the beneficial effects that: this paediatrics is with staying formula scalp acupuncture:
(1) the outside of needle body is provided with the stopper, the outside of stopper is provided with the supporting shoe, the outside of supporting shoe is provided with spacing piece, the stopper can be fixed the needle body, can avoid the needle body to cause infiltration or roll-off because of the patient activity, thereby can play limiting displacement to the needle body, the supporting shoe can play the fixed action to the needle body, can avoid the patient activity to touch the needle body, can play the guard action to the needle body, spacing piece can be fixed the needle body through the sticky tape, thereby can avoid directly when restricting the needle body, it arouses to tear the patient needle body that the sticky tape caused, thereby can play the limiting displacement to the needle body.
(2) The needle body passes through the connector with the syringe needle and is connected, and the connector is one hundred twenty degrees with the needle body and is connected, and when the syringe needle setting was in the scalp, the needle body can, set up in the scalp outside under parallel state, can avoid the needle body to the actuation of going on in the scalp when fixed to can be convenient for the needle body hide when detaining fixedly, can avoid the needle body to expose and cause the influence to patient's action, thereby can be convenient for the needle body be detained hide fixedly.
Drawings
Fig. 1 is a schematic perspective view of a pediatric retention scalp needle according to the present invention;
fig. 2 is a front structural schematic view of a pediatric retention scalp needle;
fig. 3 is a schematic top view of a pediatric retention scalp needle of the present invention;

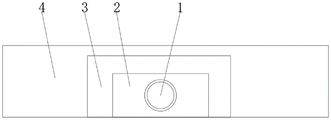

FIG. 4 is a schematic side view of a pediatric retention scalp needle of the present invention;
FIG. 5 is a schematic view of a half-section of a pediatric retention scalp needle of the present invention;
fig. 6 is a schematic side view of a half-section of a pediatric retention scalp needle.
In the figure: the needle body 1, connect needle 101, syringe needle 102, connector 103, block 104, stopper 2, supporting shoe 3, spacing piece 4.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-6, the present invention provides a pediatric retention scalp needle; the needle comprises a needle body 1, wherein one end of the needle body 1 is provided with a connecting needle 101, one end of the connecting needle 101 is provided with a needle head 102, the other end of the needle body 1 is provided with a connecting head 103, and the outer side of the needle body 1 is provided with a limiting block 2;
a supporting block 3 is arranged on the outer side of the limiting block 2, and a limiting piece 4 is arranged on the outer side of the supporting block 3;
as a preferred technical scheme of the utility model: one end of the connecting needle 101 is fixed at one end of the needle body 1, the connecting needle 101 and the needle body 1 are fixed in a one-hundred-twenty degree manner, one end of the needle head 102 is fixed at the other end of the connecting needle 101, the needle head 102 is arranged in parallel with the needle body 1, an oblique angle is cut at the other end of the needle head 102, the connecting needle 101 which is obliquely arranged with the needle body 1 can enable the needle head 102 to be inserted into a human body and simultaneously keep the needle body 1 and a scalp in parallel arrangement, so that the exposed part of the needle body 1 can be conveniently fixed, and the retention and fixation of the needle body can be conveniently realized;
as a preferred technical scheme of the utility model: the connector 103 is fixed at the other end of the needle body 1, the bottom of the connector 103 is fixed at the outer side surface of the needle body 1 close to the other end, the connector 103 is communicated with the needle body 1, and the connector 103 can be inserted into a transfusion tube, so that the transfusion connection of the retained needle body 1 can be realized;
as a preferred technical scheme of the utility model: a cap 104 is arranged at the top of the connector 103, the cap 104 is made of rubber, the cap 104 is sleeved at the top of the connector 103, the cap 104 is detachably connected with the connector 103, the cap 104 can play a role in sealing and protecting the connector 103, and the infection of the connector 103 caused by the hidden needle body 1 can be avoided, so that the use of the needle body 1 can be facilitated;
as a preferred technical scheme of the utility model: the limiting block 2 is made of plastics, a through hole is formed in one side of the limiting block 2, the needle body 1 is arranged in the through hole, the needle body 1 is fixed to the inner side of the limiting block 2, the limiting block 2 can limit the needle body 1, and the needle body 1 can be prevented from sliding when being detained, so that the needle body 1 can be conveniently detained for use;
as a preferred technical scheme of the utility model: the limiting piece 4 is made of sponge, the bottom of the limiting piece 4 is provided with an installation opening, the supporting block 3 is fixed in the installation opening, the supporting block 3 is made of plastic, the limiting piece 4 can fix the needle body 1 through an adhesive tape, and scalp pulling caused by direct adhesive tape fixing of the needle body 1 can be avoided, so that the burden of a patient can be relieved;
as a preferred technical scheme of the utility model: supporting shoe 3 is the spill, and the activity of stopper 2 sets up the inboard at supporting shoe 3, stopper 2 and the inboard looks adaptation of supporting shoe 3, and stopper 2 can be dismantled with supporting shoe 3 and be connected, and supporting shoe 3 can play the fixed action to needle body 1 to can be convenient for the needle body 1 expose the hidden effect when partly detaining, thereby can be convenient for the needle body 1 fixed when detaining.
The working principle of the embodiment is as follows: when the retention type scalp acupuncture for pediatrics is used, as shown in figures 1-6, the whole device is composed of a needle body 1, a limiting block 2, a supporting block 3 and a limiting piece 4, the exposed part of the needle body 1 can be fixedly attached to the scalp through the inclined arrangement of a connecting needle 101 and the needle body 1, the needle body 1 can be prevented from being pulled when a patient acts, the limiting block 2 can prevent the needle body 1 from sliding when being retained, the needle body 1 can be limited, the supporting block 3 can fix the needle body 1, the needle body 1 can be prevented from moving when a medicine is replaced, the limiting piece 4 can fix the needle body 1 through an adhesive tape, the scalp of the patient can be prevented from being pulled when the adhesive tape is pulled, the fixed hiding effect when the needle body 1 is retained can be enhanced, and the retention use of the needle body 1 can be facilitated;
as shown in fig. 1-6, when the device is used, the needle 102 is inserted into the scalp of a patient through the limiting block 2, the connector 103 is arranged upwards, then the needle body 1 is tightly attached to the scalp, the supporting block 3 is fixed in the limiting piece 4, the limiting piece 4 is sleeved outside the supporting block 2 through the supporting block 3, and finally the limiting piece 4 is fixed outside the scalp through the adhesive tape; when in use, the cap at the top of the connector 103 is taken off, and then the infusion tube is connected to the top of the connector 103 for infusion, which is the working process of the whole device, and the content which is not described in detail in the specification belongs to the prior art which is well known by the technicians in the field.
Although the present invention has been described in detail with reference to the foregoing embodiments, it should be noted that, in the present invention, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," "fixed," and the like are to be construed broadly, and for example, may be fixedly connected or detachably connected; or indirectly through an intermediary. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations; it will be apparent to those skilled in the art that modifications and equivalents may be made in the embodiments and/or portions thereof without departing from the spirit and scope of the present invention.
Claims (7)
1. The utility model provides a paediatrics is with staying formula scalp acupuncture, includes needle body (1), its characterized in that: a connecting needle (101) is arranged at one end of the needle body (1), a needle head (102) is arranged at one end of the connecting needle (101), a connecting head (103) is arranged at the other end of the needle body (1), and a limiting block (2) is arranged on the outer side of the needle body (1);
the outer side of the limiting block (2) is provided with a supporting block (3), and the outer side of the supporting block (3) is provided with a limiting piece (4).
2. The pediatric retention scalp needle according to claim 1, wherein one end of the connection needle (101) is fixed at one end of the needle body (1), the connection needle (101) is fixed with the needle body (1) at one hundred twenty degrees, one end of the needle head (102) is fixed at the other end of the connection needle (101), the needle head (102) is arranged in parallel with the needle body (1), and the other end of the needle head (102) is cut with an oblique angle.
3. The pediatric retention scalp needle according to claim 1, wherein the connector (103) is fixed at the other end of the needle body (1), the bottom of the connector (103) is fixed at the outer side surface of the needle body (1) close to the other end, and the connector (103) is communicated with the needle body (1).
4. The pediatric retention scalp needle according to claim 1, wherein a cap (104) is arranged on the top of the connector (103), the cap (104) is made of rubber, the cap (104) is sleeved on the top of the connector (103), and the cap (104) is detachably connected with the connector (103).
5. The pediatric retention scalp needle according to claim 1, wherein the limiting block (2) is made of plastic, a through hole is formed in one side of the limiting block (2), the needle body (1) is arranged in the through hole, and the needle body (1) is fixed to the inner side of the limiting block (2).
6. The pediatric retention type scalp needle according to claim 1, wherein the limiting piece (4) is made of sponge, the bottom of the limiting piece (4) is provided with a mounting opening, the supporting block (3) is fixed in the mounting opening, and the supporting block (3) is made of plastic.
7. The pediatric retention scalp needle according to claim 1, wherein the supporting block (3) is concave, the limiting block (2) is movably disposed at the inner side of the supporting block (3), the limiting block (2) is adapted to the inner side of the supporting block (3), and the limiting block (2) is detachably connected to the supporting block (3).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202121074915.9U CN215309164U (en) | 2021-05-19 | 2021-05-19 | Pediatric retention type scalp needle |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202121074915.9U CN215309164U (en) | 2021-05-19 | 2021-05-19 | Pediatric retention type scalp needle |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN215309164U true CN215309164U (en) | 2021-12-28 |
Family
ID=79547174
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
