Medical instrument transferring and storing device for patient nursing

Technical Field

The utility model relates to the technical field of medical appliance transferring and storing, in particular to a medical appliance transferring and storing device for patient nursing.

Background

During the treatment of patient in the hospital, need nurse patient, patient's nursing is including the observation of the state of an illness, medical care, life nursing, diet nursing, rest and sleep and psychological care usually, to patient's nursing in-process, often can use various medical appliances, and in using medical appliances process, medical appliances deposit and transport and use for nursing and bring inconvenience, consequently, when transporting medical appliances and depositing, generally can use medical appliances to deposit transfer device.

However, the existing medical apparatus storing and transferring device has certain defects in the using process, the storing and transferring capacity of the existing medical apparatus storing and transferring device cannot be adjusted, so that the flexibility of the using function is reduced, meanwhile, the size and the capacity cannot be adjusted, so that the capacity cannot be increased, and the bearing capacity of the device is reduced.

SUMMERY OF THE UTILITY MODEL

In view of the problems in the prior art, the utility model provides a medical instrument transferring and storing device for patient care.

The technical scheme adopted by the utility model for solving the technical problems is as follows: a medical appliance transferring and storing device for nursing patients, which comprises a bottom plate, a supporting plate, a storing counter and a handle, the bottom plate is horizontally arranged, mounting plates are welded at two ends of the bottom plate, supporting rods are fixed at two ends of the two mounting plates, universal wheels are mounted at the bottoms of the four supporting rods, by using the universal wheels, the device is convenient to turn during the process of transferring medical instruments, thereby providing convenience for the flexible and light movement of the device, thereby improving the flexibility of the medical appliance transferring and storing device for nursing patients, the two supporting plates are vertically welded on the top of the bottom plate, the supporting strength of the device to the storing counter is higher by using the two supporting plates, the top parts of the two supporting plates are horizontally fixed with a storage counter, and one end of the storage counter is fixed with a handle;

the storage cabinet comprises base stations, platform enclosures and extension platforms, the base stations are fixed to the tops of the two support plates, the cross sections of the base stations, the extension platforms and the platform enclosures are of U-shaped structures, the two ends of the base stations are matched with the extension platforms in a sliding mode, the platform enclosures are fixed to one ends, far away from the base stations, of the two extension platforms, the medical appliance storage device for patient care is convenient to store medical appliances by using the storage counter, the distance between the platform enclosures at the two ends of the base stations and the base stations can be adjusted by matching the extension platforms at the two ends of the base stations in a sliding mode, the length of the storage counter can be adjusted by adjusting the distance between the platform enclosures and the base stations, and the capacity of the storage counter can be increased by flexibly adjusting the capacity of the storage counter;

the handle is fixed in one of them platform and is enclosed the one end of keeping away from the base station, the handle includes push rod, handle and hinge, the push rod is fixed and is enclosed one end at the platform, and the one end that the push rod keeps away from the platform and encloses articulates through the hinge has the handle, the handle is "U" style of calligraphy structure, the rubber sleeve pad has been cup jointed on the handle, through setting up the handle, makes things convenient for the nursing staff to carry out the push-and-pull, and is articulated through making push rod and handle pass through the hinge, makes the handle fold to reduce and to the taking of space, through setting up the plastic sleeve pad, can increase the friction, play an antiskid.

Preferably, the cross section of the bottom plate is of a rectangular structure, the bottom plate and the two mounting plates are integrally of an I-shaped structure, and the support rods at the two ends of the mounting plates are vertically arranged.

Preferably, two backup pads are parallel arrangement, and the same end welding of two backup pads has the backplate, and the bottom of backplate and the top welding of bottom plate, the top and the base station welding of backplate through using the backplate, further improve the device to depositing the support intensity of sales counter, simultaneously, be connected through backplate and two backup pads, make and form an independent space between backplate and two backup pads, make things convenient for the medical instrument after nursing staff will abandon or pollute to put into, make the device can transport and deposit dumped medical instrument.

Preferably, the spout has been seted up to base station one end, and the spout runs through the base station, and the cross-section of spout is "U" style of calligraphy structure, extends the size of a cross-section and the big or small looks adaptation of spout cross-section, and two extend the platform respectively sliding fit at the both ends of spout, and two extend the platform all through spout sliding fit at the both ends of base station.

Preferably, the both ends of spout all are equipped with the dog, and the one end welding that the platform was enclosed is kept away from to two extension platforms has the buckle, and the buckle is "U" style of calligraphy structure, buckle and dog lock joint, through set up the dog at the spout both ends, keep away from the one end welding buckle that the platform was enclosed at the extension platform, make the platform enclose at the outside tensile in-process, roll-off in the spout of base station can not followed to the extension platform, and then avoid in the use, deposit the sales counter and by tensile disintegration, make the use of depositing the sales counter more reliable.

Preferably, the both sides of base station all are equipped with a plurality of bolt, a plurality of bolt and base station screw-thread fit, and the one end of a plurality of bolt all is located the spout, through set up the bolt in one side of base station, can be fixed with the base station with extending the platform through the bolt, guarantee the device use total, deposit the size of sales counter and can fix, avoid the transportation in-process, extend the platform and slide in the spout and bump the damage medical instrument.

The utility model has the beneficial effects that:

(1) the medical apparatus transferring and storing device for patient care is convenient for the medical apparatus storing device for patient care to store medical apparatuses by using the storing counter, the distance between the platform circumference at the two ends of the base station and the base station can be adjusted by sliding and matching the extending platforms at the two ends of the base station, the distance between the platform circumference and the base station can be adjusted, the length of the storing counter can be adjusted, and further the capacity of the storing counter can be flexibly changed, so that the flexibility of the medical apparatus transferring and storing device for patient care is improved, the capacity of the storing counter can be increased by flexibly adjusting the capacity of the storing counter, and further the medical apparatus transferring device for patient care can bear more medical apparatuses, thereby improving the transferring and storing capacity of the device and reducing the transferring and storing times of nursing personnel, thereby reducing the working strength of the nursing staff and bringing convenience to the nursing staff.

(2) The medical appliance transferring and storing device for patient care has the advantages that the stop blocks are arranged at the two ends of the sliding groove, the buckle plate is welded at one end of the extending table, which is far away from the table periphery, so that the table periphery cannot slide out of the sliding groove of the base station in the outward stretching process, the storage counter is prevented from being stretched and disassembled in the using process, the use of the storage counter is more reliable, the use reliability of the medical appliance transferring and storing device for patient care is improved, meanwhile, the safety of the medical appliance stored on the device is ensured by ensuring the storage counter to be more reliable, the medical appliance is prevented from being broken, the extending table and the base station can be fixed through the bolts by arranging the bolts at one side of the base station, the size of the storage counter can be fixed, the medical appliance is prevented from being damaged by the sliding of the extending table in the sliding groove in the transferring process, thereby further improving the reliability of the medical instrument transferring and storing device for patient care.

(3) The medical appliance transferring and storing device for patient care, which is disclosed by the utility model, is convenient to turn during the process of transferring medical appliances by using the universal wheels, and provides convenience for flexible and light movement of the device, so that the flexibility of the medical appliance transferring and storing device for patient care is improved, the supporting strength of the device on a storage counter is higher by using the two supporting plates, the quality of the device is further improved, the service life of the device is prolonged, the supporting strength of the device on the storage counter is further improved by using the back plate, meanwhile, an independent space is formed between the back plate and the two supporting plates by connecting the back plate with the two supporting plates, a nursing staff can conveniently put in the discarded or polluted medical appliances, the device can transfer and store the discarded medical appliances, and the environmental protection property of the device is improved, meanwhile, the medical instruments can be classified, transported and stored by the device through the independent space between the back plate and the two supporting plates and the storage counter, so that the possibility of pollution of the medical instruments is reduced, and the sanitary condition of storing the medical instruments by the device is improved.

Drawings

The utility model is further illustrated with reference to the following figures and examples.

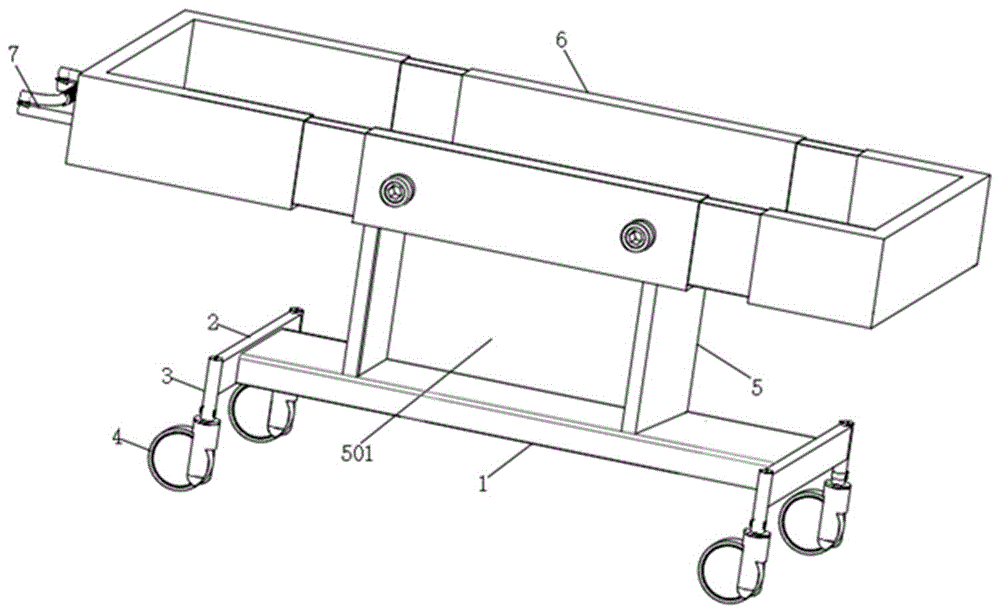

Fig. 1 is a schematic view of the overall structure of the present invention.

Fig. 2 is a schematic view of the storage counter of the present invention.

Fig. 3 is a side view of the abutment of the present invention.

Fig. 4 is a horizontal sectional view of the base according to the present invention.

Fig. 5 is a schematic view of the assembly structure of the platform enclosure and the extension platform.

FIG. 6 is a schematic view of the buckle plate of the present invention.

Fig. 7 is a schematic view of the structure of the handle of the present invention.

In the figure: 1. a base plate; 2. mounting a plate; 3. a support bar; 4. a universal wheel; 5. a support plate; 501. a back plate; 6. a storage counter; 601. a base station; 602. a chute; 603. a stopper; 604. enclosing a platform; 605. an extension stage; 606. buckling the plate; 607. a bolt; 7. a handle; 8. a push rod; 9. a grip; 10. a hinge; 11. and (5) rubber sleeve gasket.

Detailed Description

In order to make the technical means, the creation characteristics, the achievement purposes and the effects of the utility model easy to understand, the utility model is further described with the specific embodiments.

As shown in fig. 1-7, the medical apparatus transferring and storing device for patient care according to the present invention comprises a bottom plate 1, support plates 5, a storing counter 6 and a handle 7, wherein the bottom plate 1 is horizontally arranged, the mounting plates 2 are welded at both ends of the bottom plate 1, the support rods 3 are fixed at both ends of the two mounting plates 2, universal wheels 4 are mounted at the bottoms of the four support rods 3, the device is convenient to turn during the process of transferring medical apparatuses by using the universal wheels 4, thereby providing convenience for flexible and light movement of the device, improving the flexibility of the medical apparatus transferring and storing device for patient care, the two support plates 5 are vertically welded at the top of the bottom plate 1, the supporting strength of the device on the storing counter 6 is higher by using the two support plates 5, further improving the quality of the device, and prolonging the service life of the device, a storage counter 6 is horizontally fixed on the tops of the two supporting plates 5, and a handle 7 is fixed at one end of the storage counter 6;

the storage cabinet 6 comprises a base 601, platform enclosures 604 and extension platforms 605, the base 601 is fixed on the top of two support plates 5, the cross sections of the base 601, the extension platforms 605 and the platform enclosures 604 are all in a U-shaped structure, the two ends of the base 601 are matched with the extension platforms 605 in a sliding way, the platform enclosures 604 are fixed at one ends of the two extension platforms 605 far away from the base 601, the medical apparatus storage device for patient care is convenient for storing medical apparatuses by using the storage cabinet 6, the distance between the platform enclosures 604 at the two ends of the base 601 and the base 601 can be adjusted by matching the extension platforms 605 in a sliding way at the two ends of the base 601, the distance between the platform enclosures 604 and the base 601 can be adjusted, the length of the storage cabinet 6 can be adjusted, the capacity of the storage cabinet 6 can be flexibly changed, the flexibility of the use of the medical apparatus transferring and storage device for patient care is improved, and the capacity of the storage cabinet 6 can be flexibly adjusted, the capacity of the storage counter 6 can be increased, so that the medical appliance transferring device for patient care can bear more medical appliances, the transferring and storing capacity of the device is improved, the transferring and storing times of nursing staff are reduced, the working strength of the nursing staff is reduced, and convenience is brought to the nursing staff;

handle 7 is fixed and is enclosed the one end that 604 kept away from base station 601 at one of them platform, handle 7 includes push rod 8, handle 9 and hinge 10, push rod 8 is fixed and is enclosed 604 one end at the platform, push rod 8 keeps away from the one end that 604 was enclosed to the platform and articulates through hinge 10 has handle 9, handle 9 is "U" style of calligraphy structure, rubber sleeve pad 11 has been cup jointed on handle 9, through setting up handle 7, make things convenient for the nursing staff to carry out the push-and-pull, it is articulated through hinge 10 through making push rod 8 and handle 9, make handle 7 can fold, thereby reduce the occupation to the space, through setting up plastic sleeve pad 11, can increase the friction, play an antiskid.

The cross section of the bottom plate 1 is of a rectangular structure, the bottom plate 1 and the two mounting plates 2 are integrally of an I-shaped structure, and the support rods 3 at the two ends of the mounting plates 2 are vertically arranged.

The two supporting plates 5 are arranged in parallel, the same end of the two supporting plates 5 is welded with a back plate 501, the bottom end of the back plate 501 is welded with the top of the bottom plate 1, the top of the back plate 501 is welded with the base 601, by using the back plate 501, the supporting strength of the device to the storage counter 6 is further improved, meanwhile, the back plate 501 is connected with the two supporting plates 5, so that an independent space is formed between the back plate 501 and the two supporting plates 5, and the nursing staff can conveniently put in the discarded or polluted medical apparatus, so that the device can transfer and store the discarded medical apparatus, therefore, the environmental protection performance of the device is improved, meanwhile, the medical instruments can be classified, transported and stored through the independent space between the back plate 501 and the two supporting plates 5 and the storage counter 6, the possibility of pollution of the medical instruments is reduced, and the sanitary condition of storing the medical instruments by the device is improved.

The spout 602 has been seted up to base station 601 one end, and the spout 602 runs through base station 601, and the cross-section of spout 602 is "U" style of calligraphy structure, and the size of extension platform 605 cross-section and the size looks adaptation of spout 602 cross-section, two extension platforms 605 respectively sliding fit at the both ends of spout 602, and two extension platforms 605 are all at the both ends of base station 601 through spout 602 sliding fit.

Both ends of spout 602 all are equipped with dog 603, two extend platform 605 and keep away from the one end welding of platform enclosure 604 and have buckle 606, buckle 606 is "U" style of calligraphy structure, buckle 606 and dog 603 lock joint, through set up dog 603 at spout 602 both ends, keep away from the one end welding buckle 606 of platform enclosure 604 at extension platform 605, make the platform enclose 604 at the outside tensile in-process, extend platform 605 can not follow the slip-out in the spout 602 of base station 601, and then avoid in the use, deposit sales counter 6 and be stretched and disintegrate, make the use of depositing counter 6 more reliable, thereby improve this a medical instrument transporting storage device for patient's nursing reliability of using, and simultaneously, through making deposit sales counter 6 more reliable, the safety of depositing medical instrument on the device has also been guaranteed, avoid medical instrument to be broken.

Base station 601's both sides all are equipped with a plurality of bolt 607, a plurality of bolt 607 and base station 601 screw-thread fit, and the one end of a plurality of bolt 607 all is located spout 602, set up bolt 607 through one side at base station 601, it is fixed with base station 601 to extend platform 605 through bolt 607, guarantee that the device use is total, the size of depositing sales counter 6 can be fixed, avoid the transportation in-process, extend platform 605 and slide in spout 602 and bump the medical instrument that decreases, thereby the reliability that this a medical instrument transports strorage device for patient's nursing used has further been improved.

When in use, firstly, the bottom plate 1 is horizontally arranged, the mounting plates 2 are welded at the two ends of the bottom plate 1, the support rods 3 are fixed at the two ends of the two mounting plates 2, the universal wheels 4 are installed at the bottoms of the support rods 3, the two support plates 5 are vertically welded at the top of the bottom plate 1, the storage counter 6 is horizontally fixed at the top of the support plates 5, the handle 7 is fixed at one end of the storage counter 6, then, the medical apparatus for patient care is placed in the storage counter 6 to store the medical apparatus for patient care, finally, the medical apparatus for patient care is transported by pushing the device through the handle 7, the medical apparatus storage device for patient care is convenient to store the medical apparatus through using the storage counter 6, the distance between the platform enclosure 604 at the two ends of the base 601 and the base 601 can be adjusted by matching the extending platforms 605 at the two ends of the base 601 in a sliding way, the distance between the platform enclosure 604 and the base 601 can be adjusted, the length of the storage counter 6 can be adjusted, the capacity of the storage counter 6 can be flexibly changed, the flexibility of the medical apparatus transferring and storing device for patient care is improved, the capacity of the storage counter 6 can be increased by flexibly adjusting the capacity of the storage counter 6, the medical apparatus transferring device for patient care can bear more medical apparatuses, the transferring and storing capacity of the device is improved, the transferring and storing times of nursing staff are reduced, the working strength of the nursing staff is reduced, the nursing staff can use the device conveniently, the stoppers 603 are arranged at the two ends of the sliding groove 602, the buckle 606 is welded at one end of the extension platform 605 far away from the platform enclosure 604, the extension platform 605 cannot slide out of the sliding groove 602 of the base 601 in the outward stretching process, further, the storage counter 6 is prevented from being stretched and disassembled in the using process, so that the use of the storage counter 6 is more reliable, the use reliability of the medical instrument transferring and storing device for nursing patients is improved, meanwhile, the safety of the medical instrument stored on the device is ensured by ensuring the storage counter 6 to be more reliable, the medical instrument is prevented from being broken, the extending table 605 and the base 601 can be fixed through the bolt 607 by arranging the bolt 607 on one side of the base 601, the size of the storage counter 6 can be fixed in the using process of the device, the medical instrument is prevented from being damaged by sliding of the extending table 605 in the sliding groove 602 in the transferring process, the use reliability of the medical instrument transferring and storing device for nursing patients is further improved, the device is convenient to turn in the transferring process of the medical instrument by using the universal wheels 4, and the device is convenient to flexibly and conveniently move, thereby improving the flexibility of the medical instrument transferring and storing device for nursing patients, the supporting strength of the device to the storing counter 6 is higher by using the two supporting plates 5, the quality of the device is further improved, the service life of the device is prolonged, the supporting strength of the device to the storing counter 6 is further improved by using the back plate 501, meanwhile, the back plate 501 is connected with the two supporting plates 5, an independent space is formed between the back plate 501 and the two supporting plates 5, the medical instrument which is abandoned or polluted can be conveniently placed by nursing staff, the device can transfer and store the abandoned medical instrument, the environmental protection property of the device is improved, meanwhile, the medical instrument can be classified, transferred and stored by the independent space between the back plate 501 and the two supporting plates 5 and the storing counter 6, and the possibility of pollution of the medical instrument is reduced, the sanitary condition of the device for storing medical instruments is improved.

The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the embodiments and descriptions given above are only illustrative of the principles of the present invention, and various changes and modifications may be made without departing from the spirit and scope of the utility model, which fall within the scope of the claims. The scope of the utility model is defined by the appended claims and equivalents thereof.

Claims

1. A medical appliance transfer storage device for patient care, comprising a bottom plate (1), a support plate (5), a storage counter (6) and a handle (7), characterized in that: the bottom plate (1) is horizontal The two ends of the bottom plate (1) are welded with mounting plates (2), the two ends of the two mounting plates (2) are fixed with support rods (3), and the four support rods (3) Universal wheels (4) are installed on the bottom of the bottom plate (1), two support plates (5) are welded vertically on the top of the bottom plate (1), and storage counters (6) are horizontally fixed on the top of the two support plates (5). ), a handle (7) is fixed at one end of the storage counter (6);

The storage counter (6) includes a base (601), a table enclosure (604) and an extension table (605), the base (601) is fixed on the top of the two support plates (5), and the base (601) ), the extension table (605) and the table enclosure (604) have a "U"-shaped cross section, and the two ends of the abutment (601) are slidingly fitted with the extension table (605), and the two extension tables (605) a table enclosure (604) is fixed at one end away from the abutment (601);

The handle (7) is fixed at one end of one of the table enclosures (604) away from the base (601). The handle (7) includes a push rod (8), a handle (9) and a hinge (10). The push rod (8) is fixed at one end of the table enclosure (604), and the end of the push rod (8) away from the table enclosure (604) is hinged with a handle (9) through a hinge (10), and the handle (9) is in the shape of " U"-shaped structure, a rubber sleeve (11) is sleeved on the handle (9).

2. A medical appliance transfer and storage device for patient care according to claim 1, characterized in that the cross-section of the bottom plate (1) is a rectangular structure, and the bottom plate (1) and the two mounting plates (2) are integrally formed in the shape of a rectangle. "I"-shaped structure, the support rods (3) at both ends of the mounting plate (2) are arranged vertically.

3. A medical appliance transfer and storage device for patient care according to claim 1, characterized in that: the two support plates (5) are arranged in parallel, and the same end of the two support plates (5) is welded with a back For the plate (501), the bottom end of the back plate (501) is welded to the top of the bottom plate (1), and the top of the back plate (501) is welded to the base (601).

4. The device for transferring and storing medical appliances for patient care according to claim 1, wherein a chute (602) is provided at one end of the base (601), and the chute (602) runs through the base (601). ), the cross-section of the chute (602) is in a “U” shape, the size of the section of the extension table (605) is adapted to the size of the section of the chute (602), and the two extension tables (605) are slidably fitted on the slide At both ends of the groove (602), the two extension tables (605) are slidably fitted on both ends of the base table (601) through the sliding groove (602).

5. The device for transporting and storing medical appliances for patient care according to claim 4, characterized in that: both ends of the chute (602) are provided with blocks (603), and two extension platforms (605) A gusset plate (606) is welded to one end away from the table enclosure (604), the gusset plate (606) has a "U"-shaped structure, and the gusset plate (606) is buckled with the stopper (603).

6. A medical appliance transfer and storage device for patient care according to claim 1, characterized in that: a plurality of bolts (607) are provided on both sides of the base (601), and a plurality of bolts (607) It is threaded with the base (601), and one end of several bolts (607) is located in the chute (602).
