Abstract
本实用新型为一种园林用草坪绿化设备，包括行走车、切割刀盘和驱动机构，行走车的中心开设有通槽，通槽两侧设有滑轨，通槽内安装有承载板，承载板的两侧与滑轨滑动连接，驱动机构安装在承载板的底部，切割刀盘位于驱动机构的下方，切割刀盘与驱动机构连接，行走车顶部安装有固定架，固定架上安装有升降组件，升降组件与承载板连接，固定架一侧开设有通孔，通孔内穿设有调节杆，调节杆与通孔滑动连接，调节杆上设有刻度条，调节杆的底部与承载盘的顶部抵接，固定架侧壁安装有与调节杆卡接的固定机构，本装置无需反复进行观测调节，无需多人相互配合，只需一人即可完成切割机的高度调整，大大降低了劳动力，降低了调节难度，提高了修剪效率。
The utility model relates to a lawn greening equipment for gardens, which comprises a traveling carriage, a cutting cutter head and a driving mechanism. A through slot is formed in the center of the travelling carriage, sliding rails are arranged on both sides of the through slot, and a bearing plate is installed in the through slot to carry the load. The two sides of the plate are slidably connected with the sliding rails, the driving mechanism is installed at the bottom of the carrier plate, the cutting cutter head is located under the driving mechanism, the cutting cutter head is connected with the driving mechanism, a fixed frame is installed on the top of the traveling carriage, and a lifting and lowering frame is installed on the fixed frame. The lifting assembly is connected with the bearing plate, a through hole is opened on one side of the fixing frame, an adjustment rod is penetrated in the through hole, the adjustment rod is slidably connected with the through hole, the adjustment rod is provided with a scale bar, and the bottom of the adjustment rod is connected with the bearing plate The top of the cutting machine is abutted, and the side wall of the fixing frame is installed with a fixing mechanism that is clamped to the adjusting rod. This device does not need to repeat the observation and adjustment, and does not need multiple people to cooperate with each other. Only one person can complete the height adjustment of the cutting machine, which greatly reduces the labor force. , reducing the adjustment difficulty and improving the pruning efficiency.
Description
Technical Field
The utility model belongs to the technical field of garden weeding, and particularly relates to lawn greening equipment for gardens.
Background
The weeding machine is also called as a mower, a lawn trimmer and the like. The weeding machine is a mechanical tool for trimming lawns, vegetations and the like, saves the operation time of weeding workers and reduces a large amount of human resources. According to the high demand of lawn mowing, need carry out height control to the cutting machine of weeding device, most of weeding devices need adjust the height of cutting machine on one side, observe the height indicator strip on one side, need alone to adjust even a bit, alone observe, and the operation is very inconvenient, is unfavorable for one-man operation.
Disclosure of Invention
Therefore, the lawn greening equipment for the gardens provided by the utility model does not need to be repeatedly observed and adjusted, does not need to be matched by multiple persons, can complete the height adjustment of the cutting machine by only one person, greatly reduces the labor force, reduces the adjusting difficulty and improves the trimming efficiency.
The technical scheme of the utility model is realized as follows:
the utility model provides lawn greening equipment for gardens, which comprises a walking vehicle, a cutting disc and a driving mechanism, wherein the center of the walking vehicle is provided with a through groove, two sides of the through groove are provided with slide rails, a bearing plate is arranged in the through groove, two sides of the bearing plate are slidably connected with the slide rails, the driving mechanism is arranged at the bottom of the bearing plate, the cutting disc is positioned below the driving mechanism, the cutting disc is connected with the driving mechanism, the top of the walking vehicle is provided with a fixed frame, the fixed frame is provided with a lifting assembly, the lifting assembly is connected with the bearing plate, one side of the fixed frame is provided with a vertical through hole, an adjusting rod is arranged in the through hole in a penetrating manner and is slidably connected with the through hole, the adjusting rod is provided with a scale strip, the bottom of the adjusting rod is abutted against the top of the bearing plate, and the side wall of the fixed frame is provided with a fixing mechanism which is connected with the adjusting rod in a clamping manner.
Preferably, the lifting assembly comprises a screw rod and a rotating handle, a threaded hole is formed in the center of the fixing frame, the screw rod is in threaded connection with the threaded hole, the bottom of the screw rod is rotatably connected with the top of the bearing plate, and the rotating handle is installed at the top of the screw rod.
Preferably, the driving mechanism is a driving motor, the driving motor is installed at the bottom of the bearing plate, and the cutting cutter disc is connected with an output shaft of the driving motor.
Preferably, the fixing mechanism is a fixing bolt, the fixing bolt is in threaded connection with the side wall of the fixing frame, and the inner end of the fixing bolt is abutted against the side wall of the adjusting rod.
Preferably, the walking vehicle is a trolley.
Preferably, a shielding plate is installed at the bottom of the walking vehicle and is located behind the cutting cutter disc.
Compared with the prior art, the utility model has the beneficial effects that:
the utility model provides lawn greening equipment for gardens, which is characterized in that according to the actual required height limit of a lawn, an adjusting rod is lifted until a scale mark exposed on the top surface of a fixing frame is the same as the height limit of the lawn, the adjusting rod is fixed by a fixing mechanism, and a bearing plate and a cutting cutter disk are lifted upwards by a lifting assembly until the top of the bearing plate is abutted against the bottom of the adjusting rod, so that the height adjustment of the cutting cutter disk can be completed. The scale strip need not to survey repeatedly, also need not many people and mutually supports, only needs alone to accomplish, greatly reduced the labour, reduced the regulation degree of difficulty, improved pruning efficiency.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings needed to be used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only preferred embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without inventive exercise.

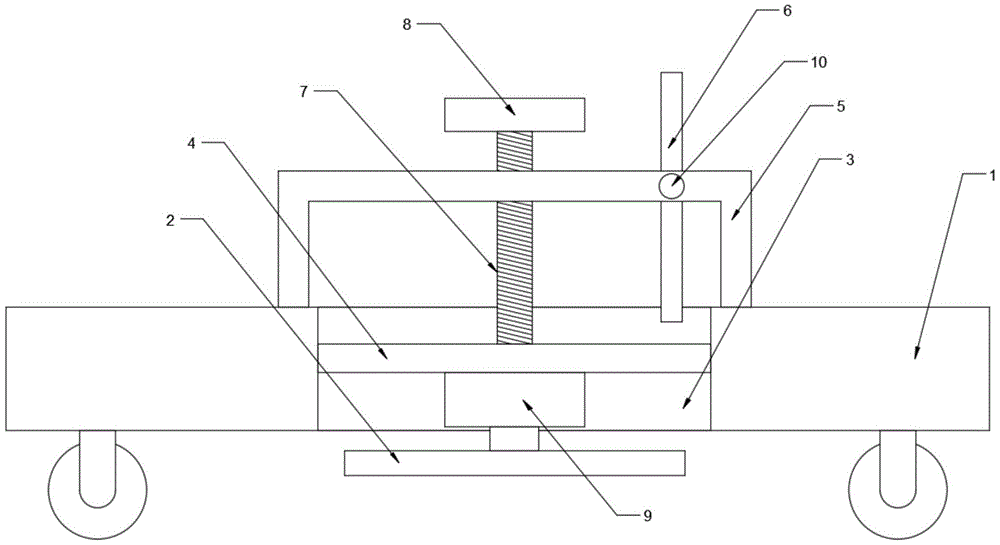

FIG. 1 is a schematic structural diagram according to a first embodiment of the present invention;
fig. 2 is a schematic structural diagram of a second embodiment of the present invention.
In the figure, a walking vehicle 1, a cutting knife disc 2, a through groove 3, a bearing plate 4, a fixing frame 5, an adjusting rod 6, a screw rod 7, a rotating handle 8, a driving motor 9, a fixing bolt 10 and a shielding plate 11 are arranged.
Detailed Description
In order to better understand the technical content of the utility model, specific embodiments are provided below, and the utility model is further described with reference to the accompanying drawings.
Example one
Referring to fig. 1, the utility model provides lawn greening equipment for gardens, which comprises a walking vehicle 1, a cutting blade disc 2 and a driving mechanism, wherein the center of the walking vehicle is provided with a through groove 3, two sides of the through groove 3 are provided with slide rails, a bearing plate 4 is arranged in the through groove 3, two sides of the bearing plate 4 are slidably connected with the slide rails, the driving mechanism is arranged at the bottom of the bearing plate 4, the cutting blade disc 2 is positioned below the driving mechanism, the cutting blade disc 2 is connected with the driving mechanism, the top of the walking vehicle is provided with a fixing frame 5, the fixing frame 5 is provided with a lifting assembly, the lifting assembly is connected with the bearing plate 4, one side of the fixing frame 5 is provided with a vertical through hole, an adjusting rod 6 is arranged in the through hole in a penetrating manner, the adjusting rod 6 is slidably connected with the through hole, and the adjusting rod 6 is provided with a scale strip, the bottom of adjusting pole 6 with bear the top butt of dish, 5 lateral walls of mount install with adjust the fixed establishment of 6 joints of pole.
The driving mechanism and the cutter disc 2 are driven by the walking vehicle 1 to move, the cutter disc 2 trims and cuts the lawn, the height of the lawn is controlled within a specified range, and the attractiveness of the lawn is kept. The lifting component drives the carrying plate to move up and down along the sliding rail, the carrying plate drives the driving mechanism and the cutter head 2 to move up and down, thereby adjusting the height of the cutter disc 2 according to the trimming size, when the cutter disc 2 is contacted with the ground, the bottom of the adjusting rod 6 is abutted against the top of the bearing plate 4, at the moment, the zero scale mark on the adjusting rod 6 is flush with the top surface of the fixing frame 5, the scale values on the scale bars are sequentially lifted downwards along the zero scale mark, according to the actual required height limit of the lawn, the adjusting rod 6 is lifted until the scale mark exposed on the top surface of the fixing frame 5 is the same as the height limit of the lawn, the adjusting rod 6 is fixed by the fixing mechanism, at the moment, the distance between the adjusting rod 6 and the bearing plate 4 is equal to the height limit of the lawn, the bearing plate 4 and the cutter disc 2 are lifted upwards through the lifting assembly until the top of the bearing plate 4 is abutted against the bottom of the adjusting rod 6, and the height adjustment of the cutter disc 2 is completed. This device is when carrying out the altitude mixture control to cutting blade disc 2, adjusts earlier the position of adjusting pole 6 and fixes, and the adjustment can be accomplished with loading board 4 and 6 butts of regulation pole to rethread lifting unit, need not to survey the scale strip repeatedly, also need not many people and mutually supports, only needs alone to accomplish, greatly reduced the labour, reduced the regulation degree of difficulty, improved pruning efficiency.
The lifting assembly comprises a screw rod 7 and a rotating handle 8, a threaded hole is formed in the center of the fixing frame 5, the screw rod 7 is in threaded connection with the threaded hole, the bottom of the screw rod 7 is rotatably connected with the top of the bearing plate 4, and the rotating handle 8 is installed at the top of the screw rod 7. The screw rod 7 is driven to rotate by rotating the rotating handle 8, and the screw rod 7 drives the bearing plate 4 and the cutting cutter disc 2 to lift, so that the height of the cutting cutter disc 2 is adjusted.
Actuating mechanism is driving motor 9, driving motor 9 installs the bottom of loading board, cutting blade disc 2 with driving motor 9's output shaft, driving motor 9 is connected with external power supply electricity, can install the battery additional on walking car 1 and supply power for driving motor 9, drives cutting blade disc 2 through driving motor 9 and rotates, cuts the lawn and prunes.
The fixing mechanism is fixing bolt 10, fixing bolt 10 with the lateral wall threaded connection of mount 5, fixing bolt 10 the inner with adjust the lateral wall butt of pole 6, adjust pole 6 and accomplish the altitude mixture control after, rotate fixing bolt 10 until its inner with adjust pole 6 butt, exert pressure through fixing bolt 10 to the lateral wall of adjusting pole 6, realize the fixed effect to adjusting pole 6.
Example two
Referring to fig. 2, the present embodiment is different from the first embodiment in that the traveling vehicle 1 is a handcart.
Baffle 11 is installed to the bottom of walking car 1, baffle 11 is located the rear of cutting blade disc 2 carries out the small-amplitude adjustment through the handcart convenience to the cutting scope, and the lawn receives the cutting back, and the weeds that fall can receive centrifugal force and outwards throw away, shelters from this part of weeds through baffle 11, avoids weeds to get rid of the foot that flies to the operation personnel.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, and any modifications, equivalents, improvements and the like that fall within the spirit and principle of the present invention are intended to be included therein.
