CN215298833U

CN215298833U - Saxophone

Info

Publication number: CN215298833U
Application number: CN202121306503.3U
Authority: CN
Inventors: 崔明洛
Original assignee: Dongguan Santeyi Electronics Co ltd
Current assignee: Dongguan Santeyi Electronics Co ltd
Priority date: 2021-06-11
Filing date: 2021-06-11
Publication date: 2021-12-24
Anticipated expiration: 2031-06-11

Abstract

The utility model discloses a saxophone, comprising a saxophone main body, a mouthpiece, a loudspeaker and a tuning member; the saxophone main body is a straight pipe; the top of the saxophone main body is provided with a mouthpiece, and the end is provided with a loudspeaker; A tuning hole is arranged on the saxophone main body, and a tuning member acting on the tuning hole is detachably installed on the saxophone body. By adding a tuning piece to the main body of the saxophone, the utility model can change the timbre of the saxophone according to the weight of the gas. It is closed, there will be no noise, and there are hooks to help players share the weight of the saxophone. The shape is unique, the overall structure is simple, the installation is convenient, the function is strong, and the practicability is strong. It provides a good practice equipment for saxophone enthusiasts. Can be used at home and outdoors.

Description

Saxophone

Technical Field

The utility model relates to a musical instrument technical field, more specifically the saying so relates to a saxophone.

Background

Saxophone is one of the tube-shaped musical instruments, and is one of the indispensable musical instruments in the large ensemble at the present stage, because the timbre of the saxophone is rich and is popular with the masses, and whether the playing intonation of saxophone is accurate depends on the application of the breath and the change of fingering, so that the breath and the fingering need to be trained and controlled when the saxophone is played. The tuning piece is an auxiliary device of the musical instrument, is mainly used for adjusting the tone of the saxophone, and the good tone is an important target pursued by the saxophone player. Therefore, it is necessary to provide a saxophone capable of changing the tone color.

SUMMERY OF THE UTILITY MODEL

In view of the above, the present invention provides a saxophone.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the saxophone comprises a saxophone body, a flute head, a loudspeaker and a tuning piece; the saxophone main body is a straight pipe; the top end of the saxophone main body is provided with a flute head, and the tail end of the saxophone main body is provided with a loudspeaker; the saxophone body is provided with a tone adjusting hole, and a tone adjusting piece acting on the tone adjusting hole is detachably mounted on the saxophone body.

In a further technical scheme, the tone adjusting hole is formed in the side face of the saxophone and is communicated with the inside of the saxophone body; the tuning piece can be rotatably assembled on the saxophone main body, and the tuning piece can be quickly disassembled and assembled. In a further technical scheme, a loudspeaker is sleeved at the bottom of the saxophone body.

In a further technical scheme, the tuning piece comprises: the first movable block, the second movable block and the ring at the bottom; the first movable block acts on the sound adjusting hole, and the second movable block provides acting force of the first movable block acting on the sound adjusting hole; in the using process, the automatic opening and closing is realized; the increase of the ring has improved the firm of tuning piece, not only makes the tuning piece can not drop on the saxophone main part, can also beautify the outward appearance.

In a further technical scheme, a movable cap is arranged on the first movable block; the second movable block is provided with a connecting sleeve/connecting lug, and the second movable block is rotatably connected with the saxophone main body through the connecting sleeve/connecting lug.

In a further technical scheme, the saxophone body is provided with an installation block, and the installation block is connected with a connecting sleeve/a connecting lug of the second movable block through a pivoting shaft in a flip-type manner.

In a further technical scheme, a decorative plate is arranged on the saxophone body to increase one point of recognition of the saxophone.

In a further technical scheme, the saxophone body is made of metal.

Known through foretell technical scheme, compare with prior art, the utility model discloses following beneficial technological effect has: the utility model discloses an add the tuning piece in the saxophone main part, can change the tone quality of saxophone according to the light and heavy of gas, when blowing heavily for the flute head, can flick the tuning piece, and can not influence the closure of saxophone yet, the noise can not appear, still be equipped with the weight that the couple helps the player to share saxophone, the molding is unique, overall structure is simple, simple to operate, functional stronger, therefore, the clothes hanger is strong in practicability, provide good rehearsal equipment for the saxophone fan, at home, outdoor all can use.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings required to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the provided drawings without creative efforts.

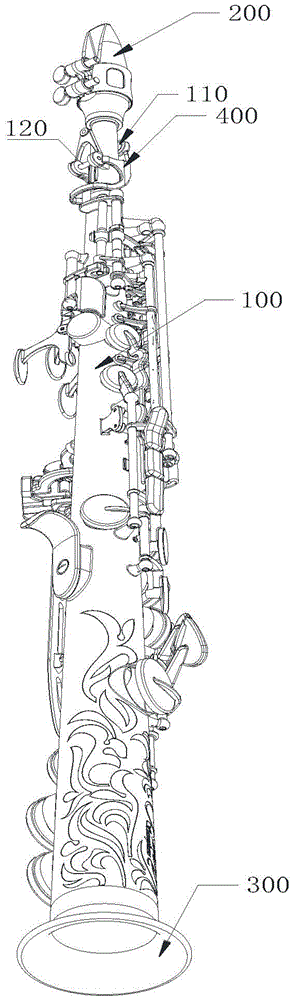

Fig. 1 is a schematic structural diagram of the present invention.

Fig. 2 is a schematic side view of the present invention.

Fig. 3 is a schematic structural diagram of the middle tuning piece of the present invention.

Detailed Description

The present invention will now be described in further detail with reference to the accompanying drawings. These drawings are simplified schematic views illustrating only the basic structure of the present invention in a schematic manner, and thus show only the constitution related to the present invention. In the description of the present application, it is to be understood that the terms "longitudinal," "radial," "length," "width," "thickness," "upper," "lower," "left," "right," "front," "rear," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientation or positional relationship indicated in the drawings for convenience in describing the present application and for simplicity of description, and are not intended to indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the present application. In the description of the present application, "a plurality" means two or more unless otherwise specified.

In the description of the present application, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present application can be understood in a specific case by those of ordinary skill in the art.

A saxophone, please refer to fig. 1-3, which comprises a saxophone body 100, a flute head 200, a speaker 300 and a tuning piece 400.

The saxophone body 100 is a straight tube, and the material of the straight tube is usually made of metal, and is not limited herein. The side surface of the saxophone body 100 is provided with the tuning hole 110, and the tuning hole 110 is communicated with the inside of the saxophone body 100; the tuning piece 110 is rotatably assembled on the saxophone body 100, and the other side of the saxophone body is provided with a mounting block 120 for mounting the tuning piece 400; the bottom of the saxophone body 100 is sleeved with a loudspeaker 300; the flute head 200 is directly inserted into the top of the saxophone body 100; the saxophone body 100 is provided with a decorative plate (not shown).

Referring to fig. 3, the tuning member 400 includes a first movable block 410, a second movable block 420 and a bottom ring 430; the tuning piece 400 is an integral body, cannot be disassembled, and can be automatically opened and closed in the using process; the addition of the ring 430 improves the stability of the tuning piece 400, not only prevents the tuning piece 400 from falling off from the saxophone body 100, but also beautifies the appearance; the first movable block 410 is provided with a movable cap 411; the second movable block 420 is provided with a connecting sleeve/connecting lug 421; the mounting block 120 of the saxophone body 100 is connected with the connecting sleeve/lug 421 of the second movable block 420 through a pivoting shaft in a flip-type manner; the movable cap 411 of the first movable block 410 is fastened to the tone adjusting hole 110 of the saxophone body 100.

When in use, a player blows air to the flute head 200, so that the air reaches the sound adjusting hole 110 without a sealing cover through the saxophone body 100, and the movable cap 411 buckled on the first movable block 410 of the sound adjusting hole 110 is pushed open, thereby achieving the purpose of changing the tone; the first movable block 410 acts on the tuning hole 110, and the second movable block 420 provides the acting force of the first movable block 410 acting on the tuning hole 100; meanwhile, when the movable cap 411 is pushed open, the connecting sleeve/lug 421 on the second movable block 420 is connected to the mounting block 120 through the pivoting shaft flip-type cover, so that the second movable block 420 moves along with the connecting sleeve/lug.

When the player is not in use, the player grips the saxophone in such a manner that the saxophone is inclined with respect to the human body, the second movable block 420 is located at the lower position, and the player stops blowing, that is, the movable cap 411 is not forced to be pushed outward, and the second movable block 420 falls downward under the influence of gravity, and is linked with the first movable block 410 to be fastened in the direction of the sound control hole 110 without the cover.

The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.

Claims

1. A saxophone, characterized by: the saxophone comprises a saxophone body, a flute head, a loudspeaker and a tuning piece;

the saxophone main body is a straight pipe;

the top end of the saxophone main body is provided with a flute head, and the tail end of the saxophone main body is provided with a loudspeaker;

the saxophone body is provided with a tone adjusting hole,

and a tuning piece acting on the tuning hole is detachably arranged on the saxophone body.

2. A saxophone according to claim 1, characterised in that: the side surface of the saxophone is provided with the tone adjusting hole which is communicated with the inside of the saxophone body; the tuning piece can be rotatably assembled on the saxophone main body.

3. A saxophone according to claim 2, characterised in that: the bottom of the saxophone body is sleeved with a loudspeaker.

4. A saxophone according to claim 1, characterised in that: the tuning piece includes: the first movable block, the second movable block and the ring at the bottom; the first movable block acts on the sound adjusting hole, and the second movable block provides acting force of the first movable block acting on the sound adjusting hole.

5. A saxophone according to claim 4, characterised in that: the first movable block is provided with a movable cap; the second movable block is provided with a connecting sleeve/connecting lug, and the second movable block is rotatably connected with the saxophone main body through the connecting sleeve/connecting lug.

6. A saxophone according to any of claims 1-5, characterised in that: the saxophone body is provided with a mounting block, and the mounting block is connected with the connecting sleeve/connecting lug of the second movable block through a pivoting shaft in a flip-type manner.

7. A saxophone according to claim 2, characterised in that: the saxophone body is provided with a decorative plate.

8. A saxophone according to claim 7, characterised in that: the saxophone body is made of metal.
