Abstract

The utility model relates to a sewage treatment plant technical field especially relates to a centrifugal sewage treatment plant. The to-be-solved technical problem of the utility model is a high-efficient centrifugal sewage treatment plant causes the phenomenon of jam to the centrifugal apopore on the centrifugation bucket easily, and the inconvenient dismantlement is rinsed down the centrifugation bucket. In order to solve the technical problem, the utility model provides a centrifugal sewage treatment plant, the on-line screen storage device comprises a base, the first pillar of top fixedly connected with of base, the second pillar has been cup jointed in the inside activity of first pillar, outer bucket of one side fixedly connected with of second pillar, the top screwed connection of outer bucket has the bung, the top fixed mounting of bung has the motor, through setting up filter-tank and scraper blade, prevents that interior bucket from being blockked up when handling sewage, reduces sewage treatment efficiency, has realized the quick dismantlement to interior bucket through bung, draw-in groove etc. more makes things convenient for the cleanup crew to clean it.

Description

Centrifugal sewage treatment plant
Technical Field
The utility model relates to a sewage treatment plant technical field specifically is a centrifugal sewage treatment plant.
Background
The modern wastewater treatment method is mainly divided into three types, namely a physical treatment method, a chemical treatment method and a biological treatment method, and the physical treatment method is a wastewater treatment method for separating and recovering pollutants which are not dissolved in the wastewater and are in a suspended state through physical action and can be divided into a gravity separation method, a centrifugal separation method, a sieve filtration interception method and the like.
The prior patent (publication number: CN210481021U) discloses a high-efficient centrifugal sewage treatment plant, which comprises a motor, the bottom mounting of motor has the stirring pivot, the outer skin weld of stirring pivot has the stirring rake, the filter screen is installed to the top of stirring rake, the main part top cap is installed to the below of motor, the inside interlude of main part top cap has the inlet channel, the inlet tube apron is installed to the upper end of inlet channel, the bottom welding of inlet channel has centrifugal bucket apron, the inside of centrifugal bucket apron is provided with the water inlet, the water inlet has two, install ball bearing in the middle of two water inlets, the below installation sealing washer of centrifugal bucket apron, the centrifugal bucket ladle body is installed to the below of sealing washer. The inventor finds that the following problems in the prior art are not solved well in the process of realizing the scheme: 1. the device is easy to block a centrifugal water outlet hole on a centrifugal barrel in the centrifugal process, so that the efficiency is reduced when sewage is filtered; 2. the device is through watering to the centrifugation bucket, cleans its inside, and the inconvenient centrifugation bucket that dismantles washs down, and clean effect is poor.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a centrifugal sewage treatment plant, solved a high-efficient centrifugal sewage treatment plant and caused the phenomenon of jam to the centrifugal apopore on the centrifugation bucket easily, inconvenient dismantlement is rinsed the centrifugation bucket down.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the centrifugal sewage treatment device comprises a base, wherein a first supporting column is fixedly connected to the top of the base, a second supporting column is movably sleeved inside the first supporting column, an outer barrel is fixedly connected to one side of the second supporting column, a barrel cover is spirally connected to the top of the outer barrel, a motor is fixedly mounted at the top of the barrel cover, a stirring shaft is fixedly connected to a machine shaft of the motor, a mounting plate is fixedly mounted at one side of the stirring shaft, scraping plates are fixedly mounted on two sides of the mounting plate, a filter tank is fixedly mounted at the bottom of the barrel cover, an inner barrel is fixedly connected to one side of the filter tank, clamping blocks are fixedly connected to two sides of the inner barrel, water pipes are fixedly connected to two sides of the outer barrel, a water tank is fixedly connected to one end of each water pipe, and the bottom of each water tank is fixedly mounted on the base.
Further preferably, a spring is fixedly mounted at the bottom of the inner wall of the first support column, and one end of the spring is fixedly mounted at the bottom of the second support column.
Preferably, the stirring shaft is fixedly connected with a stirring blade, and one side of the stirring blade is provided with a flow guide hole.
Further preferably, one side of the scraper is provided with fluff, and one side of the scraper is tightly attached to the inner wall of the inner barrel.
Further preferably, a fixing seat is fixedly connected to the inner wall of the outer barrel, a clamping groove is formed in one side of the fixing seat, and the clamping blocks correspond to the clamping grooves one to one.
Preferably, a water inlet and a hanging ring are fixedly mounted on two sides of the top of the barrel cover.
(III) advantageous effects
The utility model provides a centrifugal sewage treatment plant possesses following beneficial effect:
(1) this centrifugal sewage treatment plant is through setting up filter-tank and scraper blade, prevent that interior bucket from being blockked up when handling sewage, reduce sewage treatment efficiency, pending sewage gets into interior bucket from the water inlet in, the impurity of great granule is filtered by the filter-tank, starter motor, (mixing) shaft begins to rotate, under the high-speed centrifugation, water and impurity separation, water flows out from the through-hole of interior bucket, and impurity stays interior bucket, and during the rotation, the scraper blade lightly brushes interior bucket inner wall, prevents that it from being blockked up by impurity and influencing the velocity of water.
(2) This centrifugal sewage treatment plant has realized the quick dismantlement to interior bucket through bung, draw-in groove etc. more makes things convenient for the cleanup crew to clean it, and when dismantling to interior bucket, the rings are held to the staff, rotates the bung, and the fixture block separates with the draw-in groove, draws the bung to take out interior bucket to lifting, and the screw of fixed filter tank and interior bucket is down soon, can wash and fall the material to interior bucket and filter tank respectively.
Drawings

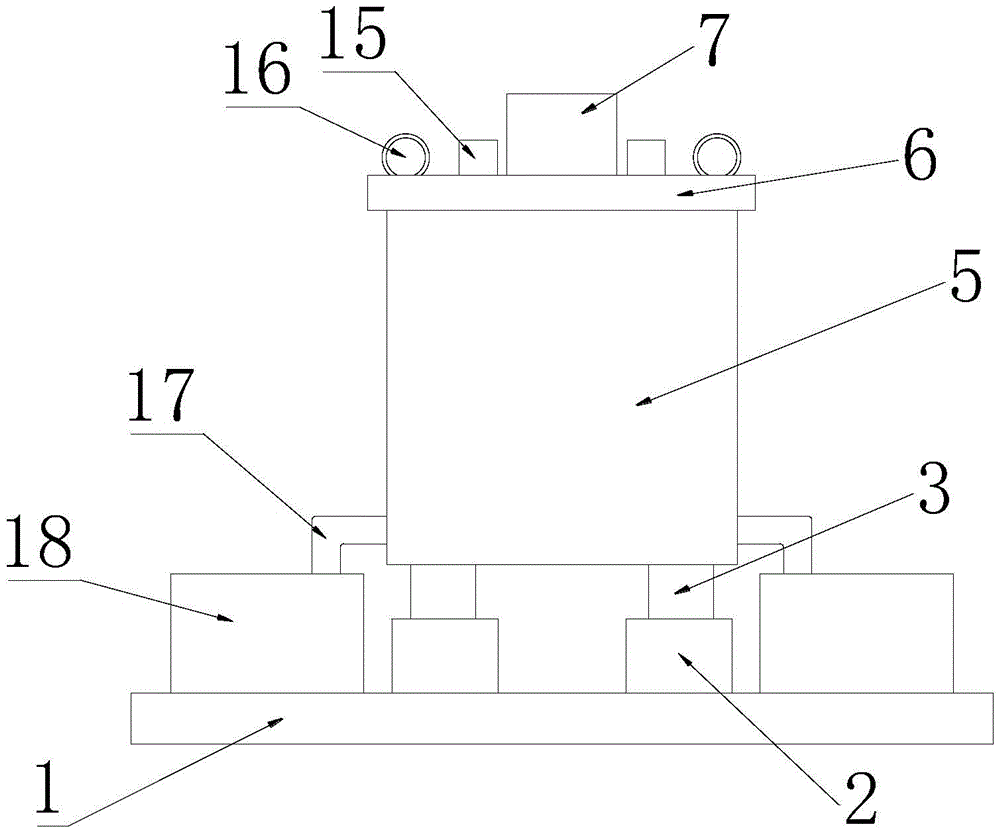

Fig. 1 is a front view of the present invention;
FIG. 2 is a main sectional view of the present invention;
fig. 3 is a schematic structural view of the inner barrel of the present invention.
In the figure: the device comprises a base 1, a first support 2, a second support 3, a spring 4, an outer barrel 5, a barrel cover 6, a motor 7, a stirring shaft 8, a stirring blade 9, a mounting plate 10, a scraping plate 11, a filtering tank 12, an inner barrel 13, a clamping block 14, a water inlet 15, a lifting ring 16, a water pipe 17, a water tank 18 and a fixing seat 19.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a centrifugal sewage treatment device comprises a base 1, a first supporting column 2 is fixedly connected to the top of the base 1, a second supporting column 3 is movably sleeved inside the first supporting column 2, a spring 4 is fixedly installed at the bottom of the inner wall of the first supporting column 2, one end of the spring 4 is fixedly installed at the bottom of the second supporting column 3, the spring 4 is added, vibration when sewage enters an inner barrel 13 is reduced, the stability of a protection device is improved, an outer barrel 5 is fixedly connected to one side of the second supporting column 3, a barrel cover 6 is spirally connected to the top of the outer barrel 5, the barrel cover 6 and the outer barrel 5 are connected through a spiral manner, the disassembly is convenient, a motor 7 is fixedly installed at the top of the barrel cover 6, a stirring shaft 8 is fixedly connected to a shaft of the motor 7, a stirring blade 9 is fixedly connected to the stirring shaft 8, a flow guide hole is formed in one side of the stirring blade 9, the motor 7 is started, the stirring blade 9 starts to stir sewage, water and impurities in the water are separated, the water-saving stirring device is characterized in that a diversion hole is formed to accelerate the speed of stirring water flow, a mounting plate 10 is fixedly mounted on one side of a stirring shaft 8, scraping plates 11 are fixedly mounted on two sides of the mounting plate 10, a filtering tank 12 is fixedly mounted at the bottom of a barrel cover 6, the filtering tank 12 is used for primarily filtering the entered sewage, an inner barrel 13 is fixedly connected to one side of the filtering tank 12, a through hole is formed in the side wall of the inner barrel 13, one side of each scraping plate 11 is provided with soft hair, one side of each scraping plate 11 is tightly attached to the inner wall of the inner barrel 13, when a motor 7 rotates, the scraping plates 11 lightly scrape the inner wall of the inner barrel 13 to prevent impurities in water from blocking the through hole in the inner barrel 13, clamping blocks 14 are fixedly connected to two sides of the inner barrel 13, a fixing seat 19 is fixedly connected to the inner wall of the outer barrel 5, clamping grooves are formed in one-to-one correspondence of the clamping blocks 14, when the barrel cover 6 is rotated to be connected with the outer barrel 5, the clamping grooves 14 enter the clamping grooves to reduce the bearing force of the inner barrel 13, the screwing direction of the barrel cover 6 and the outer barrel 5 is consistent with the rotating direction of the motor 7, a water inlet 15 and a hanging ring 16 are fixedly mounted on two sides of the top of the barrel cover 6, water pipes 17 are fixedly connected to two sides of the outer barrel 5, a water tank 18 is fixedly connected to one end of each water pipe 17, and the bottom of each water tank 18 is fixedly mounted on the base 1.
The working principle is as follows: during the use, pending sewage gets into interior bucket 13 from water inlet 15 in, the impurity of great granule is filtered by filter tank 12, starter motor 7, (mixing) shaft 8 begins to rotate, under the high-speed centrifugation, water and impurity separation, water flows from the through-hole of interior bucket 13, interior bucket 13 is stayed to impurity, when rotating, interior bucket 13 inner wall is brushed lightly to scraper blade 11, prevent its jam, when dismantling interior bucket 13, rings 16 are held to the staff, rotate bung 6, fixture block 14 and draw-in groove separation, upwards pull bung 6 and take out interior bucket 13, screw down fixed filter tank 12 and interior bucket 13, can wash and fall the material interior bucket 13 and filter tank 12 respectively, it is this the utility model discloses an theory of operation.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention.

Claims (6)

1. The utility model provides a centrifugal sewage treatment plant, includes base (1), its characterized in that: the top of the base (1) is fixedly connected with a first support column (2), a second support column (3) is movably sleeved inside the first support column (2), an outer barrel (5) is fixedly connected to one side of the second support column (3), a barrel cover (6) is spirally connected to the top of the outer barrel (5), a motor (7) is fixedly installed at the top of the barrel cover (6), a stirring shaft (8) is fixedly connected to a machine shaft of the motor (7), a mounting plate (10) is fixedly installed at one side of the stirring shaft (8), scraping plates (11) are fixedly installed at two sides of the mounting plate (10), a filter tank (12) is fixedly installed at the bottom of the barrel cover (6), an inner barrel (13) is fixedly connected to one side of the filter tank (12), clamping blocks (14) are fixedly connected to two sides of the inner barrel (13), and water pipes (17) are fixedly connected to two sides of the outer barrel (5), one end of the water pipe (17) is fixedly connected with a water tank (18), and the bottom of the water tank (18) is fixedly installed on the base (1).
2. A centrifugal sewage treatment plant according to claim 1, characterized in that: the inner wall bottom fixed mounting of first pillar (2) has spring (4), the one end fixed mounting of spring (4) is in the bottom of second pillar (3).
3. A centrifugal sewage treatment plant according to claim 1, characterized in that: stirring leaf (9) is fixedly connected to stirring shaft (8), the water conservancy diversion hole has been seted up to one side of stirring leaf (9).
4. A centrifugal sewage treatment plant according to claim 1, characterized in that: one side of the scraper (11) is provided with fluff, and one side of the scraper (11) is tightly attached to the inner wall of the inner barrel (13).
5. A centrifugal sewage treatment plant according to claim 1, characterized in that: the inner wall of the outer barrel (5) is fixedly connected with a fixing seat (19), one side of the fixing seat (19) is provided with a clamping groove, and the clamping blocks (14) correspond to the clamping grooves one to one.
6. A centrifugal sewage treatment plant according to claim 1, characterized in that: both sides of the top of the barrel cover (6) are fixedly provided with a water inlet (15) and a hanging ring (16).
